Install this pre bent 2004 transmission cooler line set in no time!
Stainless Steel EZ Install Transmission Line Set Jeep Wrangler 2004 w/4 Spd Auto w/Threaded Fittings at Transmission End for 4.0L engines only!
Please Note: Original equipment Jeep Wrangler Transmission Cooler Line Installation requires removal of the catalytic converters and exhaust. This LinesToGo Part has been redesigned to avoid this removal, making a difficult and time consuming job, a whole lot easier and faster. Labor savings is 1-2 hours.
OEM Part Number: 55037624AF

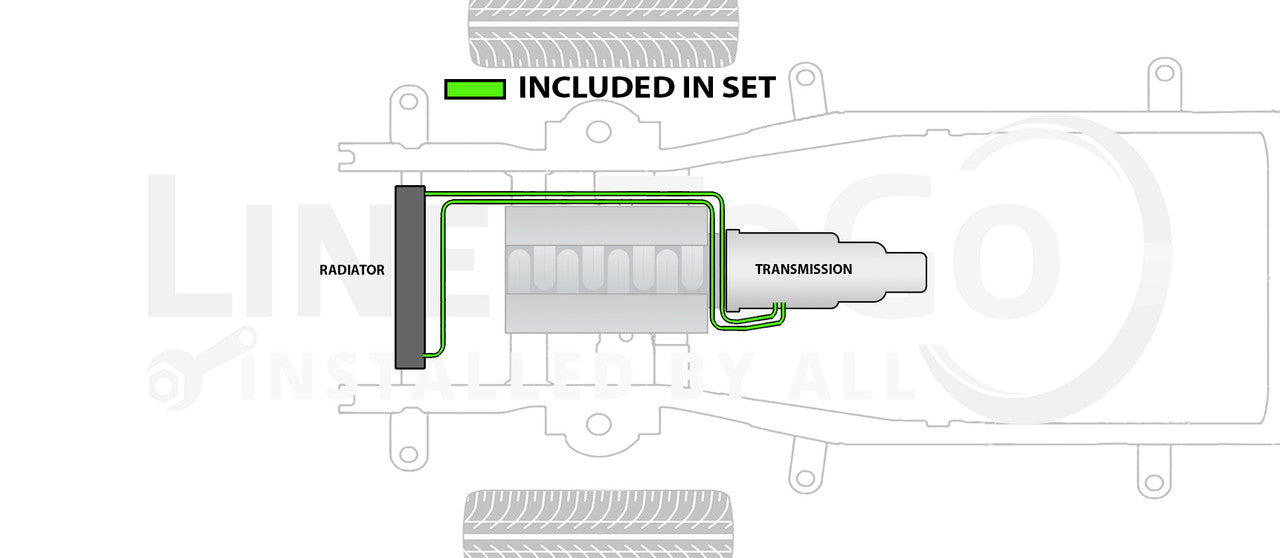

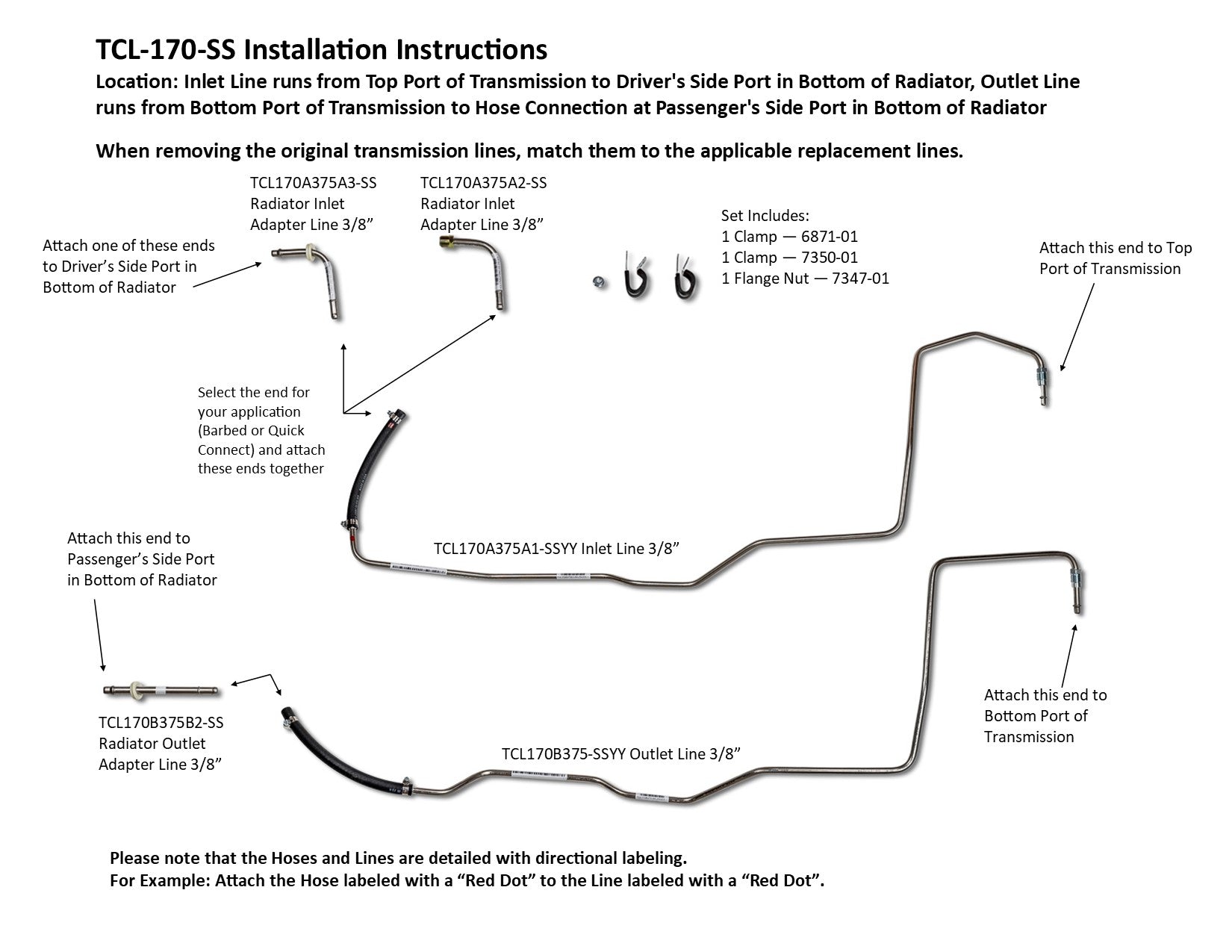

Location: Inlet Line runs from Top Port of Transmission to Hose Connection of TCL170A375A2-SS, Inlet Line runs from TCL170A375A1-SS to Driver's Side Port in Bottom of Radiator, Outlet Line runs from Bottom Port of Transmission to Hose Connection at Passenger's Side Port in Bottom of Radiator
How to use a Quick Disconnect Tool (see related products if needed):

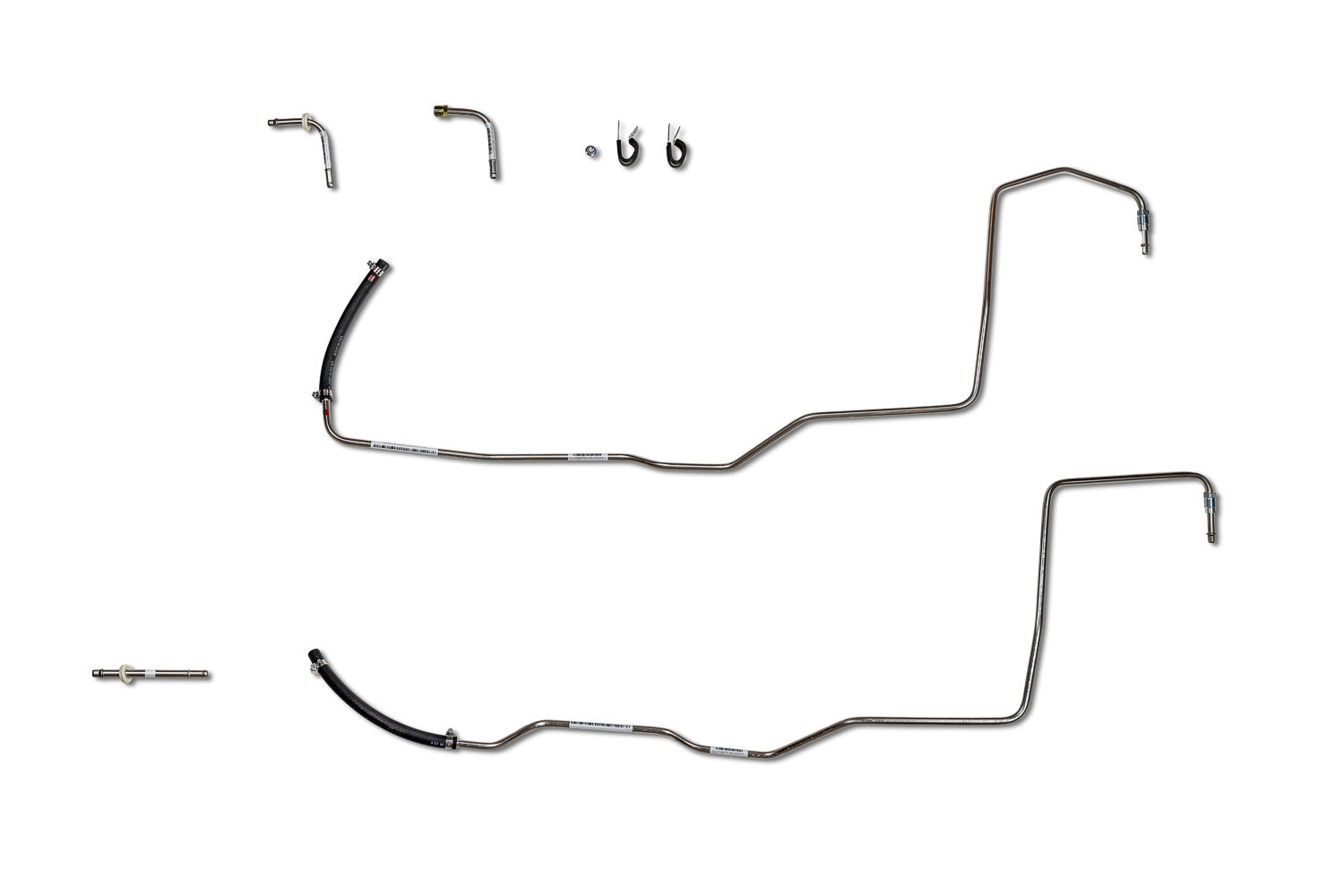

Included in Set: 1 Inlet Line 3/8" (in 2 easy to install sections), 1 Outlet Line 3/8"

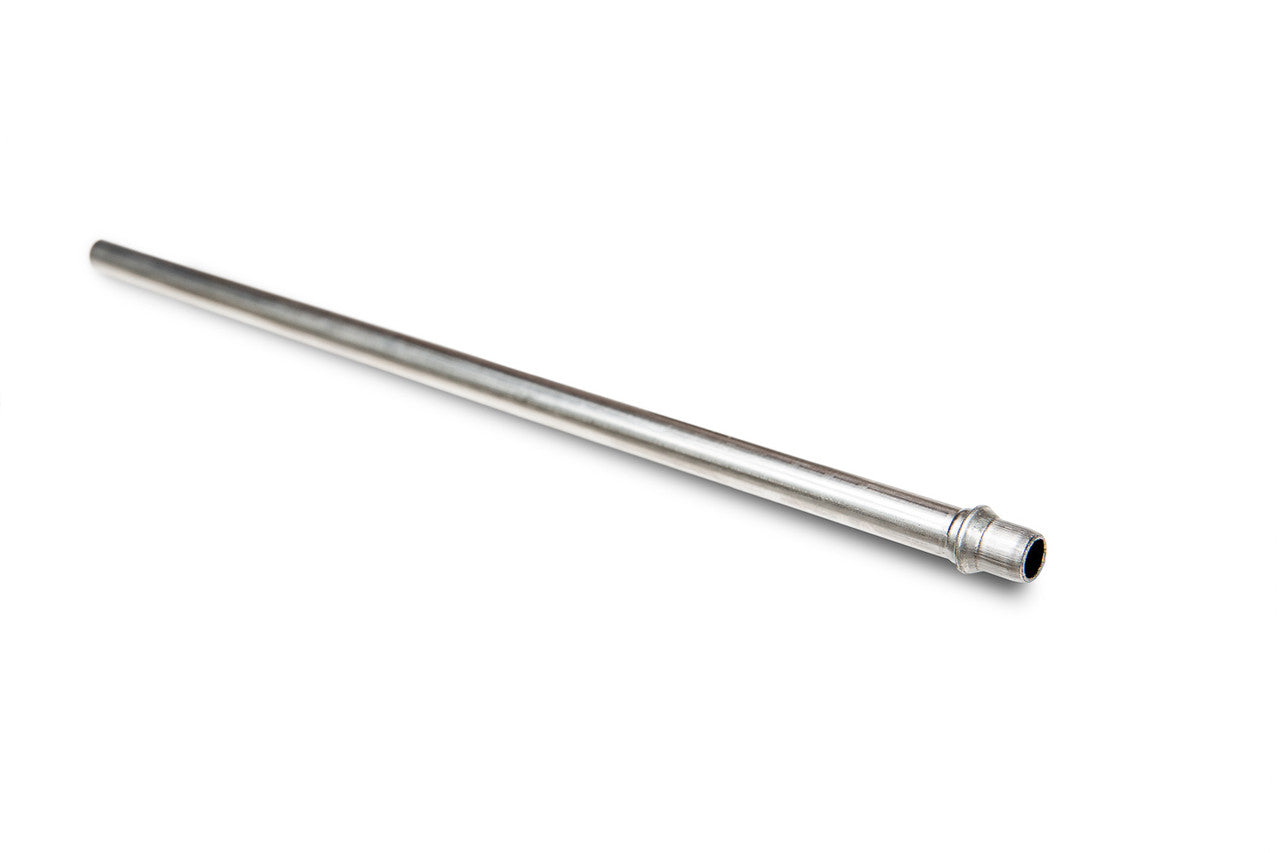

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Warranty: 1 Year
Box Dimensions: 46" x 11" x 7"
