Name: Cadillac Escalade 1500 Transmission Line Set 2005 w/HD Cooling RPO Code KNP TCL-122-1D
Brand: Lines - To - Go
SKU: TCL-122-1D
Price: 134.95 USD
Availability: InStock

Year Make & Model

Cadillac Escalade 1500 Transmission Line Set 2005 w/HD Cooling RPO Code KNP TCL-122-1D

Price

SALE:

Save $33.74

Delivery Time & Rates

Install this pre bent 2005 transmission cooler line set in no time!

Transmission Cooler Line Cadillac Escalade 1500 2005 6.0L Set w/HD Cooling RPO Code KNP w/o MT1/ 4L80-E

SKU: TCL-122-1D

Weight: 4
Installation Instructions

Box Dimensions 46" x 11" x 7"

Product Warranty 1 Year

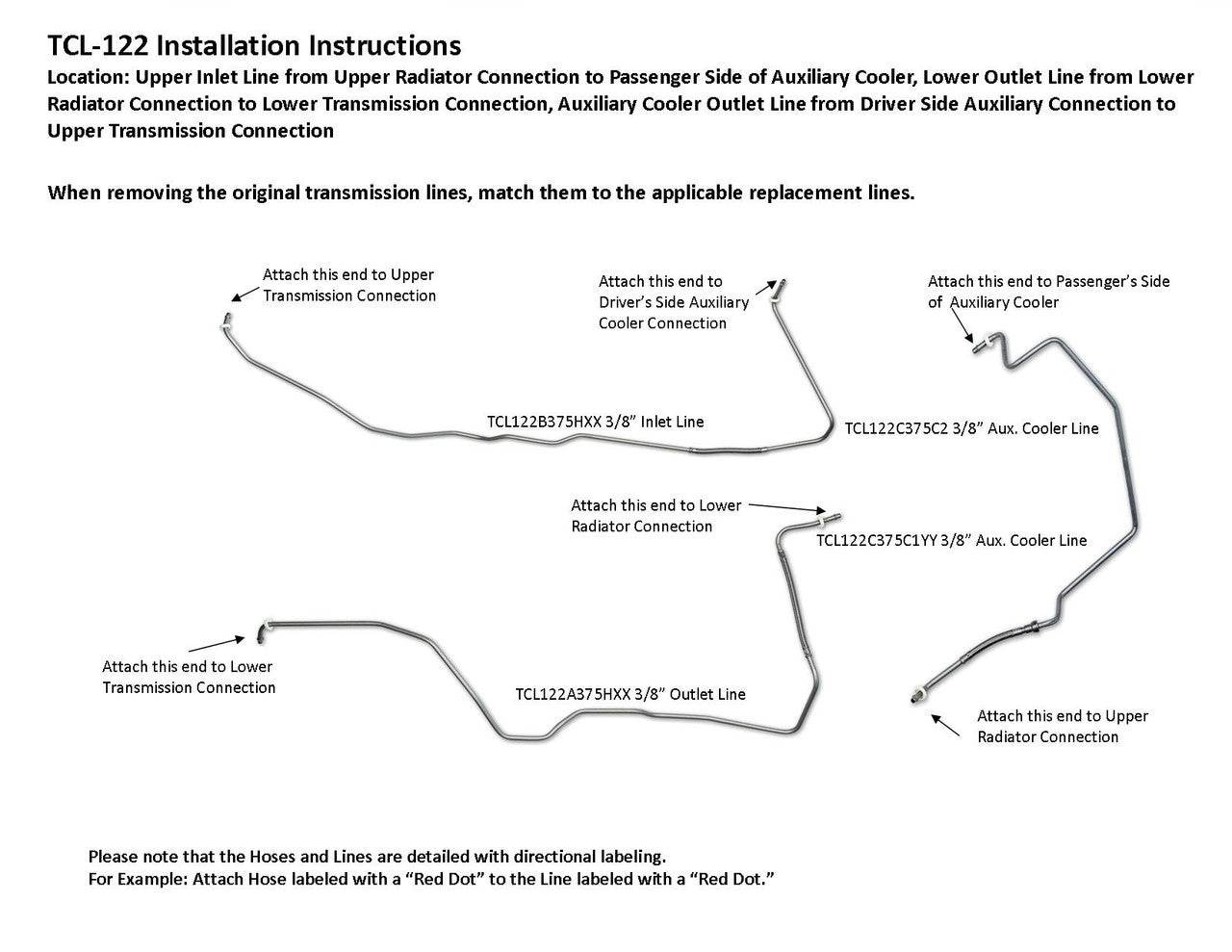

Installation Instructions

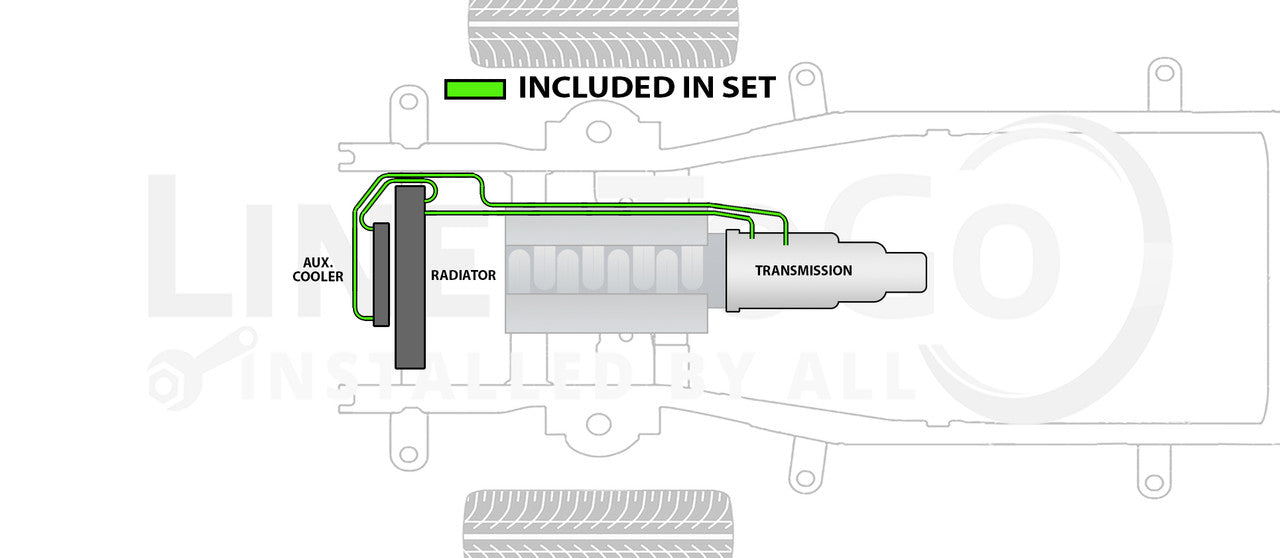

Upper Inlet Line from Upper Radiator Connection to Passenger Side of Auxiliary Cooler, Lower Outlet Line from Lower Radiator Connection to Lower Transmission Connection, Auxiliary Cooler Outlet Line from Driver Side Auxiliary Connection to Upper Transmission Connection

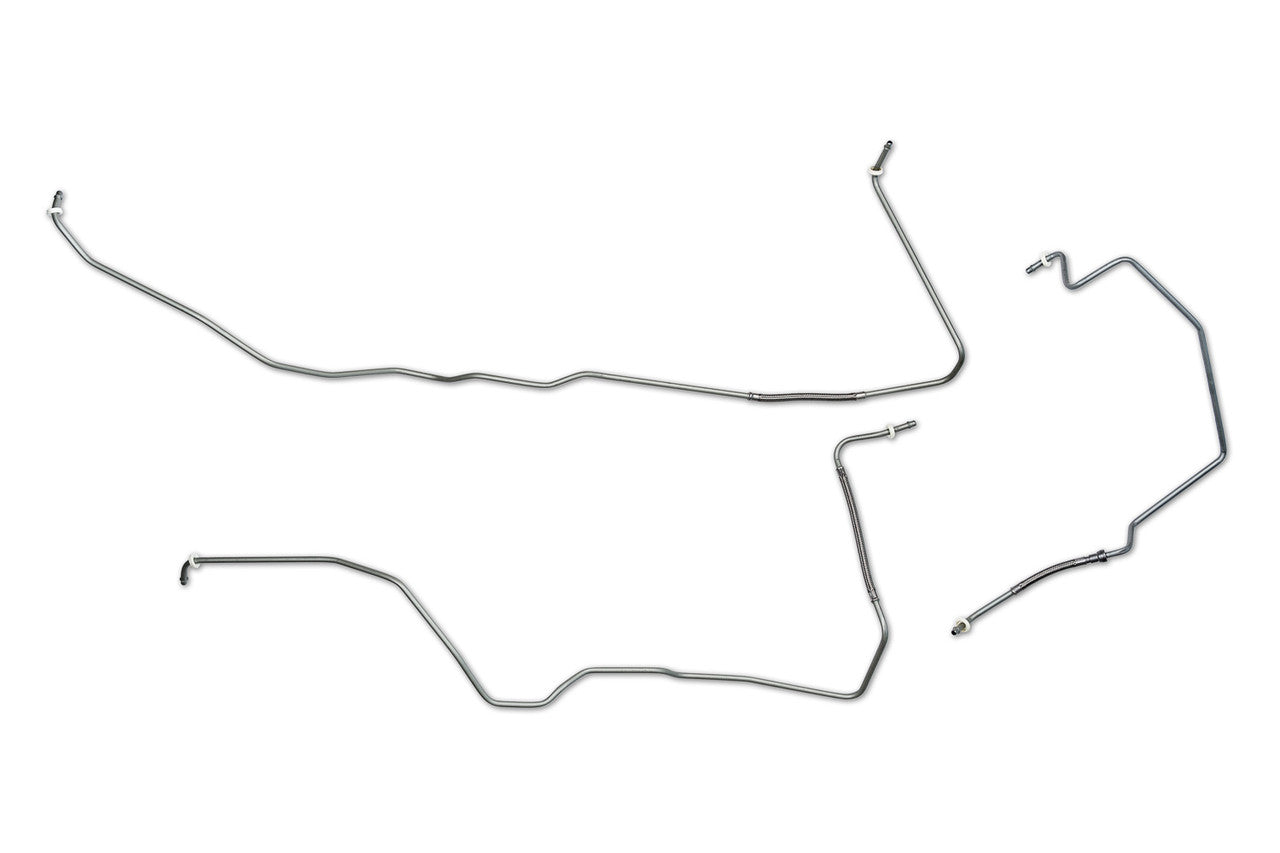

1 Upper Inlet Line 3/8" (in 2 easy to install sections), 1 Lower Outlet Line 3/8", 1 Auxiliary Cooler Outlet Line 3/8"

15809058, 15773661, 15809053

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
