Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel

w/ GVW 7,200 LBS 4 Wheel Disc Brakes w/Active Brake Control

Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel
Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel
Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel
Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel
Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel
Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel

Cadillac Escalade Brake Line Set 2002 1500 4WD 116" WB 6.0L BLC-182-SS3B Stainless Steel

w/ GVW 7,200 LBS 4 Wheel Disc Brakes w/Active Brake Control

SALE:
Save $58.74
/

Delivery Time & Rates

 More payment options

Install this pre bent 2002 Escalade brake line without a problem!

Stainless Steel Brake Line Set Escalade 1500 4WD 116" WB 4 Dr w/GVW 7,200 LBS 4 Wheel Disc Brakes w/Active Brake Control for 6.0L engines

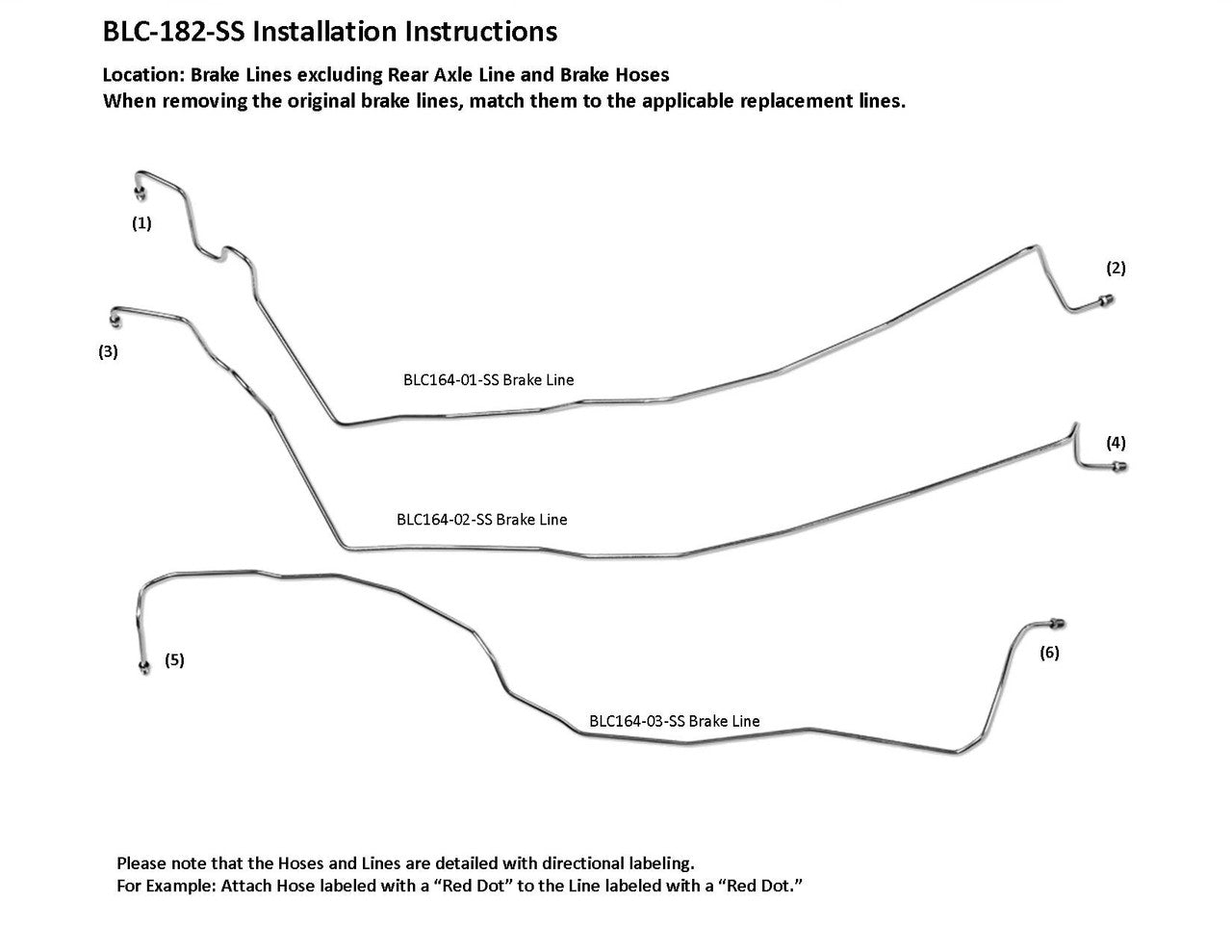

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC164-01-SS, BLC164-02-SS, BLC164-03-SS, BLC182-04A-SS and BLC164-05B-SS. See the video below on how to remove the shipping bend.

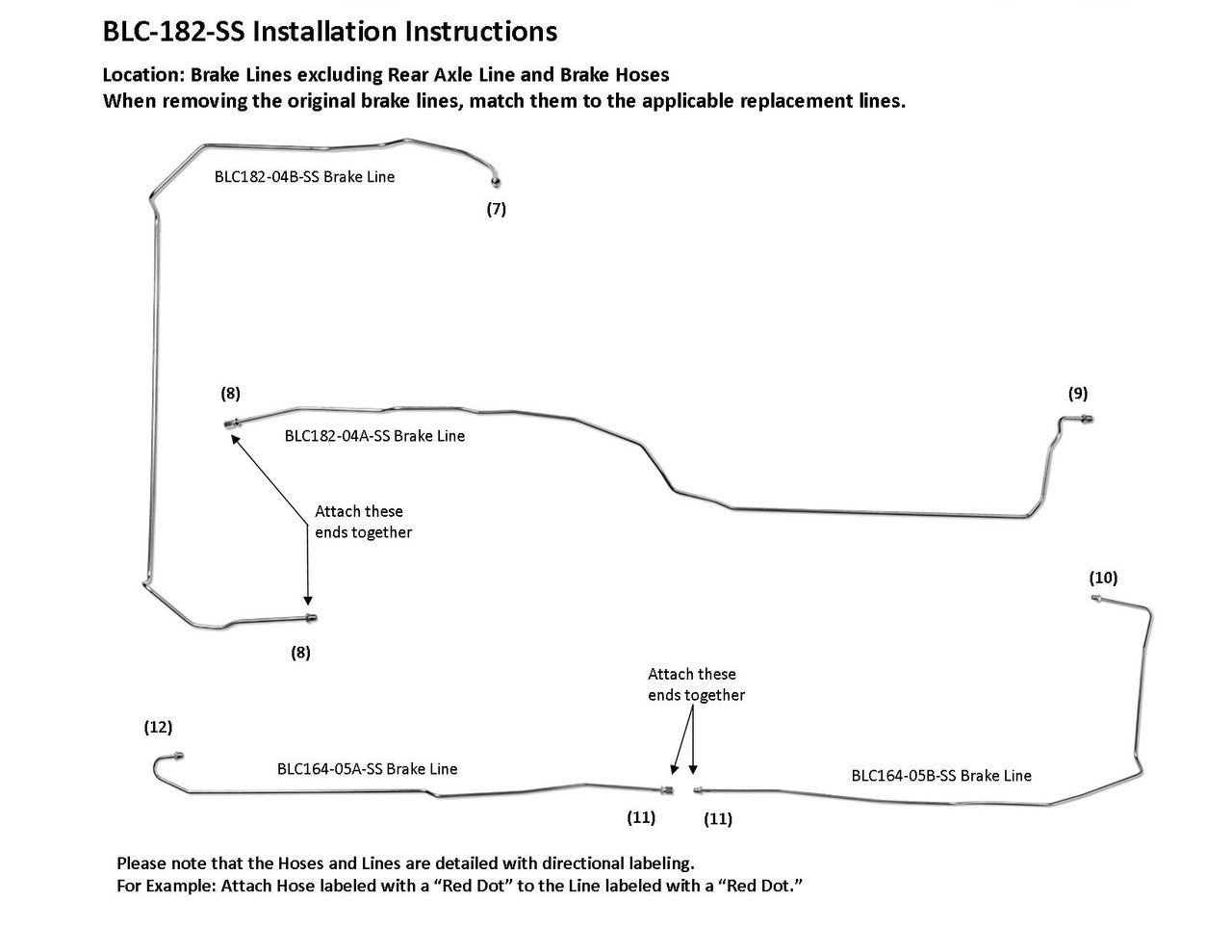

Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC182-04B-SS. See the video below on how to remove the shipping twist.

SKU: BLC-182-SS3B
Box Dimensions 46" x 12" x 7"
Product Warranty 1 Year

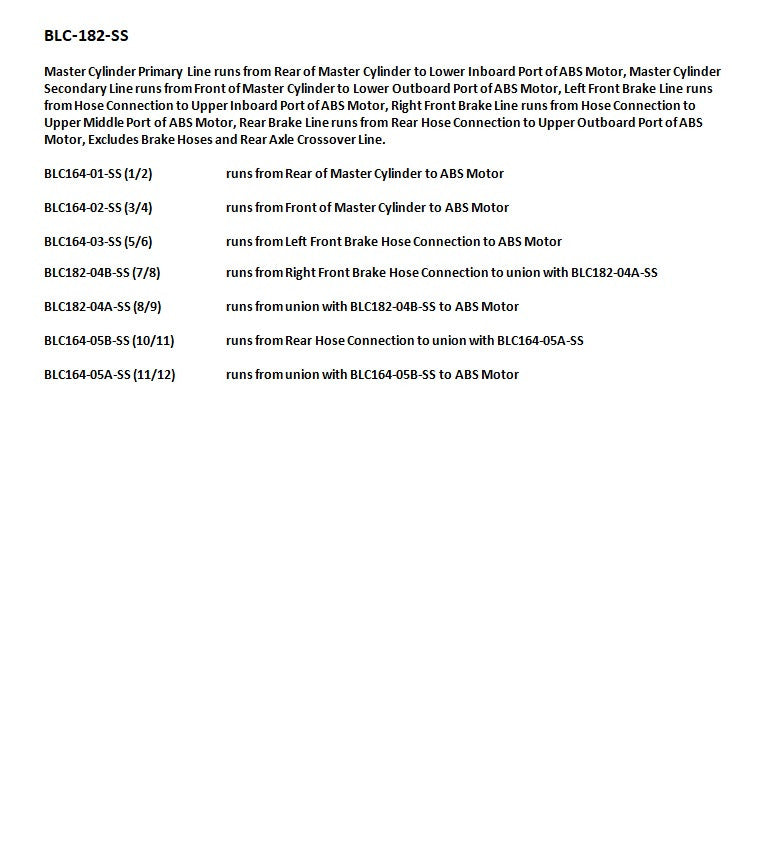

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, 1 Left Front Line from Hose Connection to Upper Inboard Port of ABS Module, 1 Right Front Line from Hose Connection to Upper Middle Port of ABS Module (2 easy to install sections), 1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections), Excludes Rear Axle Crossover Line

22933216

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
