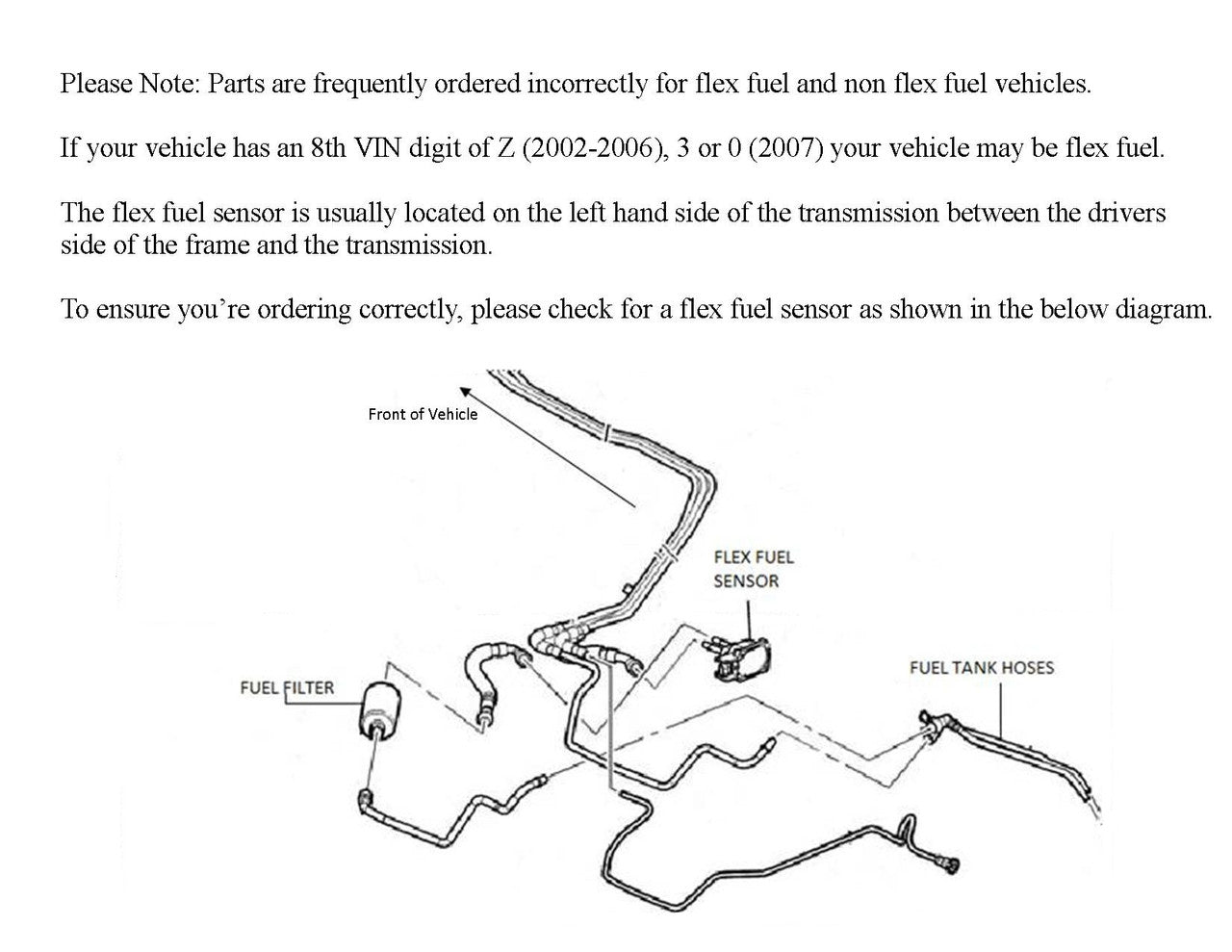

Shop LinesToGo for 2004 Avalanche fuel lines - Fuel Line Set (Eighth VIN Digit Z) (RPO Code L59) for 5.3L engines Non Flex Fuel Only
Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.
Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.
Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.
6093-01 includes 1 - 3/8” Nylon Line, 1 union, 1 - 90 degree quick connector 3/8"
3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"
Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.
3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

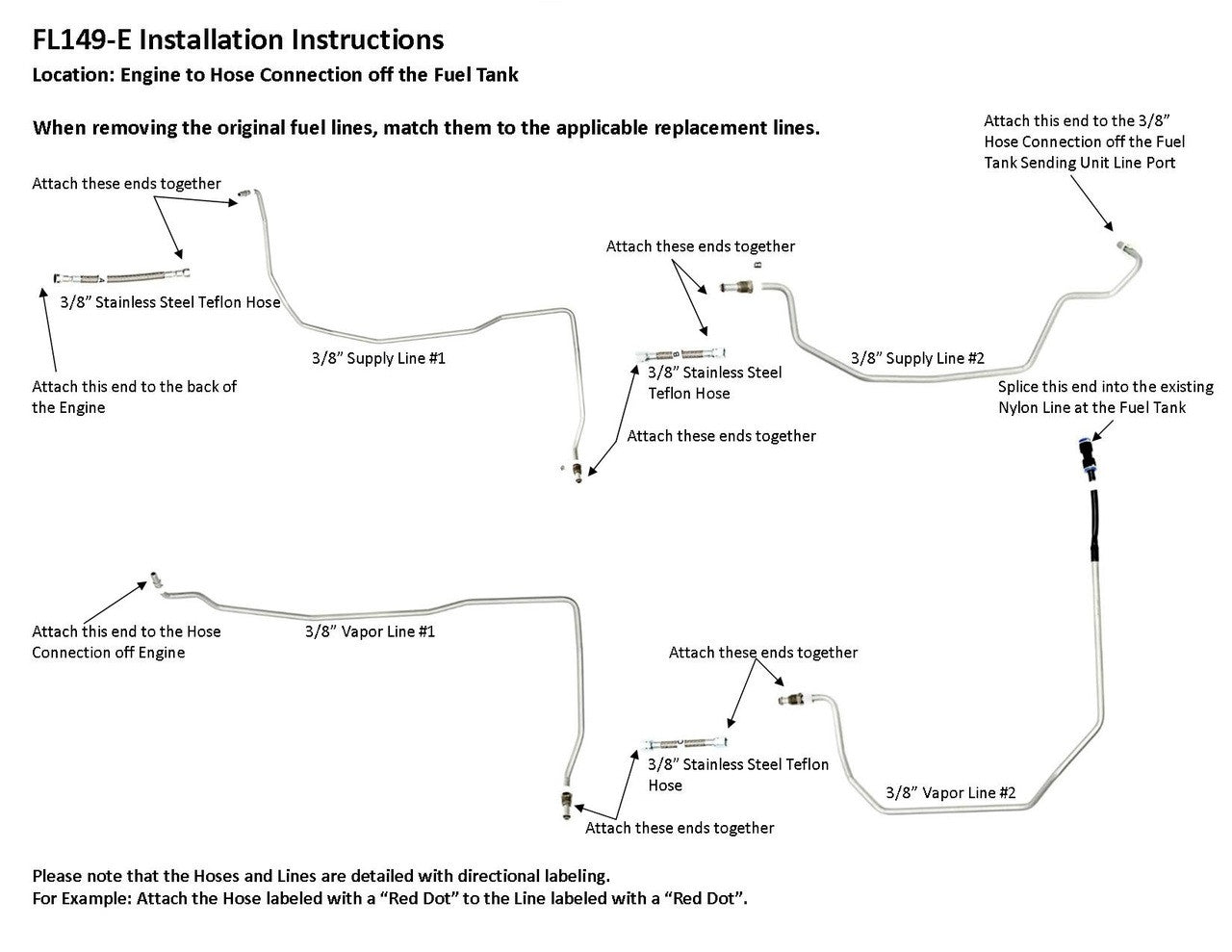

Engine to Hose Connection off Fuel Tank

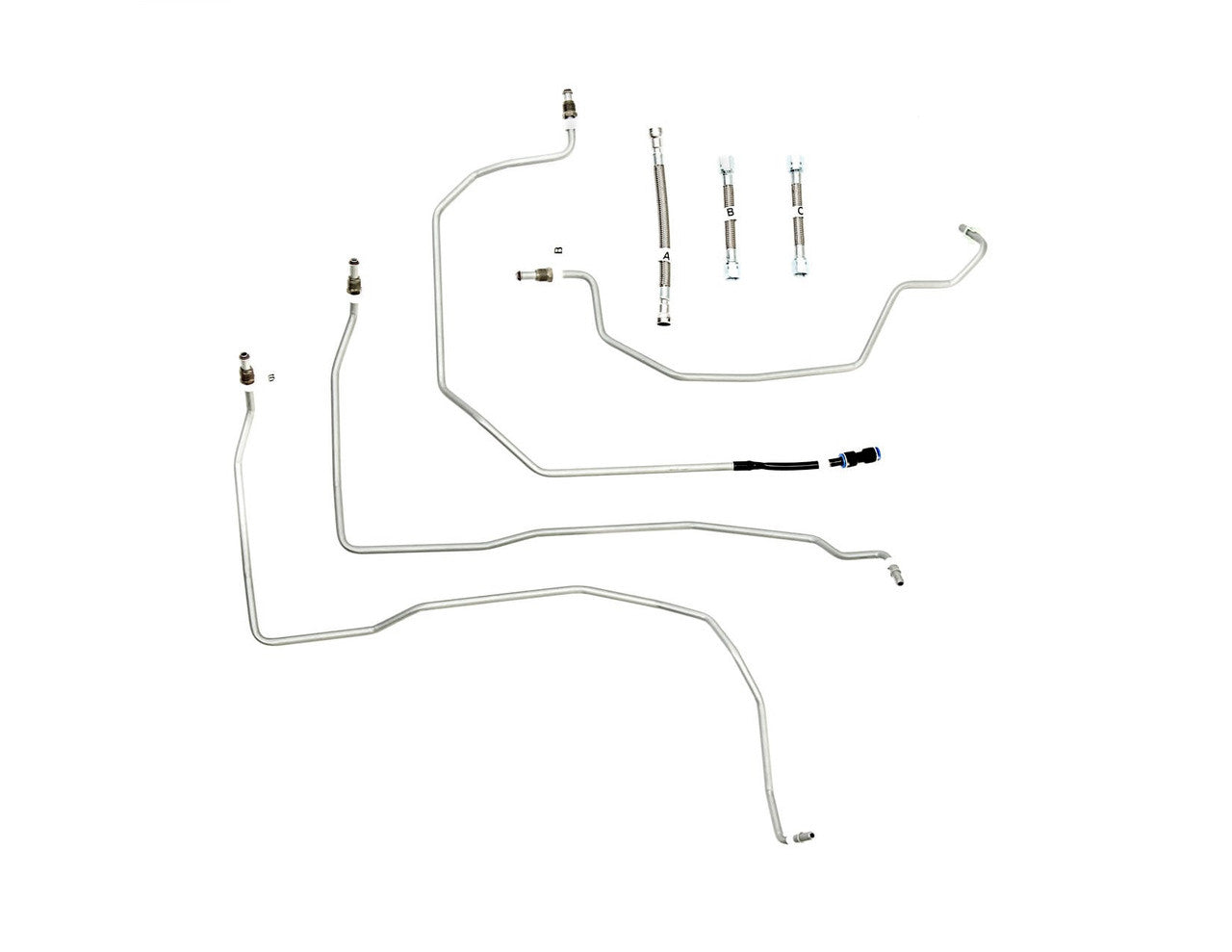

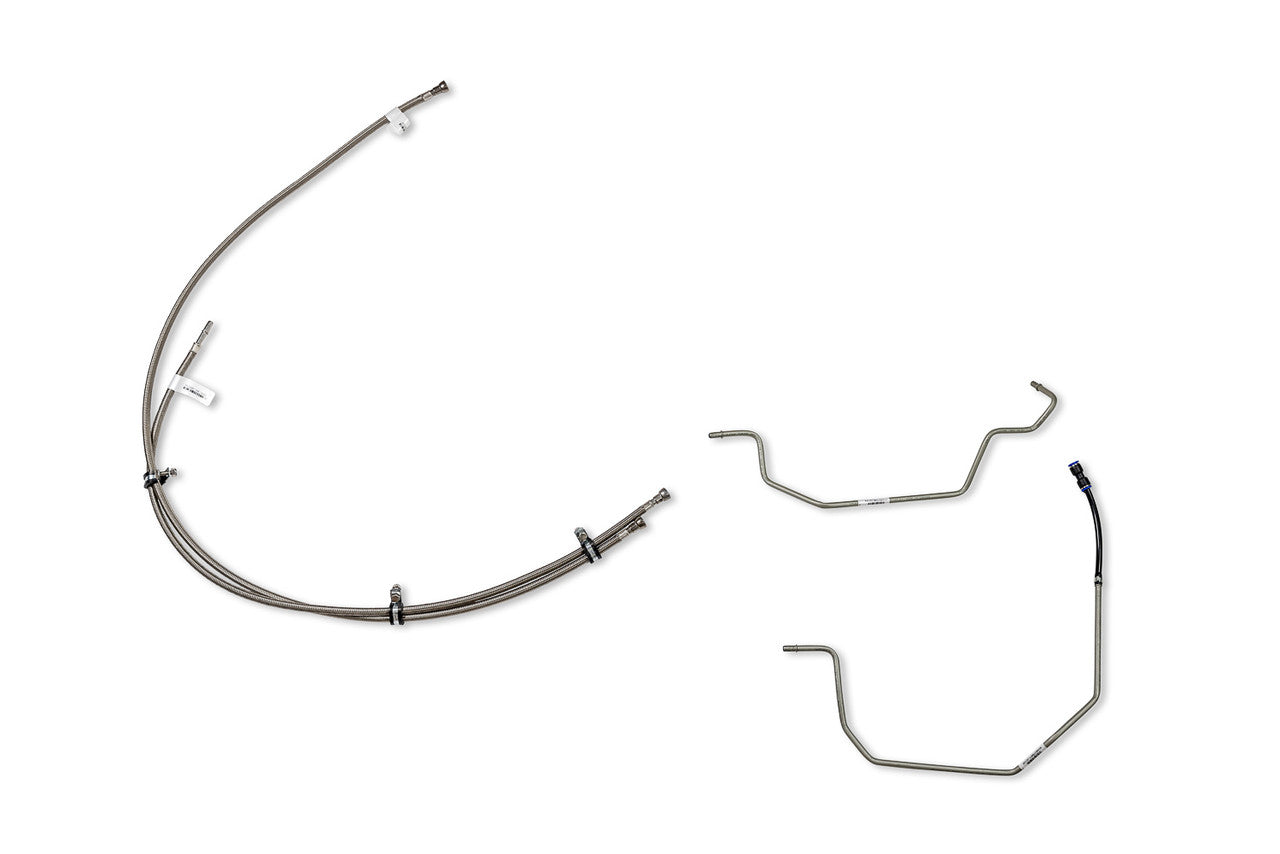

1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front section, nylon line with union
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
