SALE:
Save $68.34
/

Delivery Time & Rates

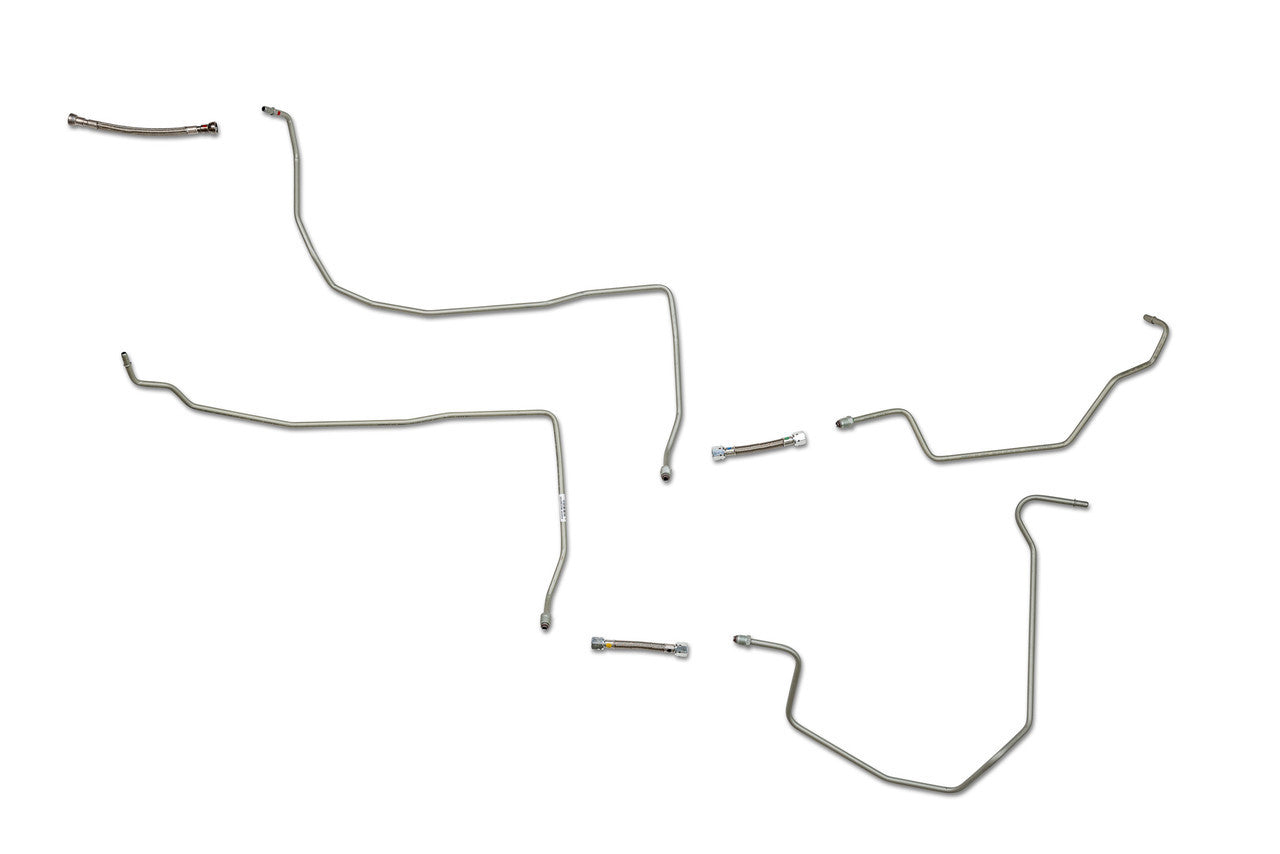

Shop LinesToGo to find fuel line set for 2007 Chevy Avalanche. The FL486-R3 Fuel Line Set for 2007 Chevy Avalanche with 6.0L engines

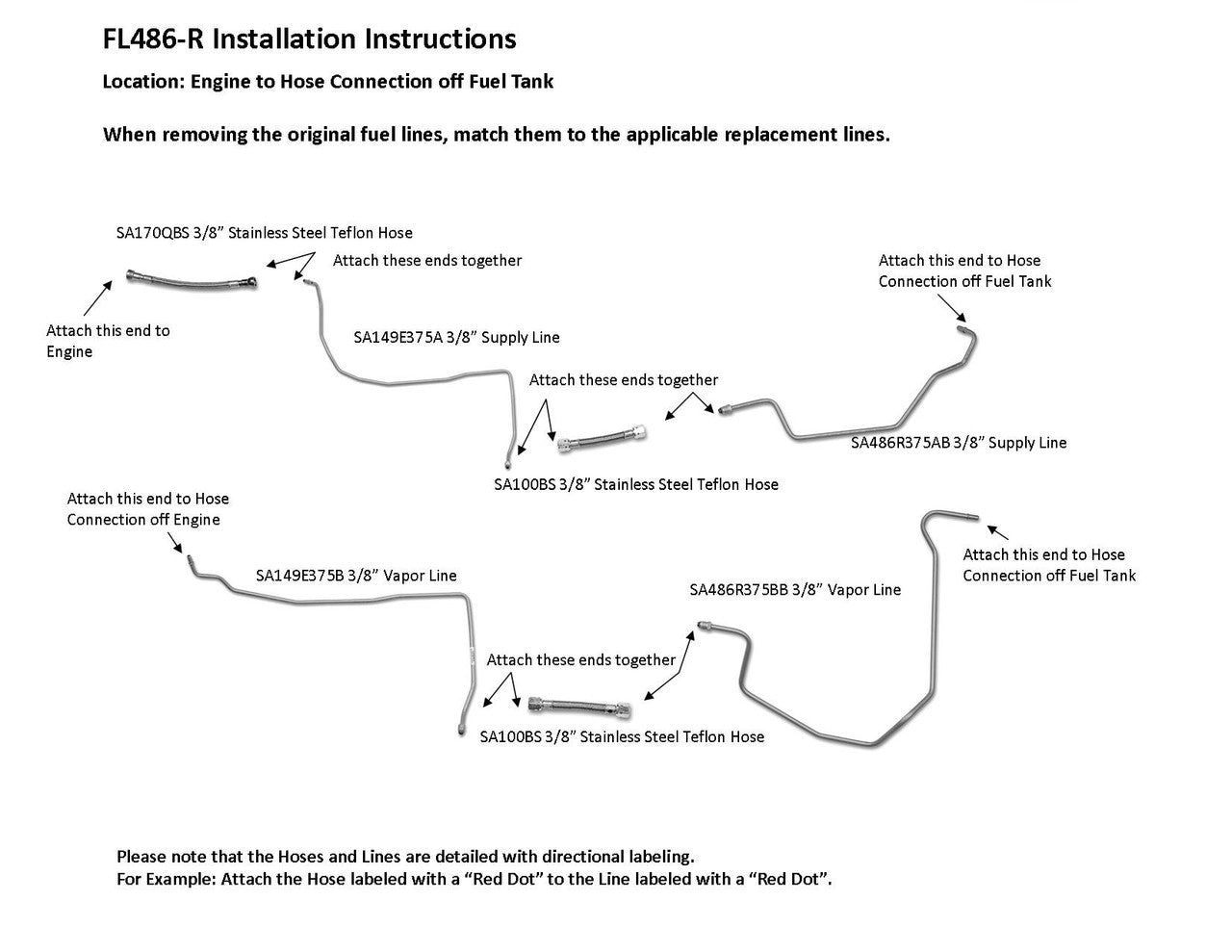

Please Note: Before installing your fuel line, shipping bends will need to be removed from the line labeled SA486R375BB. See the video below on how to remove the shipping bend

SKU: FL486-R3
Box Dimensions 39" x 11" x 7"
Product Warranty 1 Year

Engine to Hose Connection off Fuel Tank

1 supply line 3/8" (in 2 easy to install sections), 1 vapor line 3/8" (in 2 easy to install sections), hoses to join rear and front sections

15275274

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
