Chevy Blazer 1982 K5 Full-Size Brake Line Set 4WD 6.2L BLC-507-J-SS1N Stainless Steel
2 Dr
Chevy Blazer 1982 K5 Full-Size Brake Line Set 4WD 6.2L BLC-507-J-SS1N Stainless Steel
2 Dr
Delivery Time & Rates
Install this pre bent 1982 Full-Size Blazer K5 brake line set in no time!
Brake Line Set Stainless Steel Chevy Blazer K5 Full-Size 2 Door, 4WD for 6.2L Diesel engines.
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC507J-05B-SS and BLC507J-05C-SS. See the video below on how to remove the shipping bend
- Weight: 5

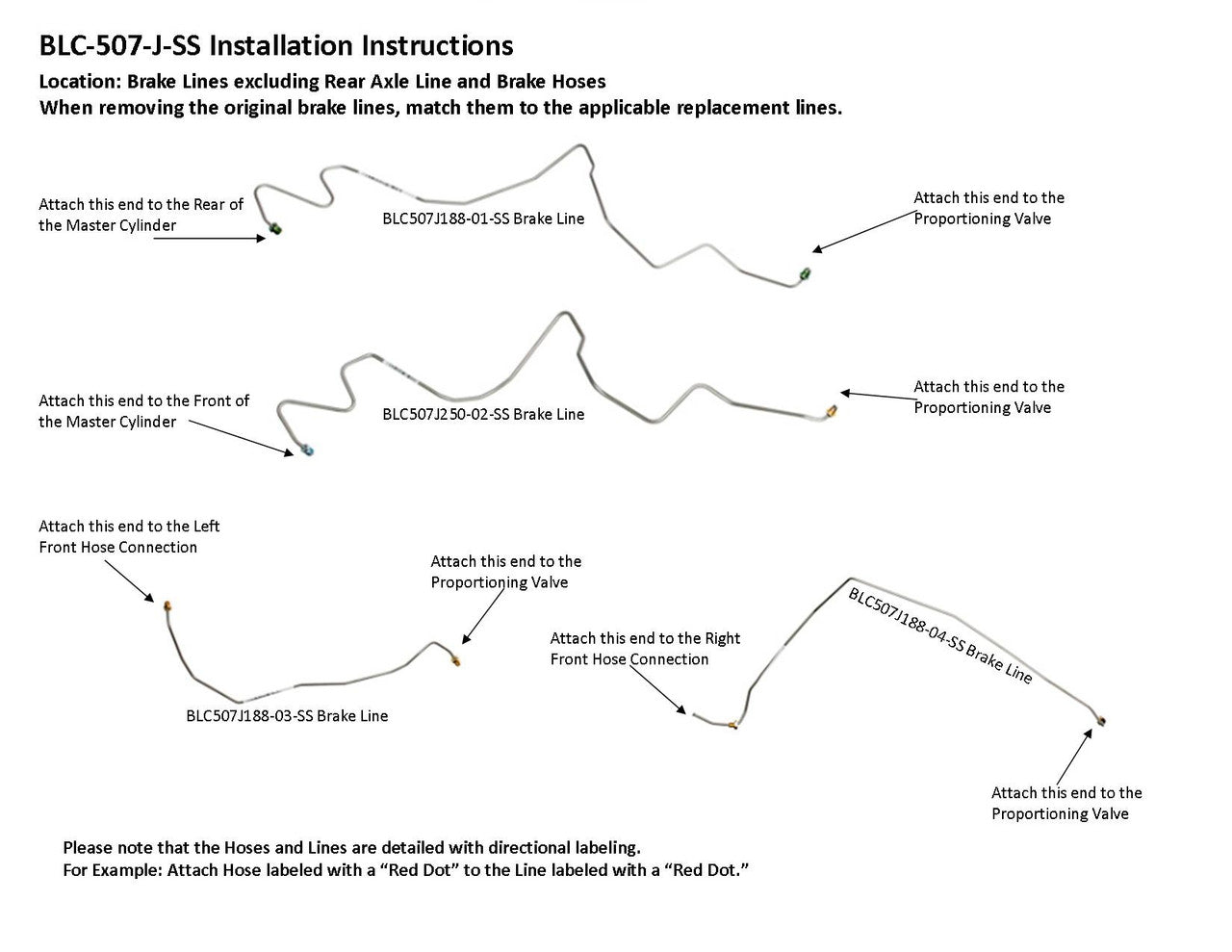

- Installation Instructions
Master Cylinder Primary Line runs from Rear of Master Cylinder to Proportioning Valve, Master Cylinder Secondary Line runs from Front of Master Cylinder to Proportioning Valve, Left Front Brake Line runs from Proportioning Valve to Left Front Hose Connection, Right Front Brake Line runs from Proportioning Valve to Right Front Hose Connection, Rear Brake Line runs from Proportioning Valve to Rear Hose Connection above the Rear Axle

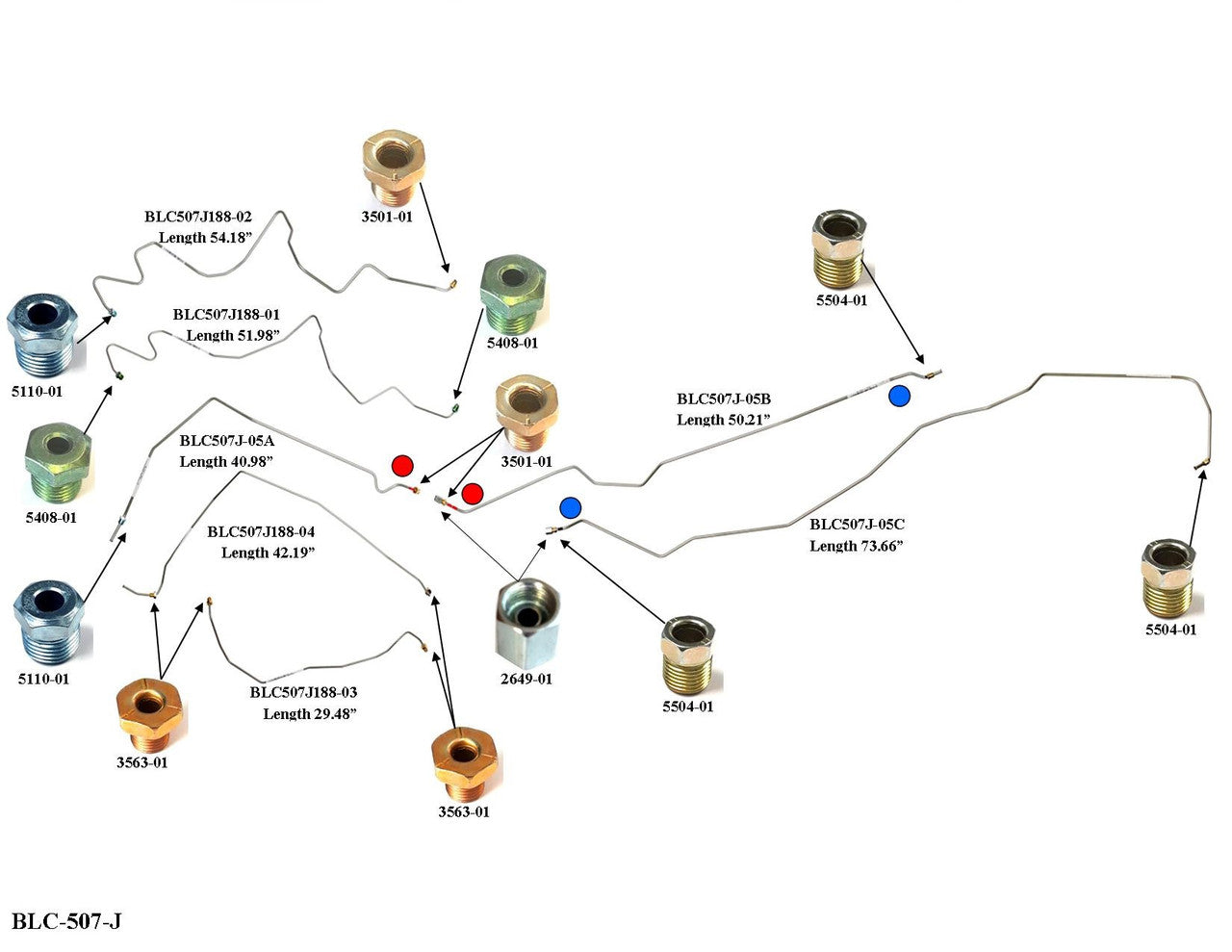

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Rear Brake Line 1/4" (in 3 easy to install sections) excludes Brake Hoses and Rear Axle Crossover Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
