SALE:
Save $69.57
/

Delivery Time & Rates

1988 Blazer Fuel Lines 2 Door 4WD 5.7L

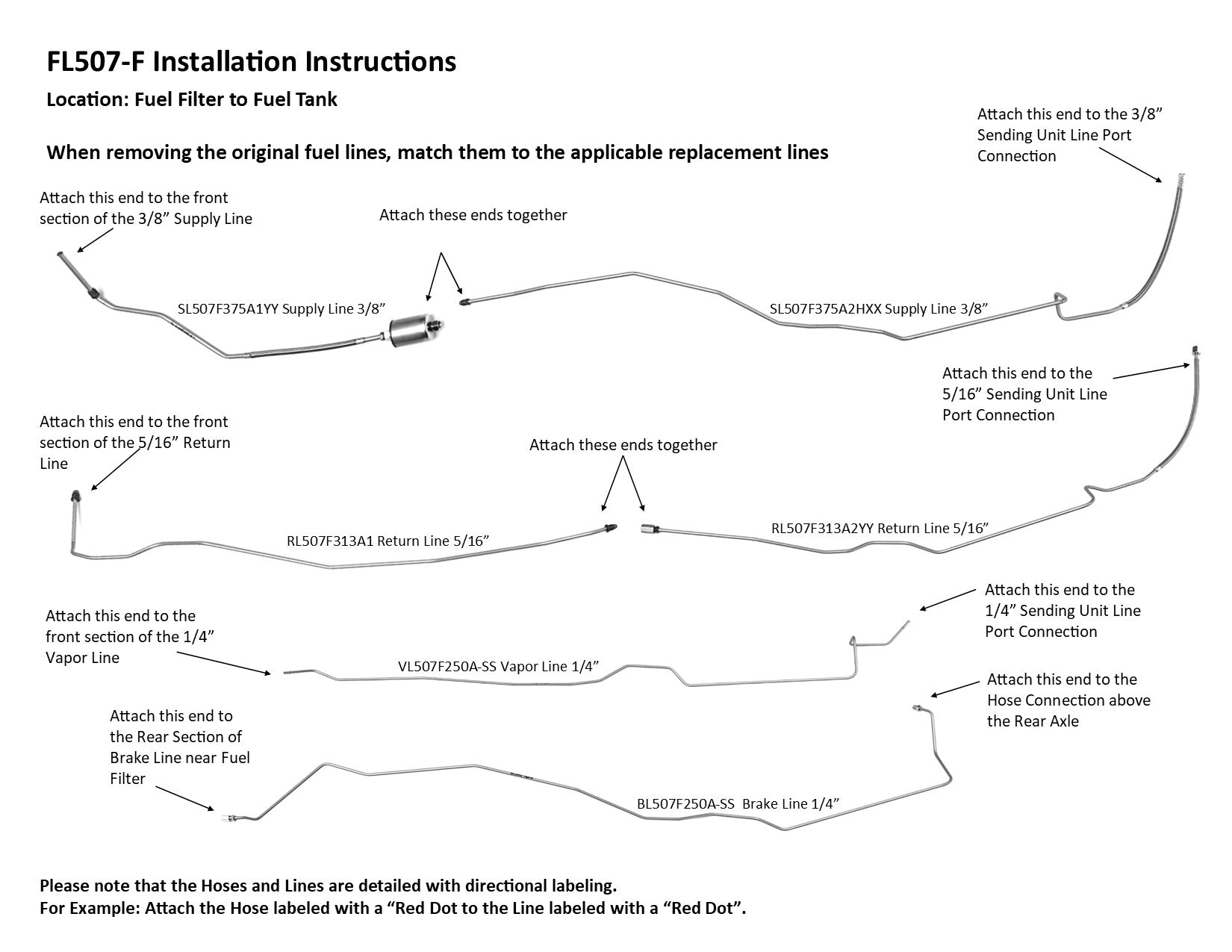

Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled BL507F250A-SS, VL507250A-SS and SL507F375A2HXX. See the video below on how to remove the shipping bend.

SKU: FL507-F1B
Box Dimensions 57" x 11" x 7"
Product Warranty 1 Year

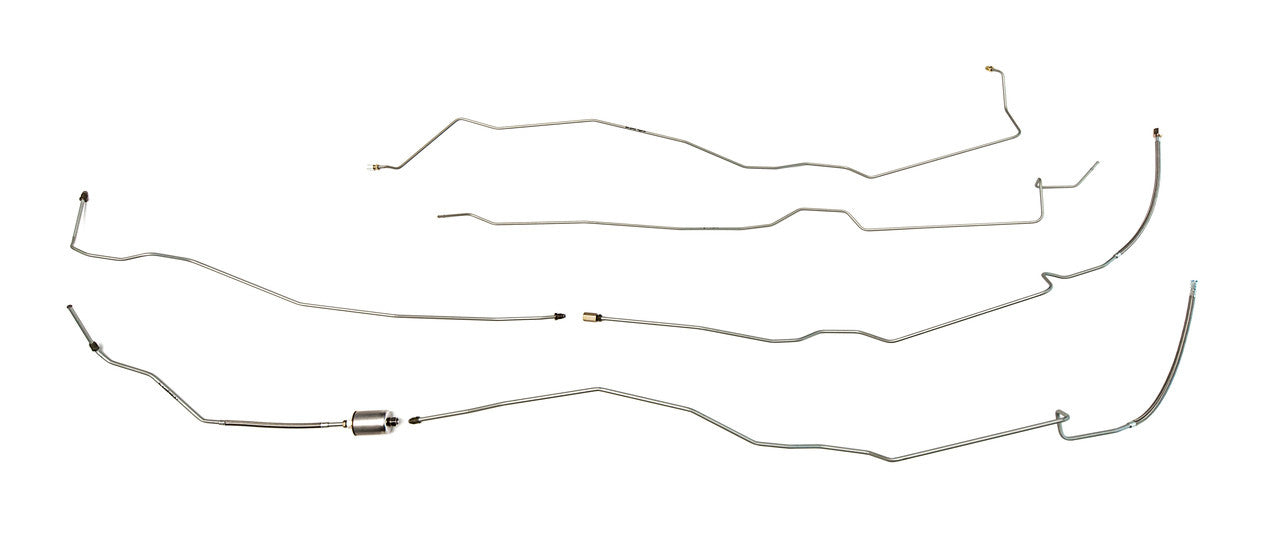

Fuel Filter to Fuel Tank

1 supply line 3/8", 1 return line 5/16", 1 vapor line 1/4", 1 brake line 1/4", hoses to sending unit connection, 1 fuel filter, 2 unions

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
