Chevy Caprice Classic Brake Line Set 1995 5.7L BLC-244-SS1B Stainless Steel
w/ABS w/4 Wheel Disc Brakes
Chevy Caprice Classic Brake Line Set 1995 5.7L BLC-244-SS1B Stainless Steel
w/ABS w/4 Wheel Disc Brakes
Delivery Time & Rates
Shop LinesToGo for your 1995 Chevrolet Caprice Classic brake lines
Stainless Steel Brake Line Set for 1995 Chevy Caprice Classic w/ABS w/4 Wheel Disc Brakes for 5.7L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLC244-05C-SS. See the video below on how to remove the shipping bend
- Weight: 5

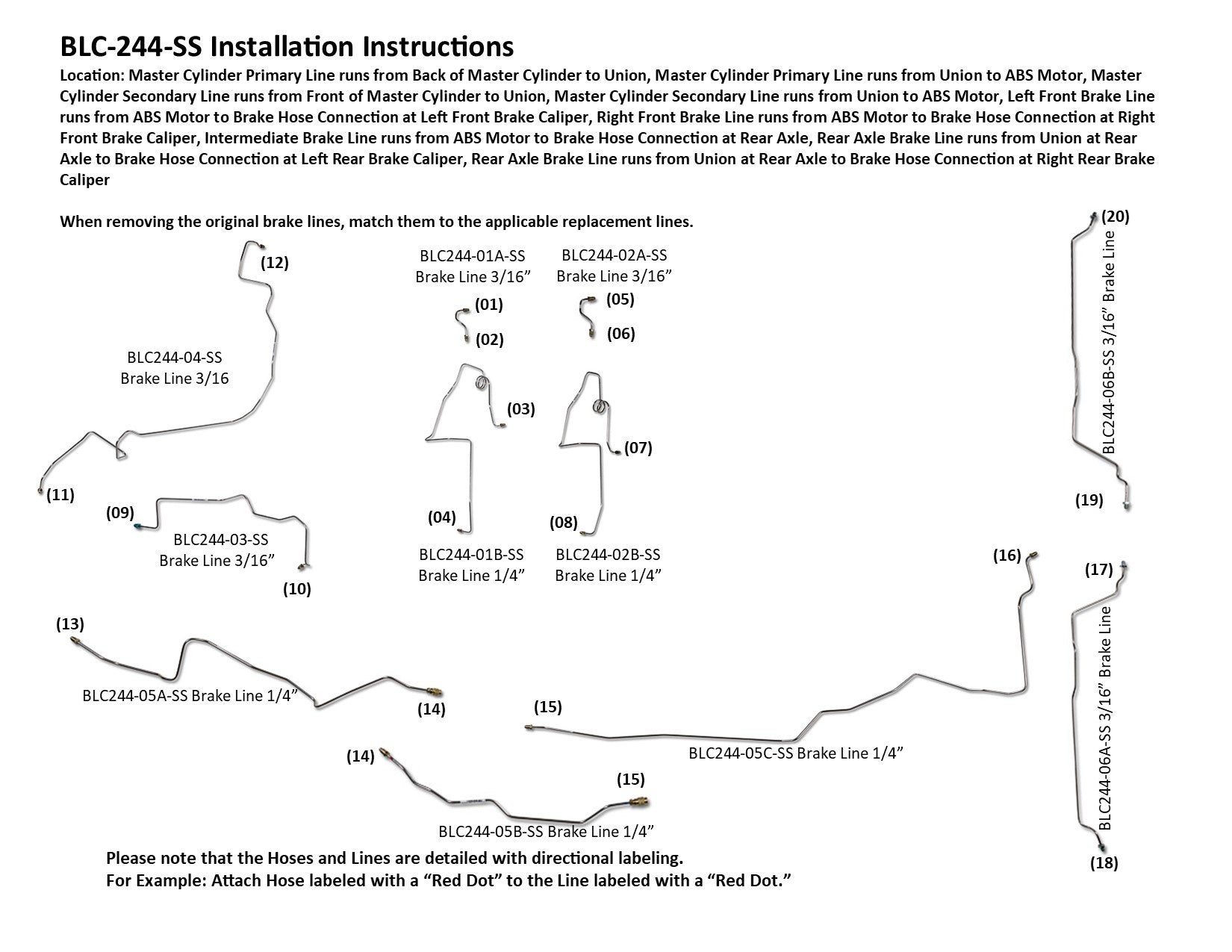

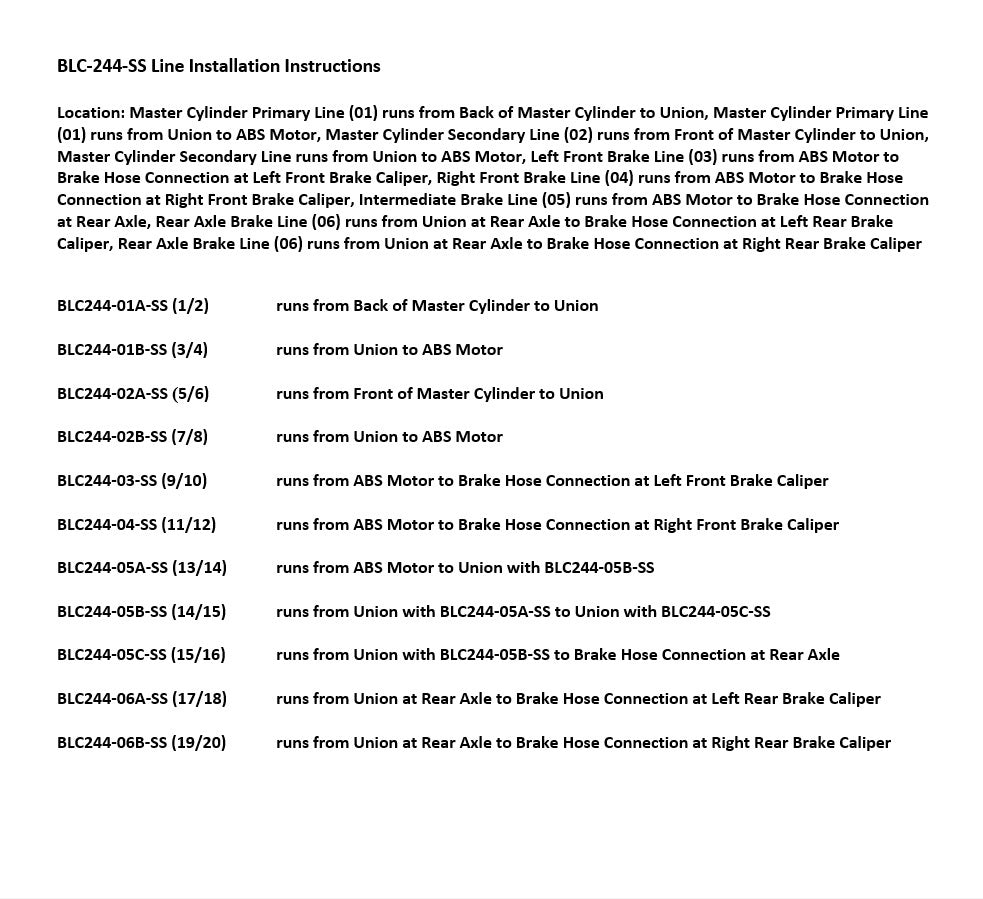

- Installation Instructions

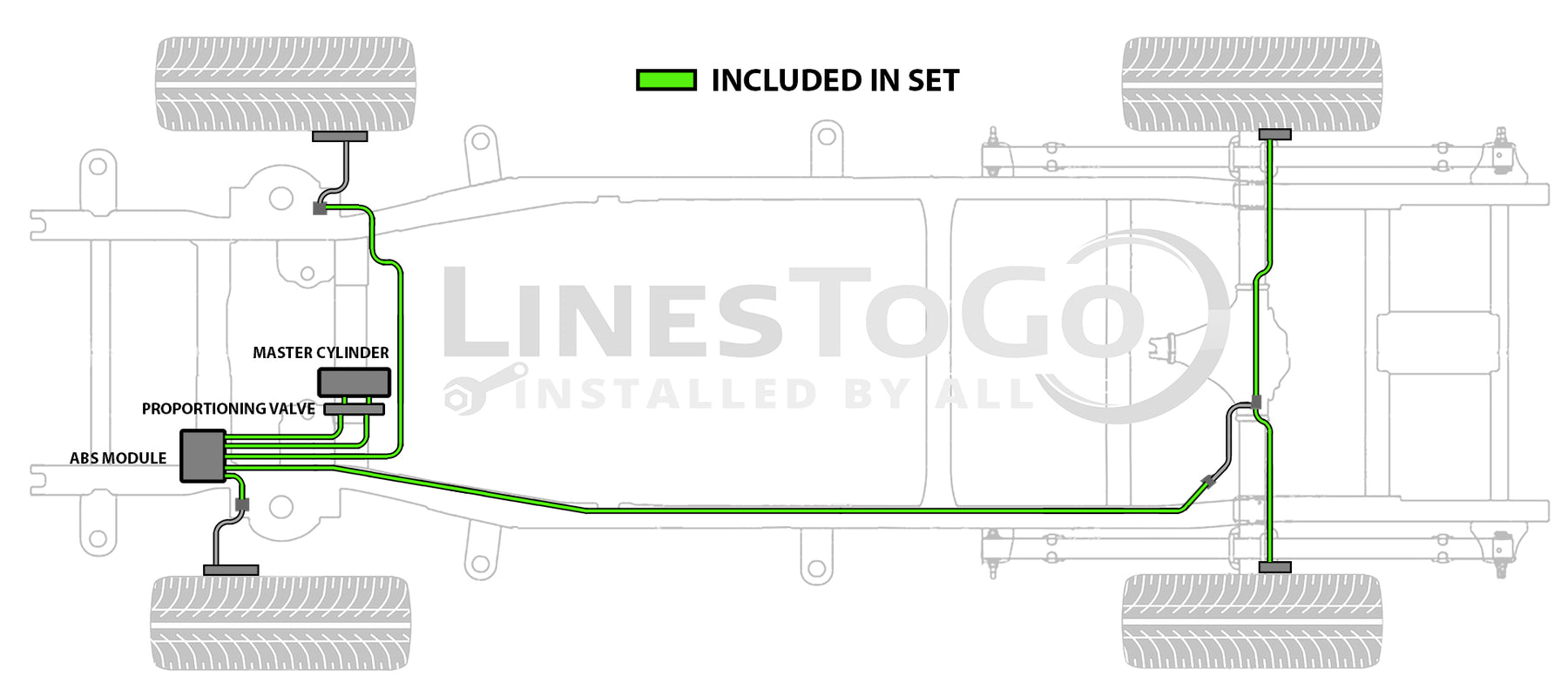

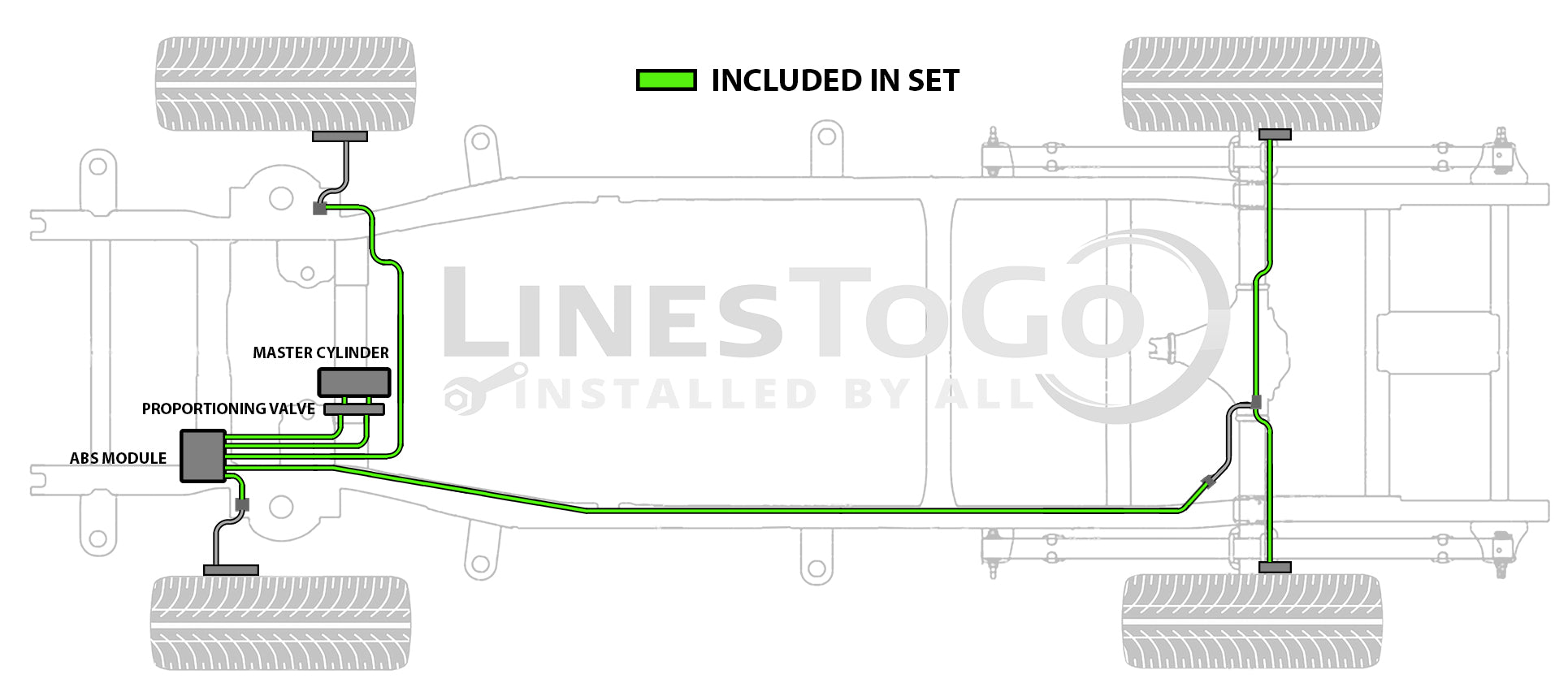

Master Cylinder Primary Line runs from Back of Master Cylinder to Union, Master Cylinder Primary Line runs from Union to ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Union, Master Cylinder Secondary Line runs from Union to ABS Motor, Left Front Brake Line runs from ABS Motor to Brake Hose Connection at Left Front Brake Caliper, Right Front Brake Line runs from ABS Motor to Brake Hose Connection at Right Front Brake Caliper, Intermediate Brake Line runs from ABS Motor to Brake Hose Connection at Rear Axle, Rear Axle Brake Line runs from Union at Rear Axle to Brake Hose Connection at Left Rear Brake Caliper, Rear Axle Brake Line runs from Union at Rear Axle to Brake Hose Connection at Right Rear Brake Caliper

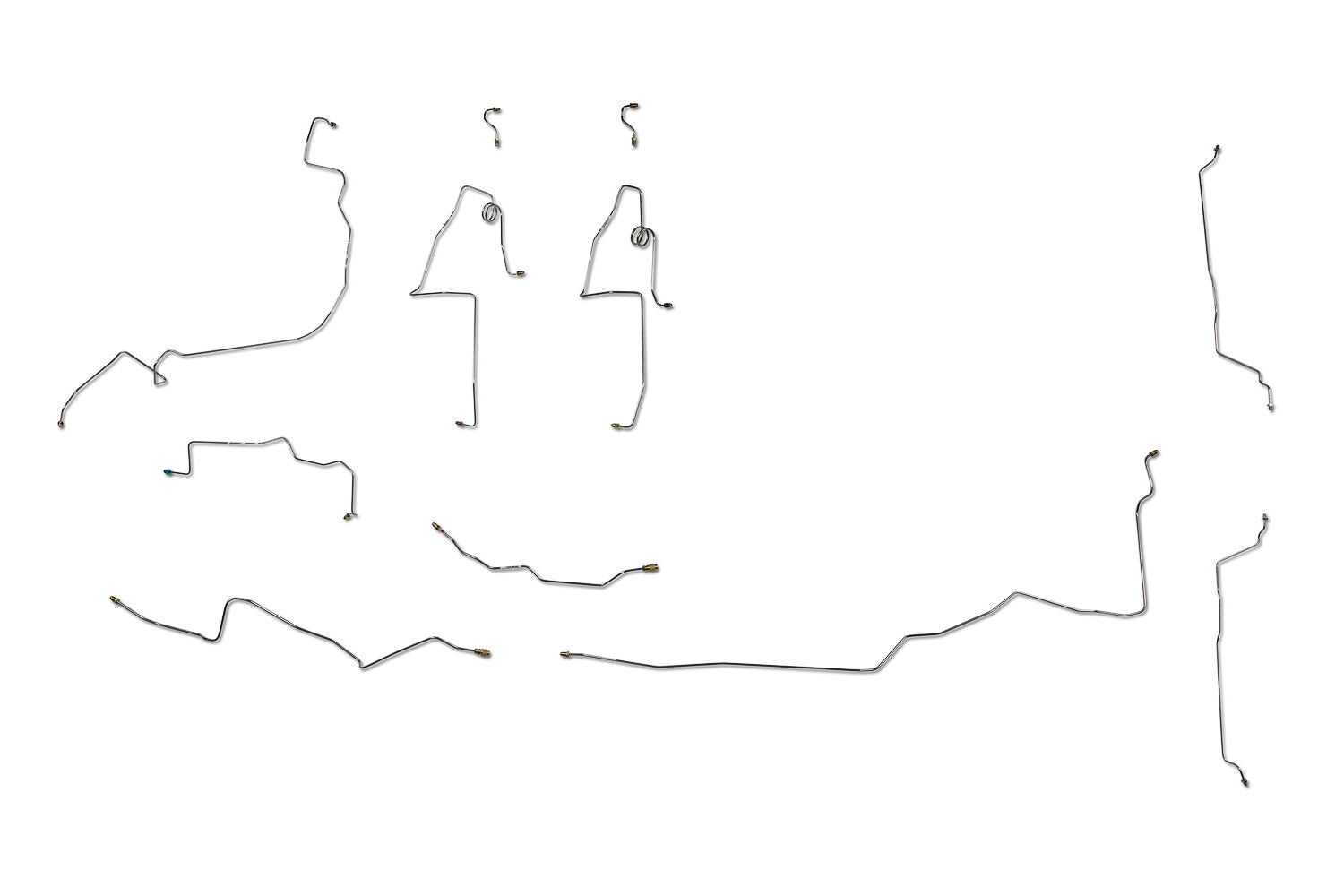

2 Master Cylinder Primary Brake Lines 3/16", 2 Master Cylinder Secondary Brake Lines 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 1/4", 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
