Name: Chevy Express 1500 Transmission Line Set 2012 5.3L TCL-128-1D
Brand: Lines - To - Go
SKU: TCL-128-1D
Price: 114.95 USD
Availability: InStock

Year Make & Model

Chevy Express 1500 Transmission Line Set 2012 5.3L TCL-128-1D

Price

SALE:

Save $28.74

Delivery Time & Rates

Install this pre bent 2012 transmission cooler line set in no time!

Transmission Cooler Line Chevrolet Express 1500 2012 5.3L engines only

SKU: TCL-128-1D

Weight: 5

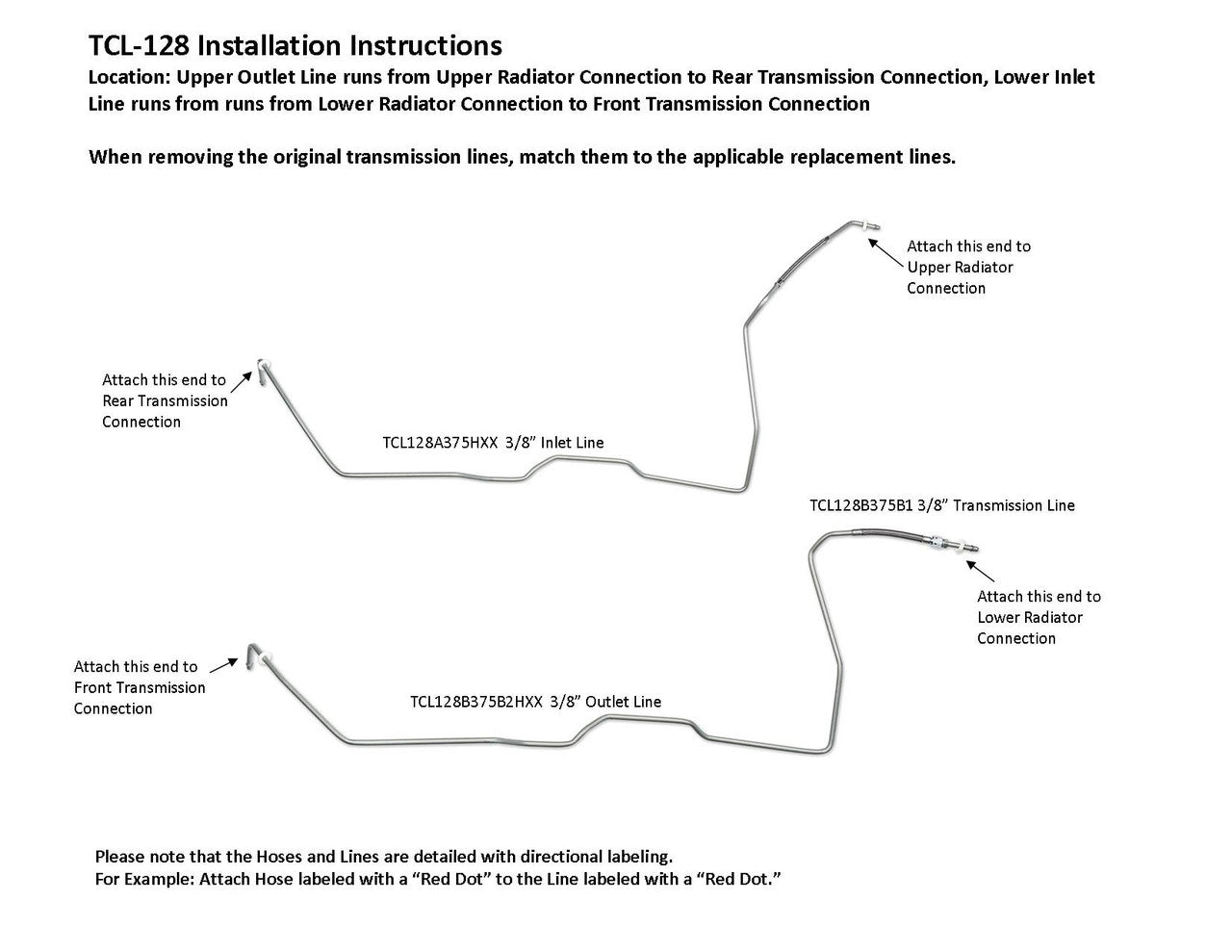

Installation Instructions

Box Dimensions 60" x 12" x 12"

Product Warranty 1 Year

How to use a Quick Disconnect Tool

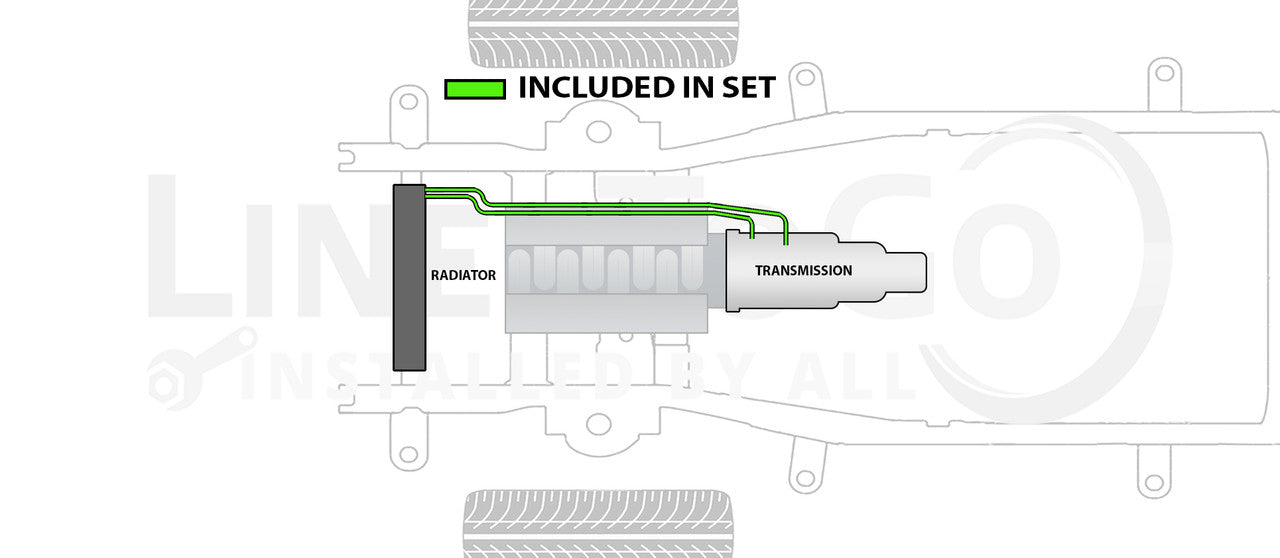

Upper Outlet Line runs from Upper Radiator Connection to Rear Transmission Connection, Lower Inlet Line runs from runs from Lower Radiator Connection to Front Transmission Connection

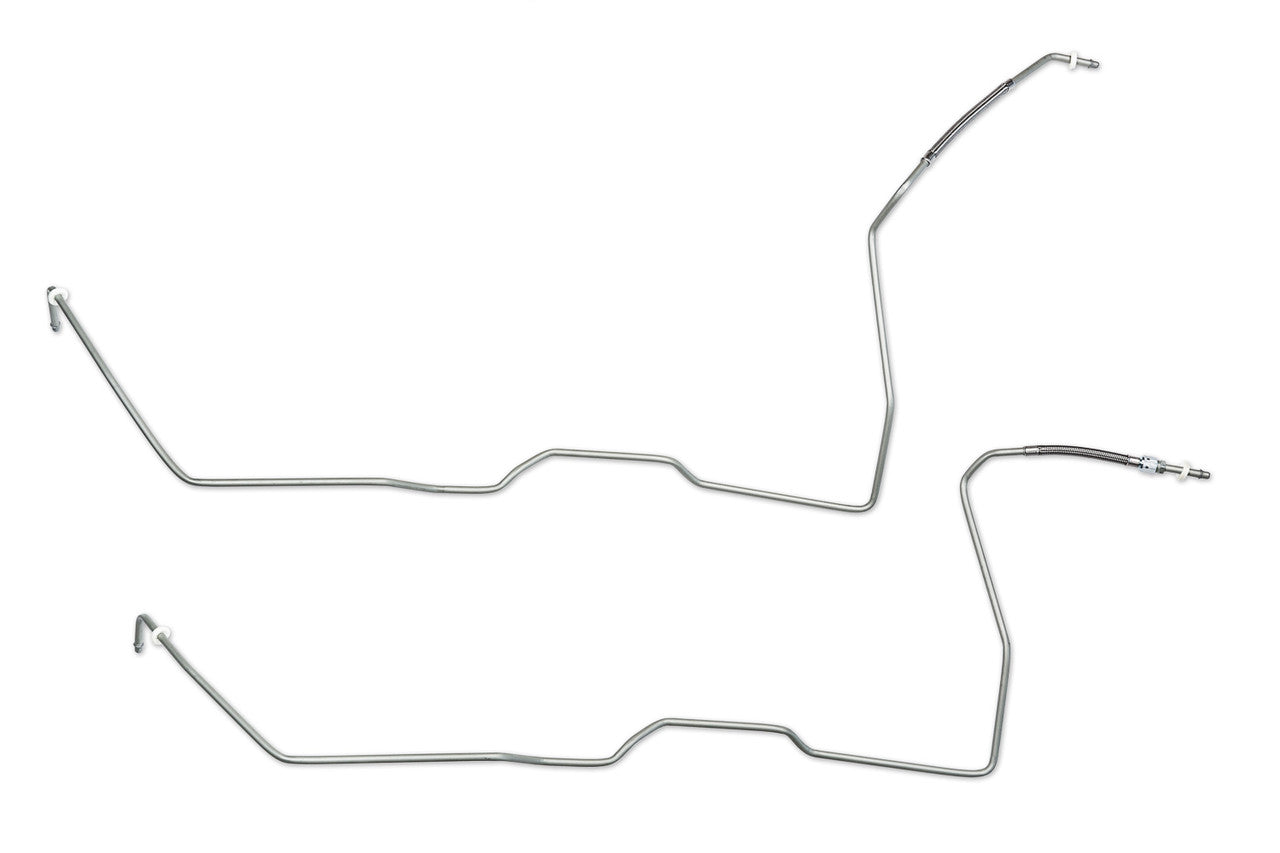

1 Upper Outlet Line 3/8", 1 Lower Inlet Line 3/8" (2 sections)

25849129, 25849125

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
