Chevy Impala Brake Line Set 2009 3.5L BLC-220-SS1A Stainless Steel
w/ABS w/4 Wheel Disc Brakes w/Electronic Traction Control
Chevy Impala Brake Line Set 2009 3.5L BLC-220-SS1A Stainless Steel
w/ABS w/4 Wheel Disc Brakes w/Electronic Traction Control
Delivery Time & Rates
Brake Line Set Stainless Steel 2009 Chevrolet Impala w/ABS w/4 Wheel Disc Brakes w/Electronic Traction Control for 3.5L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC220-05B-SS, BLC220-06B-SS, BLC220-06C-SS, and BLC220-06D-SS. See the video below on how to remove the shipping bend
- Weight: 6

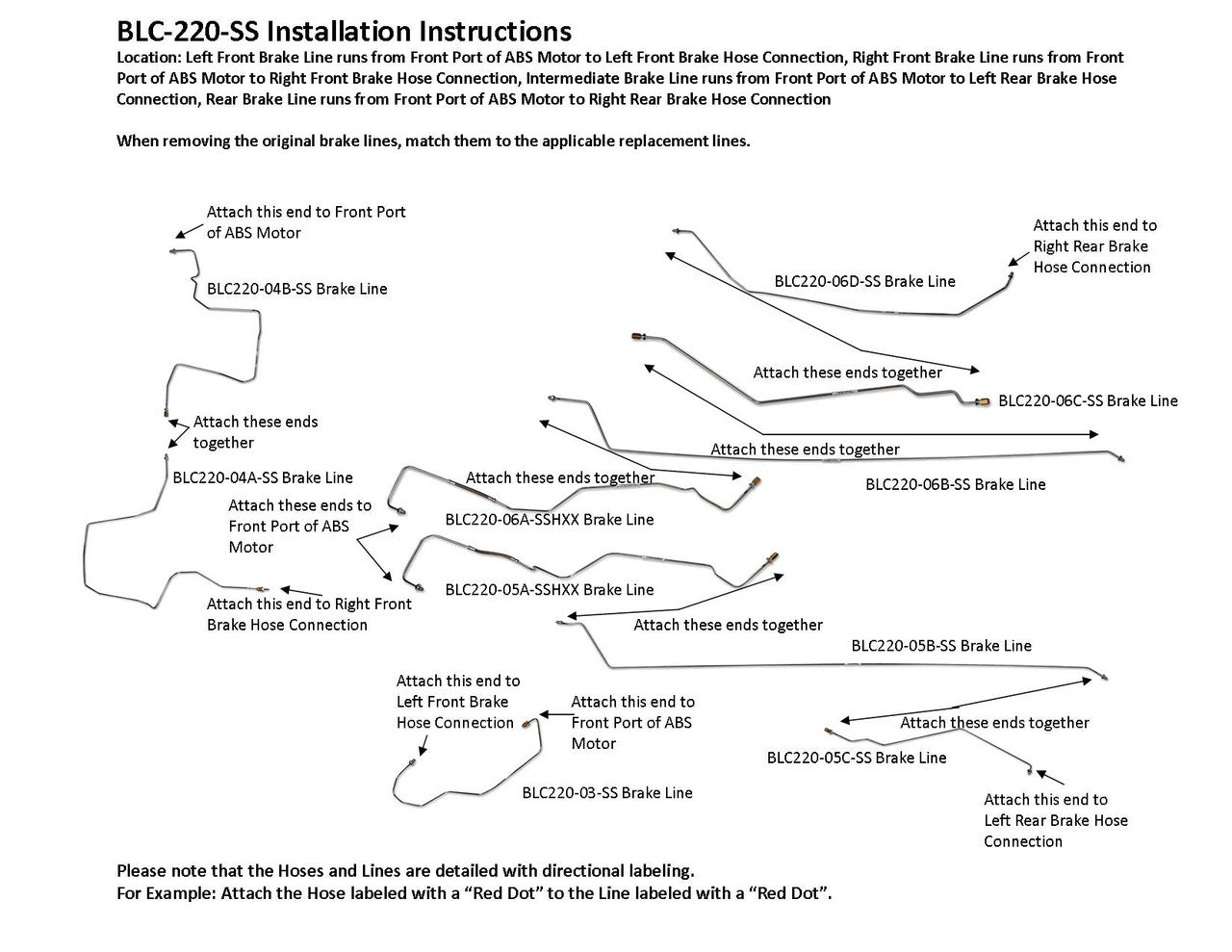

- Installation Instructions
Left Front Brake Line runs from Front Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Front Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Front Port of ABS Motor to Left Rear Brake Hose Connection, Rear Brake Line runs from Front Port of ABS Motor to Right Rear Brake Hose Connection

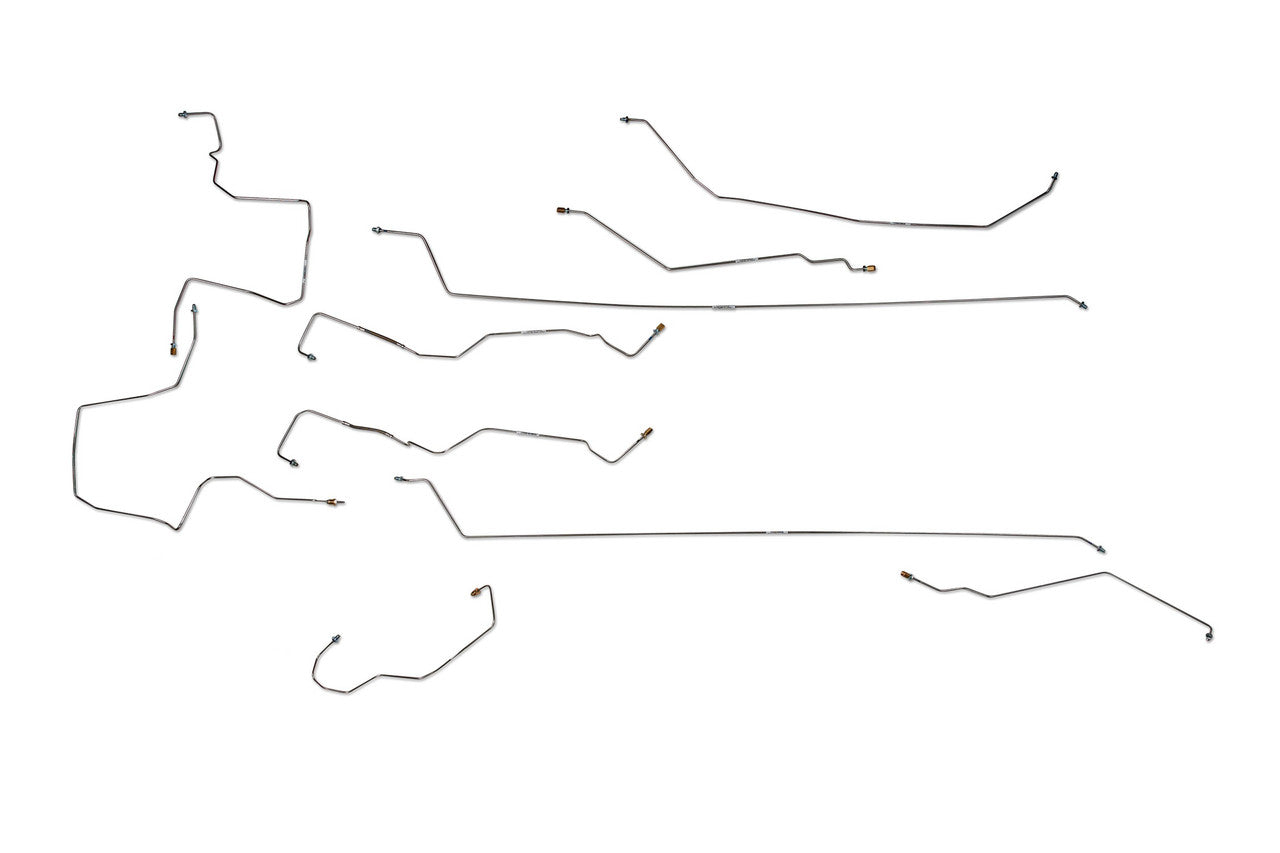

1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses or Master Cylinder Primary and Secondary Brake Lines

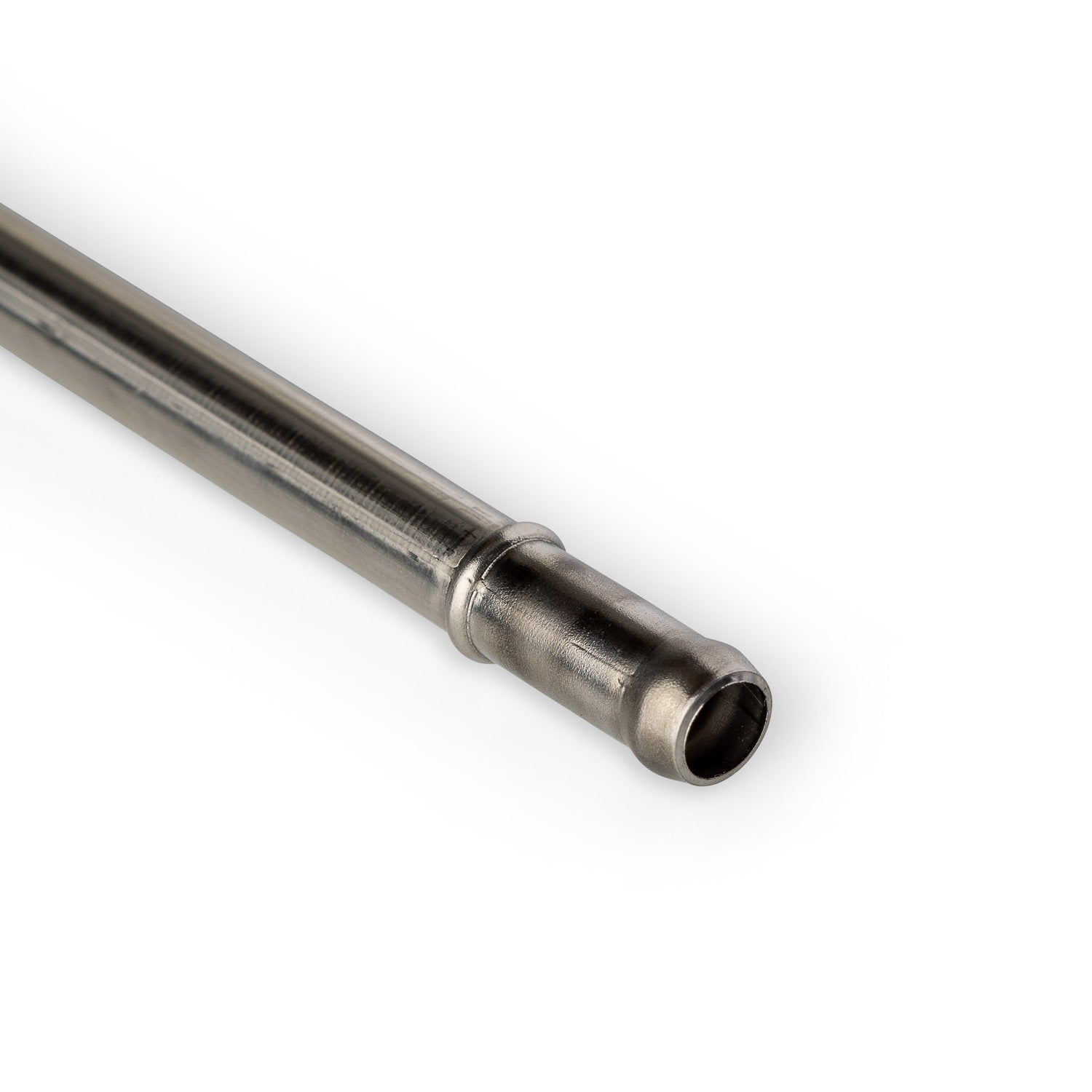

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
