Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F

w/5 SPD w/o HD Cooling (exc. RPO Code KNP)

Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F
Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F
Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F
Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F
Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F

Chevy Kodiak Transmission Line Set 2009 C4500/5500 8.1L TCL-164-1F

w/5 SPD w/o HD Cooling (exc. RPO Code KNP)

SALE:
Save $43.74
/

Delivery Time & Rates

 More payment options

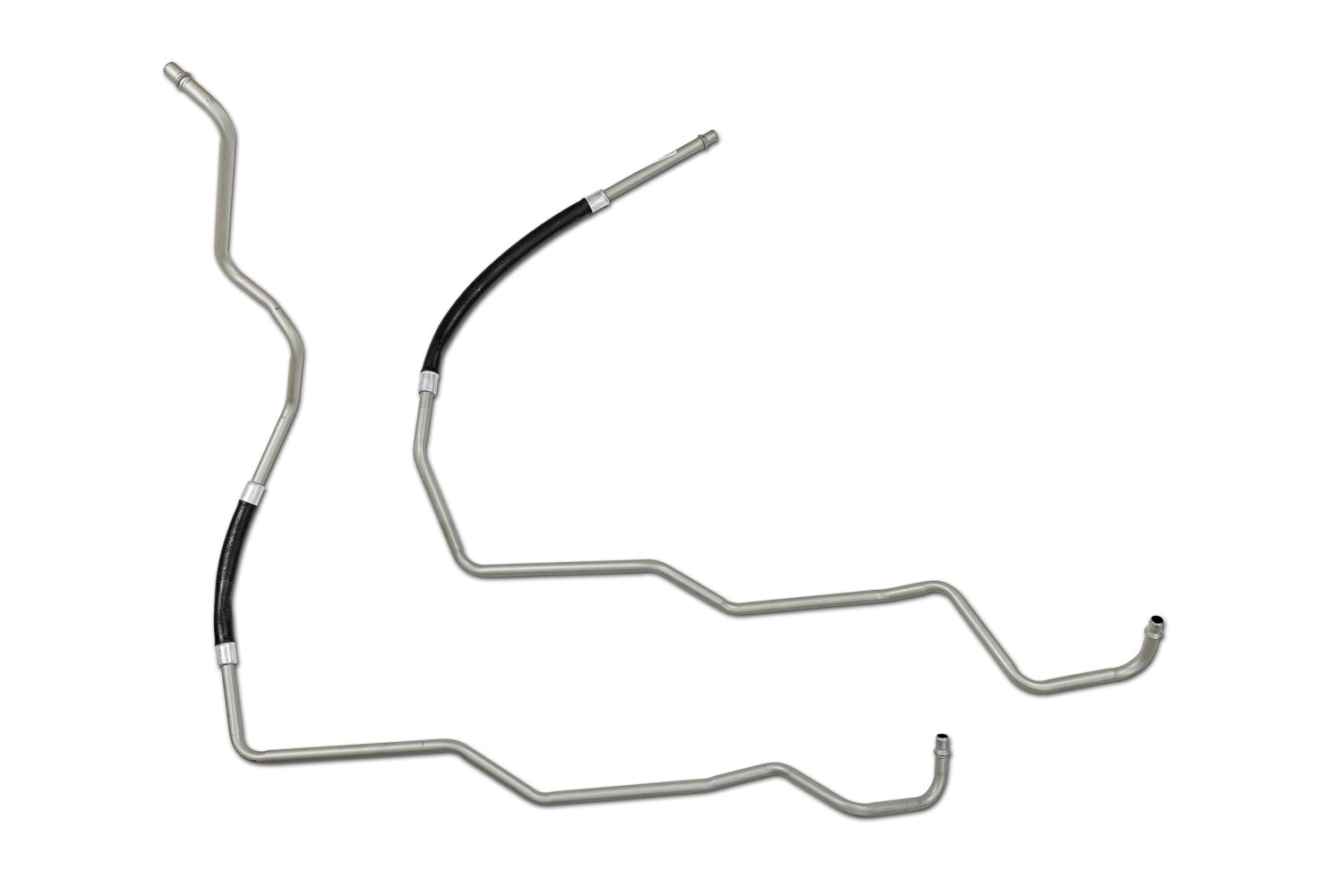

Install this pre bent 2009 Chevy Kodiak C4500/5500 Transmission Cooler Line Set in no time!

Transmission Cooler Line Set for 2009 Chevy Kodiak C4500/5500 w/5 SPD w/o HD Cooling (exc. RPO Code KNP) for 8.1L Gas engine.

SKU: TCL-164-1F
Box Dimensions 39" x 11" x 7"

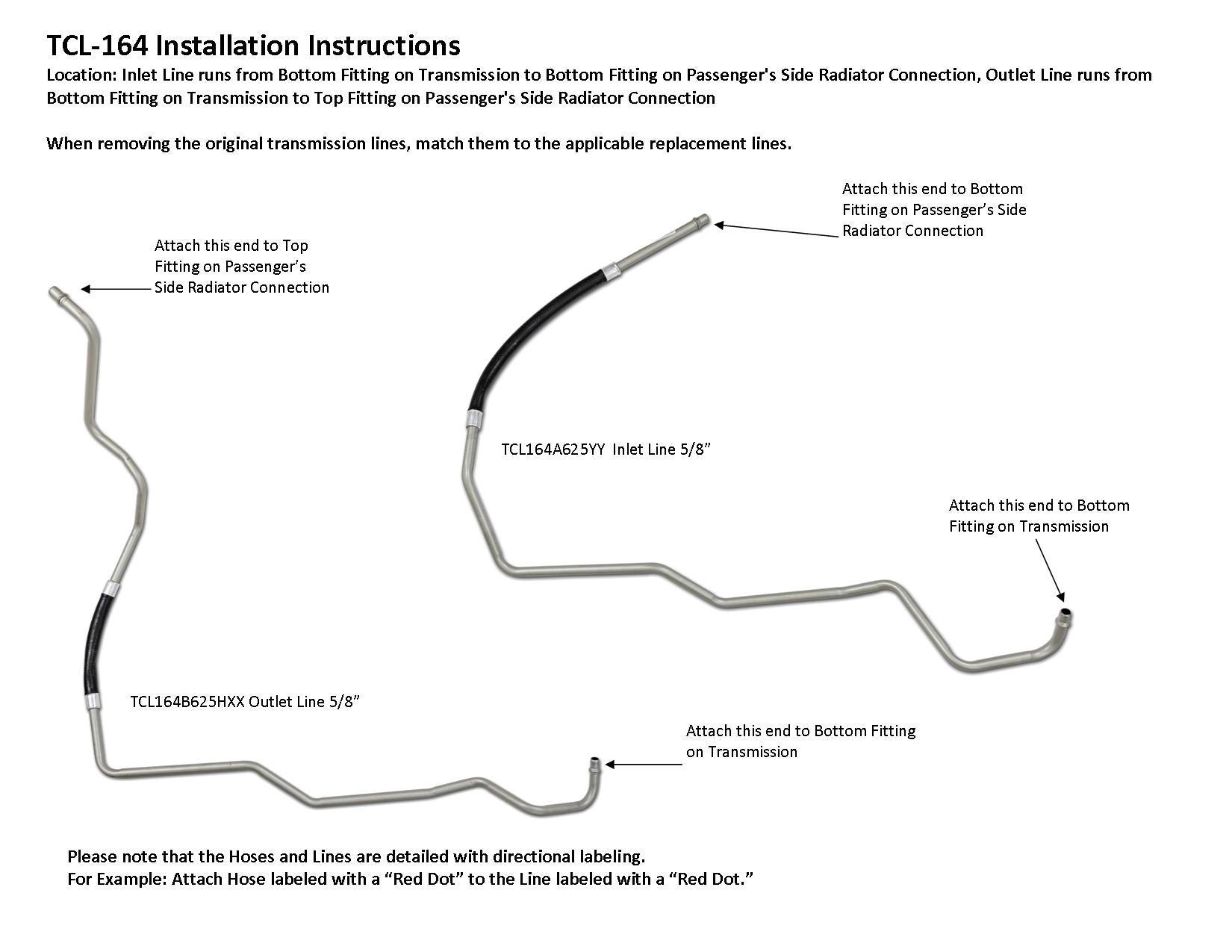

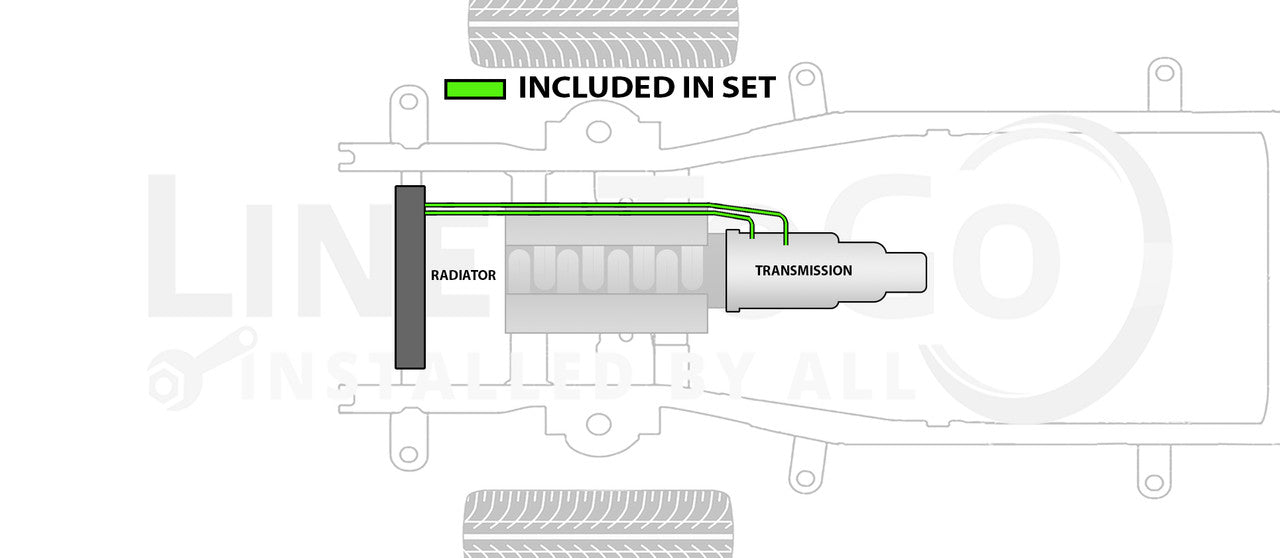

Inlet Line runs from Bottom Fitting on Transmission to Bottom Fitting on Passenger's Side Radiator Connection, Outlet Line runs from Bottom Fitting on Transmission to Top Fitting on Passenger's Side Radiator Connection.

1 Inlet Line 5/8", 1 Outlet Line 5/8"

15258728, 15791684

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Fluoroelastomer with OE style fittings and meets or exceeds applicable SAE Specifications – SAE 100R4

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Complete The Job With

Sale
Transmission Quick Disconnect Tool 5/8" 7173-01
Save $2.50
