Fuel Line Set 97 Chevy S10 Pick Up Ext Cab 6 ft Bed 2WD 4.3L

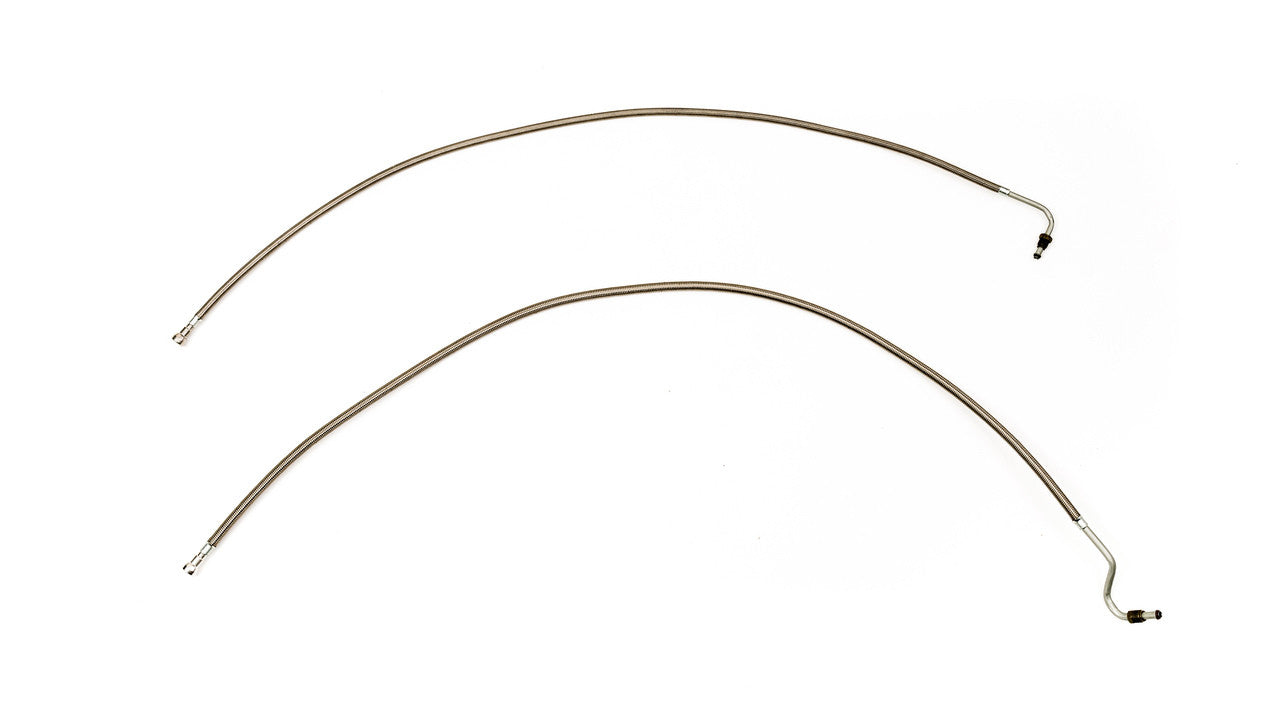

Stainless Steel Braided Teflon Hose

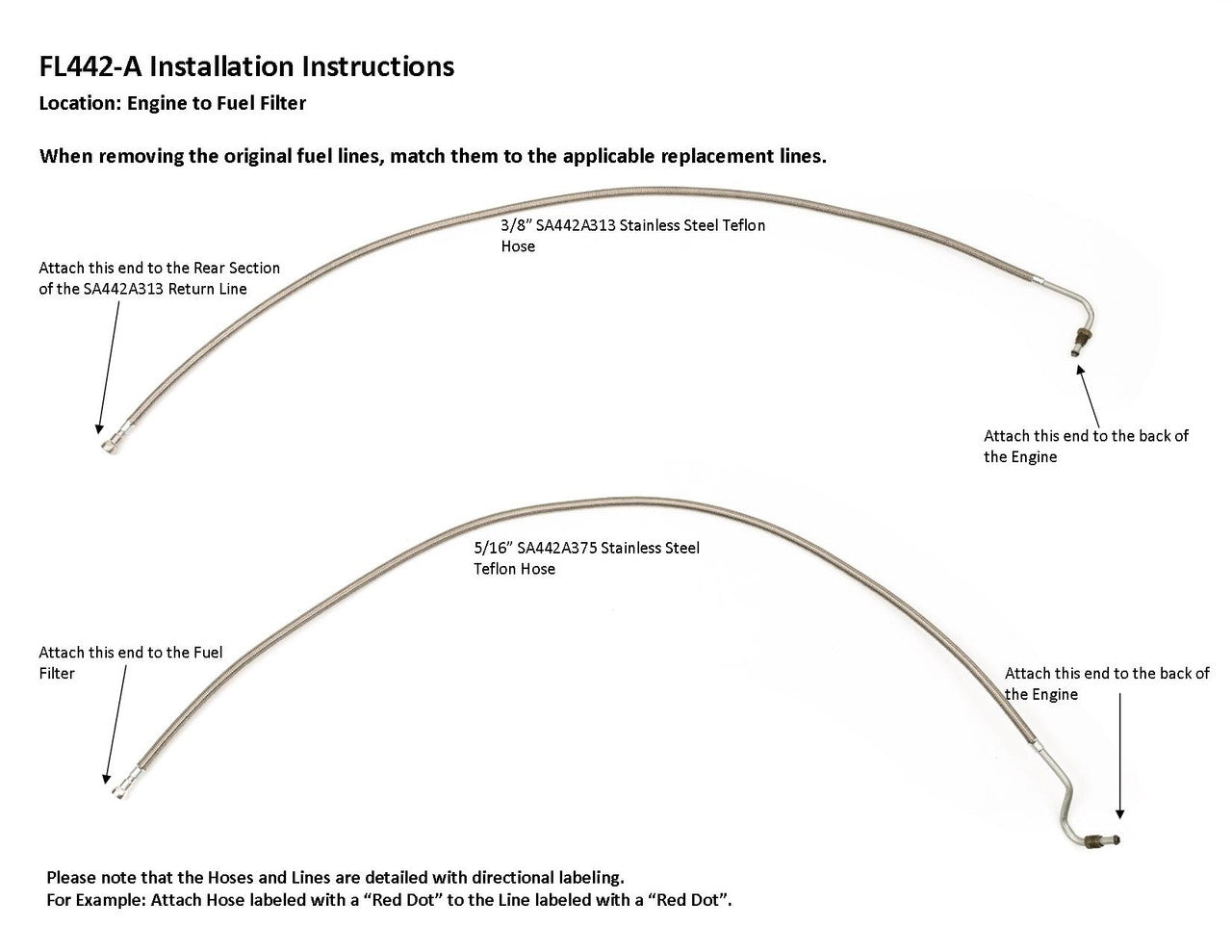

Please Note: This is not a direct OEM Replacement part. The lines are made from Stainless Steel Braided Teflon which is flexible and can be routed between the engine and the fire wall down over and along the transmission and transfer case.

Retainer Clips Included On Lines:
The retainer clips provided on the replacement lines may not be needed.
The replacement lines will plug into connectors which have retainer clips inside them.

1) Damaged During Removal:
Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged.
If this is the case, you will need to leave the retainer clips on the replacement lines.

2) NOT Damaged During Removal:
If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines.
The retainer clips will need to be removed before plugging into the connector.
