Chevy Silverado Brake Line Set 2004 1500 2WD Ext Cab 8ft Bed 4.3L BLC-240-SS1E Stainless Steel
w/GVW 7,200 LBS 4 Wheel Disc Brakes w/o Quadrasteer
Chevy Silverado Brake Line Set 2004 1500 2WD Ext Cab 8ft Bed 4.3L BLC-240-SS1E Stainless Steel
w/GVW 7,200 LBS 4 Wheel Disc Brakes w/o Quadrasteer
Delivery Time & Rates
Install this pre bent 2004 Silverado brake line set in no time!

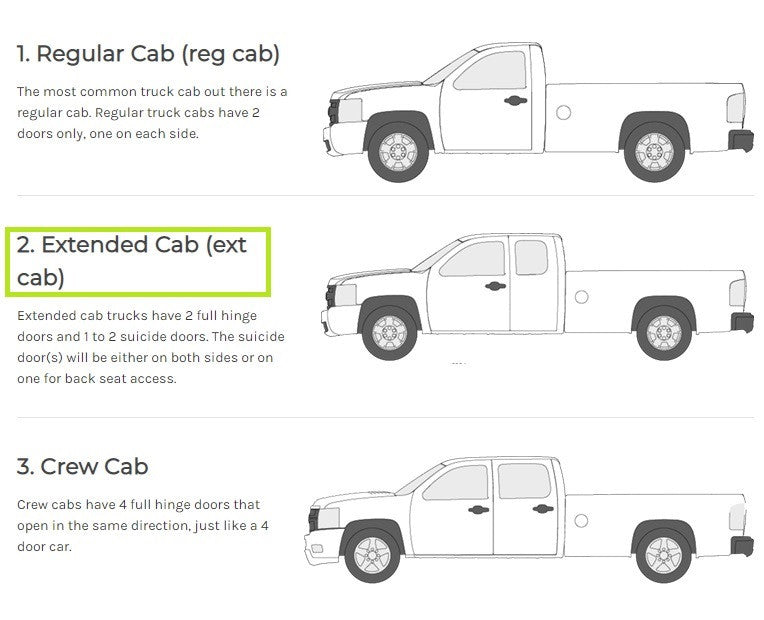

2004 Stainless Steel Brake Line Set Chevy Silverado 1500 2WD Ext Cab 8ft Bed w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o Quadrasteer for 4.3L engines
- Weight: 9

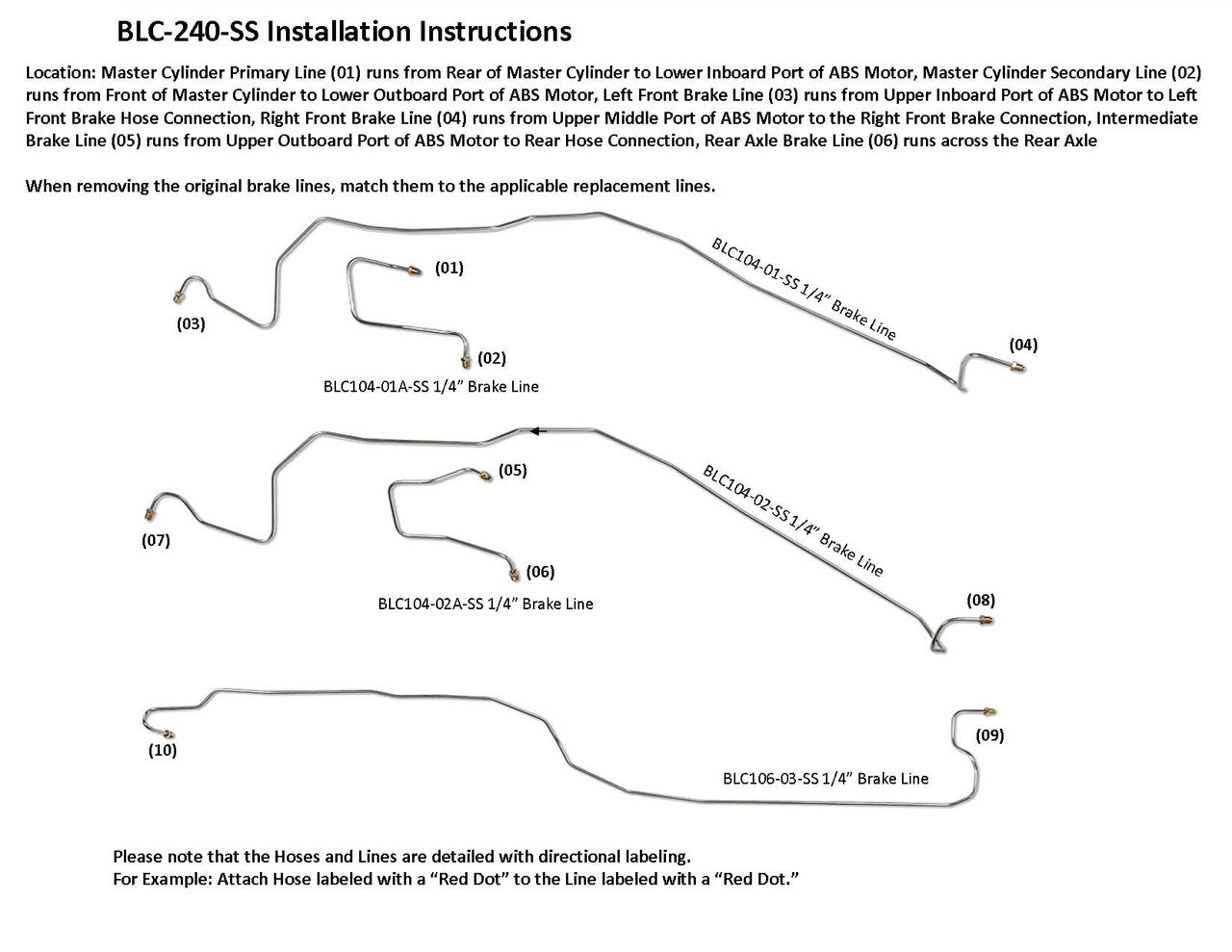

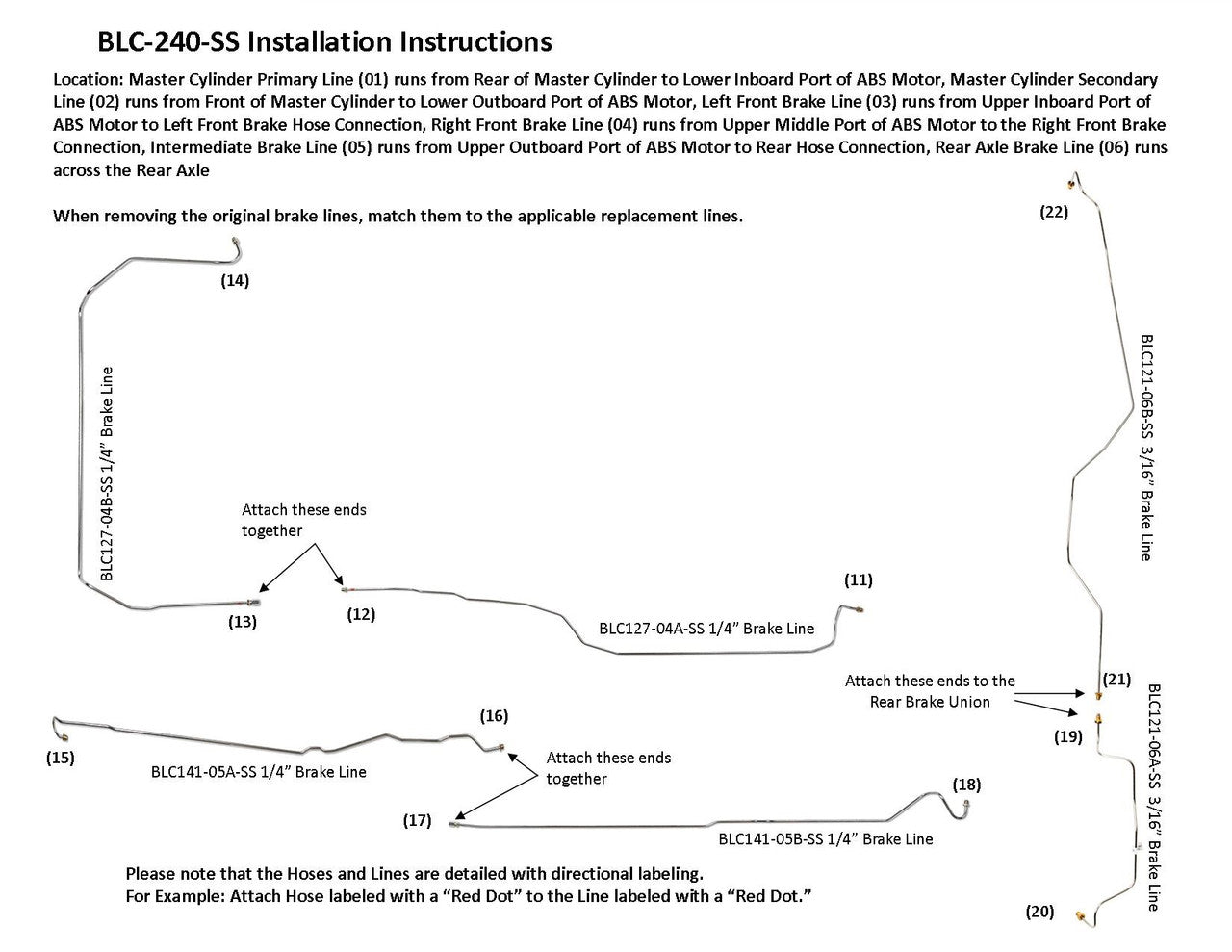

- Installation Instructions

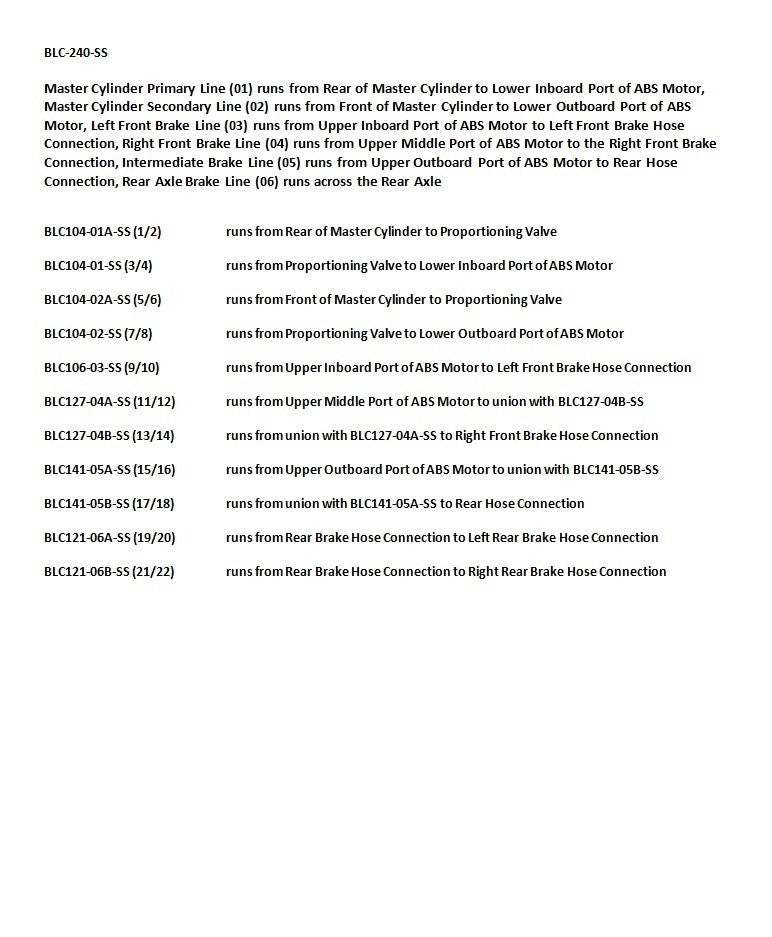

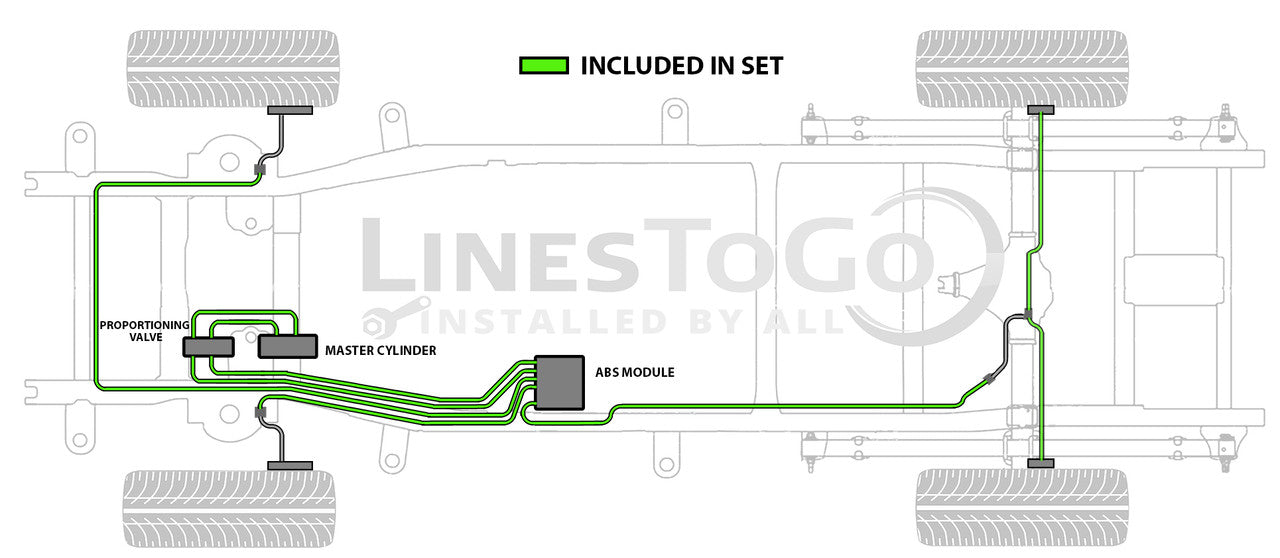

Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Inboard Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Middle Port of ABS Motor to the Right Front Brake Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor to Rear Hose Connection, Rear Axle Brake Line runs across the Rear Axle

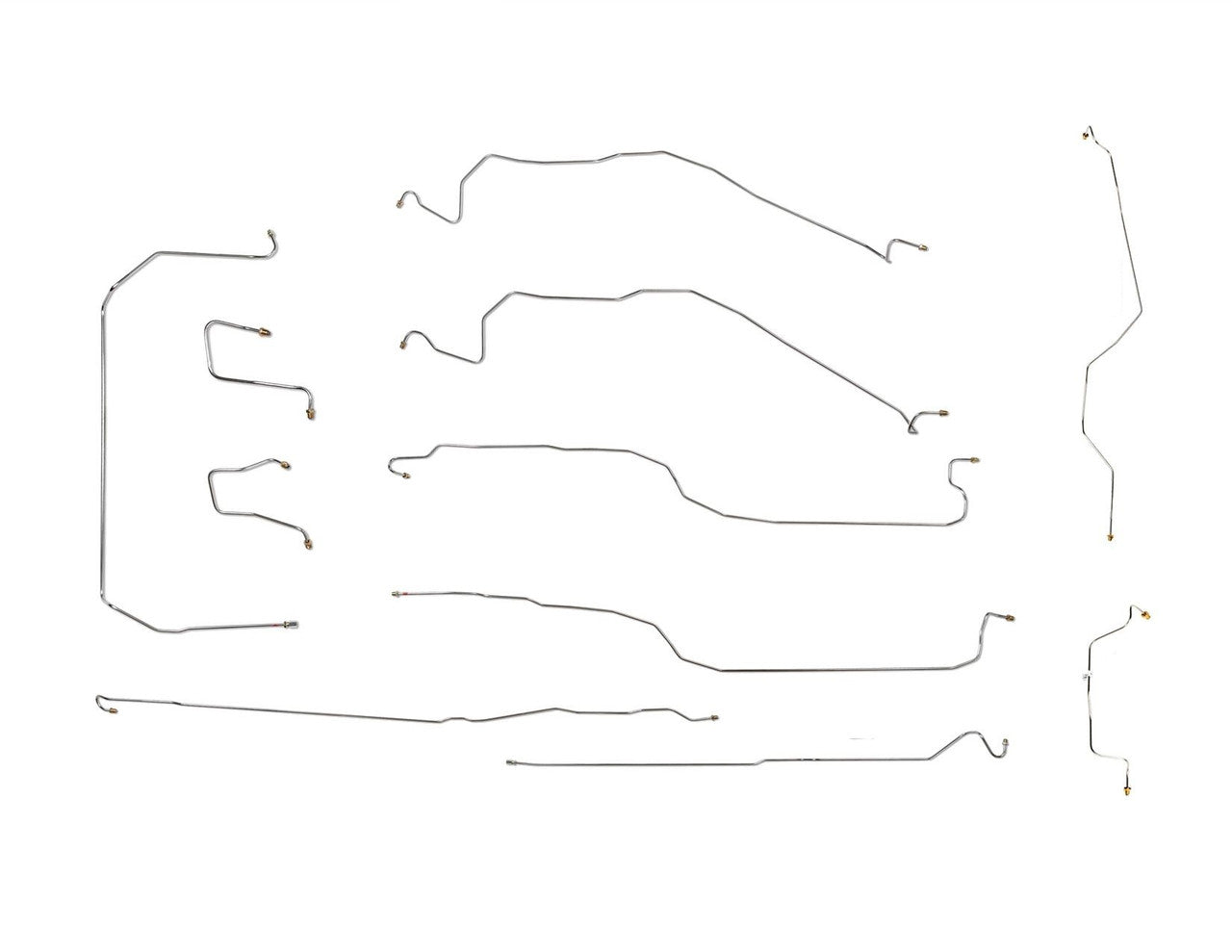

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Brake Line 3/16" (in 2 Sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
