Install this pre bent 2005 Silverado brake line set in no time!

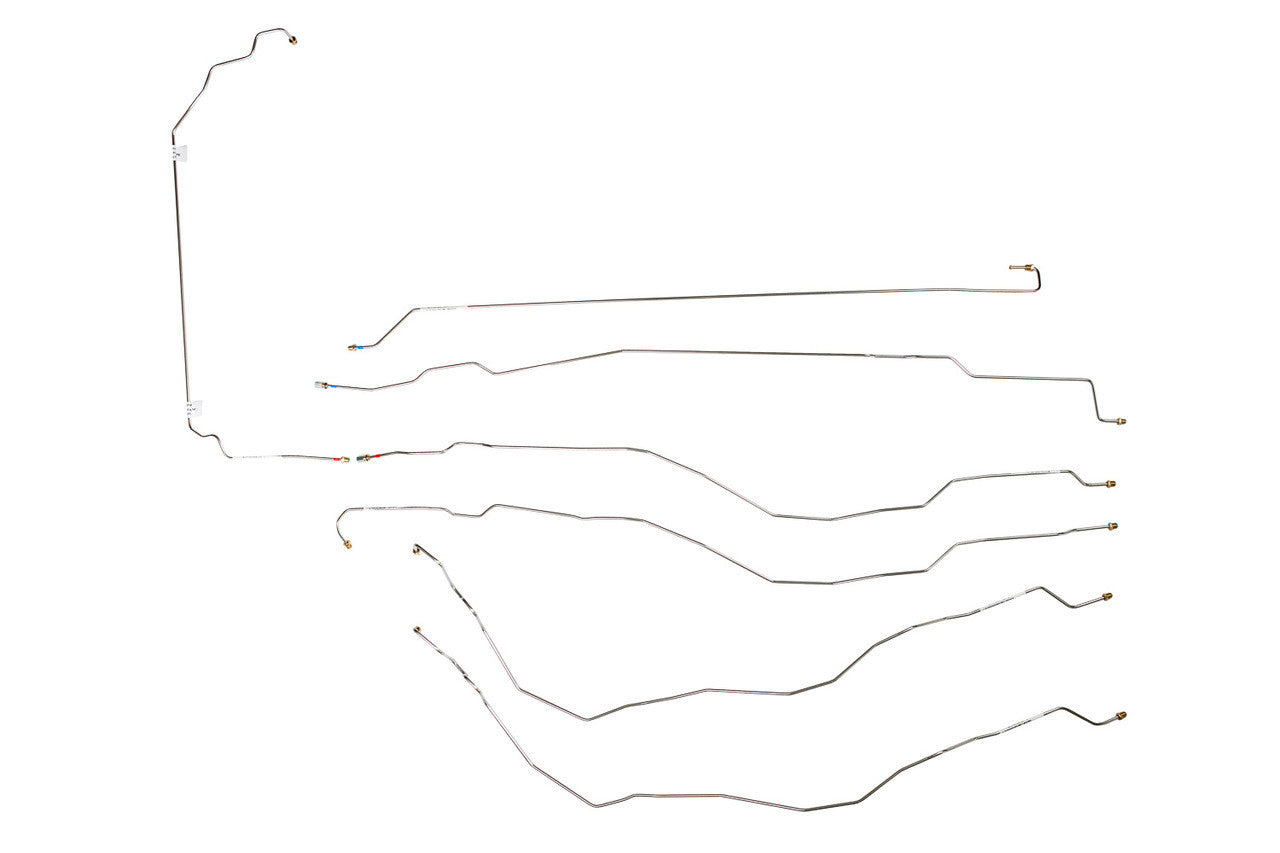

Brake Line Set Stainless Steel 2005 Chevy Silverado 2500HD/3500 Crew Cab 8ft Bed for 6.0L and 6.6L engines

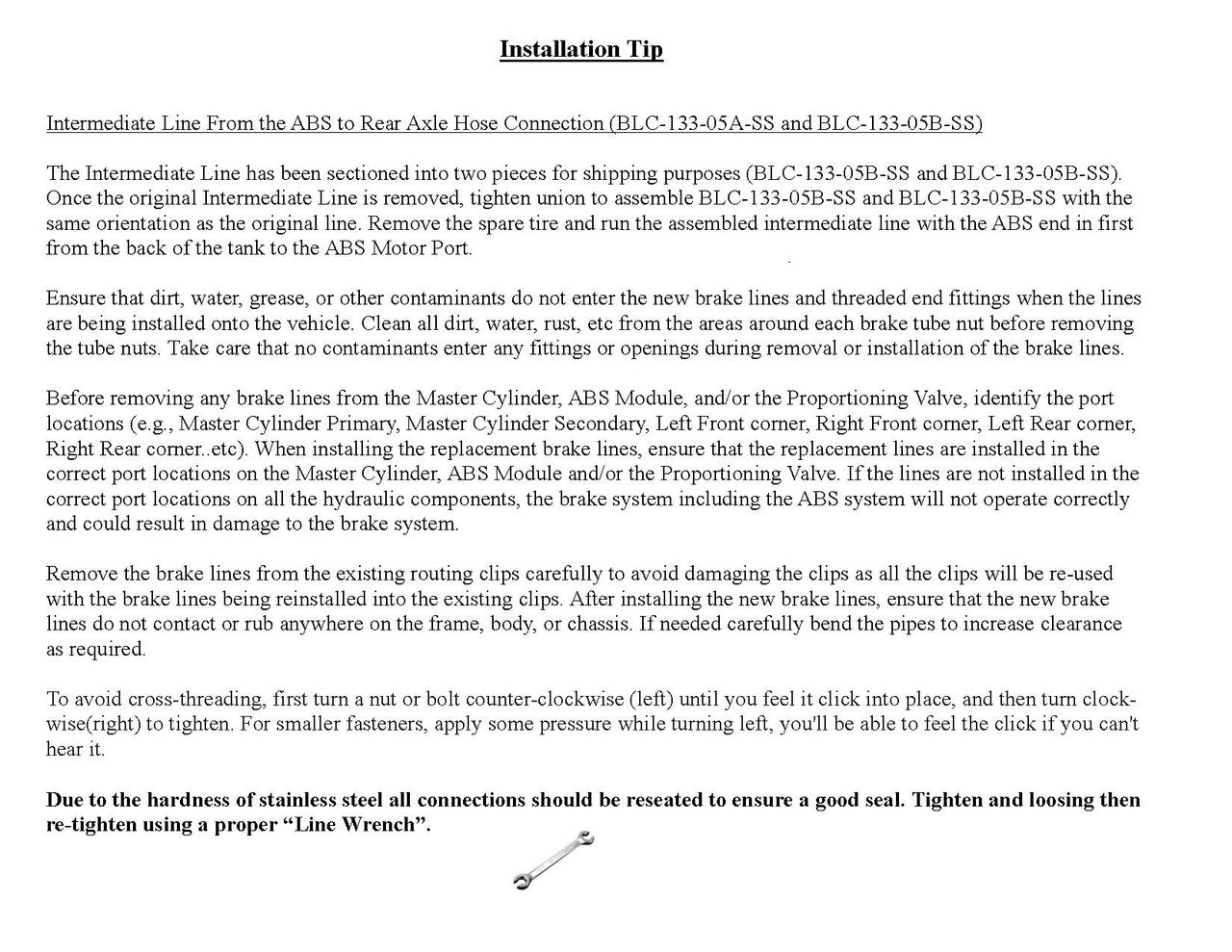

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC133-01-SS, BLC133-02-SS, BLC132-03-SS, BLC133-04A-SS, BLC133-05A-SS and BLC133-05B-SS. See the video below on how to remove the shipping bend
Complete set excluding Hoses and Rear Axle Crossover Line

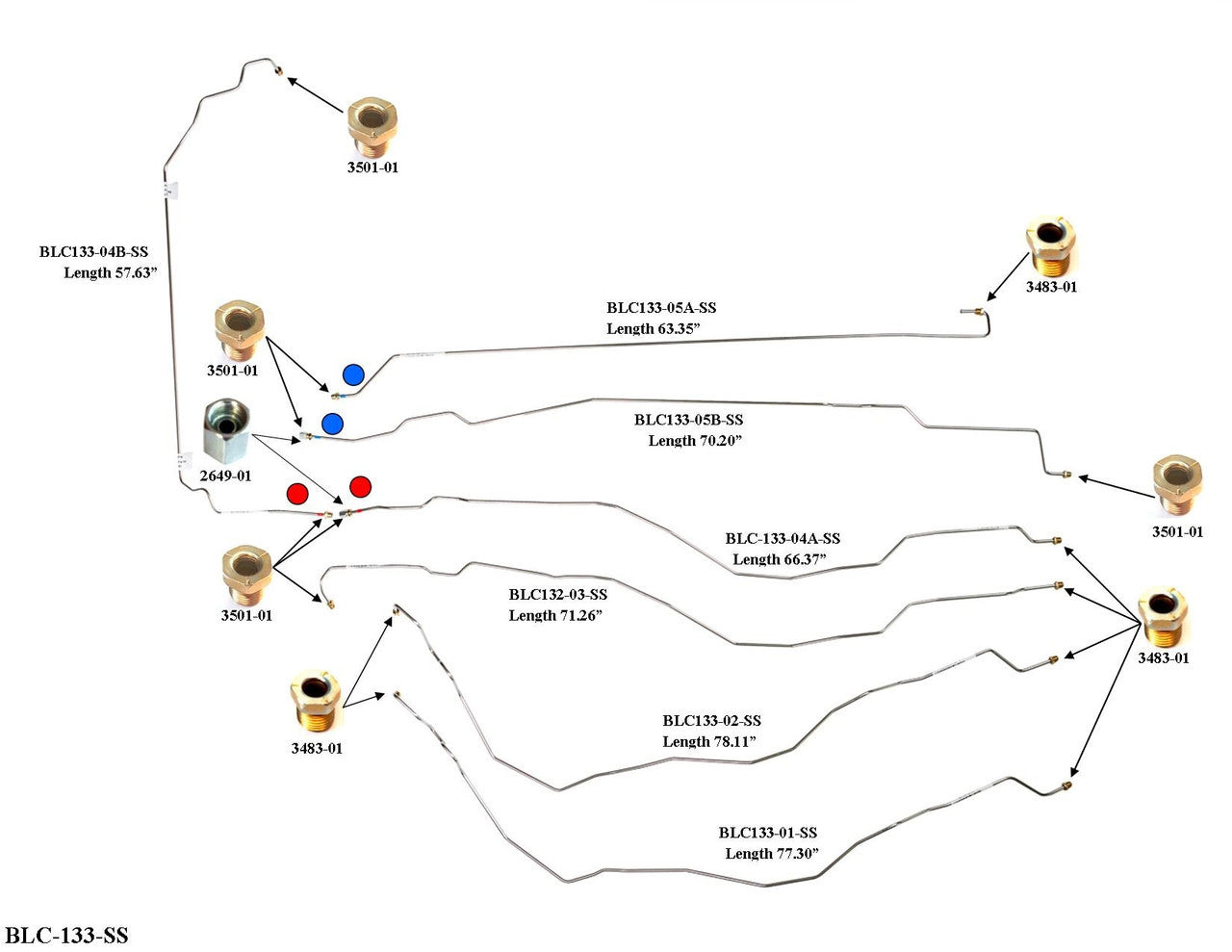

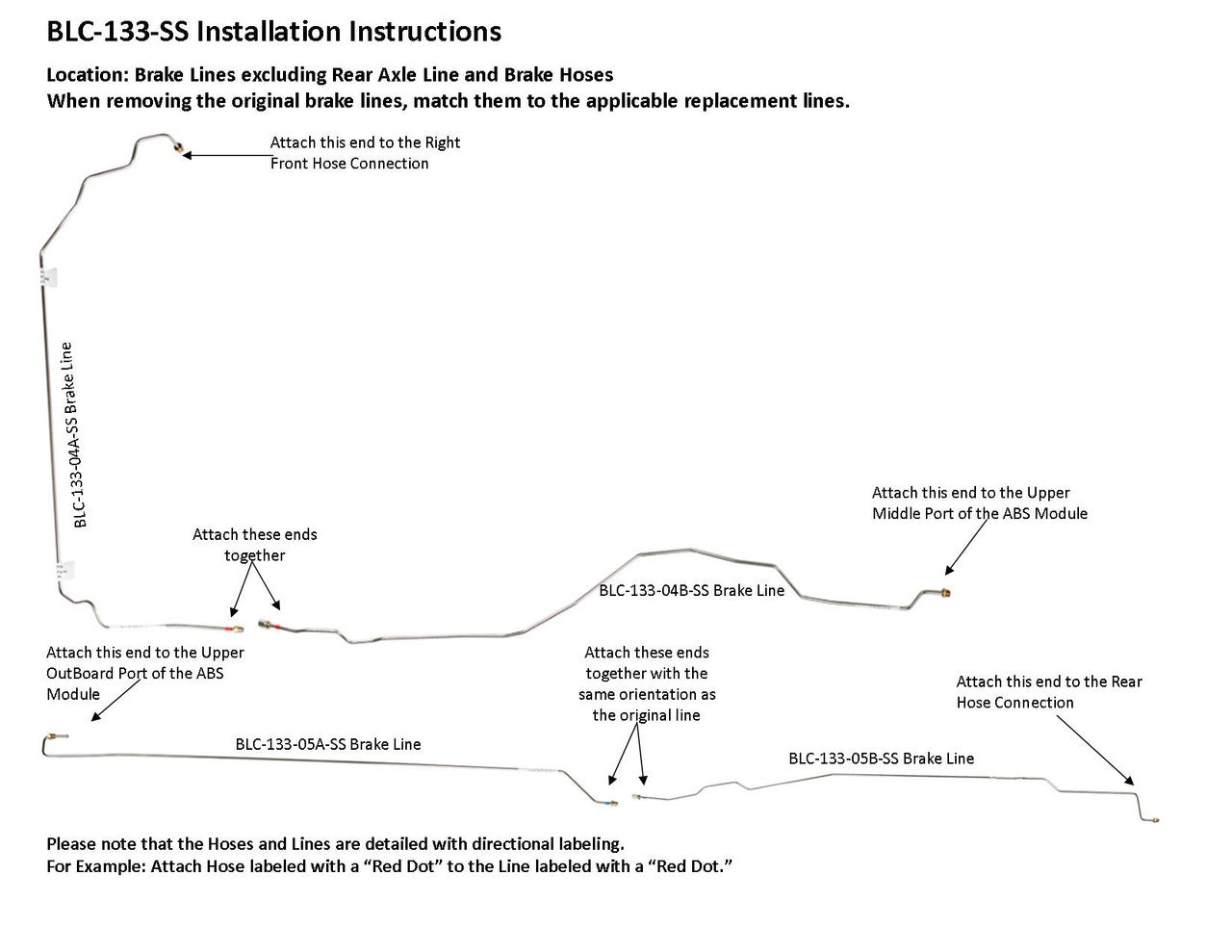

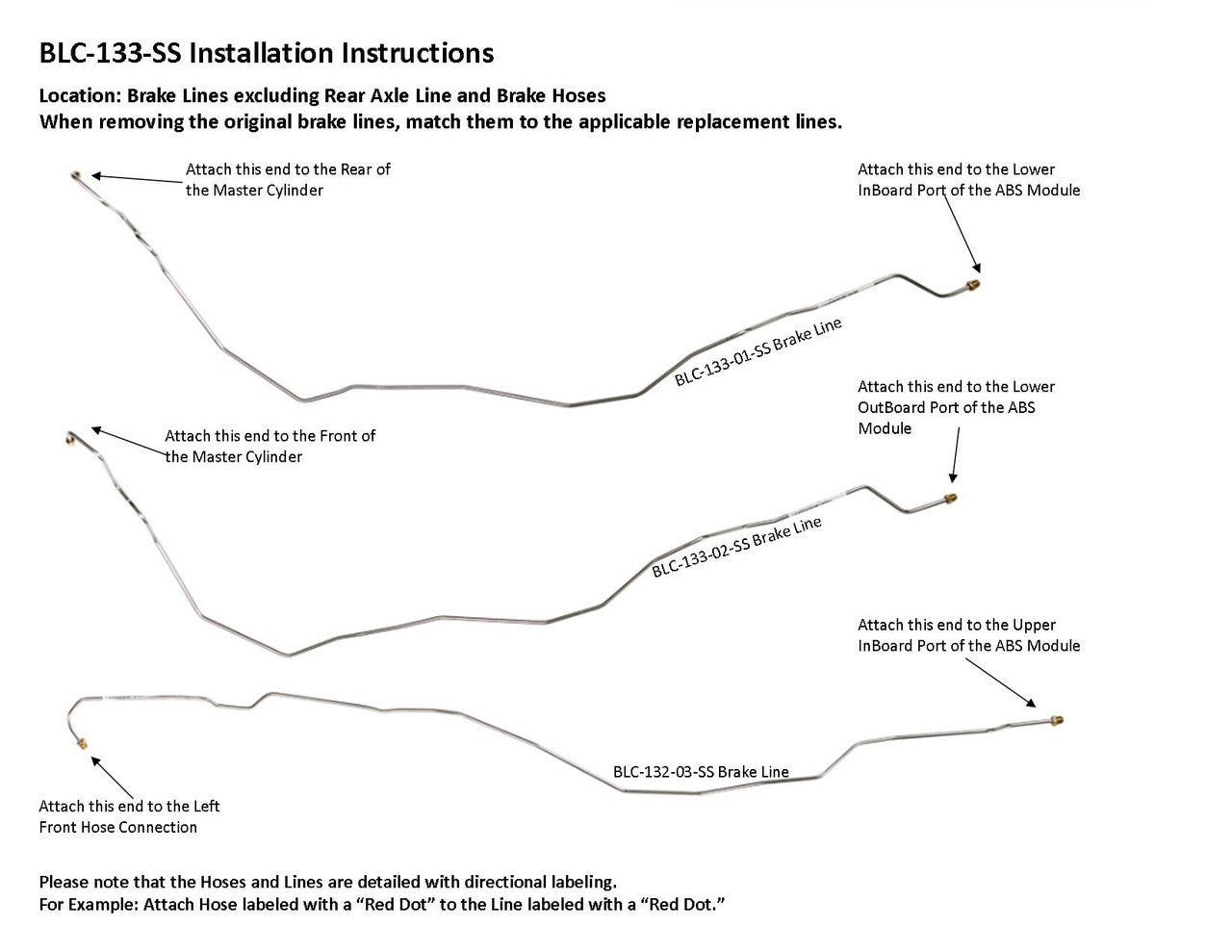

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, 1 Left Front Line from Left Front Hose Connection to Upper Inboard Port of ABS Module, 1 Right Front Line from Right Front Hose Connection to Upper Middle Port of ABS Module (2 easy to install sections), 1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections)
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
