Chevy Silverado Brake Line Set 2010 2500HD Crew Cab 6.5ft Bed 6.0L BLC-200-SS1D Stainless Steel
w/4 Wheel Disc Brakes w/o Active Brake Control
Chevy Silverado Brake Line Set 2010 2500HD Crew Cab 6.5ft Bed 6.0L BLC-200-SS1D Stainless Steel
w/4 Wheel Disc Brakes w/o Active Brake Control
Delivery Time & Rates
Install this pre bent 2010 Silverado brake line set in no time!
Brake Line Set Stainless Steel Chevy Silverado 2500HD 2010 Crew Cab 6.5ft Bed 6.0L w/4 Wheel Disc Brakes w/o Active Brake Control

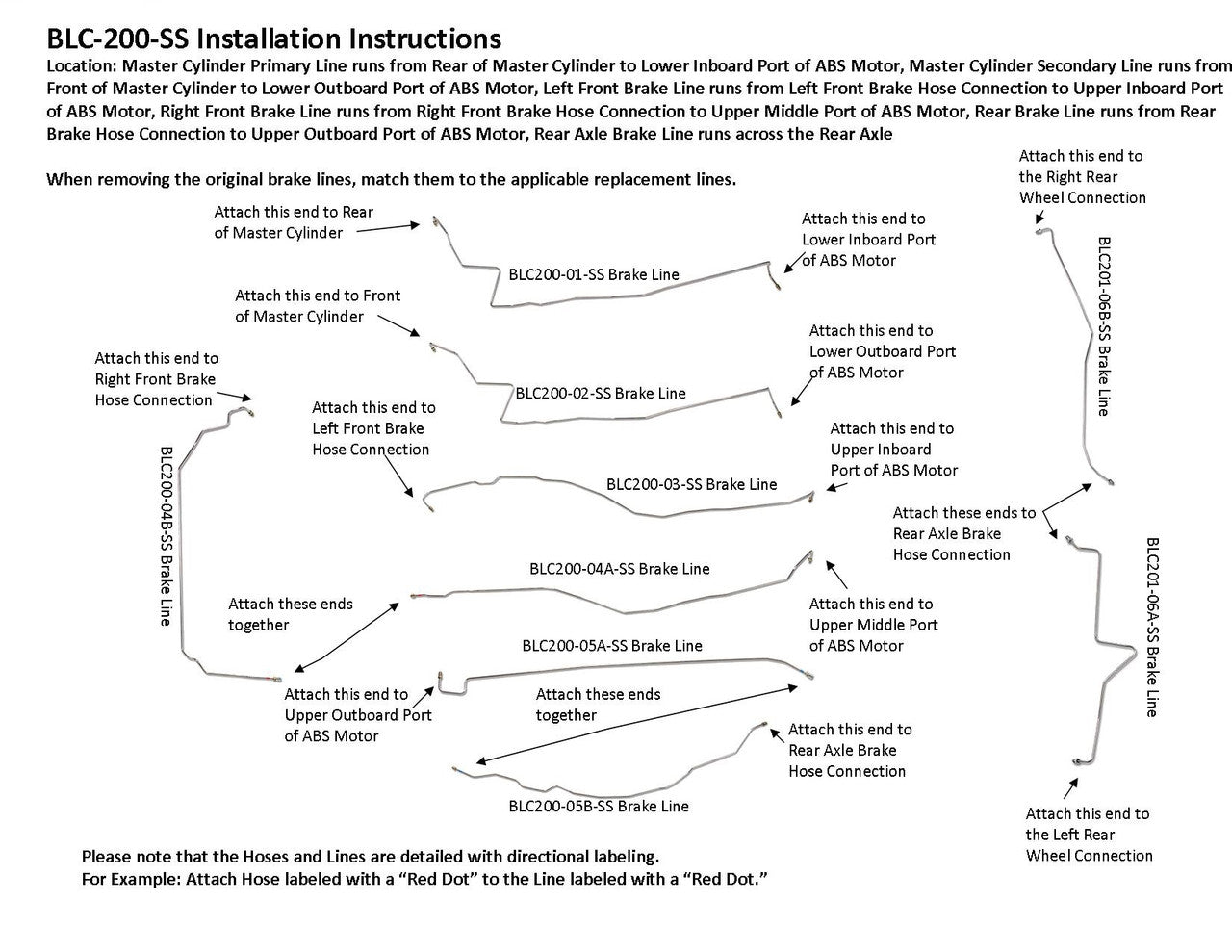

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC200-01-SS, BLC200-02-SS, BLC200-03-SS, BLC200-04A-SS, BLC200-05A-SS and BLC200-05B-SS. See the video below on how to remove the shipping bend

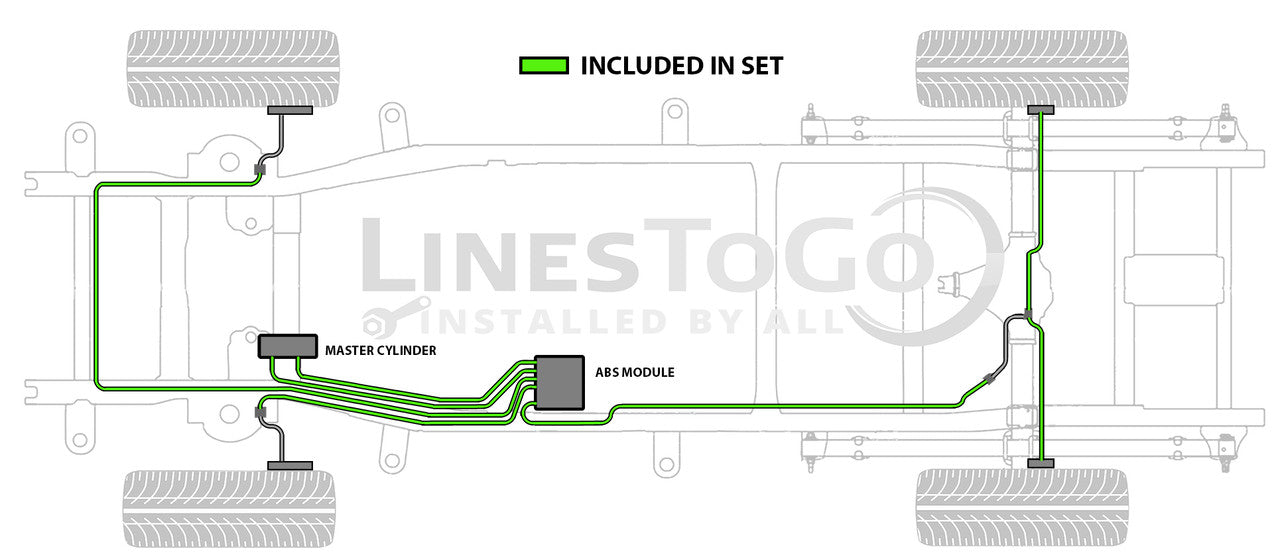

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

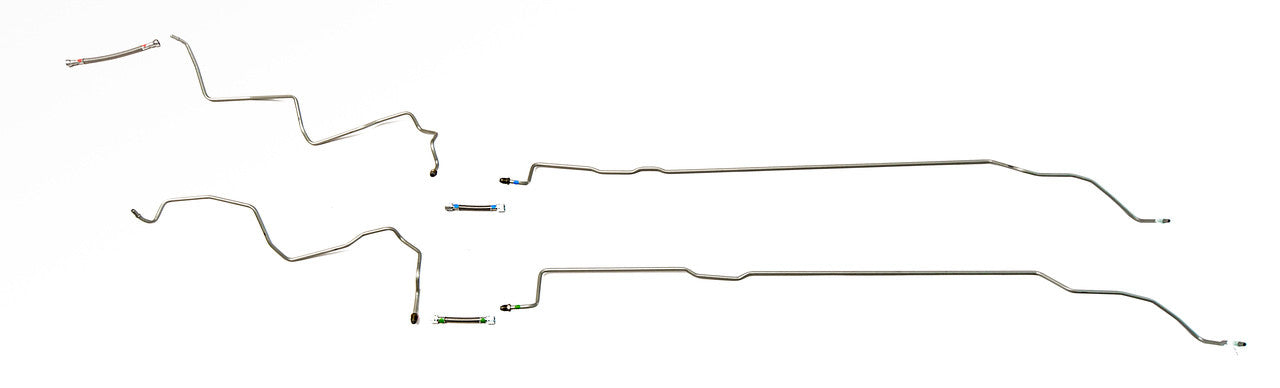

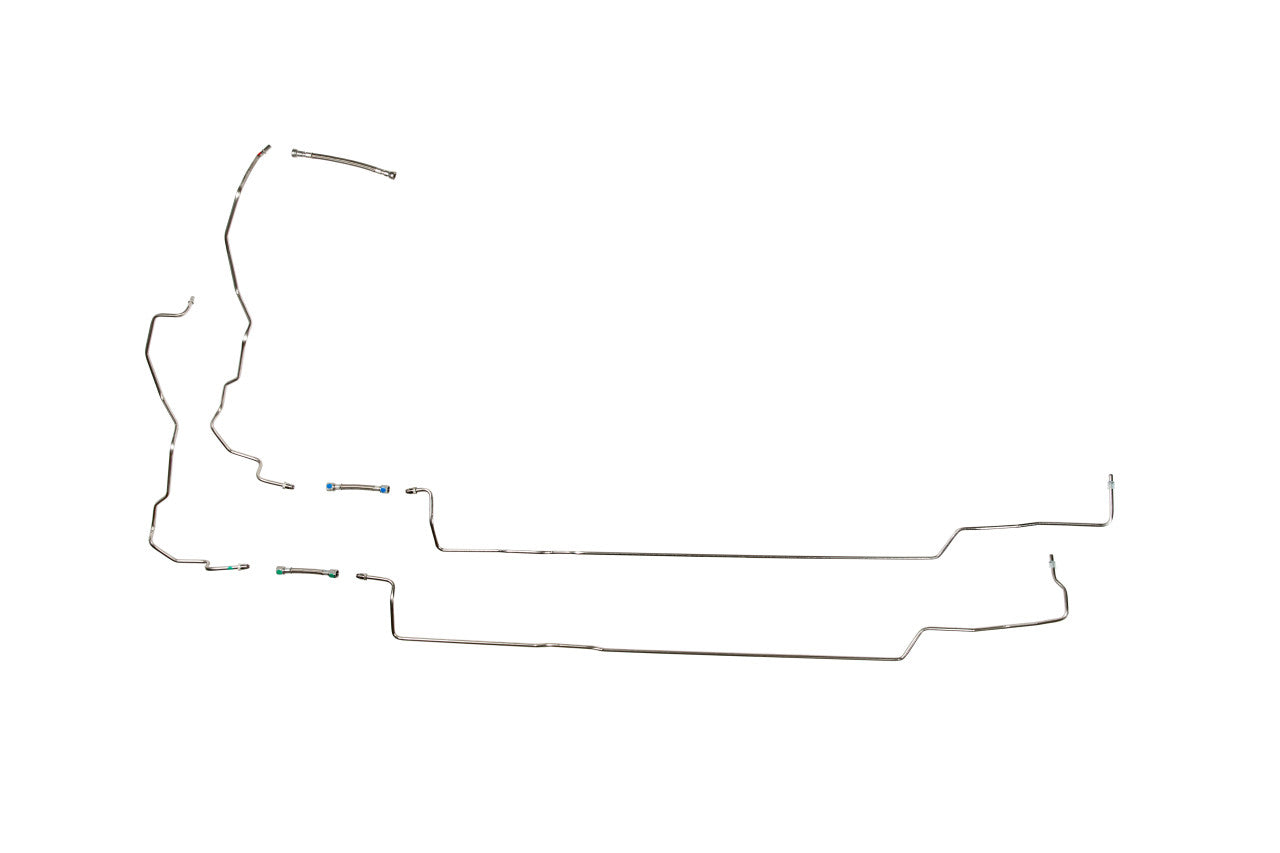

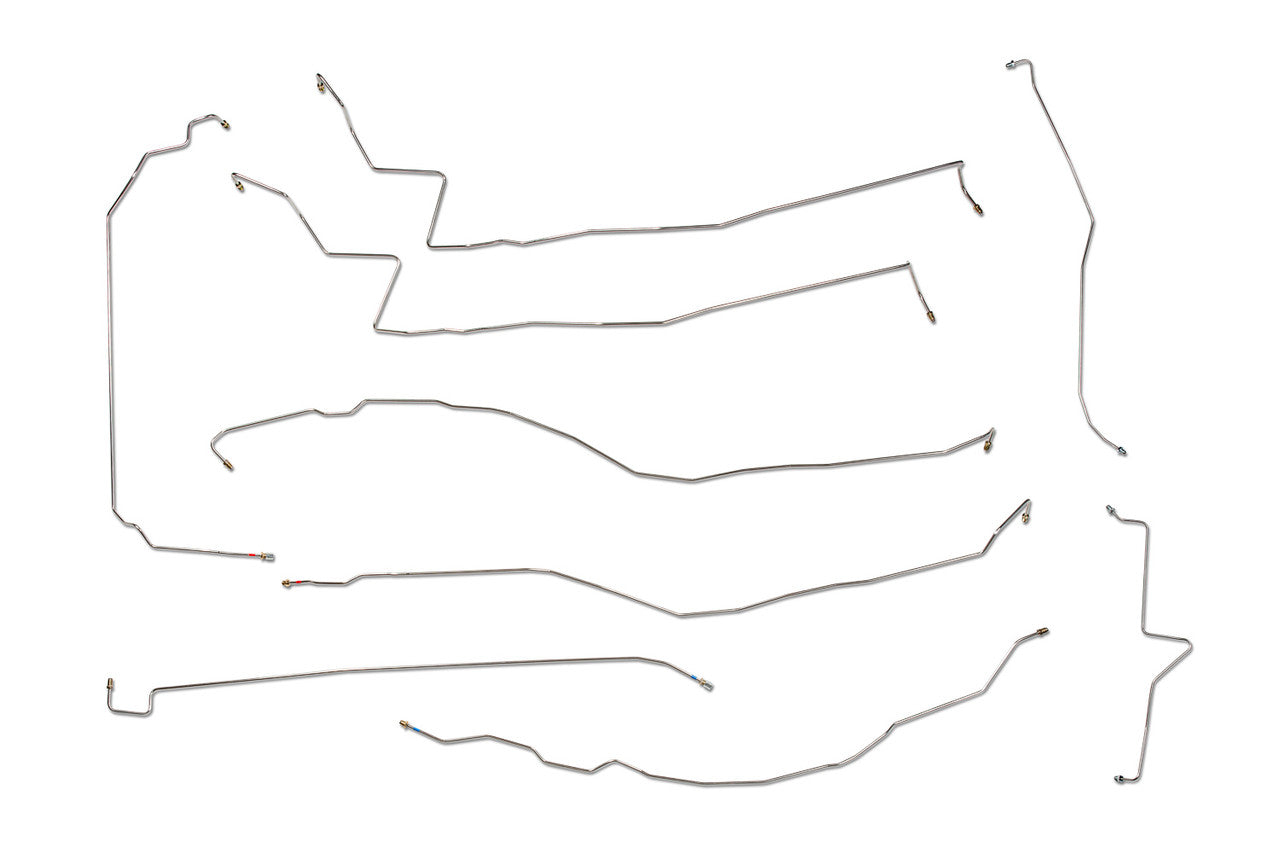

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
