Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C

w/Rear Auxiliary Fuel Tank w/RPO Code C5B (15,000 GVW)

Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C
Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C

Chevy Silverado Fuel and Brake Line Set 2000 C3500 2 Dr Cab & Chassis 2WD 183.5" WB 7.4L CS101-1C

w/Rear Auxiliary Fuel Tank w/RPO Code C5B (15,000 GVW)

SALE:
Save $93
/

Delivery Time & Rates

Shop LinesToGo for 2000 Silverado Chevrolet truck fuel lines - 2 Dr Cab & Chassis C3500 2WD 183.5" WB w/Rear Auxiliary Fuel Tank w/RPO Code C5B (15,000 GVW) for 7.4L engines

SKU: CS101-1C
Box Dimensions 89" x 7" x 5"
Product Warranty 1 Year

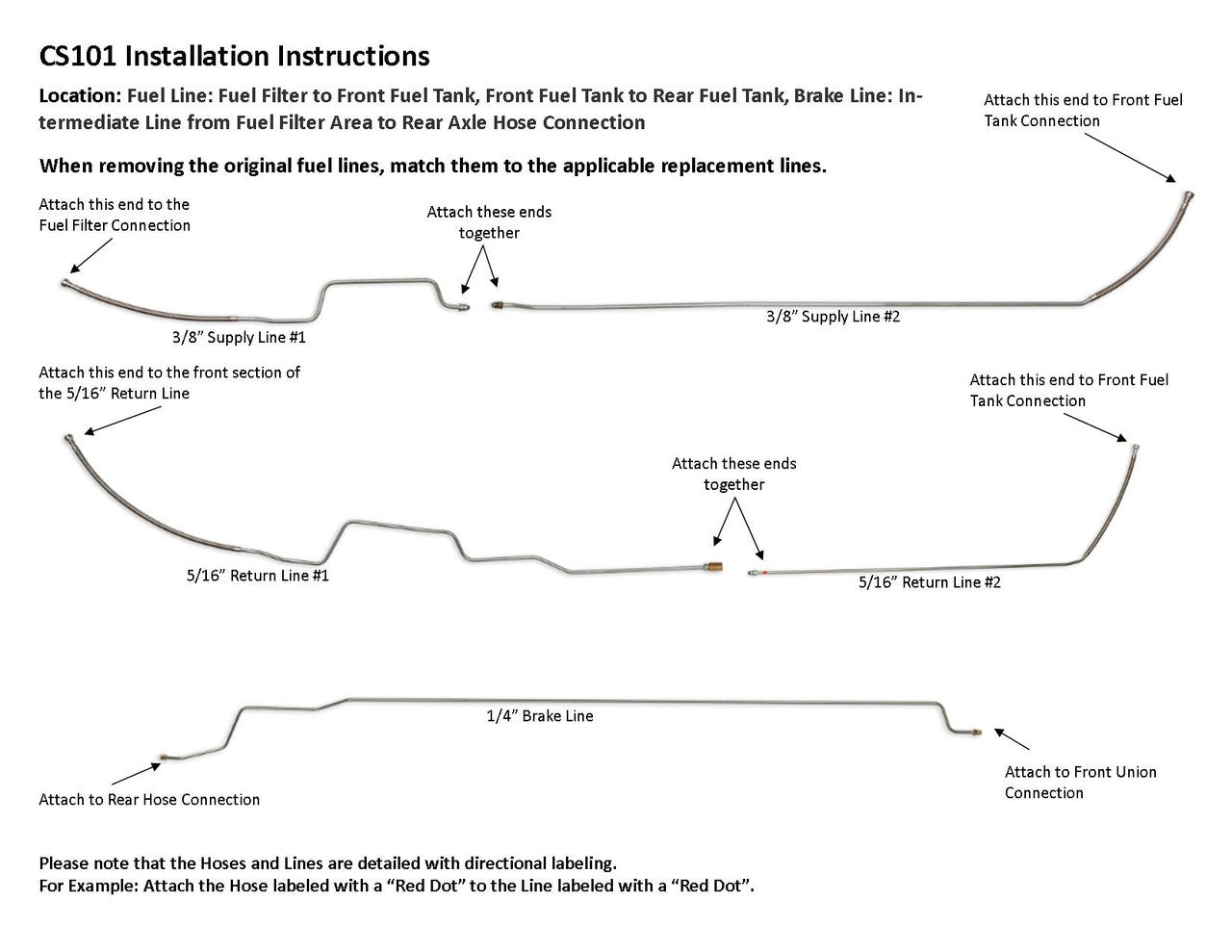

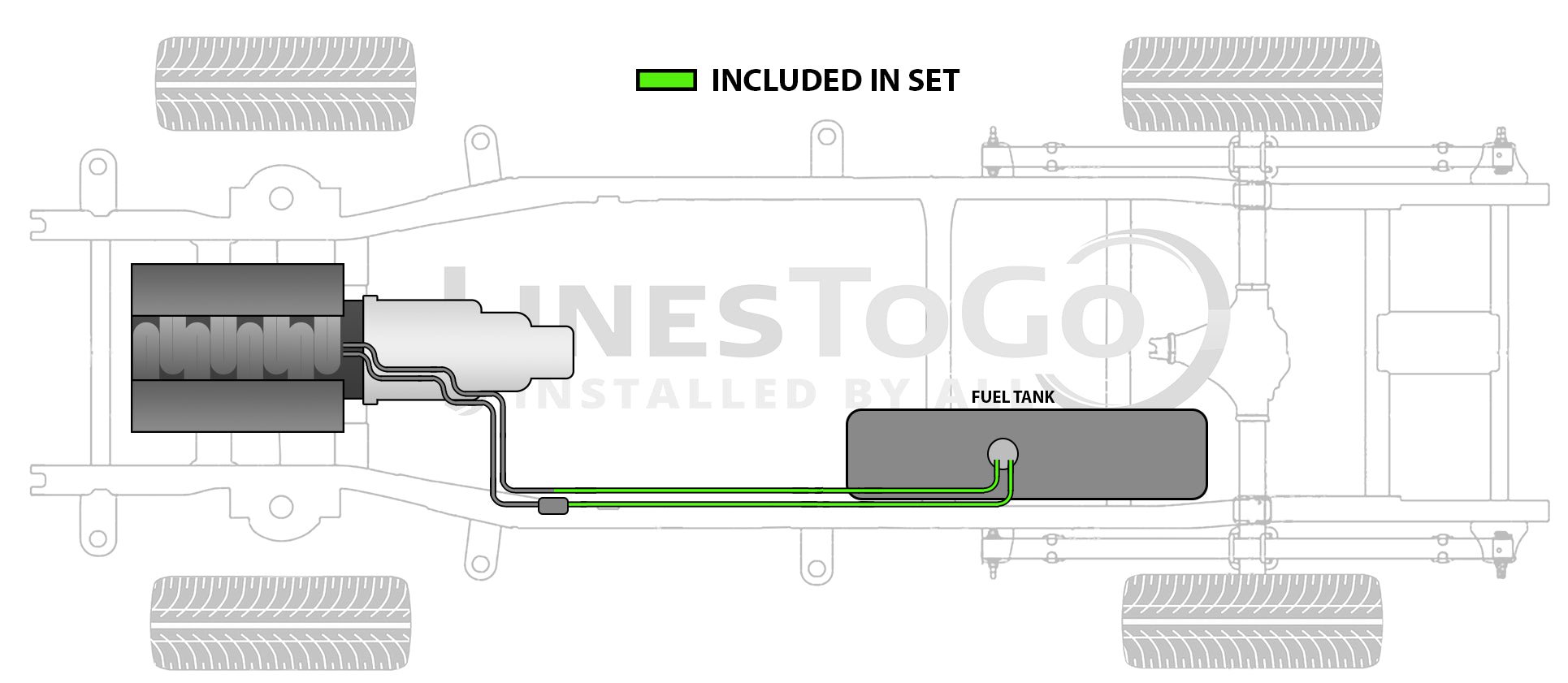

Fuel Line: Fuel Filter to Front Fuel Tank, Front Fuel Tank to Rear Fuel Tank

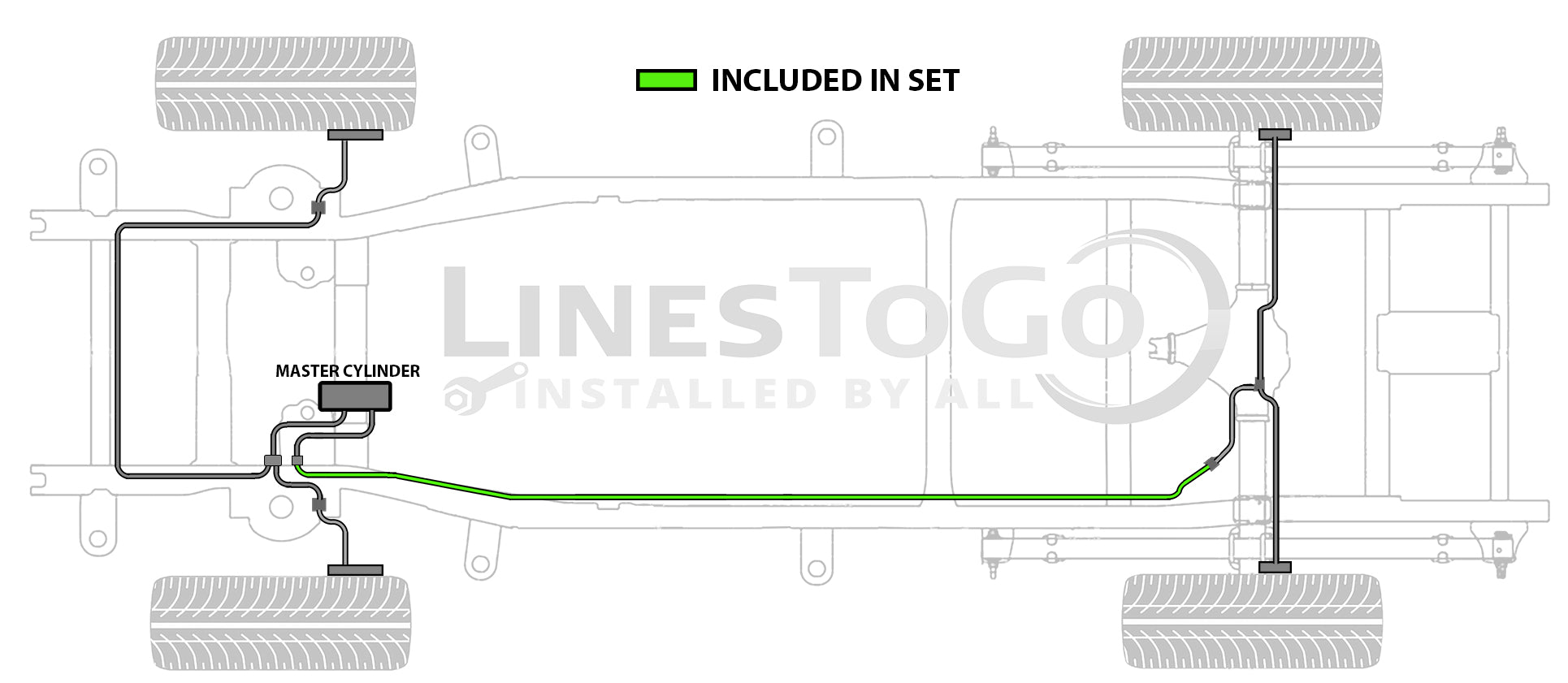

Brake Line: Intermediate Line from Fuel Filter Area to Rear Axle Hose Connection

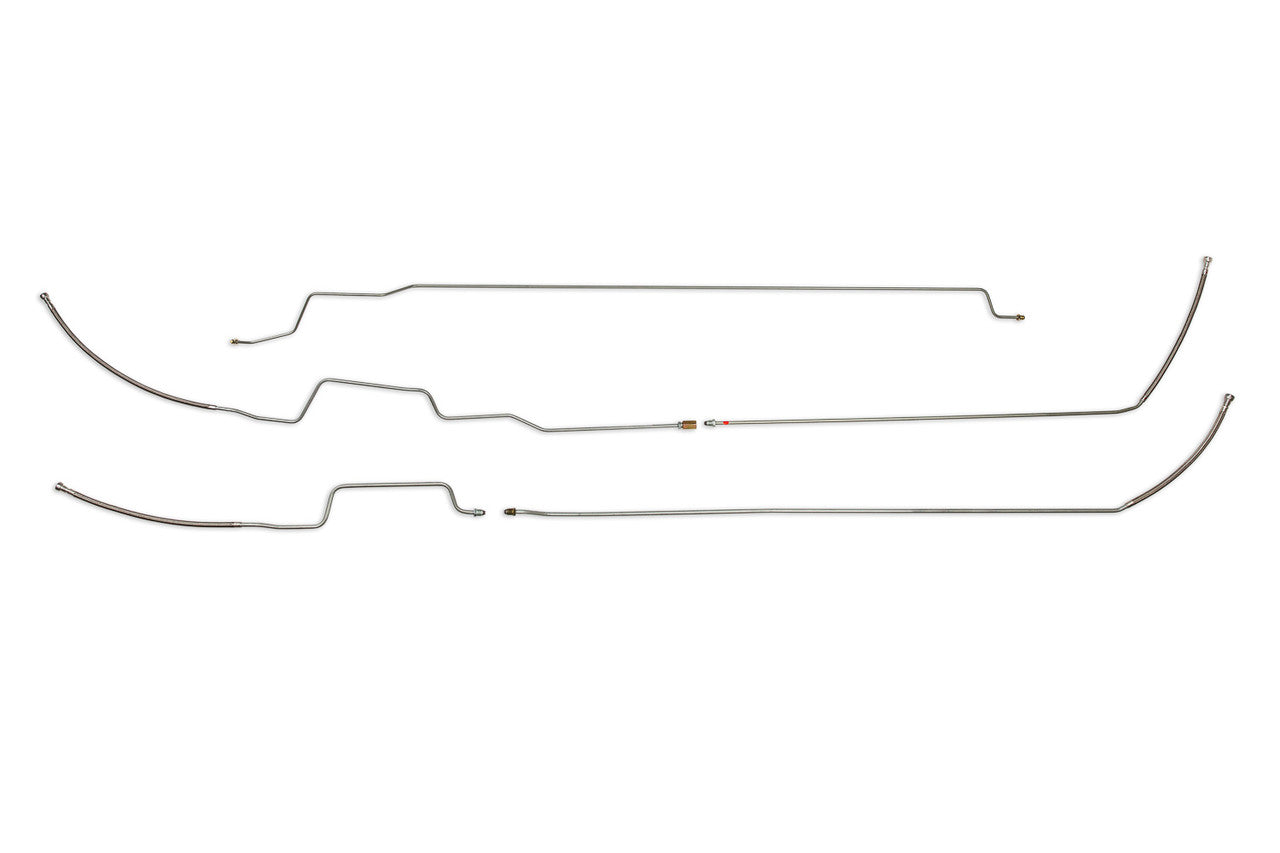

1 supply line 3/8" (in 3 sections), 1 return line 5/16" (in 3 sections), 1 brake line 1/4"

15735277, 15735290, 15735303, 15735280, 15735299

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
