Chevy Suburban Brake Line Set 1997 K1500 4WD BLC-169-SS1C Stainless Steel

RPO Code JB5 w/11.86” X 2.25” Rear Drums

Chevy Suburban Brake Line Set 1997 K1500 4WD BLC-169-SS1C Stainless Steel

Chevy Suburban Brake Line Set 1997 K1500 4WD BLC-169-SS1C Stainless Steel

RPO Code JB5 w/11.86” X 2.25” Rear Drums

SALE: from
from
Save $73.74
from /

Delivery Time & Rates

 More payment options

Choose from 1997 Suburban brake lines to fit your Chevrolet without a problem...

Brake Line Set Stainless Steel 1997 Chevy Suburban K1500 4WD w/ 11.86” X 2.25” Rear Drums (RPO Code JB5) for 5.7L engines.

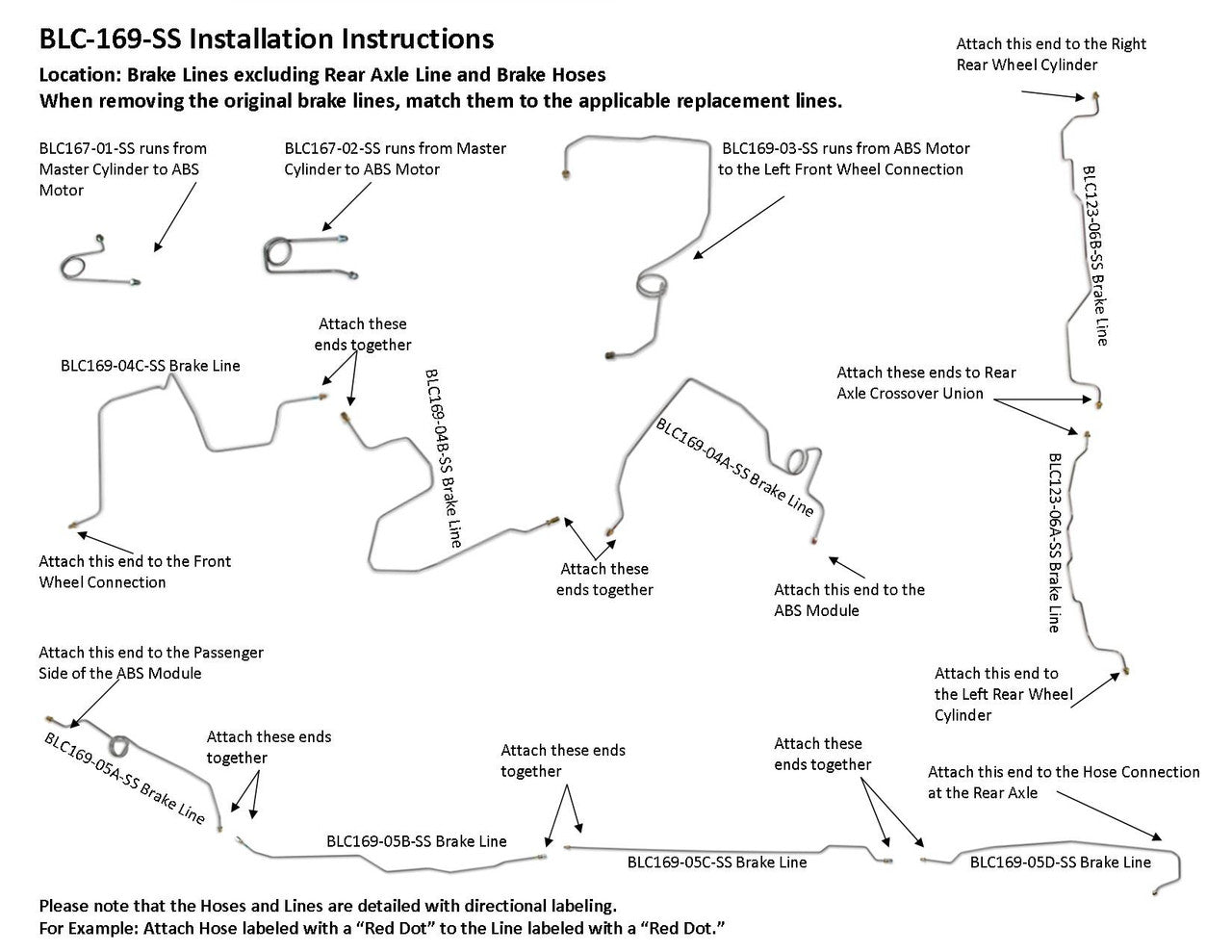

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC169-05B-SS and BLC169-05C-SS. See the video below on how to remove the shipping bend.

SKU: BLC-169-SS1C
Box Dimensions 46" x 12" x 7"

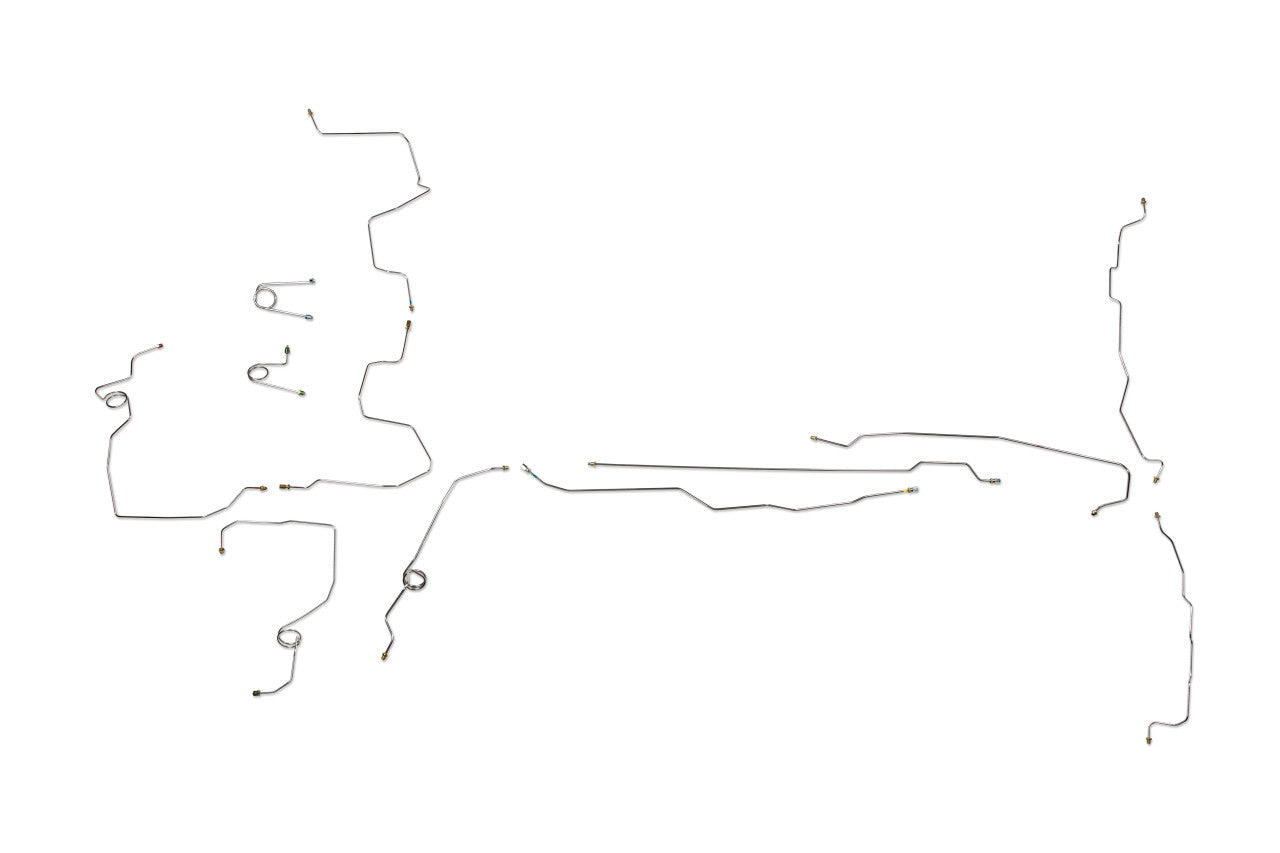

1 Primary Line 3/16" from Master Cylinder to ABS, 1 Secondary Line 1/4" from Master Cylinder to ABS, 1 Left Front Line 3/16" from ABS Motor to Left Front Wheel Hose Connection, 1 Right Front Line 3/16" from ABS Motor to the Right Front Wheel Connection (3 easy to install sections), 1 Line 1/4" from ABS Motor to the Rear Axle Hose Connection (4 easy to install sections), 1 Rear Axle Line 3/16" (2 sections)

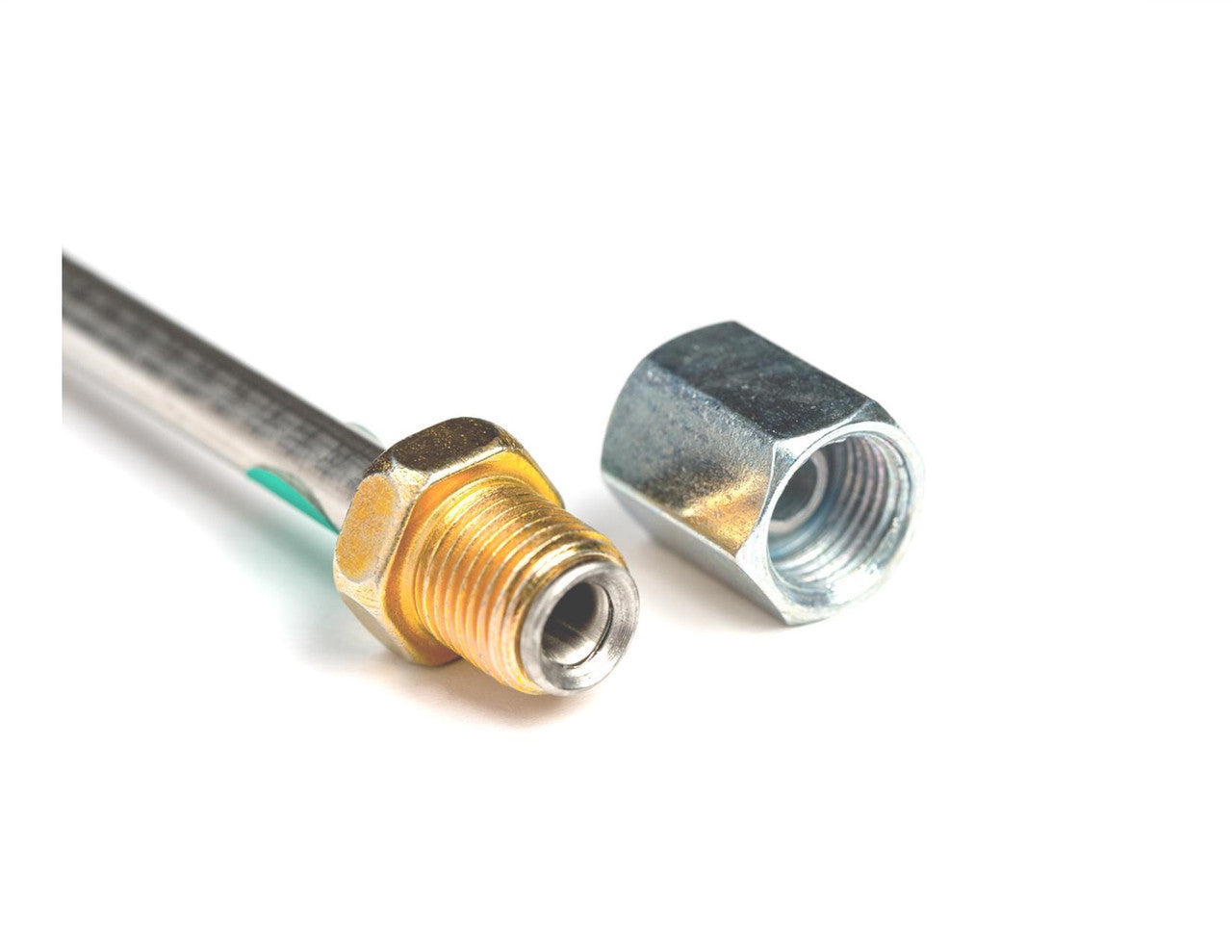

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
