Shop LinesToGo for 2005 Suburban fuel lines - Fuel Line Set for 5.3L engines Non Flex Fuel

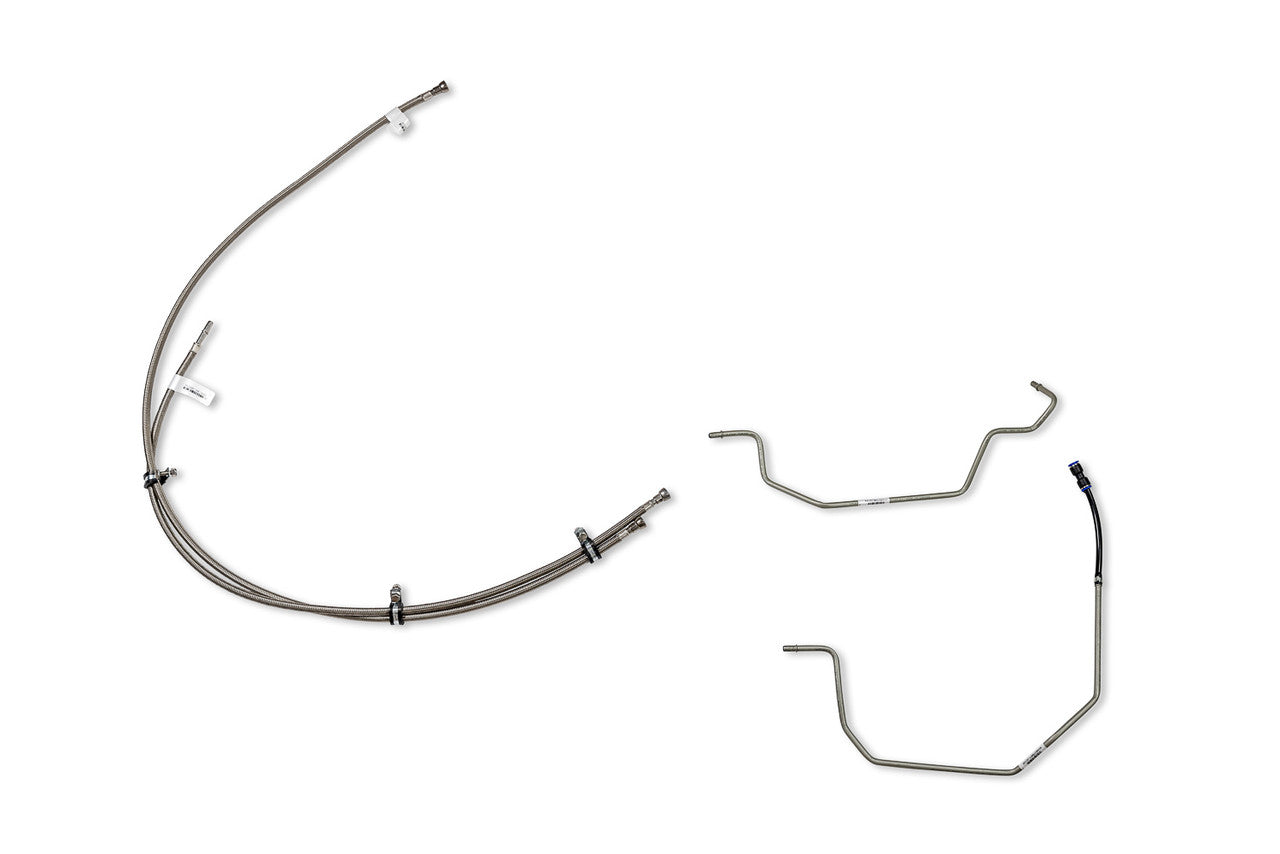

Please Note: Original equipment Suburban/Tahoe/Yukon/Escalade/Avalanche front fuel line sections can be difficult to install from the engine connections down to the frame rail. These LinesToGo 188 Series come with front flexible stainless steel braided Teflon hoses, making a difficult and time consuming job, a whole lot easier and faster. Routing clips and hardware included.

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

6093-01 includes 1 - 3/8” Nylon Line, 1 union, 1 - 90 degree quick connector 3/8"

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"
