SALE:
Save $69.57
/

Delivery Time & Rates

Shop LinesToGo for 1987 Suburban fuel lines - V10 Suburban 4WD for 5.7L Gas engines.

SKU: FL507-G1A
Box Dimensions 57" x 11" x 7"
Product Warranty 1 Year

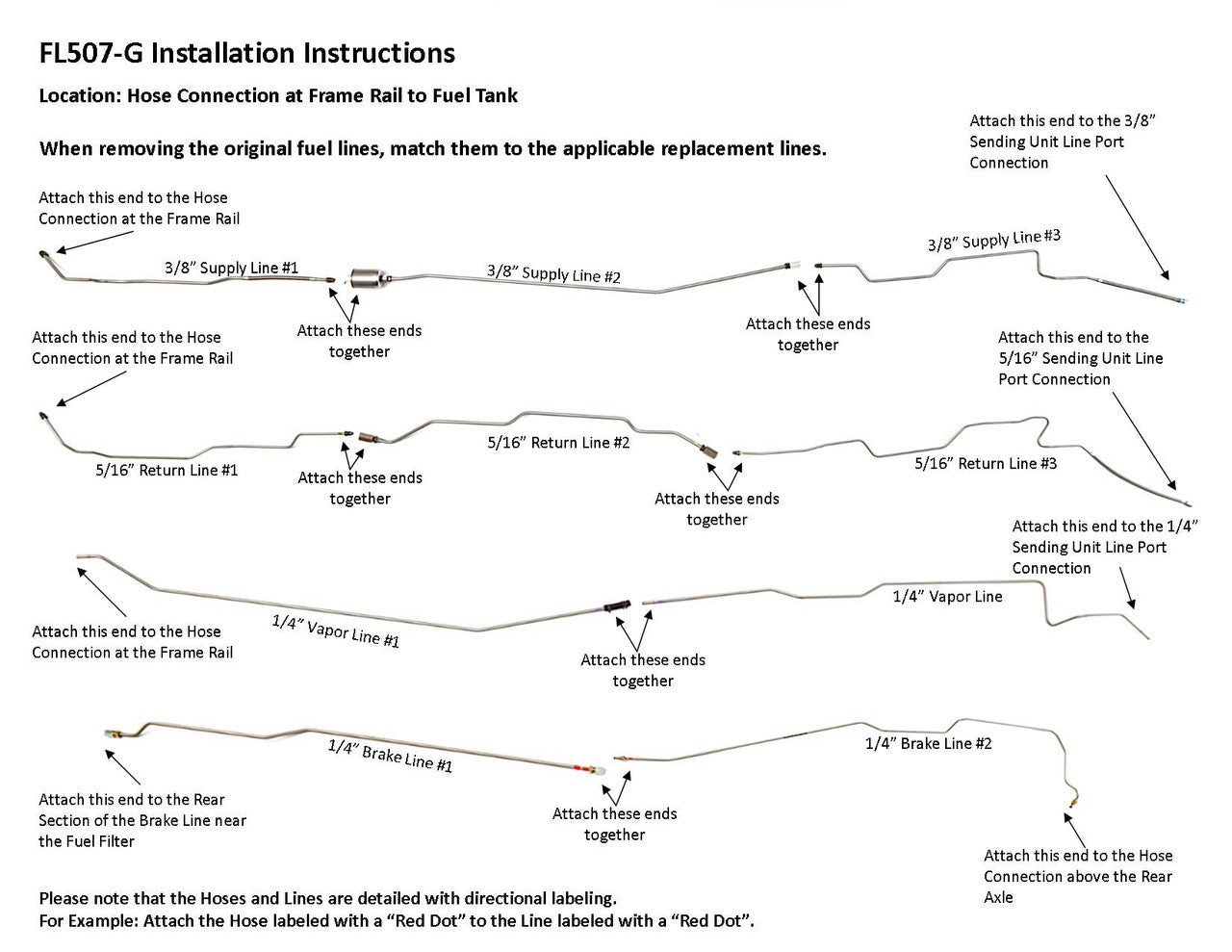

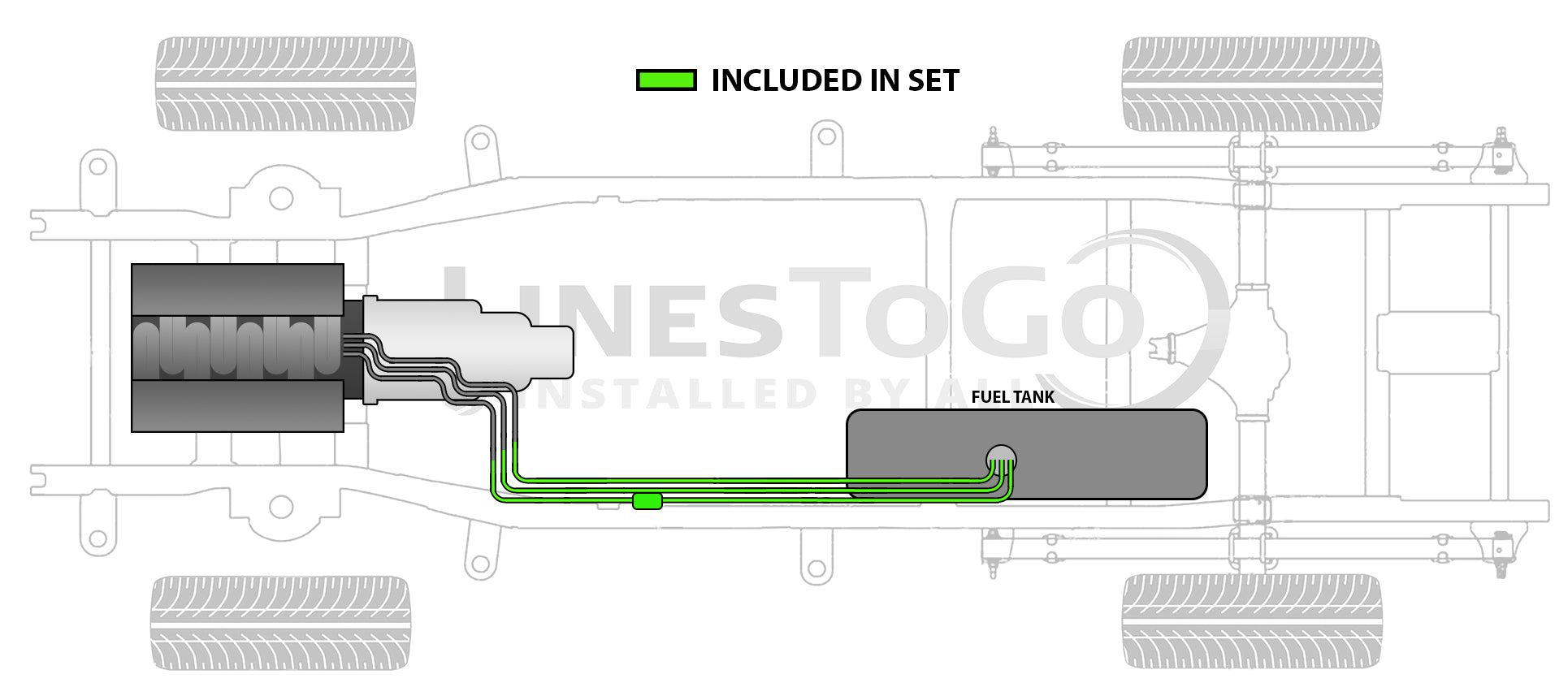

Hose Connection at the Frame Rail to Fuel Tank (Intermediate and Rear)

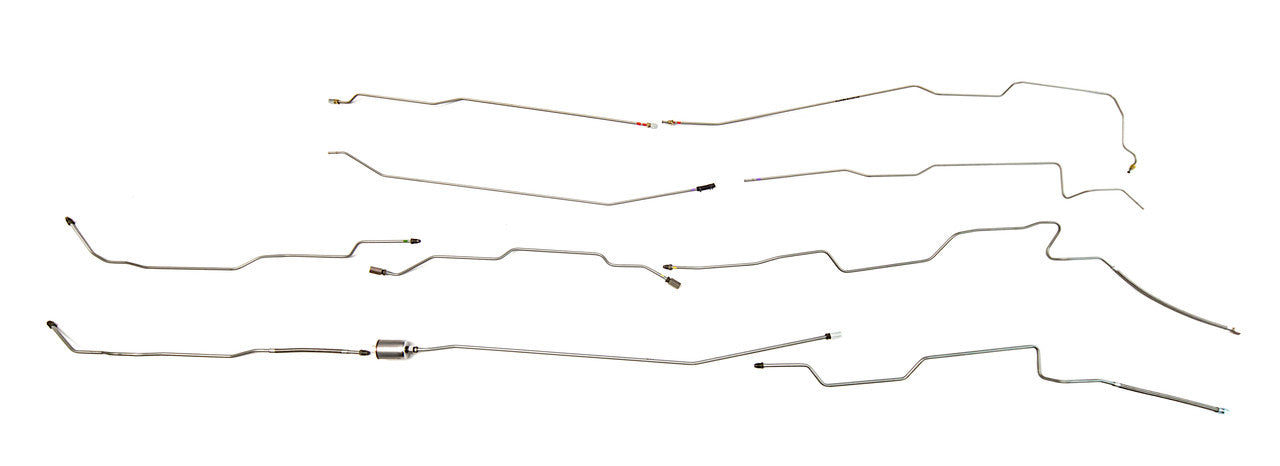

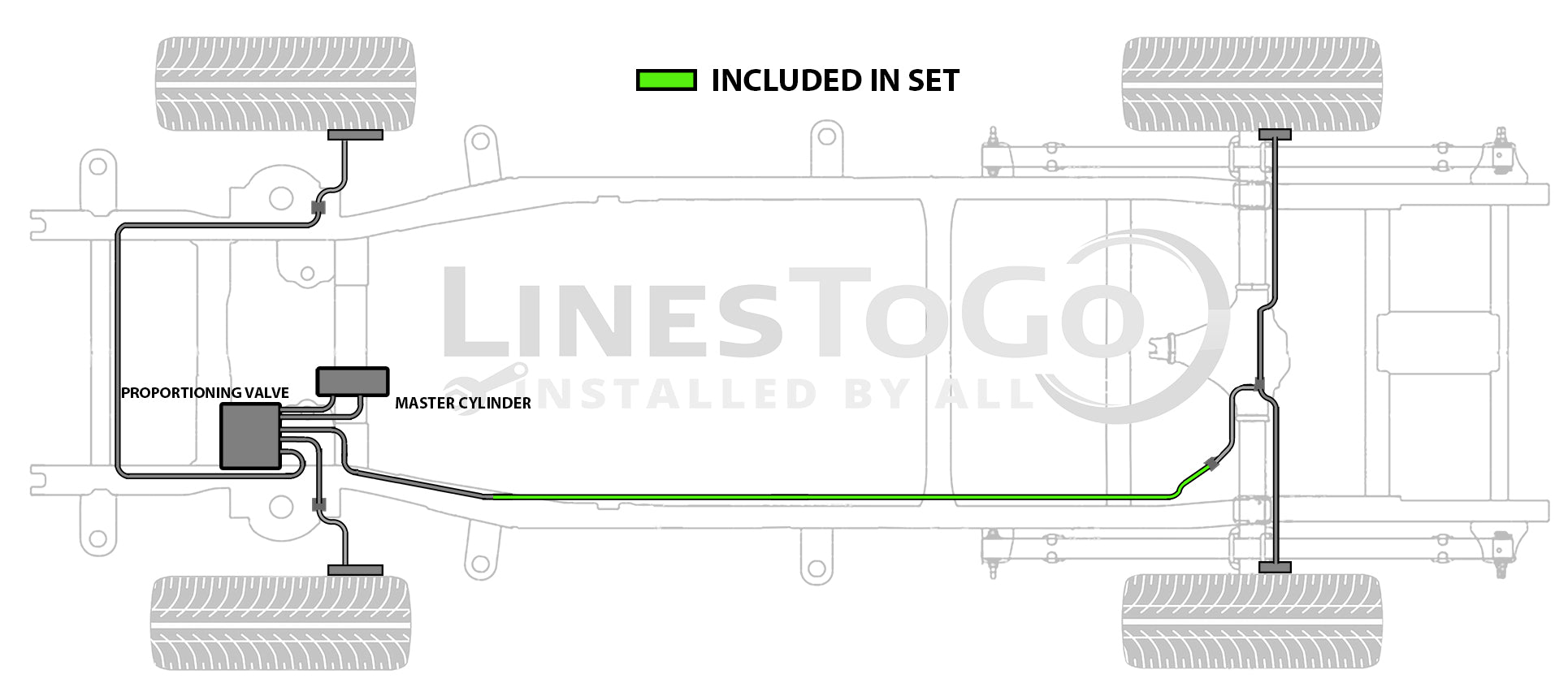

1 supply line 3/8" ( in 3 easy to install sections), 1 return line 5/16" ( in 3 easy to install sections), 1 vapor line 1/4" ( in 2 easy to install sections), 1 brake line 1/4" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 5 unions

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
