Chevy Venture Brake Line Set 2003 3.4L BL258-SS1D Stainless Steel
w/Front Disc/Rear Drum w/ABS
Chevy Venture Brake Line Set 2003 3.4L BL258-SS1D Stainless Steel
w/Front Disc/Rear Drum w/ABS
Delivery Time & Rates
Shop LinesToGo for your 2003 Chevrolet Venture brake lines. Our BL258-SS1D Brake Line Set Stainless Steel are crafted for models with a 3.4L engine w/ABS, w/Front Disc Rear Drum

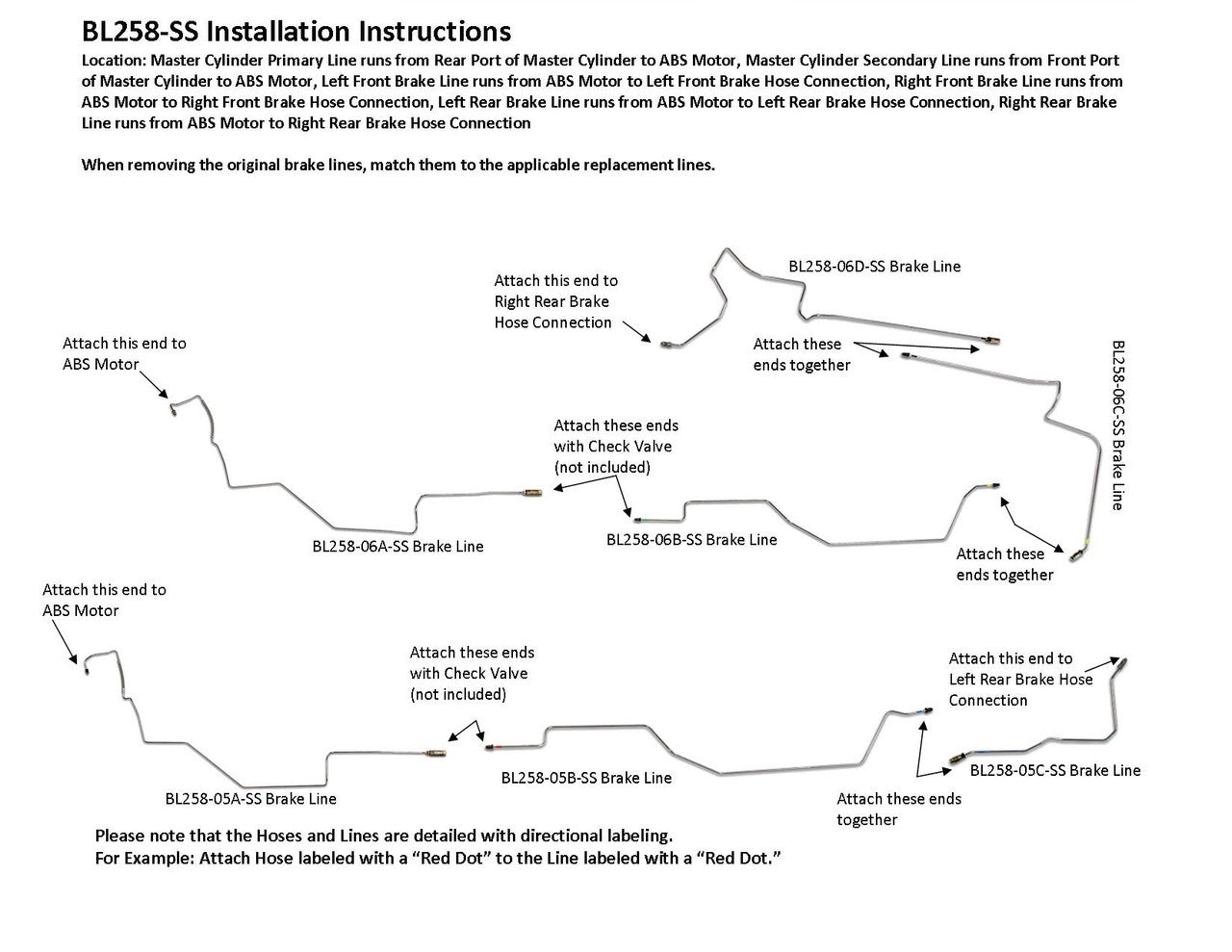

Please Note: Lines Labeled BL258-06A-SS and BL258-05A-SS Do NOT include the two Check Valves shown on the installation instructions

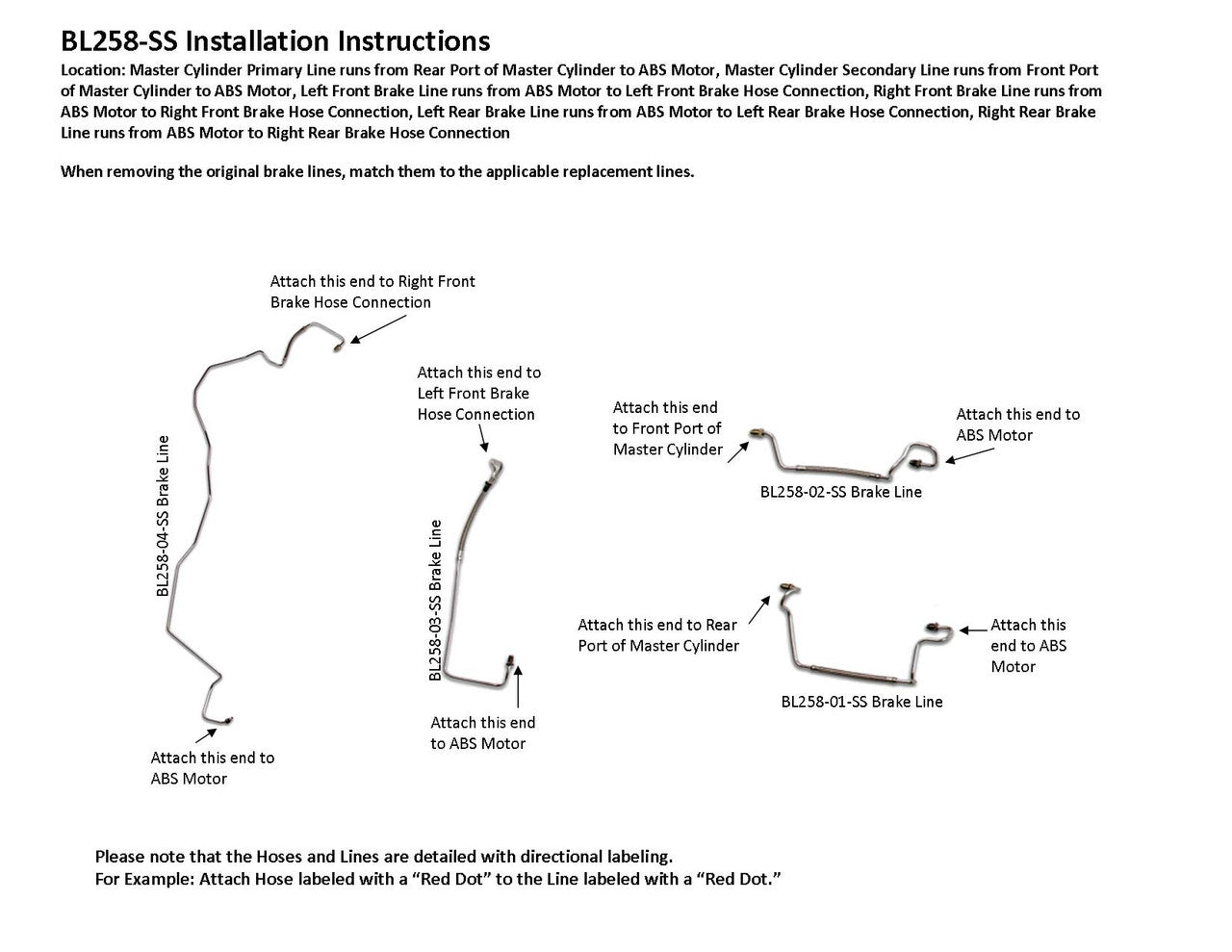

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection

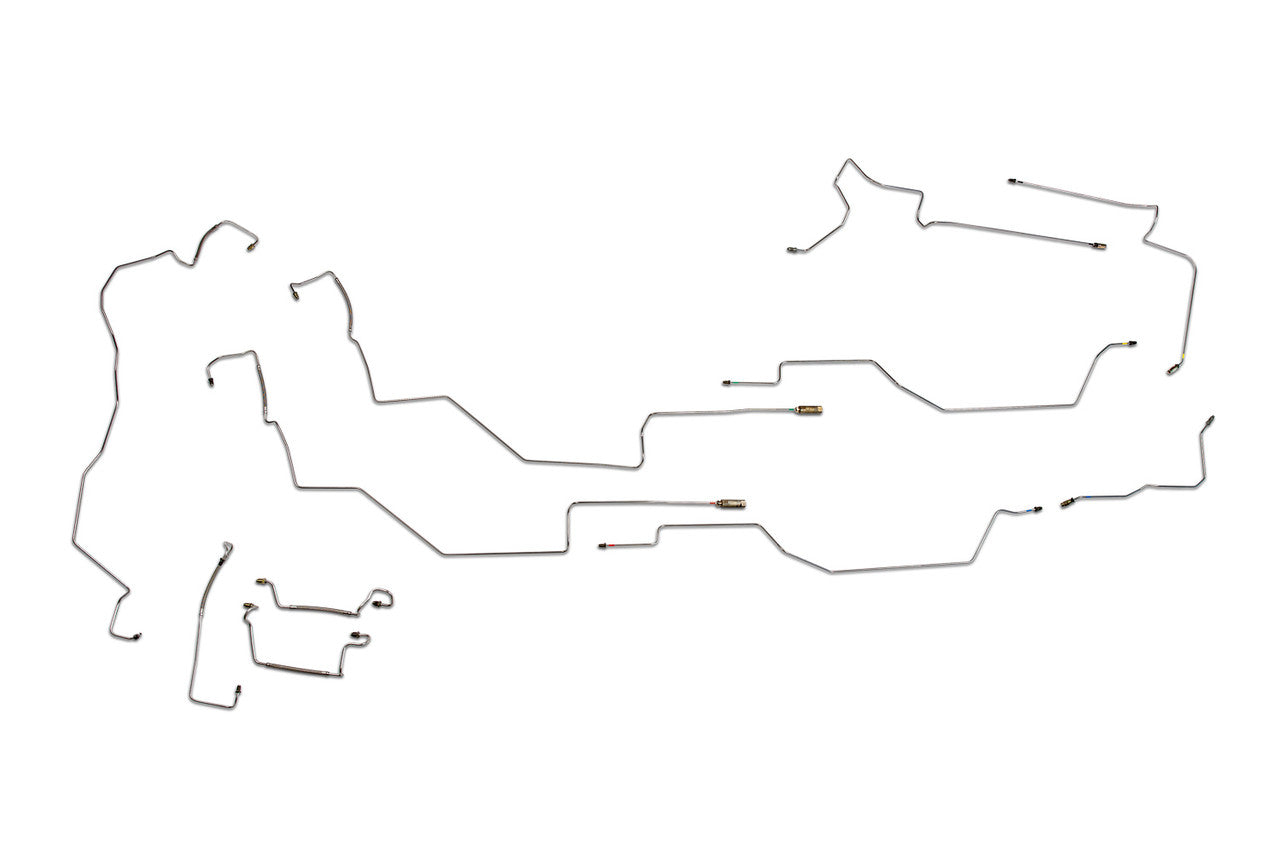

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Left Rear Brake Line 3/16" (in 3 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
