Dodge Dakota Brake Line Set 2004 2WD Quad Cab 5.4ft Bed BLD-110-SS1C Stainless Steel
w/RWAL (Rear Wheel Anti-lock) 4 Wheel Disc Brakes
Dodge Dakota Brake Line Set 2004 2WD Quad Cab 5.4ft Bed BLD-110-SS1C Stainless Steel
w/RWAL (Rear Wheel Anti-lock) 4 Wheel Disc Brakes
Delivery Time & Rates
Install this pre bent 2004 Dakota brake line set in no time!
Brake Line Set Stainless Steel Dodge 2004 Dakota 2WD Quad Cab 5.4ft Bed w/Rear Wheel Anti-lock Brakes 4 Wheel Disc Brakes for 3.7L and 4.7L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLD110-05B-SS. See the video below on how to remove the shipping bend

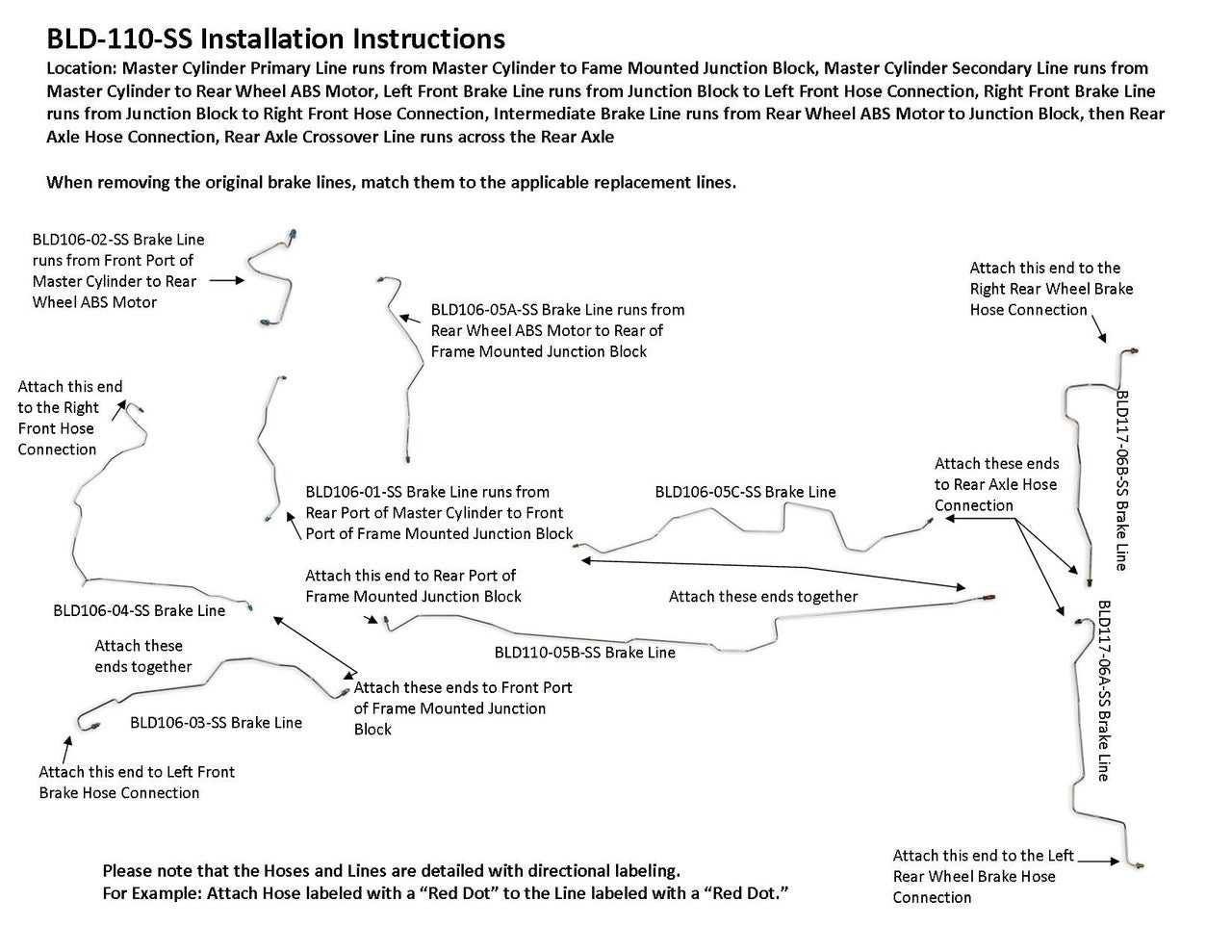

Master Cylinder Primary Line runs from Master Cylinder to Fame Mounted Junction Block, Master Cylinder Secondary Line runs from Master Cylinder to Rear Wheel ABS Motor, Left Front Brake Line runs from Junction Block to Left Front Hose Connection, Right Front Brake Line runs from Junction Block to Right Front Hose Connection, Intermediate Brake Line runs from Rear Wheel ABS Motor to Junction Block, then Rear Axle Hose Connection, Rear Axle Crossover Line runs across the Rear Axle

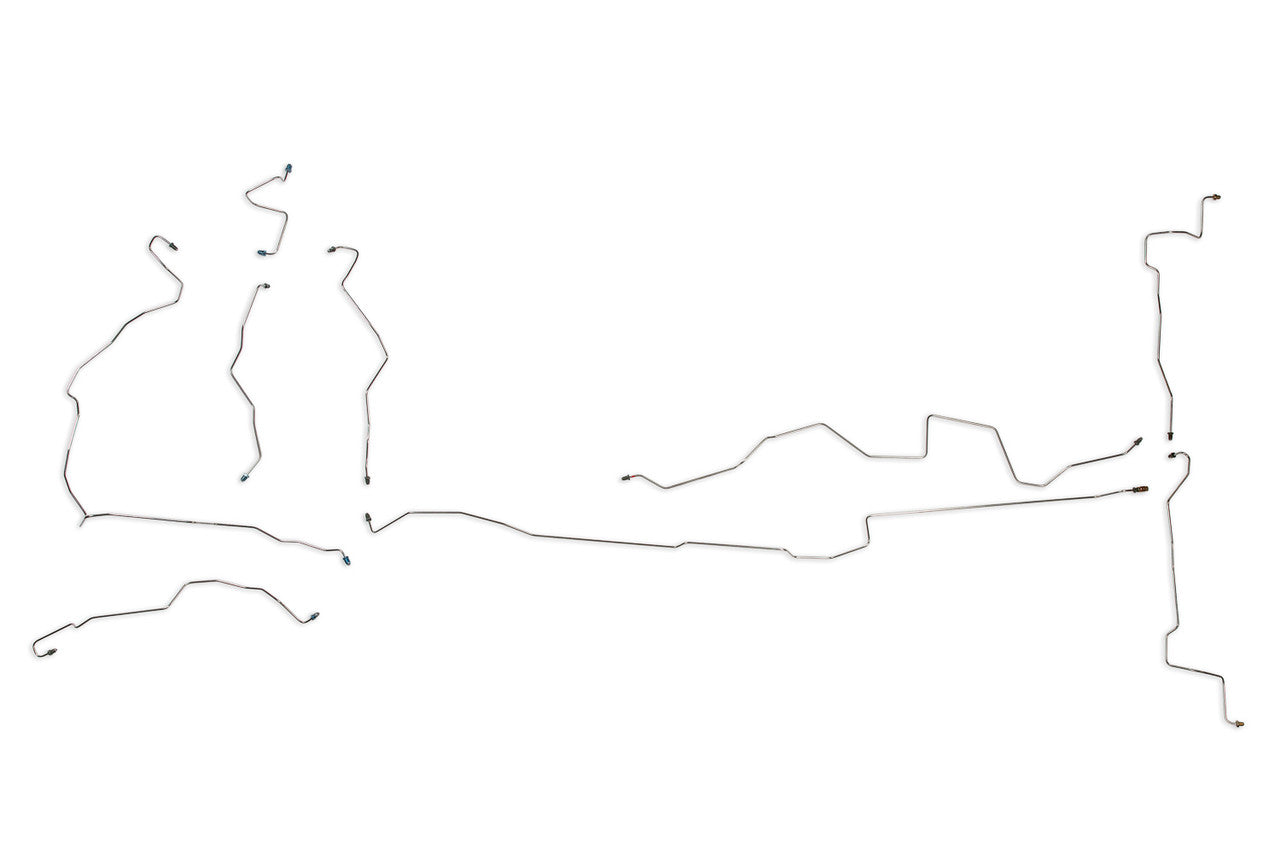

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
