Dodge Dakota Rear Fuel Line Set 1991 Club Cab 2WD & 4WD 2.5L FL710-B1G
Dodge Dakota Rear Fuel Line Set 1991 Club Cab 2WD & 4WD 2.5L FL710-B1G
Delivery Time & Rates
Shop LinesToGo for 1991 Dodge Dakota fuel lines for Club Cab 2WD & 4WD for 2.5L engines.
Please Note: Front Fuel Line Section and Rear Nylon Line NOT included
Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.
Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.
Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.
3068-01 includes 2 Nylon Lines 5/16", 2 Unions 5/16", 2 Quick Connectors 5/16" 180 degree
- Weight: 4

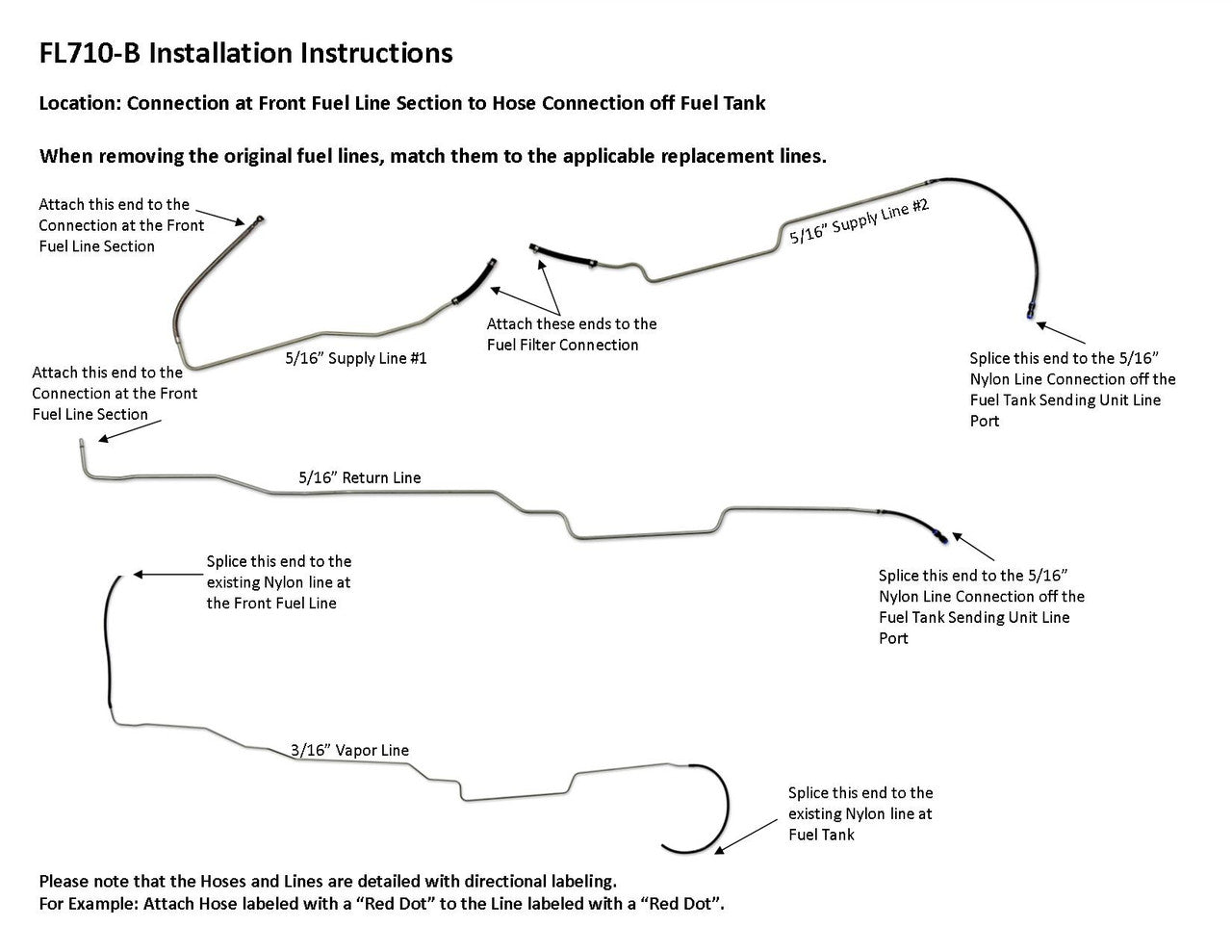

- Installation Instructions

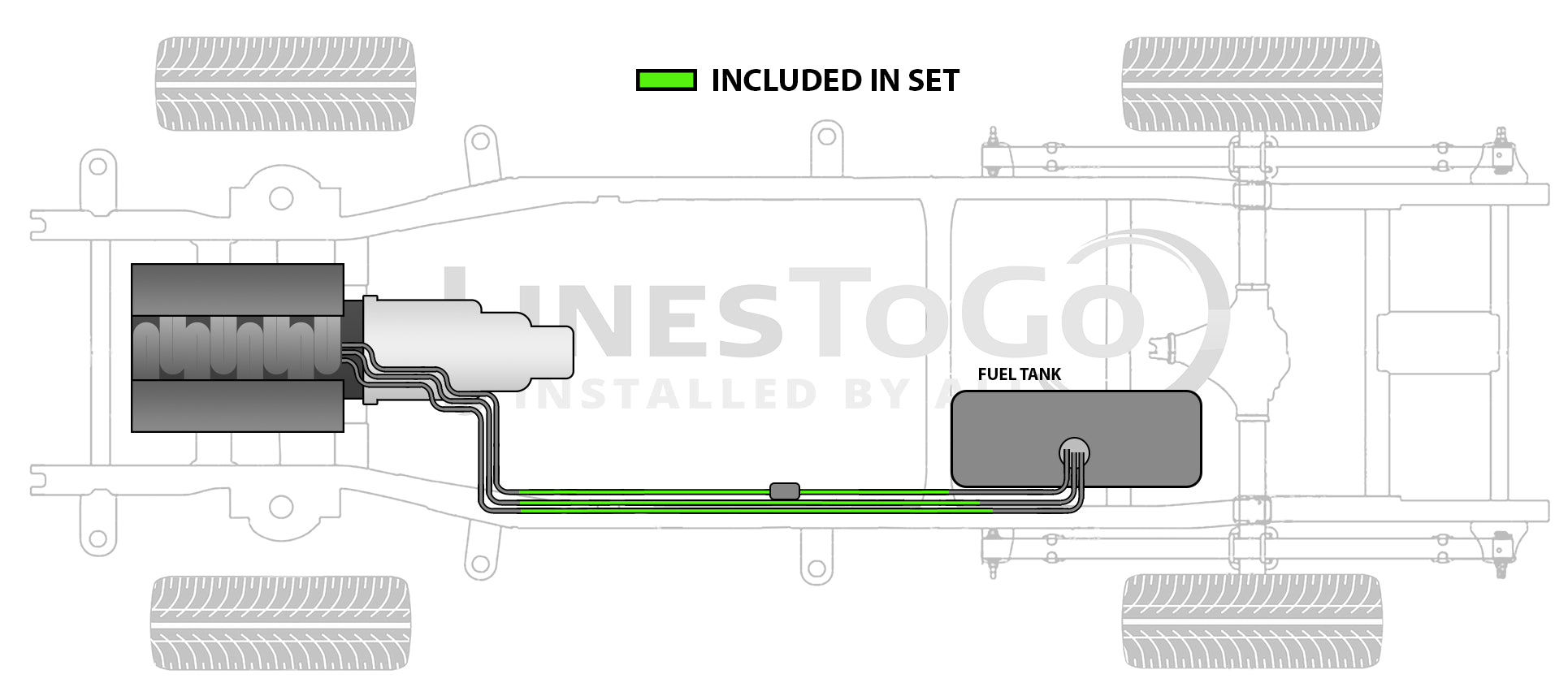

Connection at Front Fuel Line Section to Hose Connection off Fuel Tank

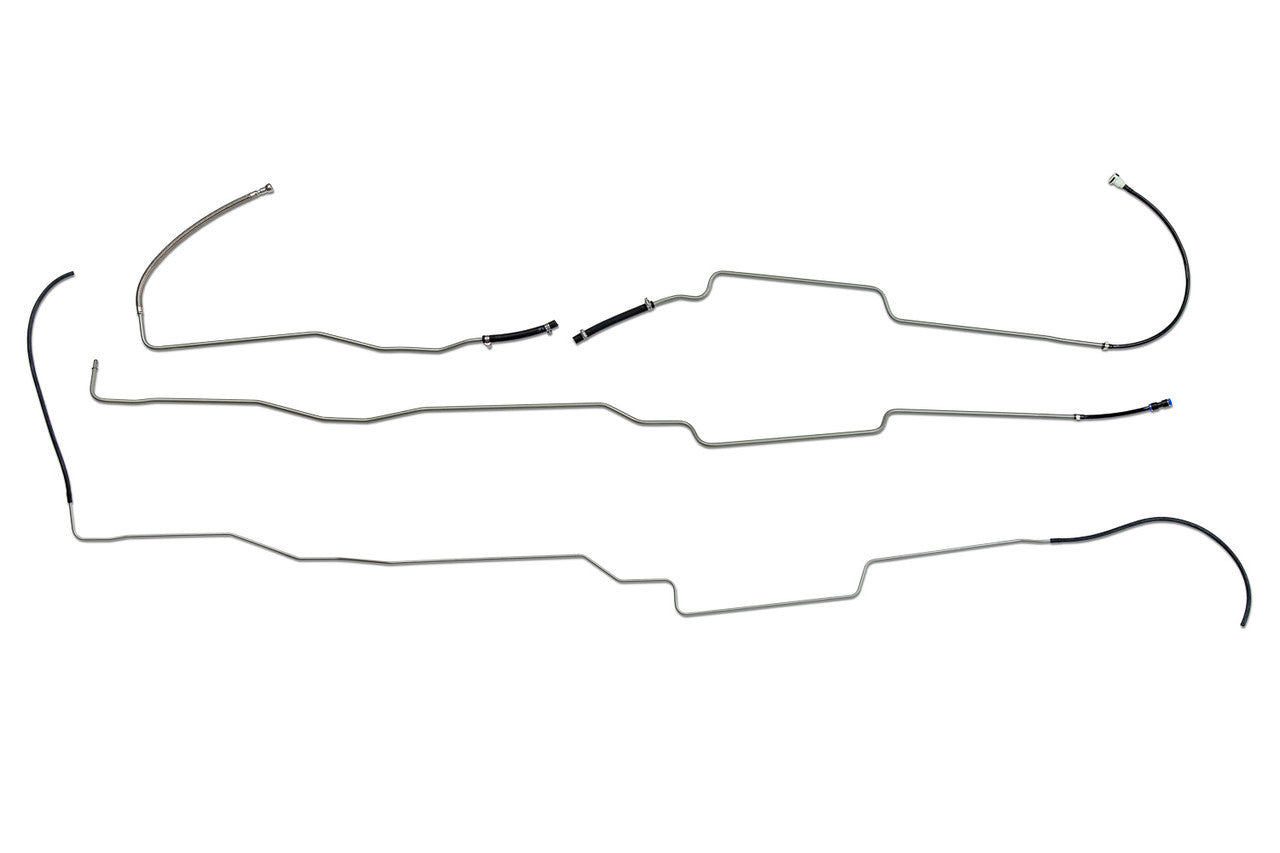

1 supply line 5/16" (2 sections), 1 return line 5/16", 1 vapor line 3/16"

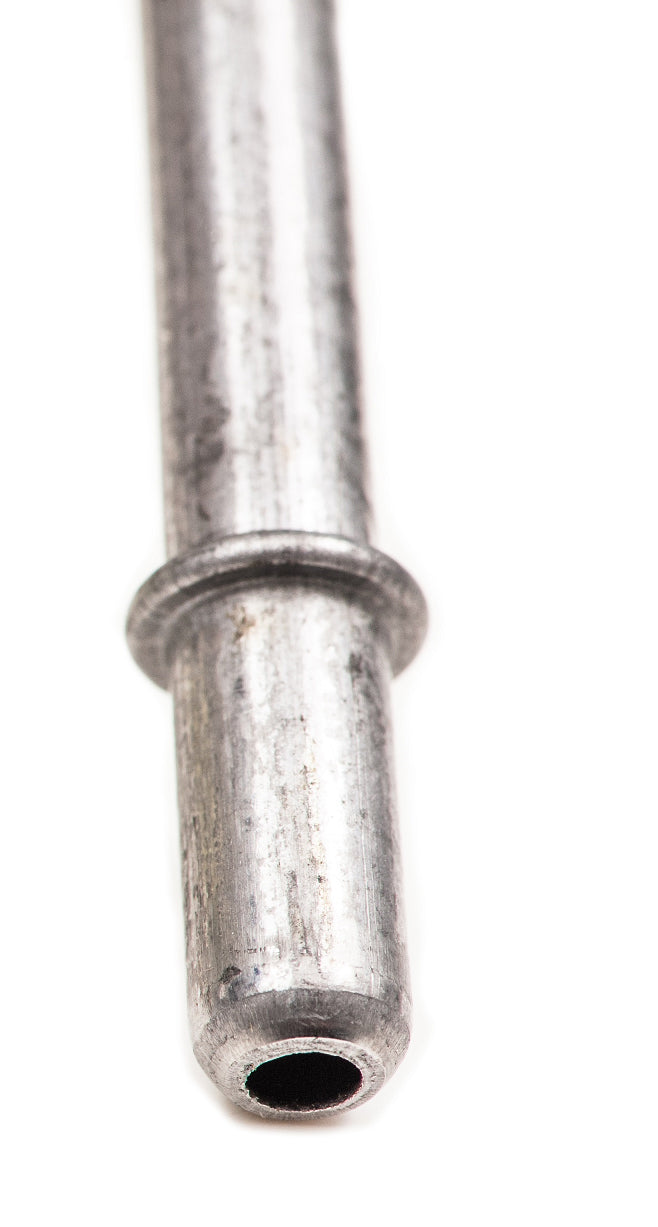

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hoses are made from Stainless Steel Braided Teflon with OE style fittings: 3176-01
Hose meets or exceeds applicable SAE Specifications – SAE 30R7: 5733-01
Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
