Dodge Durango Brake Line Set 2004 4WD BLD-123-SS1B Stainless Steel
w/AWAL (All Wheel Anti-Lock), 4 Wheel Disc Brakes
Dodge Durango Brake Line Set 2004 4WD BLD-123-SS1B Stainless Steel
w/AWAL (All Wheel Anti-Lock), 4 Wheel Disc Brakes
Delivery Time & Rates
Install this pre bent 2004 Durango brake line set in no time!
Brake Line Set Stainless Steel 2004 Dodge Durango 4WD w/AWAL (All Wheel Anti-lock Brakes), 4 Wheel Disc for 3.7L, 4.7L and 5.7L engines

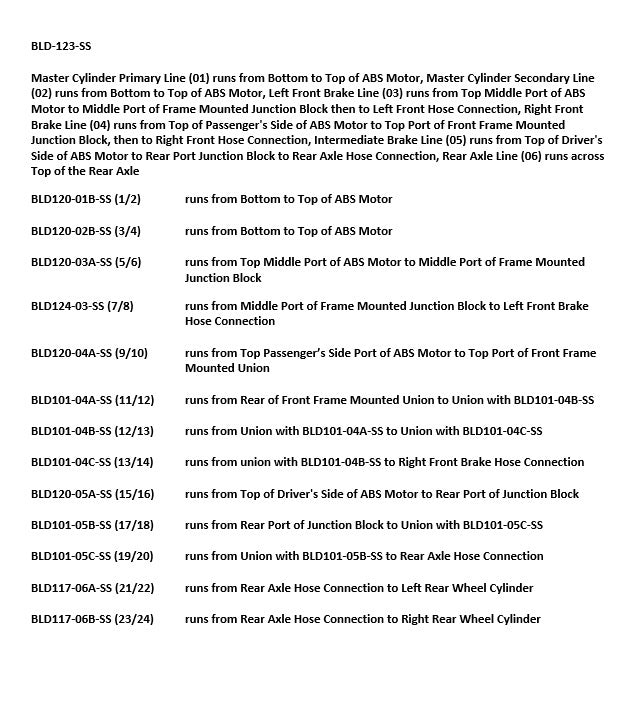

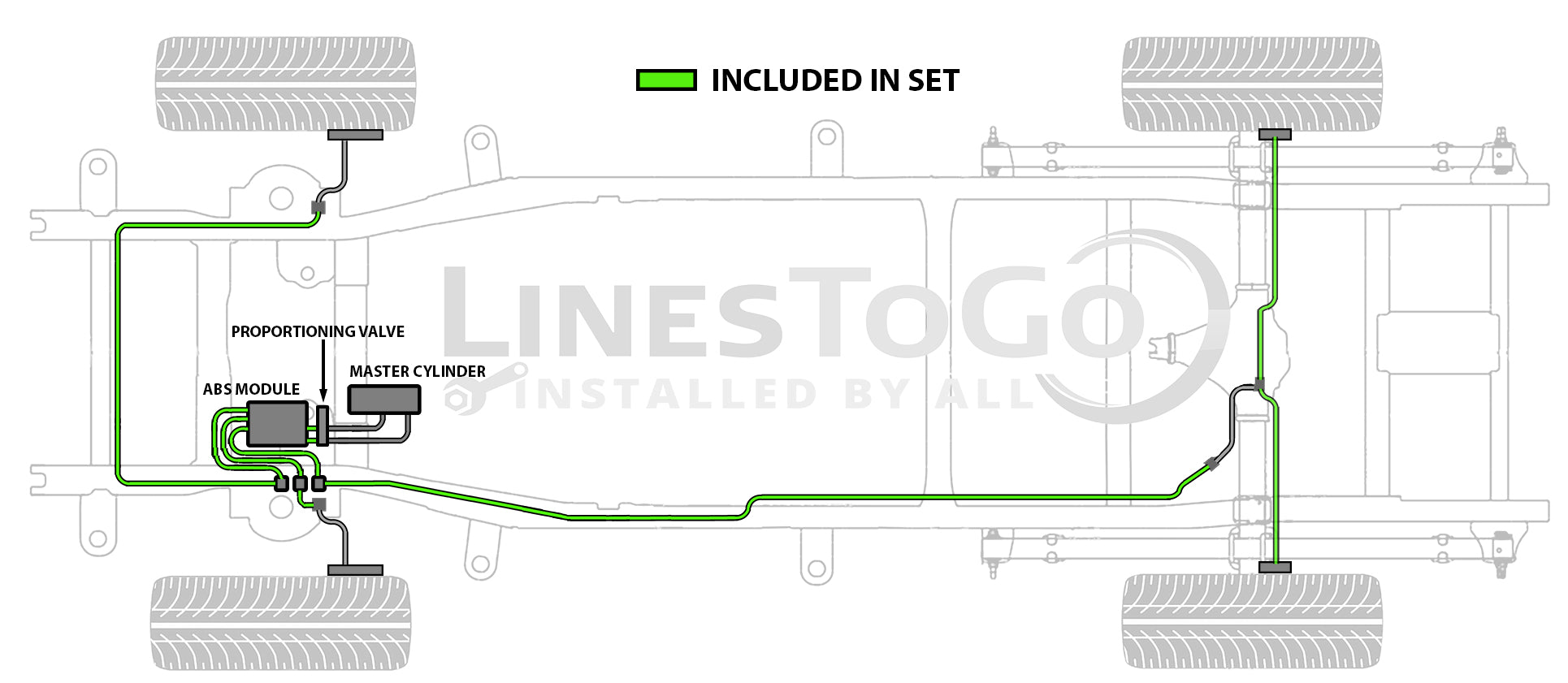

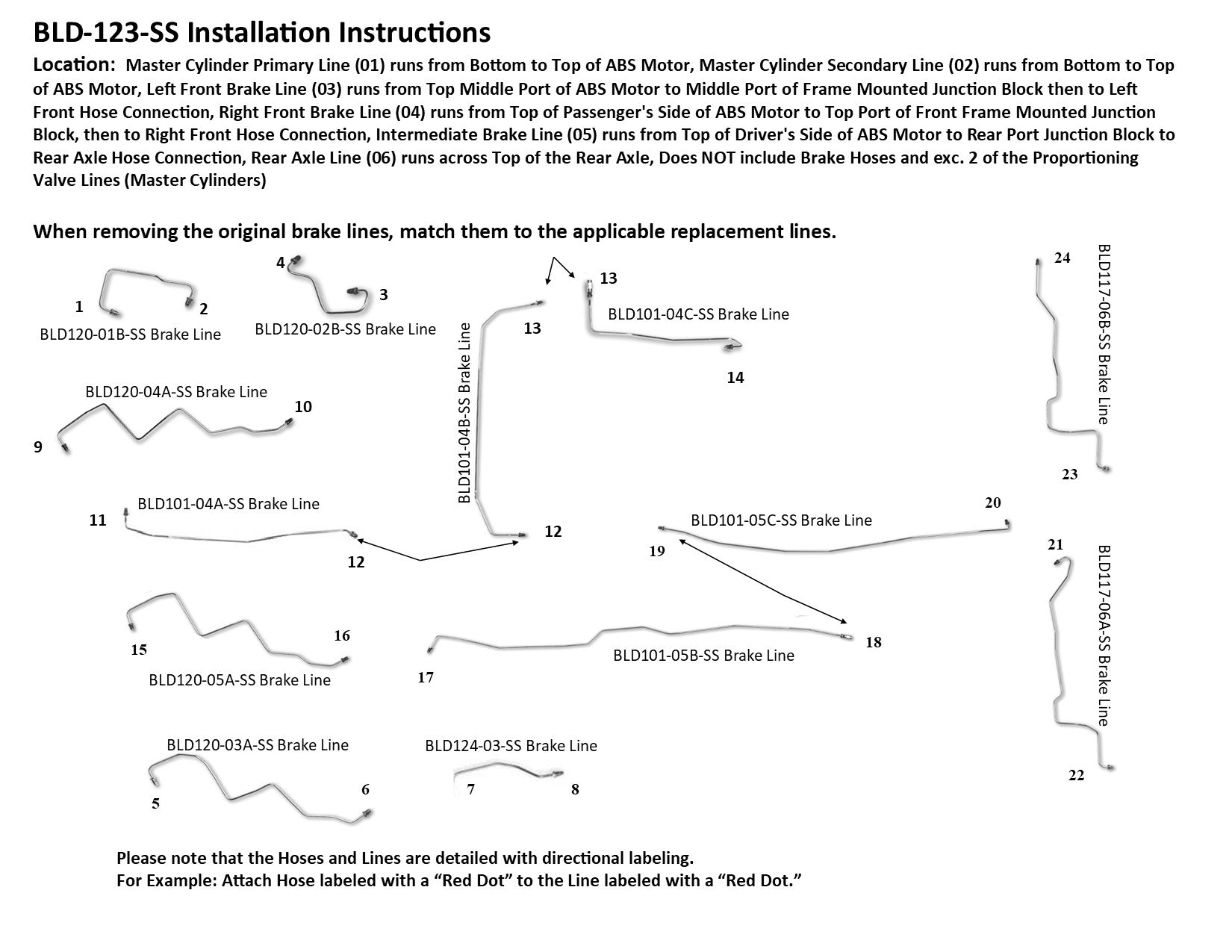

Master Cylinder Primary Line runs from Bottom to Top of ABS Motor, Master Cylinder Secondary Line runs from Bottom to Top of ABS Motor, Left Front Brake Line runs from Top Middle Port of ABS Motor to Middle Port of Frame Mounted Junction Block then to Left Front Hose Connection, Right Front Brake Line runs from Top of Passenger's Side of ABS Motor to Top Port of Front Frame Mounted Junction Block, then to Right Front Hose Connection, Intermediate Brake Line runs from Top of Driver's Side of ABS Motor to Rear Port Junction Block to Rear Axle Hose Connection, Rear Axle Line runs across Top of the Rear Axle

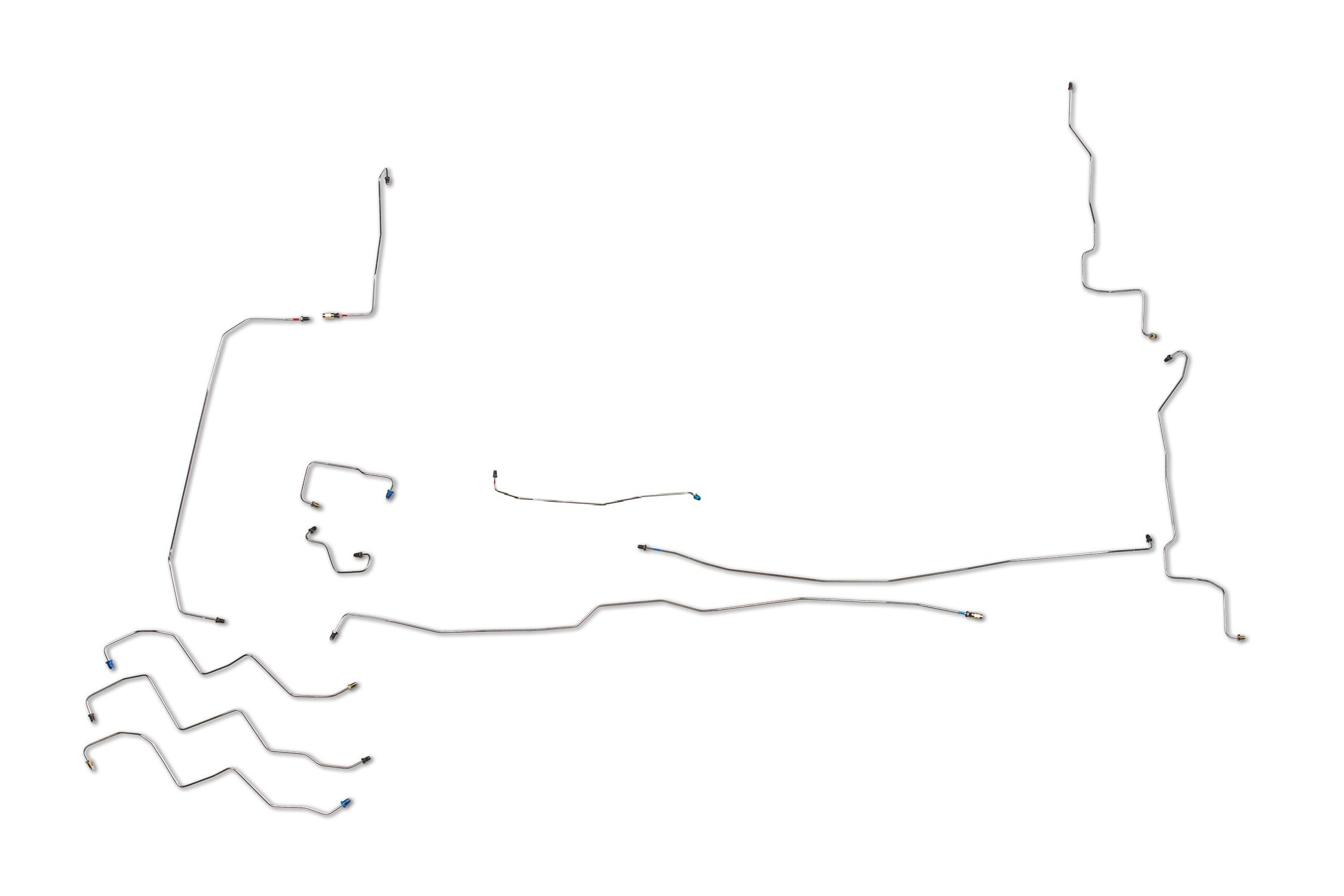

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16"(in 2 sections),1 Right Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Intermediate Brake Line 3/16" (3 easy to install sections), 1 Rear Axle Line 3/16" (2 sections), Does NOT include Brake Hoses and exc. 2 of the Proportioning Valve Lines (Master Cylinders)
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
