Dodge Ram 1500 Brake Line Set 2003 4WD Quad Cab 6.5ft Bed 4.7L BLD-151-SS2B Stainless Steel
w/RWAL (Rear Wheel Anti-lock) w/4 Wheel Disc Brakes
Dodge Ram 1500 Brake Line Set 2003 4WD Quad Cab 6.5ft Bed 4.7L BLD-151-SS2B Stainless Steel
w/RWAL (Rear Wheel Anti-lock) w/4 Wheel Disc Brakes
Delivery Time & Rates
Install this pre bent 2003 Ram 1500 brake line set in no time!
Brake Line Set Stainless Steel 2003 Dodge Ram 1500 4WD Quad Cab 6.5ft Bed w/RWAL (Rear Wheel Anti-Lock) w/4 Wheel Disc Brakes for 4.7L engines.
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLD148-05B-SS and BLD148-05C-SS. See the video below on how to remove the shipping bend
- Weight: 5

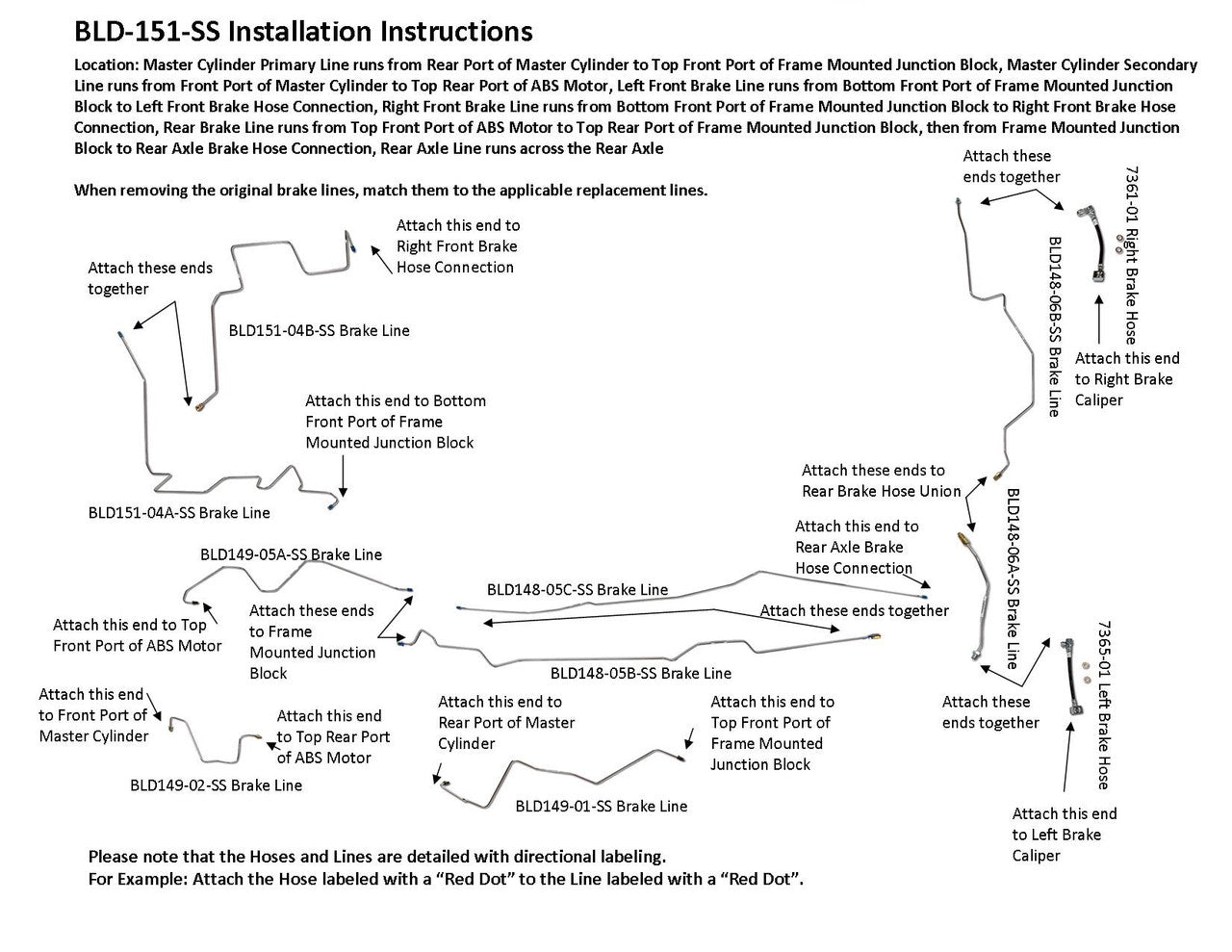

- Installation Instructions
Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Top Front Port of Frame Mounted Junction Block, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Top Rear Port of ABS Motor, Right Front Brake Line runs from Bottom Front Port of Frame Mounted Junction Block to Right Front Brake Hose Connection, Rear Brake Line runs from Top Front Port of ABS Motor to Top Rear Port of Frame Mounted Junction Block, then from Frame Mounted Junction Block to Rear Brake Hose Connection, Rear Axle Line runs across the Rear Axle

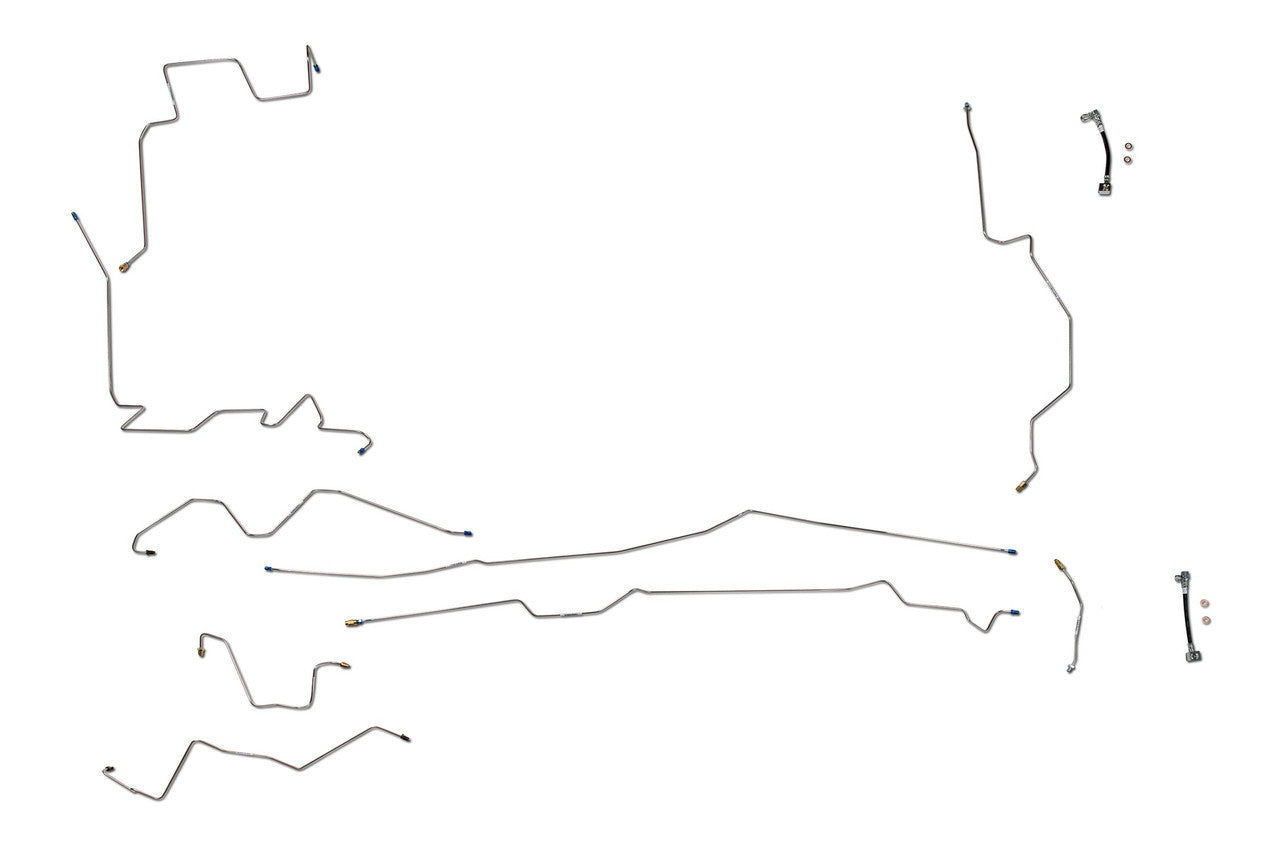

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Rear Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), 1 Left Rear Wheel Brake Hose, 1 Right Rear Wheel Brake Hose

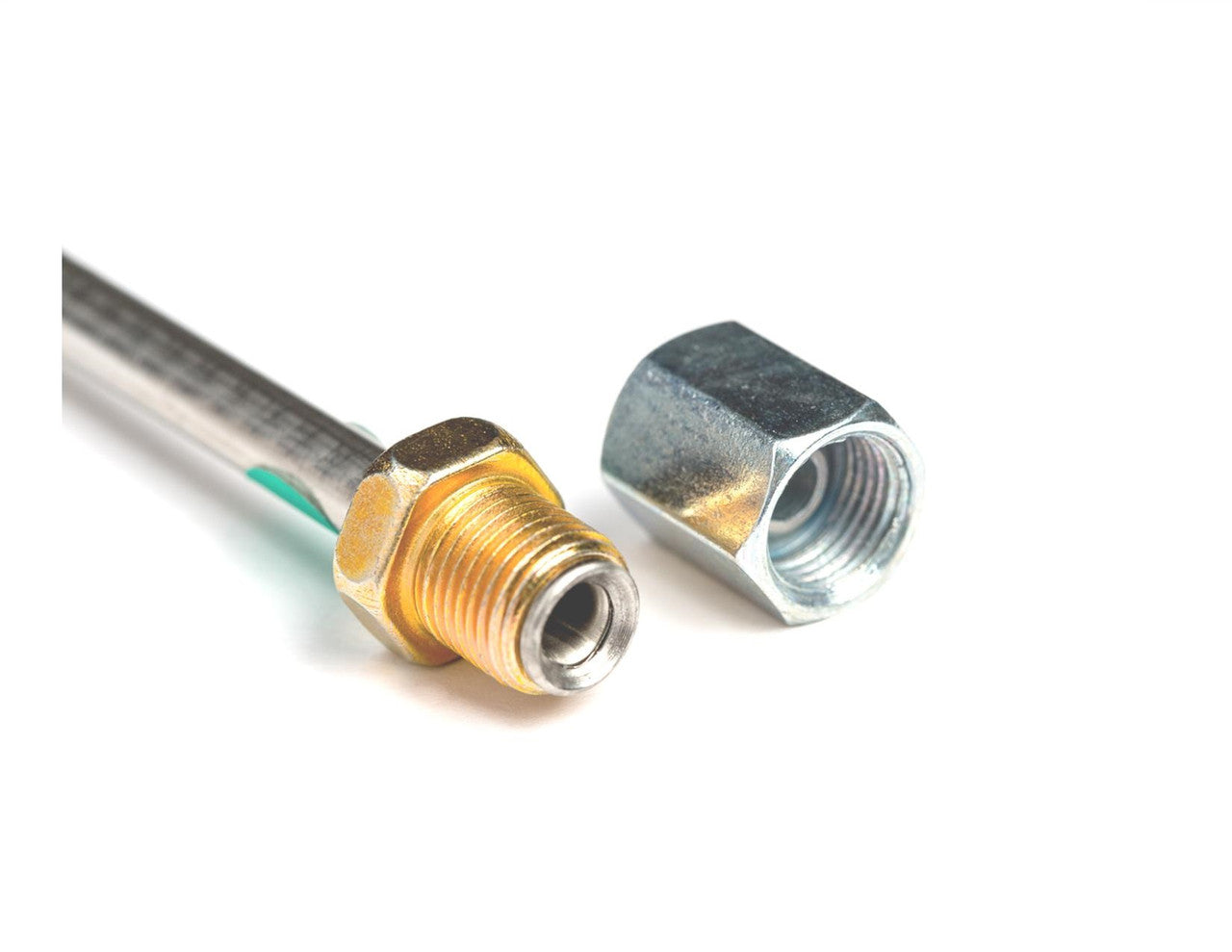

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Fluoroelastomer with OE style fittings
