Dodge Ram 1500 Pickup Brake Line Set 2003 4WD Quad Cab 6.5ft Bed 4.7L BLD-148-SS2B Stainless Steel
w/AWAL (All Wheel Anti-Lock)
Dodge Ram 1500 Pickup Brake Line Set 2003 4WD Quad Cab 6.5ft Bed 4.7L BLD-148-SS2B Stainless Steel
w/AWAL (All Wheel Anti-Lock)
Delivery Time & Rates
Install this pre bent 2003 Ram 1500 brake line set in no time!
Brake Line Set Stainless Steel 2003 Dodge Ram 1500 4WD Quad Cab 6.5ft Bed w/AWAL (All Wheel Anti-Lock) for 4.7L engines.
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLD148-05B-SS, and BLD148-05C-SS. See the video below on how to remove the shipping bend
- Weight: 6

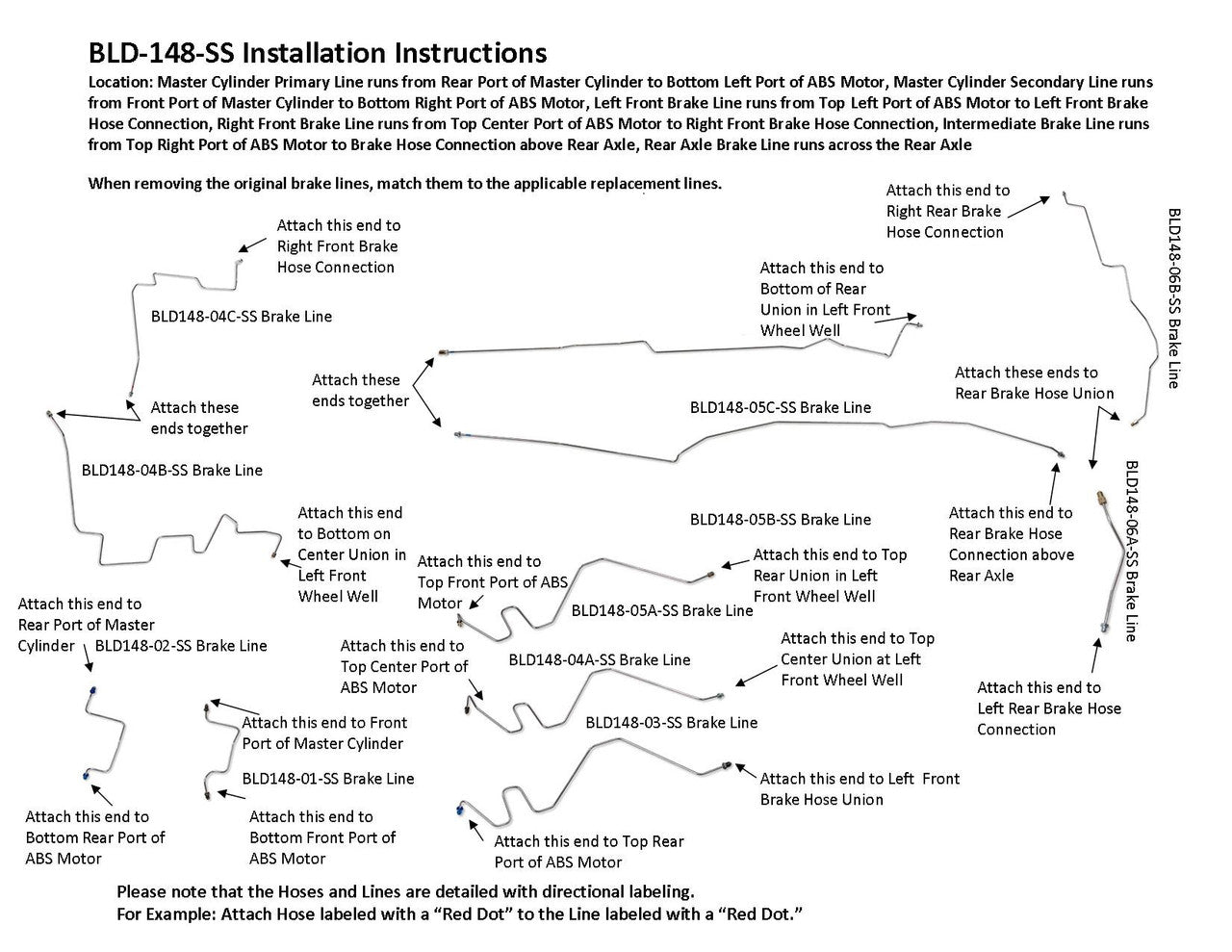

- Installation Instructions
Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Bottom Left Port of ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Bottom Right Port of ABS Motor, Left Front Brake Line runs from Top Left Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Top Center Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Top Right Port of ABS Motor to Brake Hose Connection above Rear Axle, Rear Axle Brake Line runs across the Rear Axle

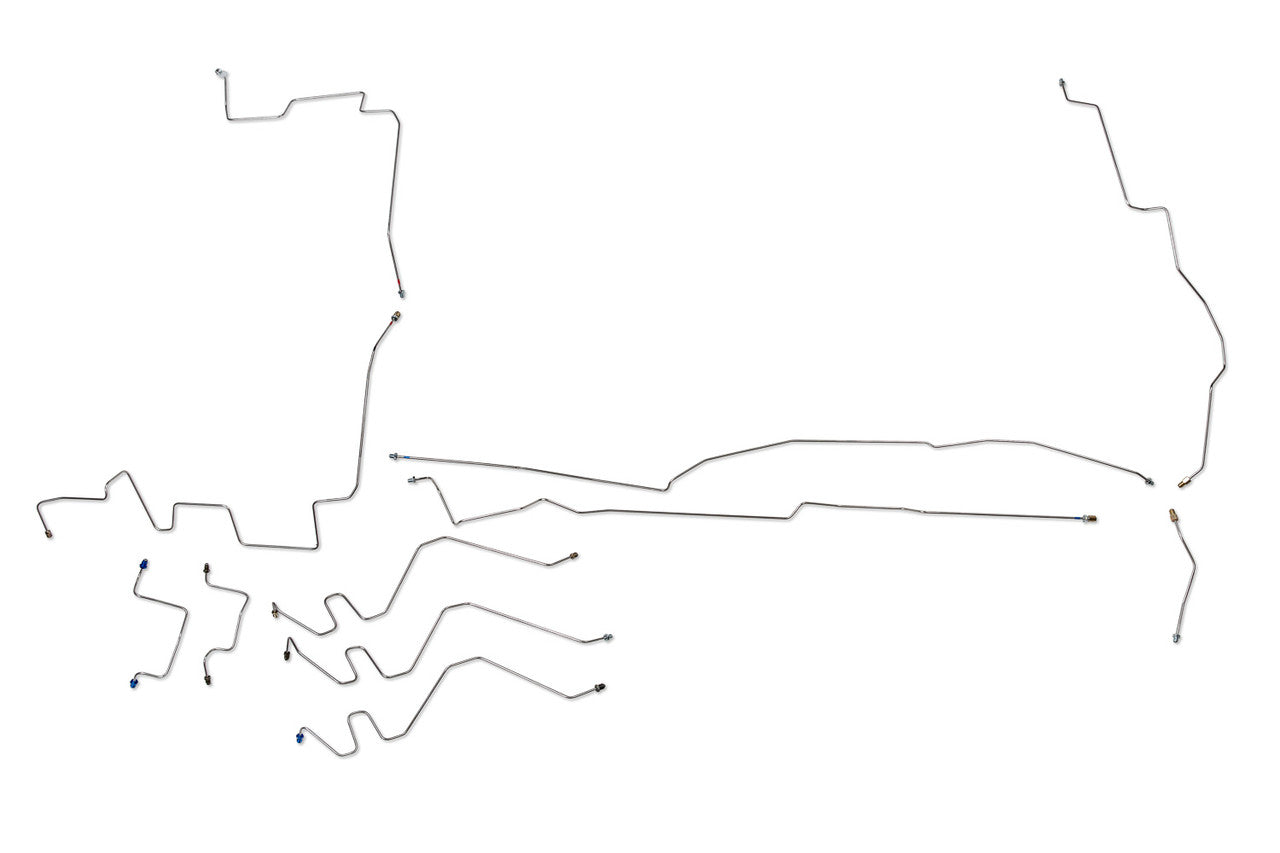

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
