Ford Bronco Brake Line Set 1992 4WD BLF-108-SS1C Stainless Steel
Ford Bronco Brake Line Set 1992 4WD BLF-108-SS1C Stainless Steel
Delivery Time & Rates
Install this pre bent 1992 Ford Full Size Bronco brake line set in no time!
Brake Line Set Stainless Steel Ford Bronco 4WD for 4.9L, 5.0L and 5.8L engines.
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF108-05A-SS and BLF108-05B-SS. See the video below on how to remove the shipping bend
- Weight: 5

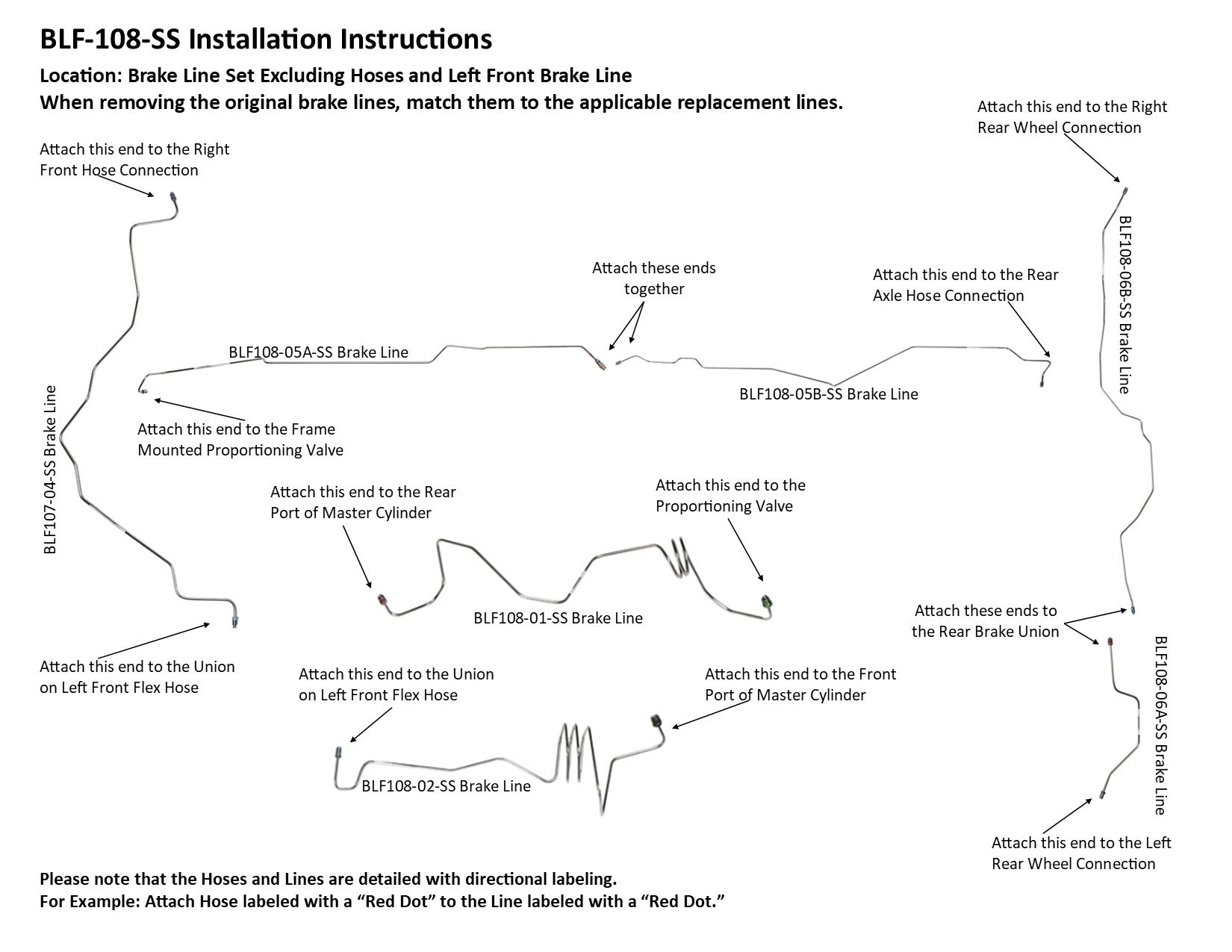

- Installation Instructions

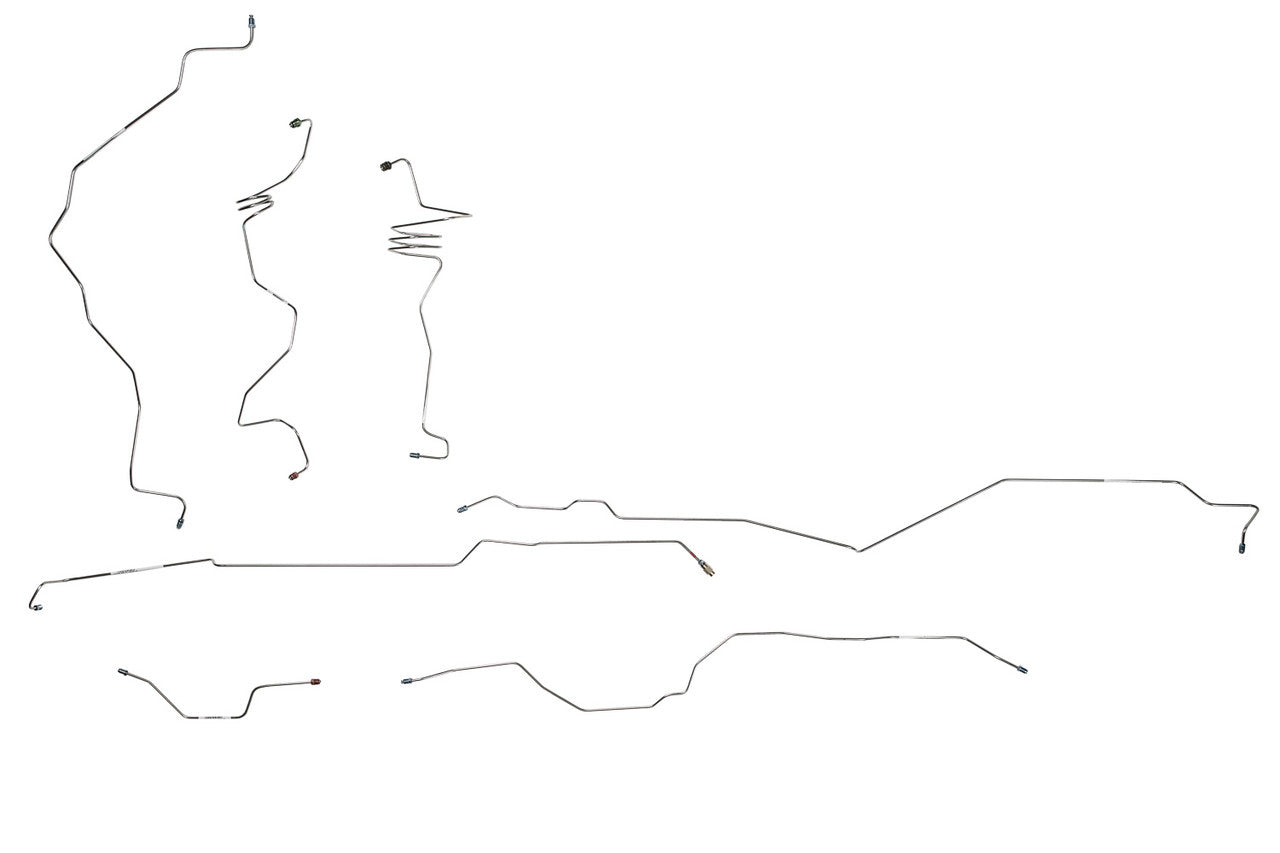

Complete Set Excluding Hoses and Left Front Brake Line
1 Line 3/16" from the Rear of the Master Cylinder to the Frame Mounted Proportioning Valve, 1 Line 3/16" from the Front of the Master Cylinder to the Frame Mounted Proportioning Valve, 1 Line 3/16" from the Frame Mounted Proportioning Valve to the Right Front Brake Hose Connection, 1 Line 3/16" (2 easy to install sections) from Frame Mounted Proportioning Valve to the Rear Axle Brake Hose Connection, Rear Axle Crossover Line (2 sections) from Left to Right over the top of the Rear Axle
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
