Ford Explorer Brake Line Set 2003 4.0L BLF-126-SS2A Stainless Steel
w/o Traction Control
Ford Explorer Brake Line Set 2003 4.0L BLF-126-SS2A Stainless Steel
w/o Traction Control
Delivery Time & Rates
Install this pre bent 2003 Ford Explorer 4.0L w/o Traction Control brake line set in no time!
Brake Line Ford Explorer
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF126-05A-SSHXX and BLF126-05B-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLF126-04-SSHXX. See the video below on how to remove the shipping twist

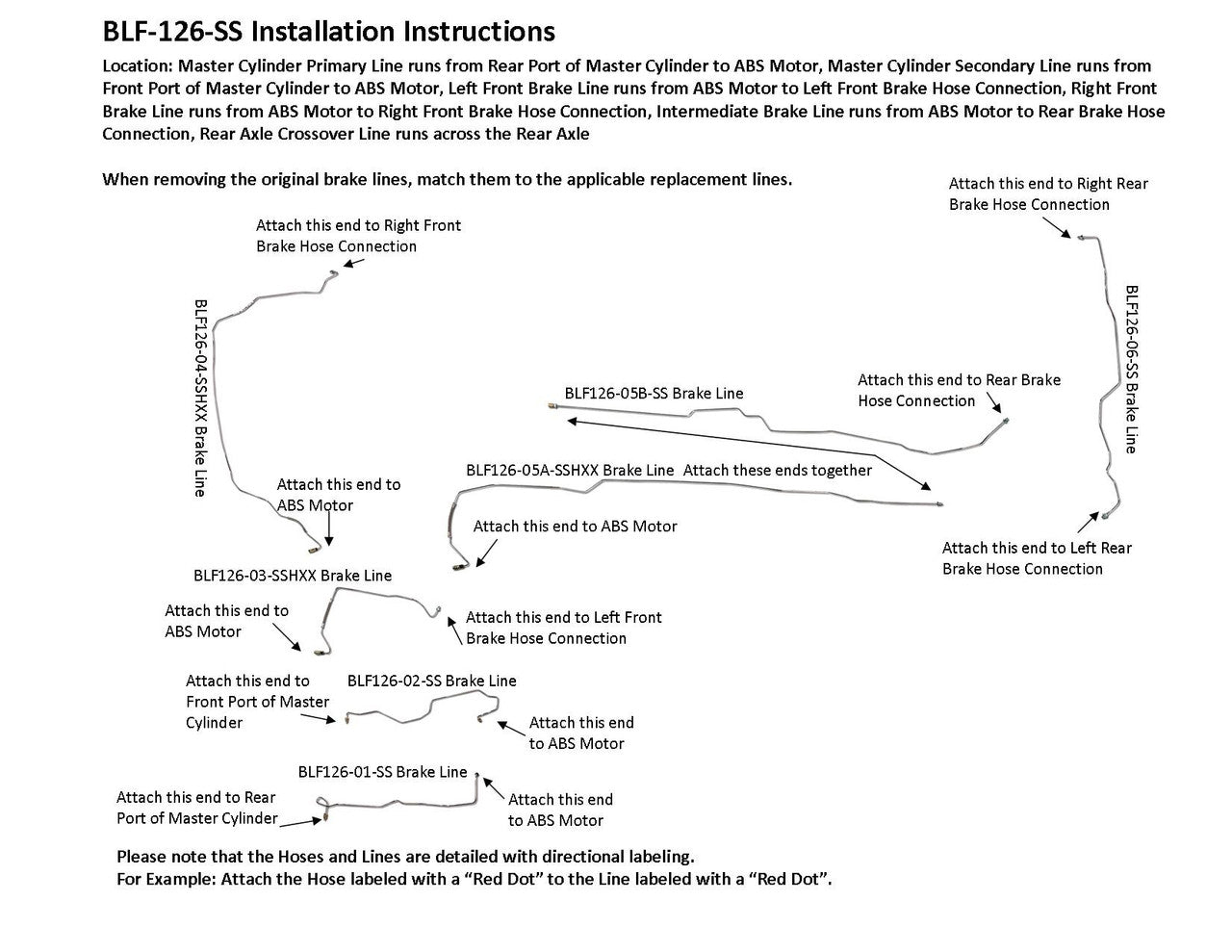

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Brake Hose Connection, Rear Axle Crossover Line runs across the Rear Axle

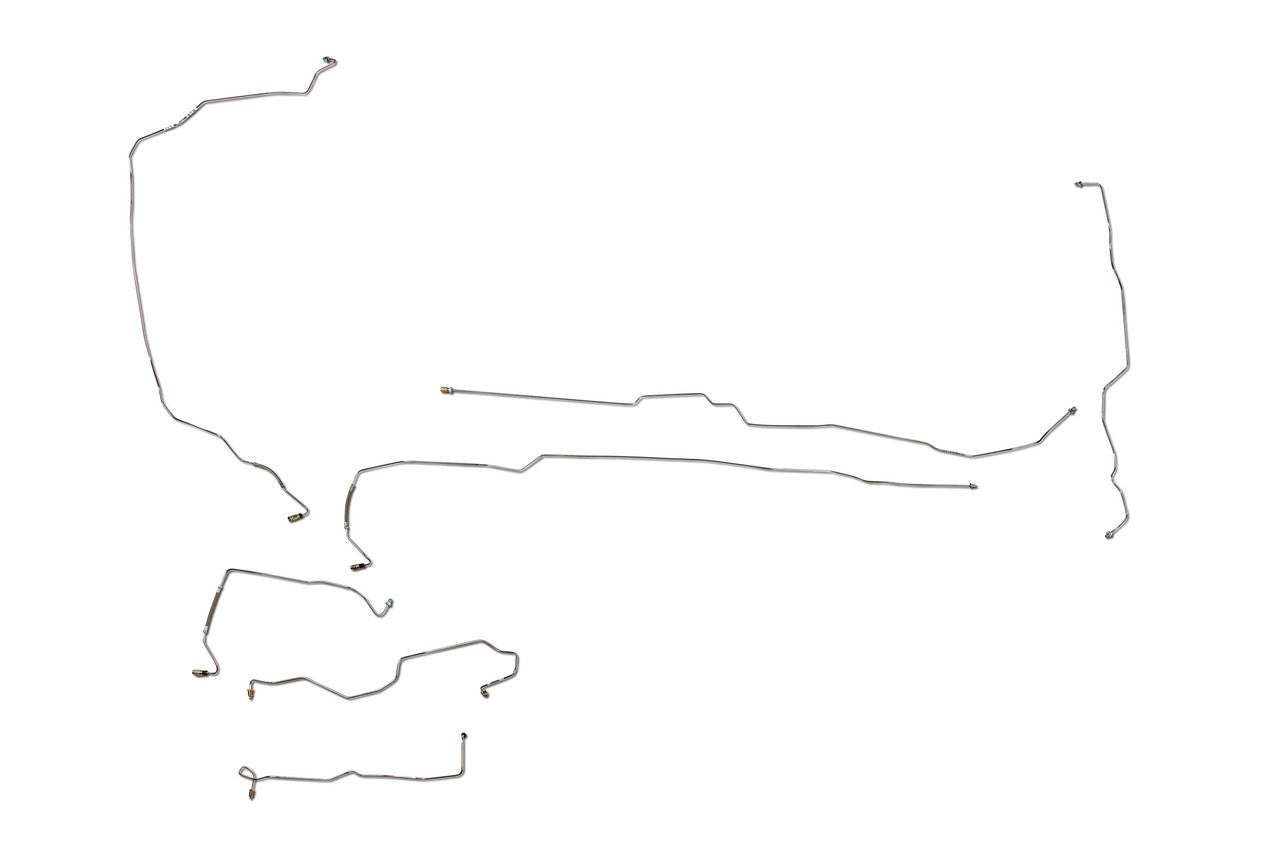

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
