Ford F350 SD Brake Line Set 2001 4WD Reg Cab 8ft Bed 6.8L BLF-144-SS5B Stainless Steel
w/4 Wheel ABS w/SRW
Ford F350 SD Brake Line Set 2001 4WD Reg Cab 8ft Bed 6.8L BLF-144-SS5B Stainless Steel
w/4 Wheel ABS w/SRW
Delivery Time & Rates
Install this pre bent 2001 Ford F-350 SD brake line set in no time!
Stainless Steel Brake Line Set 2001 Ford F-350 Super Duty 4WD Reg Cab 8ft Bed w/4 Wheel ABS, w/SRW for 6.8L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLF144-04B-SS and BLF144-05B-SS. See the video below on how to remove the shipping bend
- Weight: 5

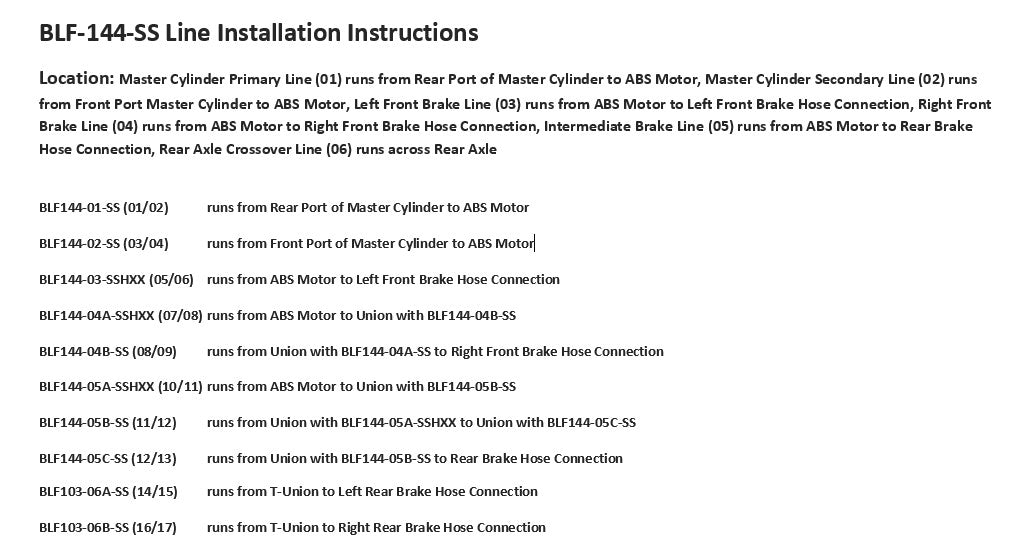

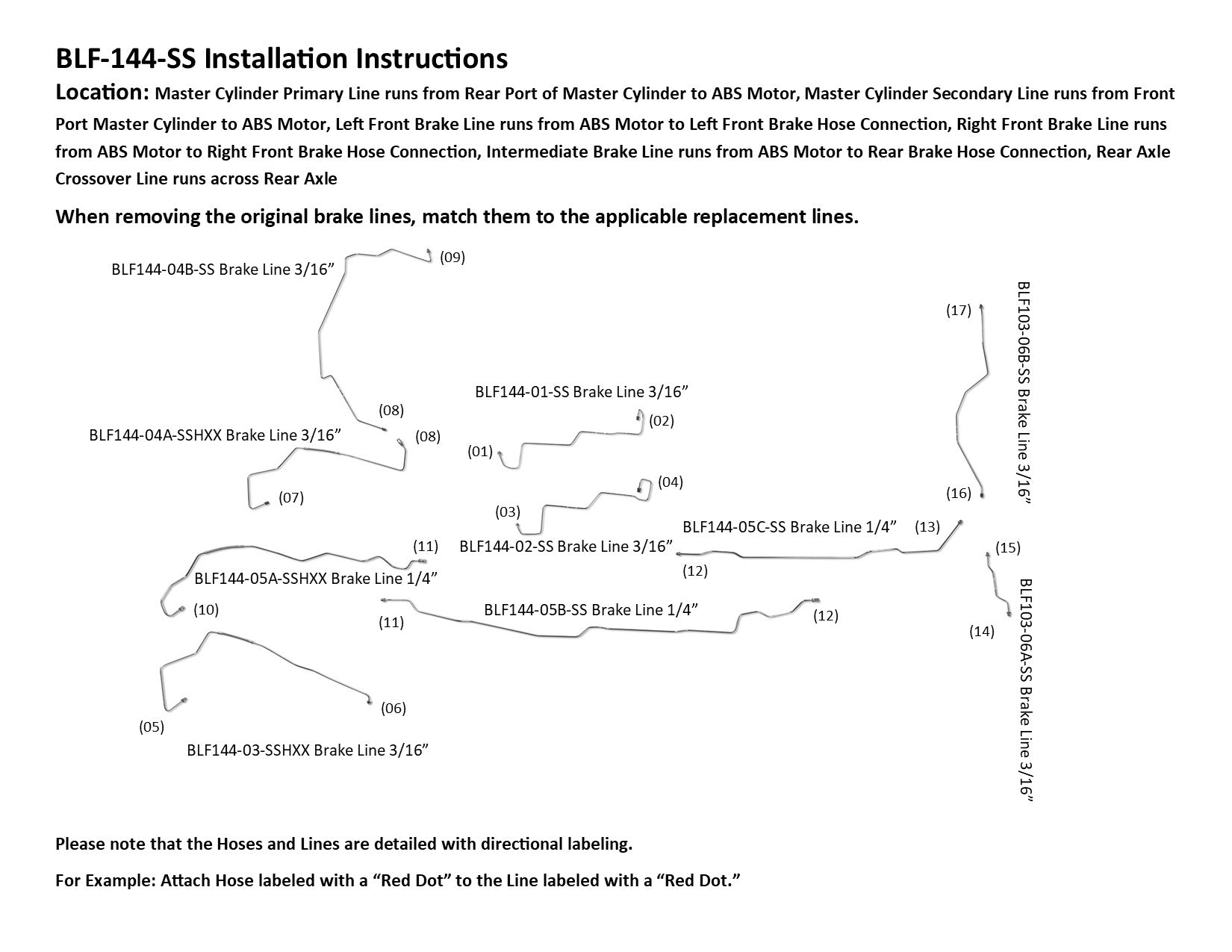

- Installation Instructions

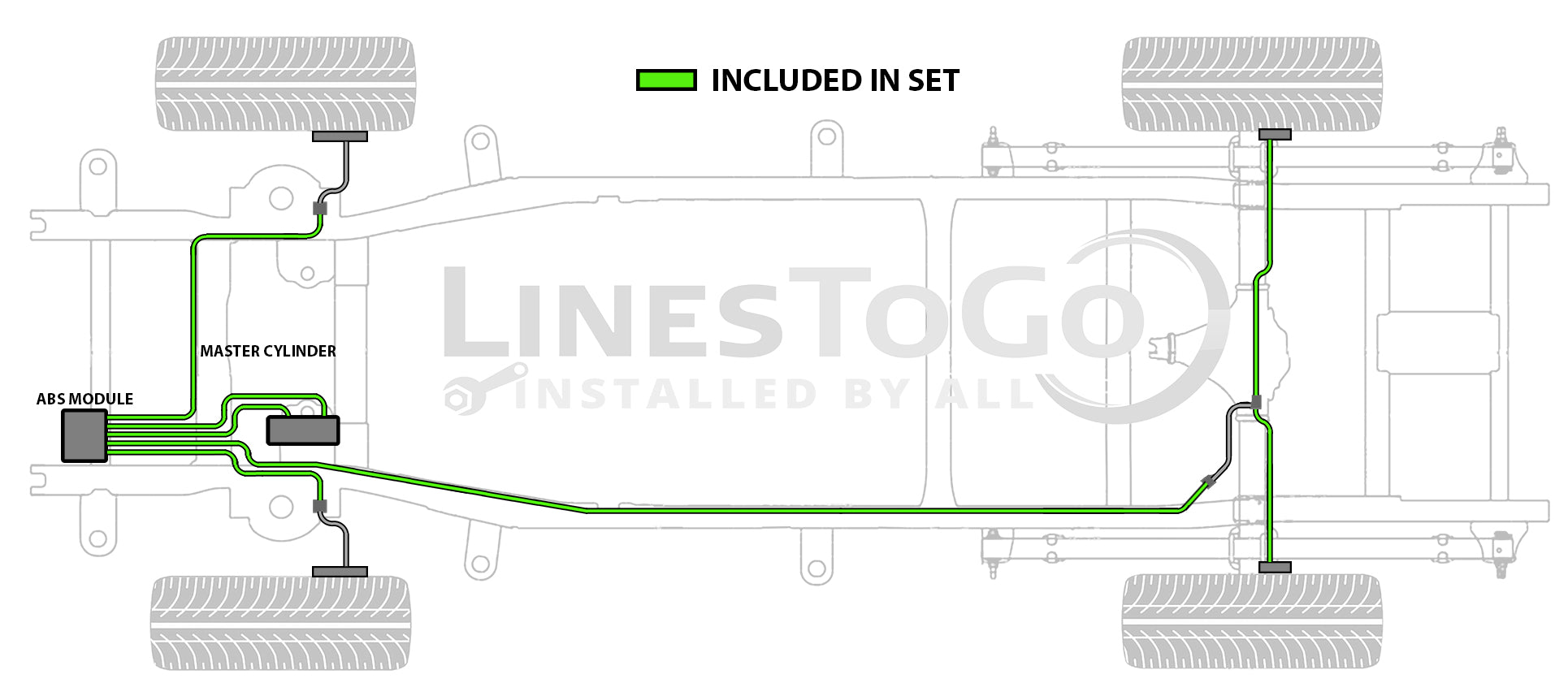

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Brake Hose Connection, Rear Axle Crossover Line runs across Rear Axle

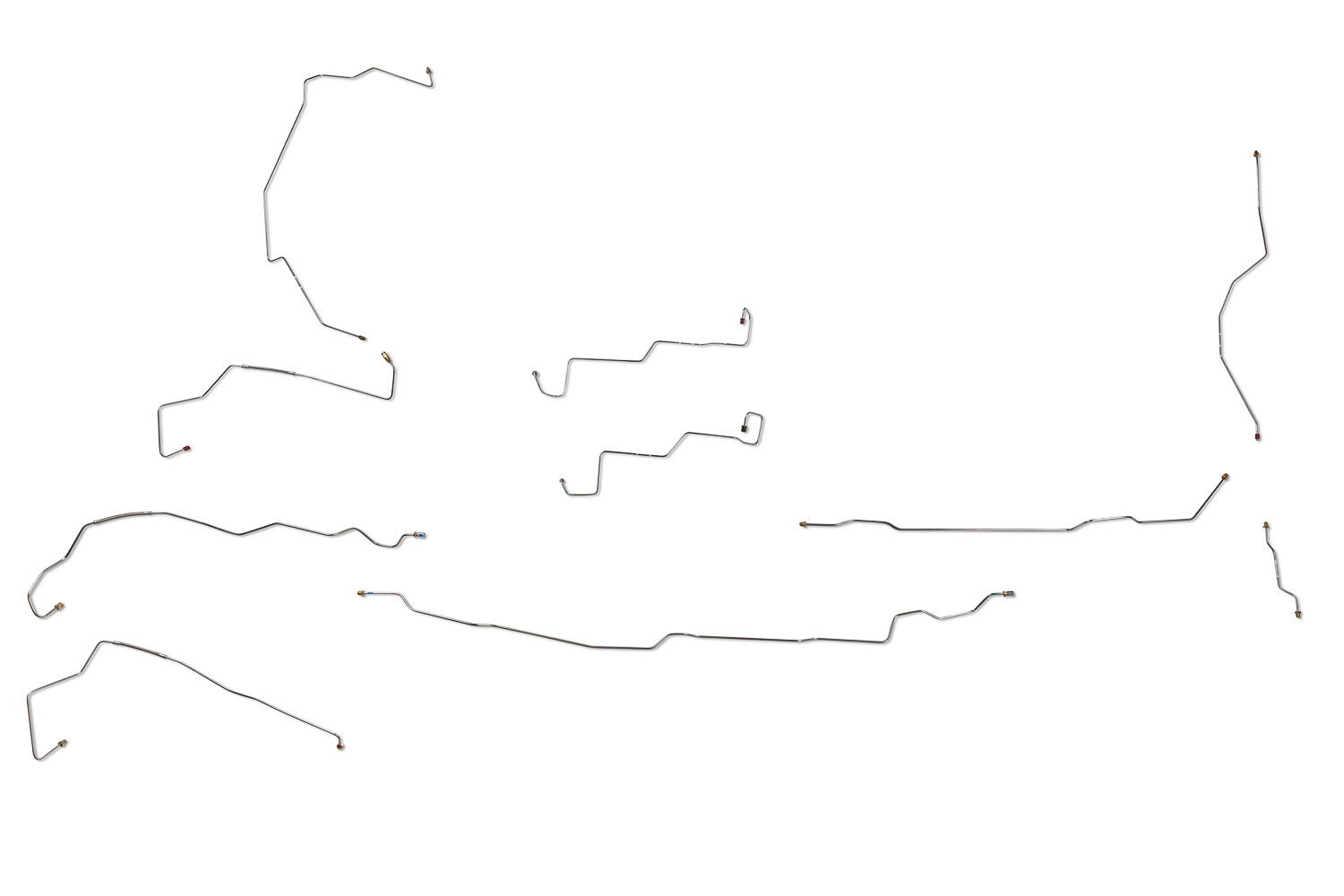

1 Master Cylinder Primary Brake Line 3/16, 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

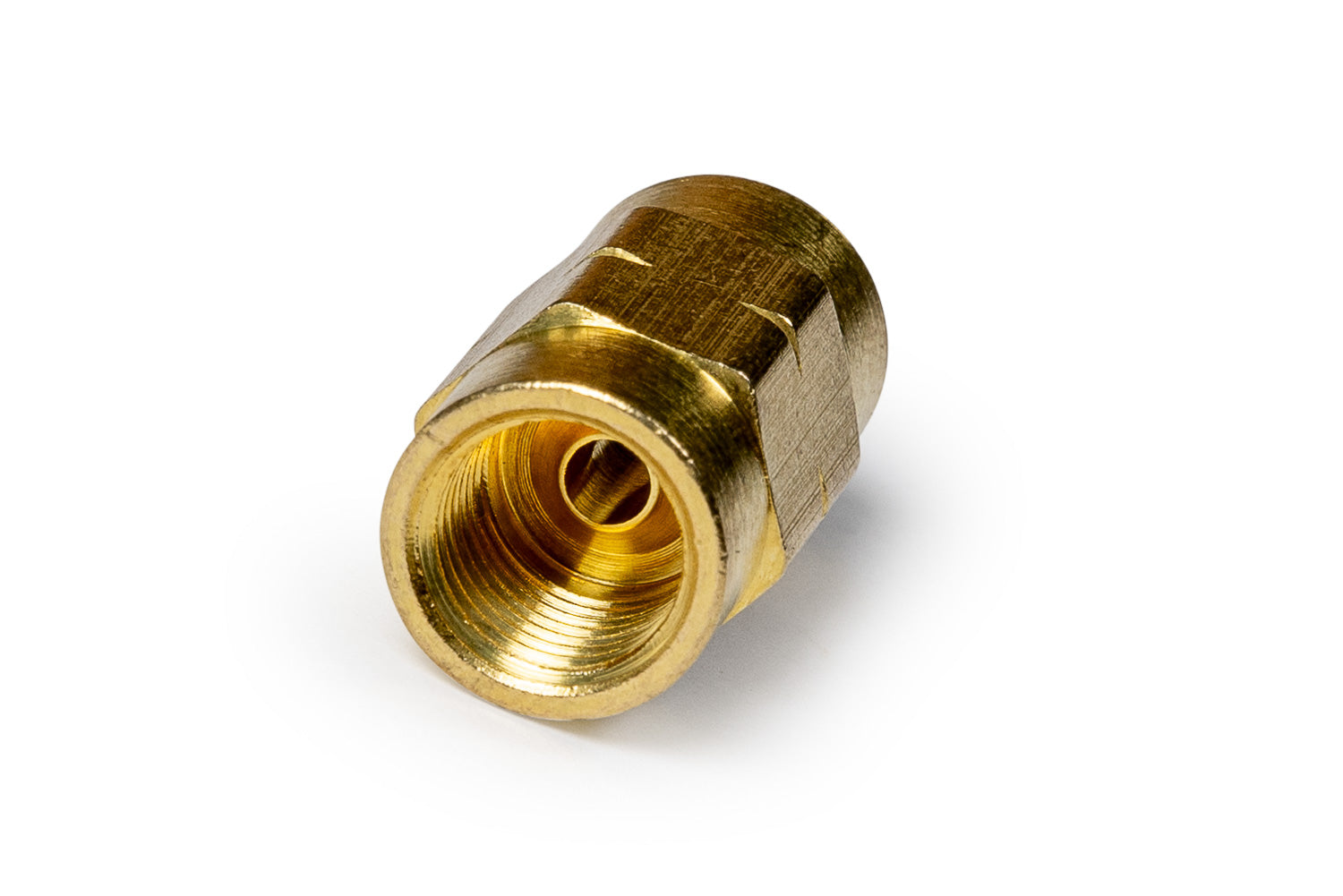

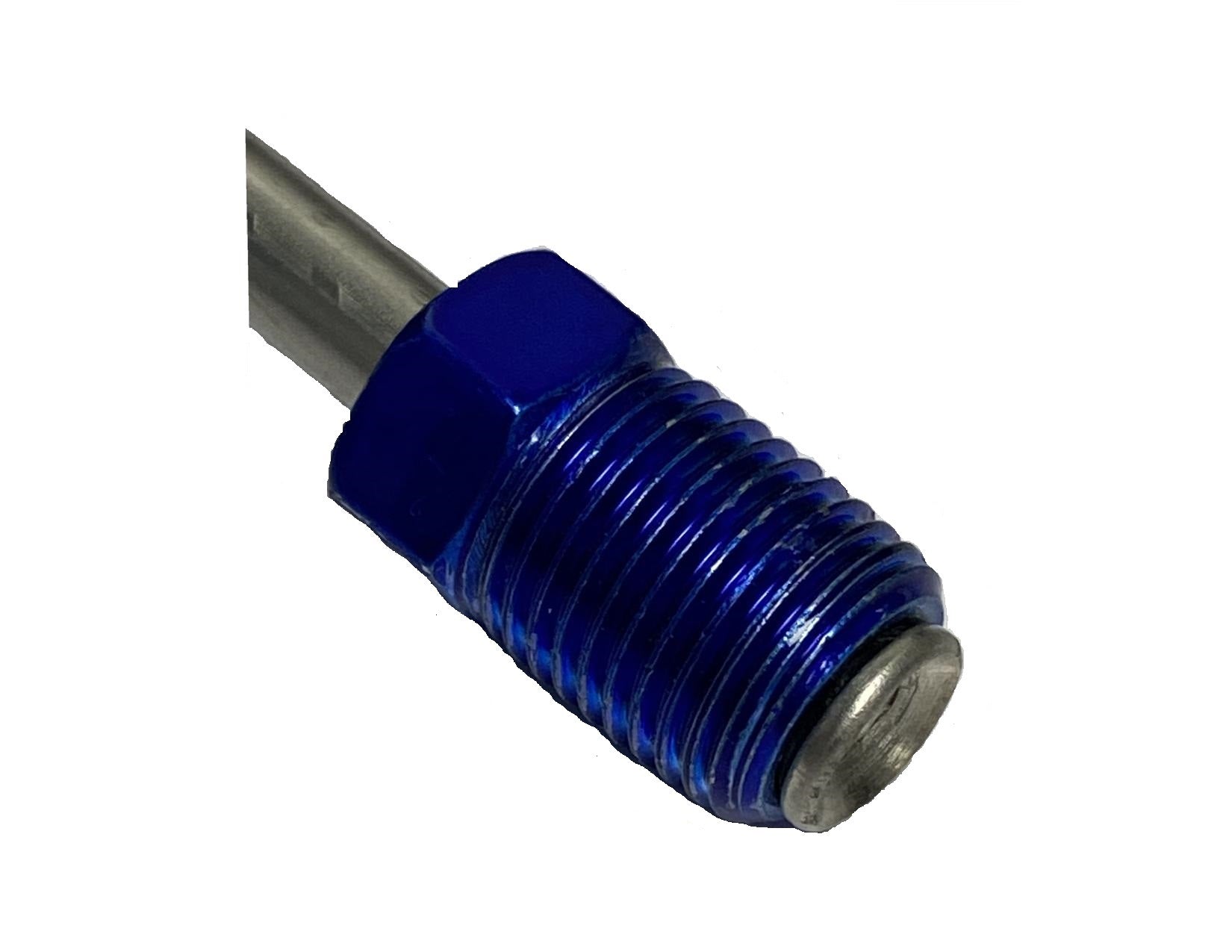

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
