Ford Focus Brake Line Set 2006 2.0L BLF-120-SS1E
w/ABS w/Rear Disc Brakes
Ford Focus Brake Line Set 2006 2.0L BLF-120-SS1E
w/ABS w/Rear Disc Brakes
Delivery Time & Rates
Install this pre bent 2006 Ford Focus brake line set in no time!
Brake Line Set Stainless Steel Ford Focus w/ABS w/Rear Drum Brakes for 2.0L and 2.3L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF109-05B-SS and BLF109-06B-SS. See the video below on how to remove the shipping bend
- Weight: 5

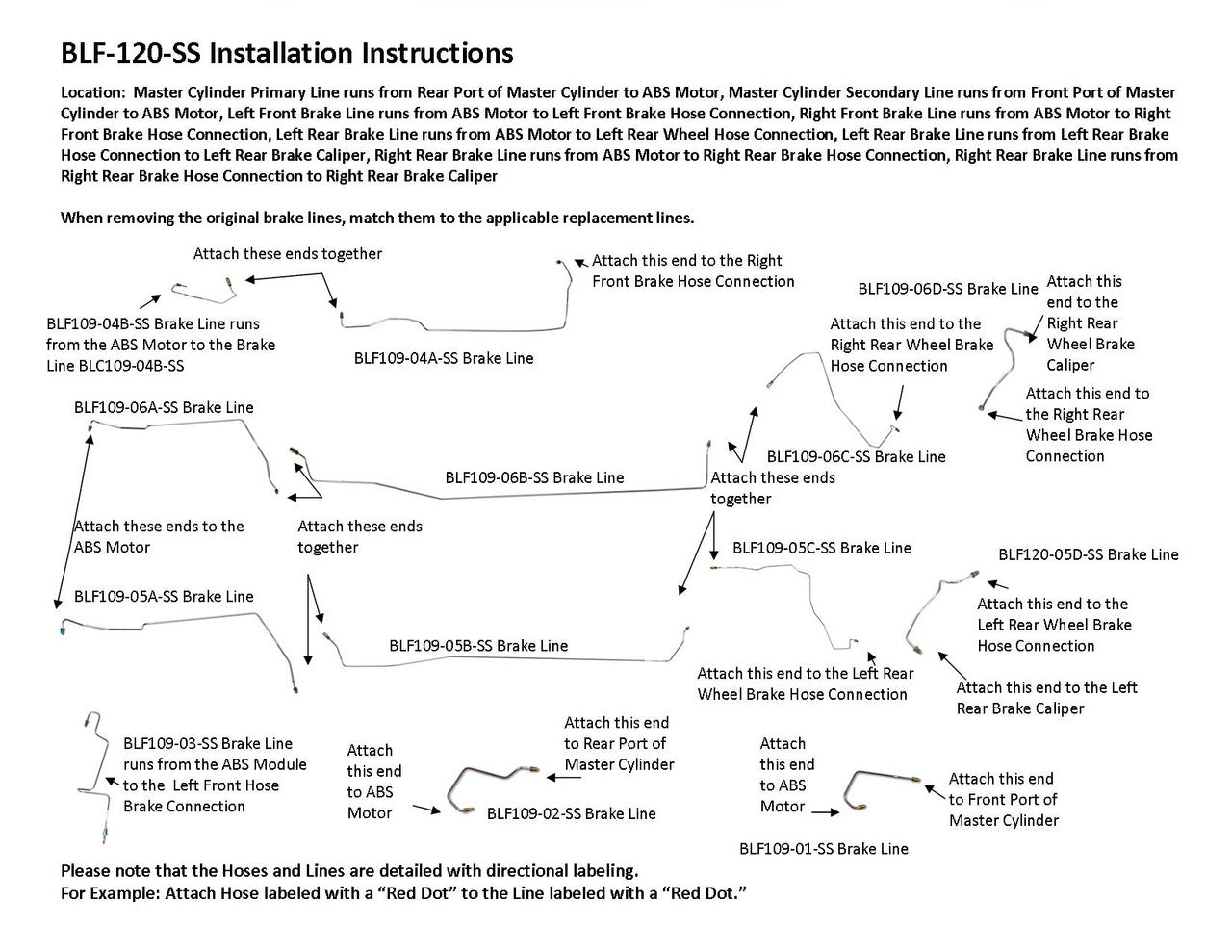

- Installation Instructions
Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Wheel Hose Connection, Left Rear Brake Line runs from Left Rear Brake Hose Connection to Left Rear Brake Caliper, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection, Right Rear Brake Line runs from Right Rear Brake Hose Connection to Right Rear Brake Caliper

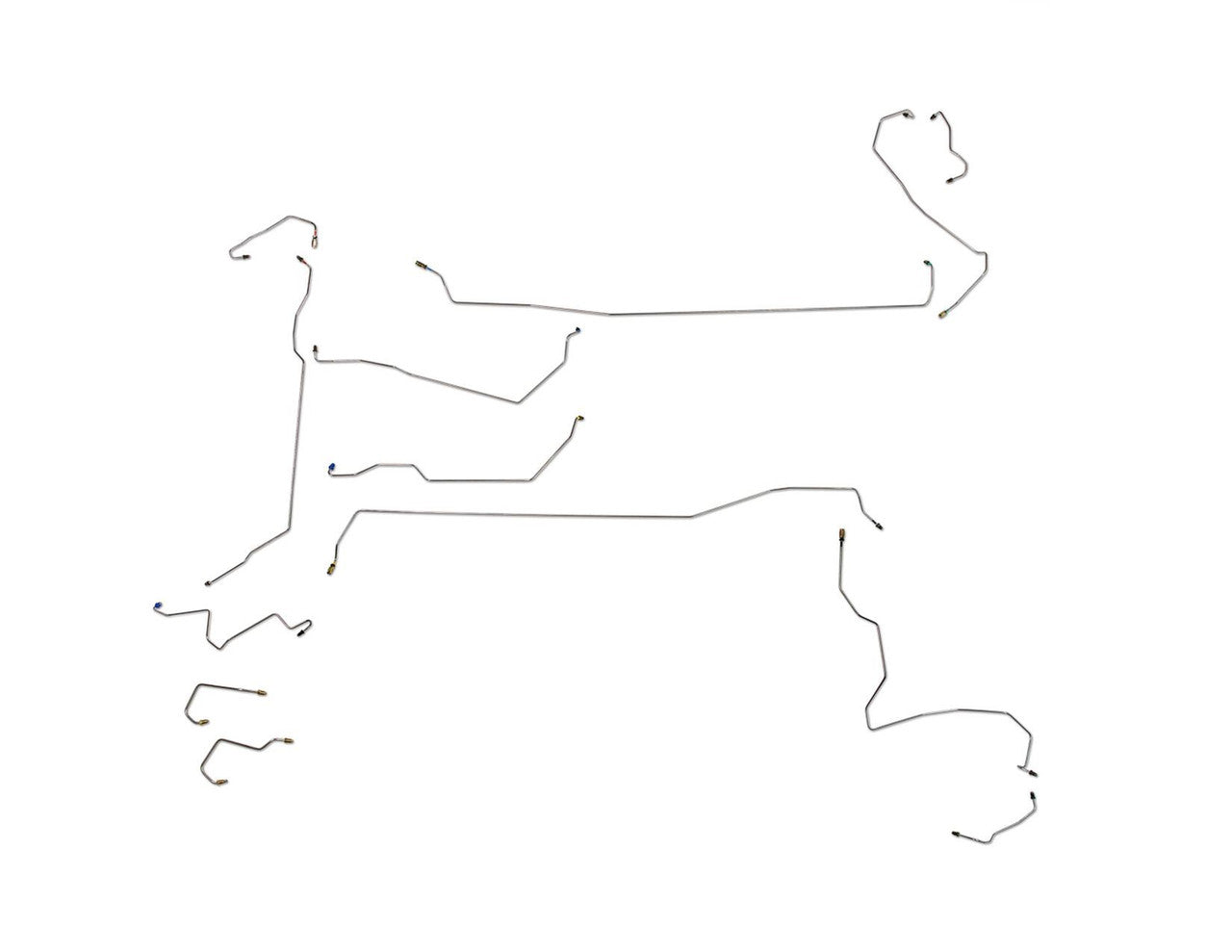

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 3 easy to install sections), 1 Left Rear Brake Line 3/16", 1 Right Rear Brake Line 3/16" (in 3 easy to install sections), 1 Right Rear Brake Line 3/16", Does NOT include Brake Hoses

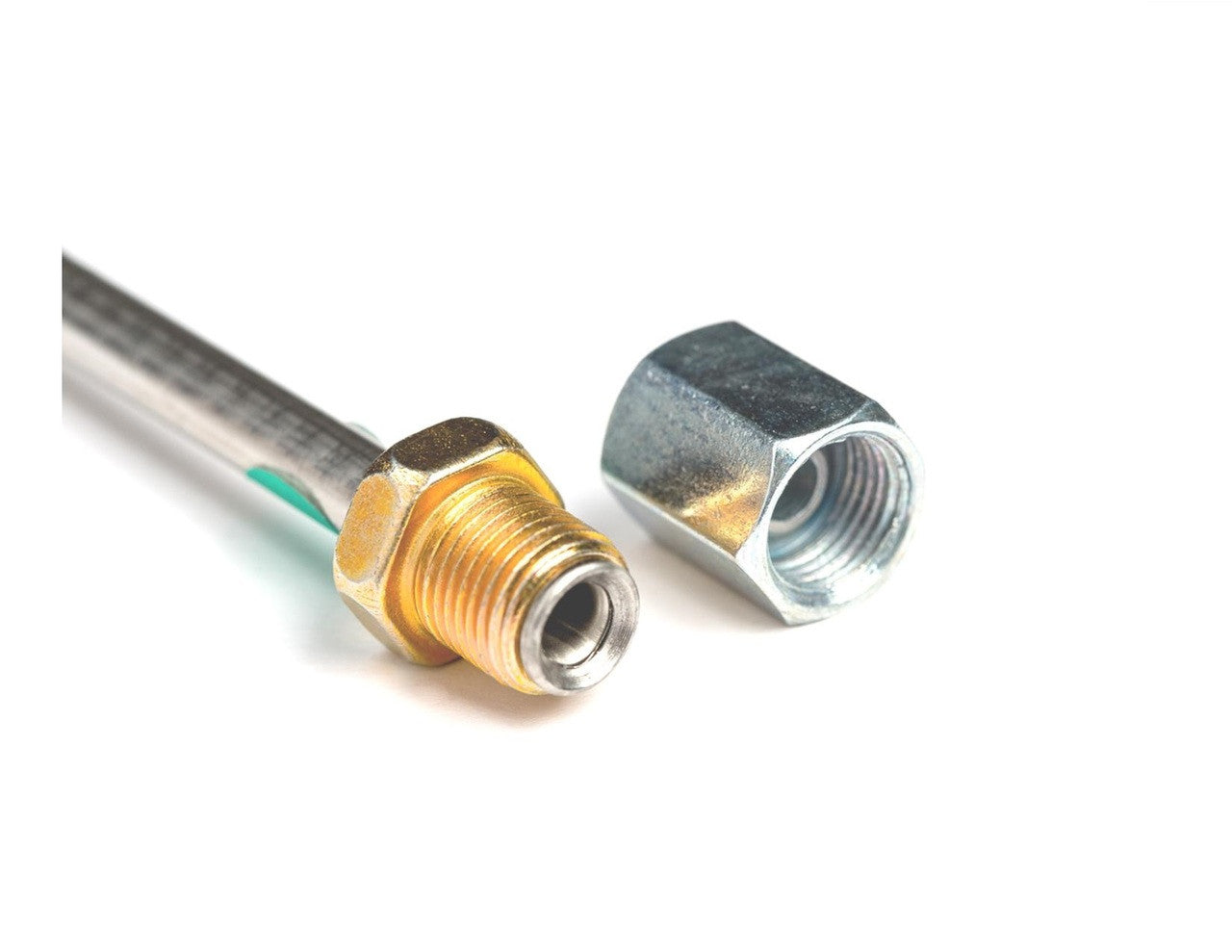

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
