Shop LinesToGo for 1999 Astro fuel lines.

Fuel Line Set 1999 Astro

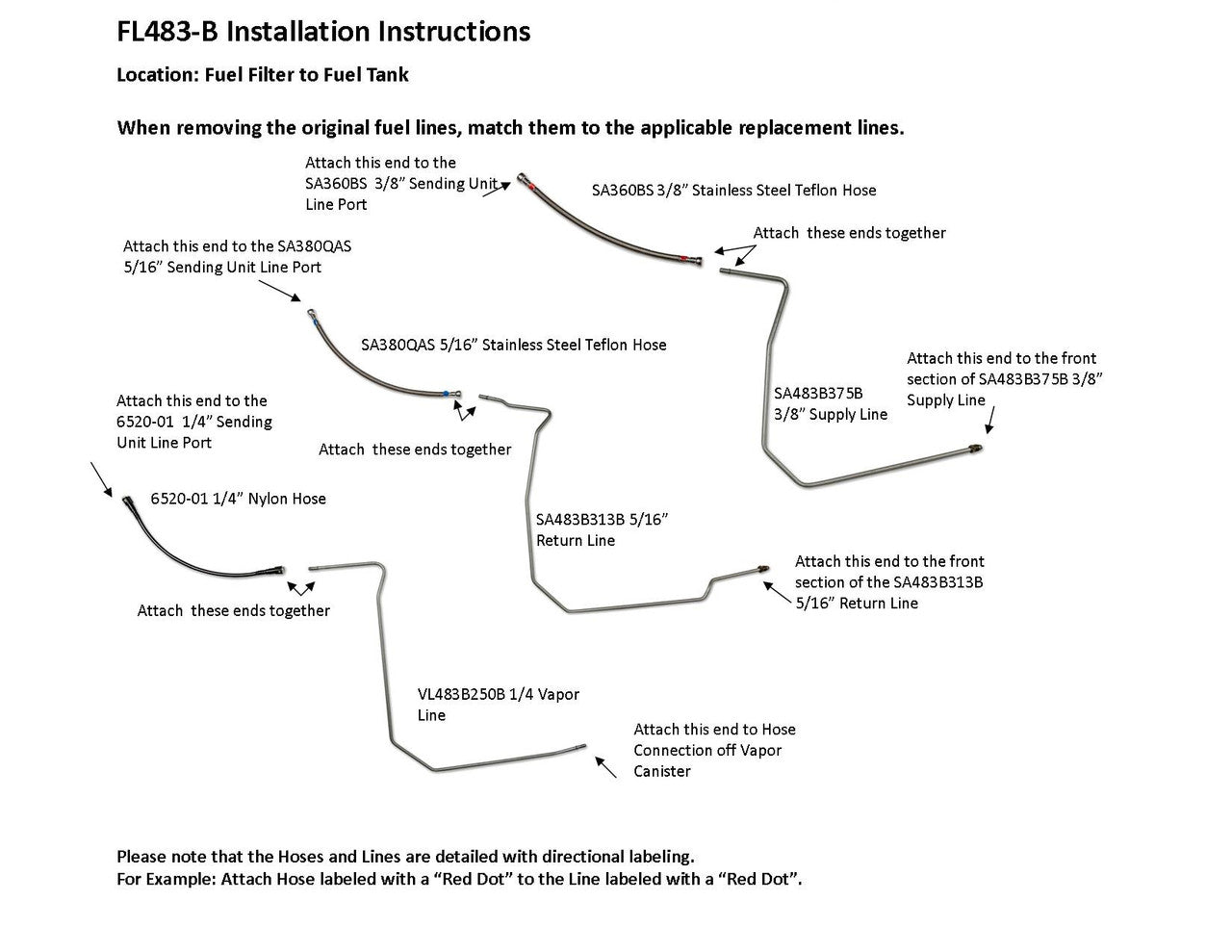

Please Note: If you have an aftermarket sending unit, you may not be able to utilize the quick connector that comes on the nylon hose on the vapor line. If that is the case, you may have to reuse the original vapor hose.

SKU: FL483-B1C
Box Dimensions 36" x 16" x 3"
Product Warranty 1 Year

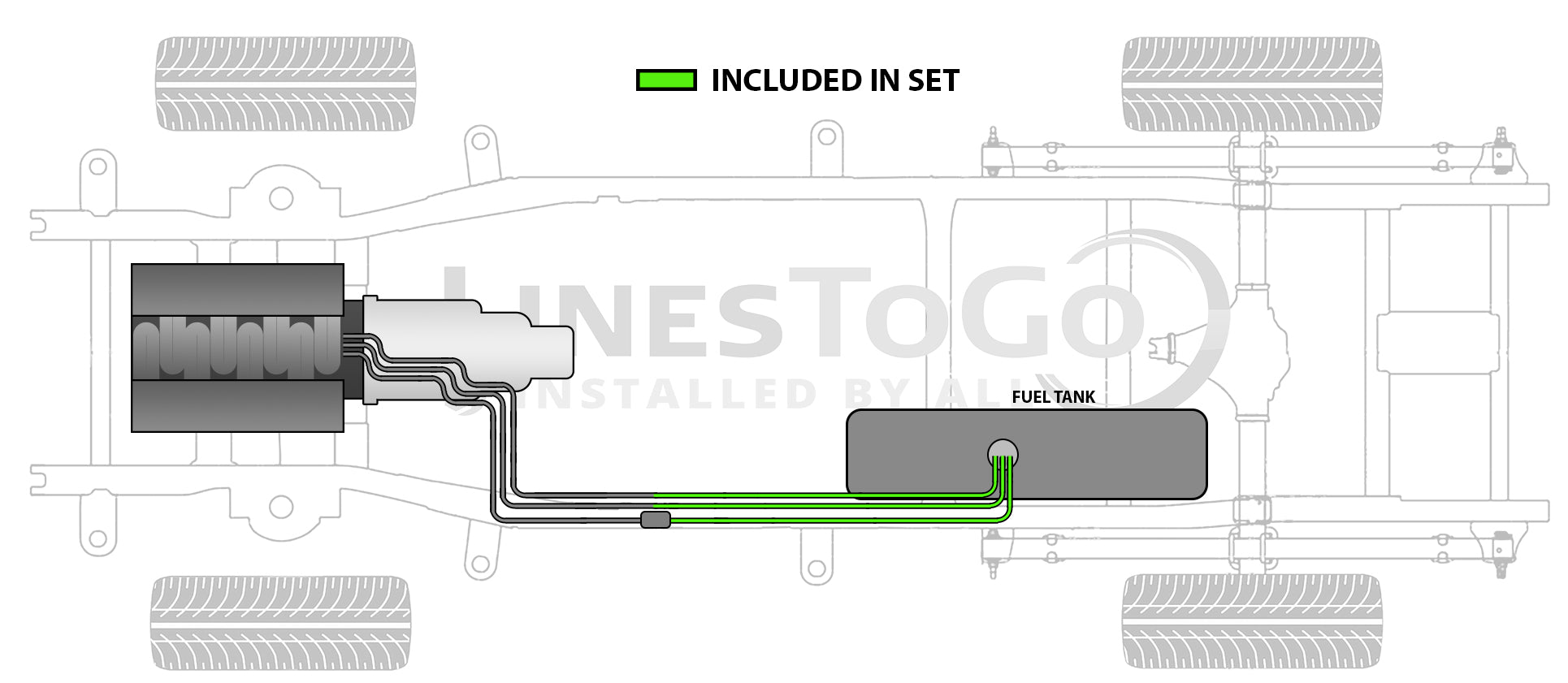

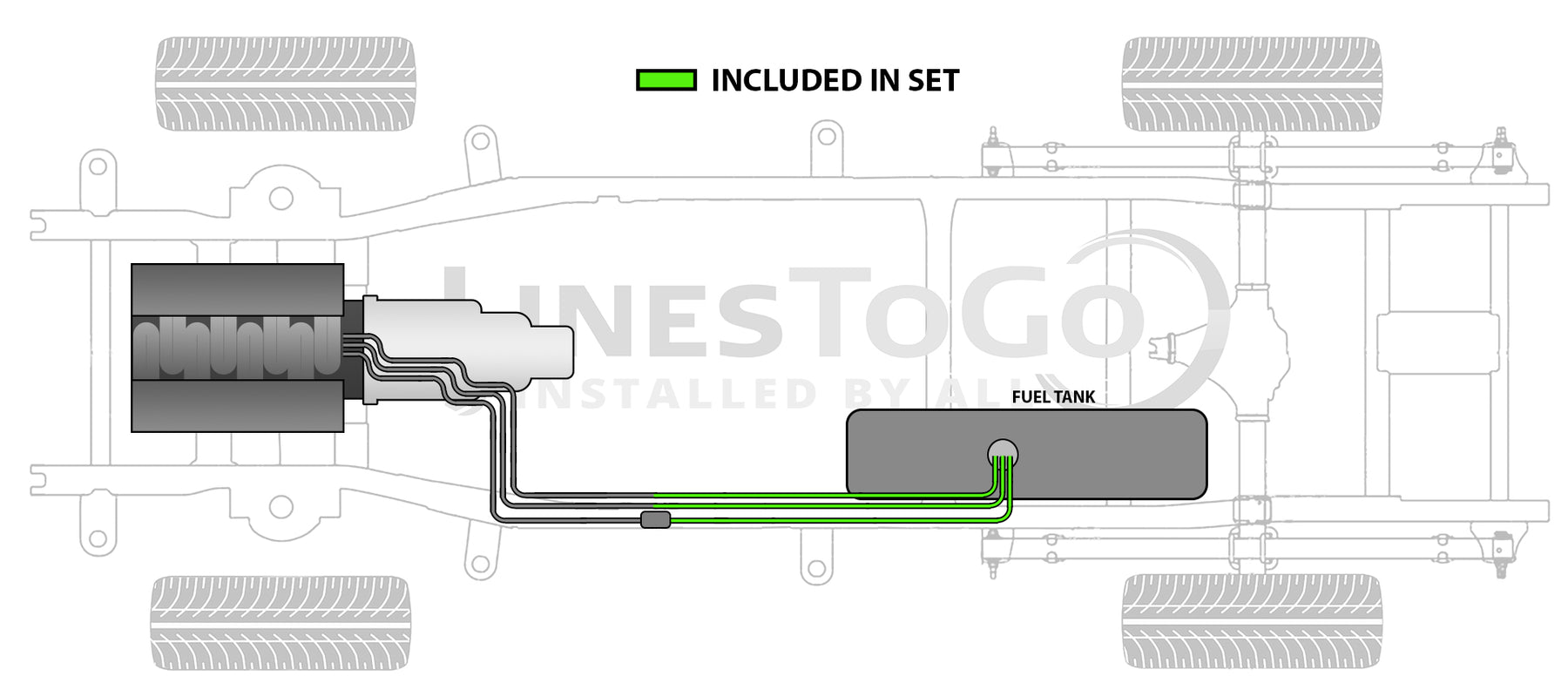

Fuel Filter to Fuel Tank

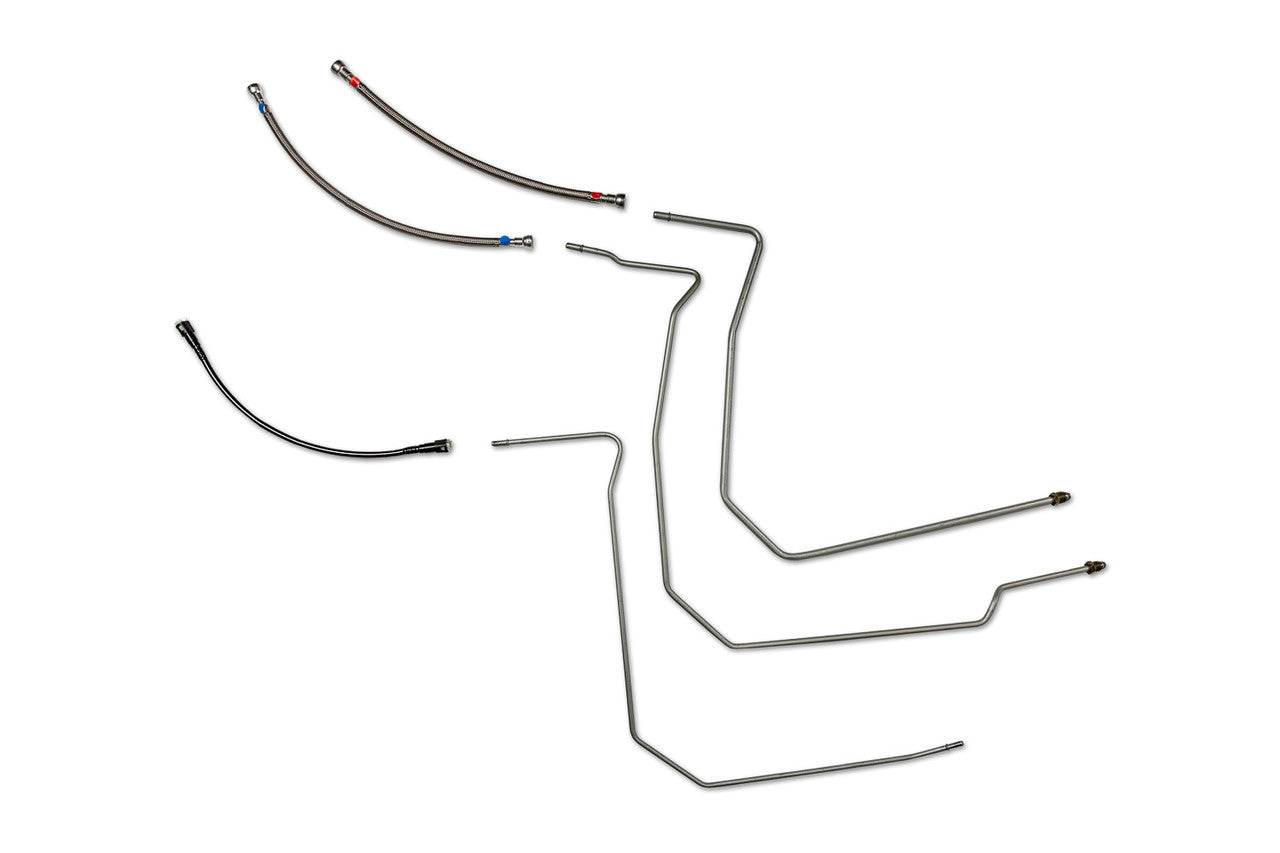

1 supply line 3/8", 1 return line 5/16", 1 vapor line 1/4", nylon line, hoses to sending unit connection

15728612, 15728611

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
