SALE:
Save $53.71
/

Delivery Time & Rates

Fuel Line Set 2003 S Series Jimmy 4Dr 2WD & 4WD

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

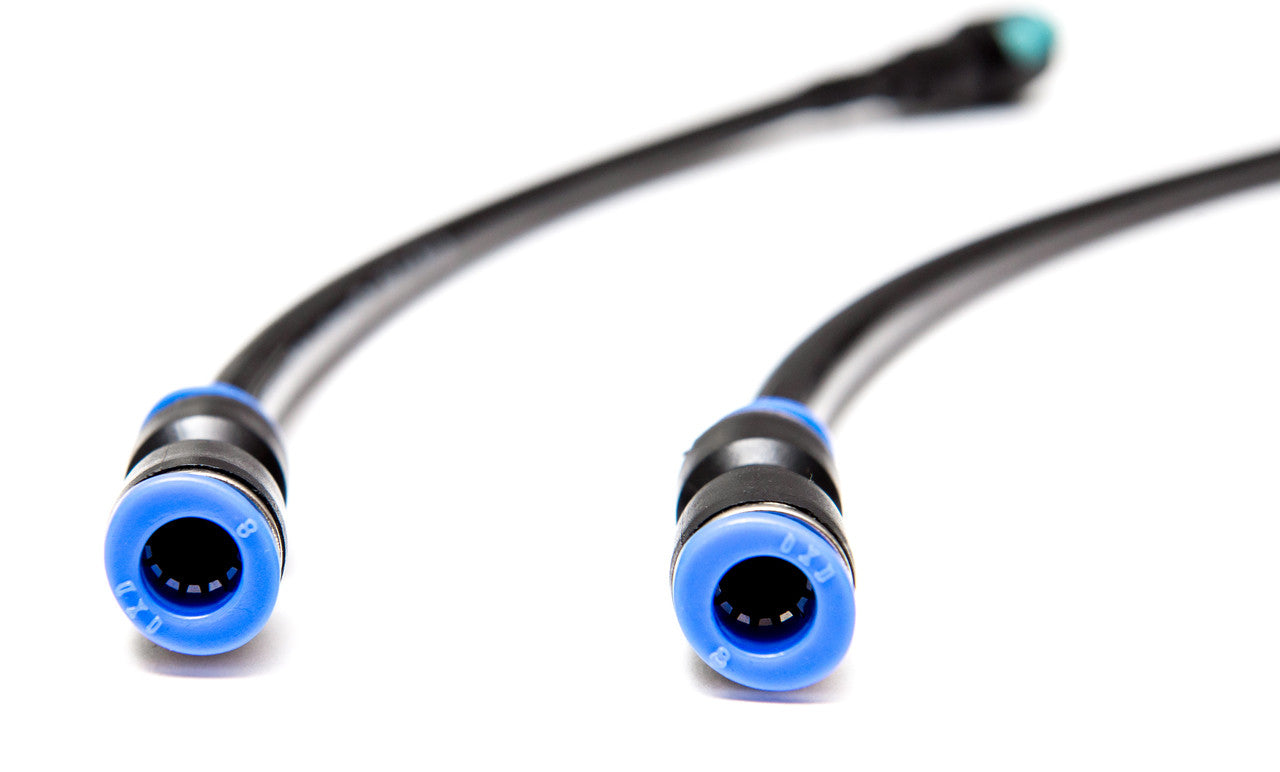

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

SKU: FL485-A2G
Box Dimensions 56" x 6" x 4"
Product Warranty 1 Year

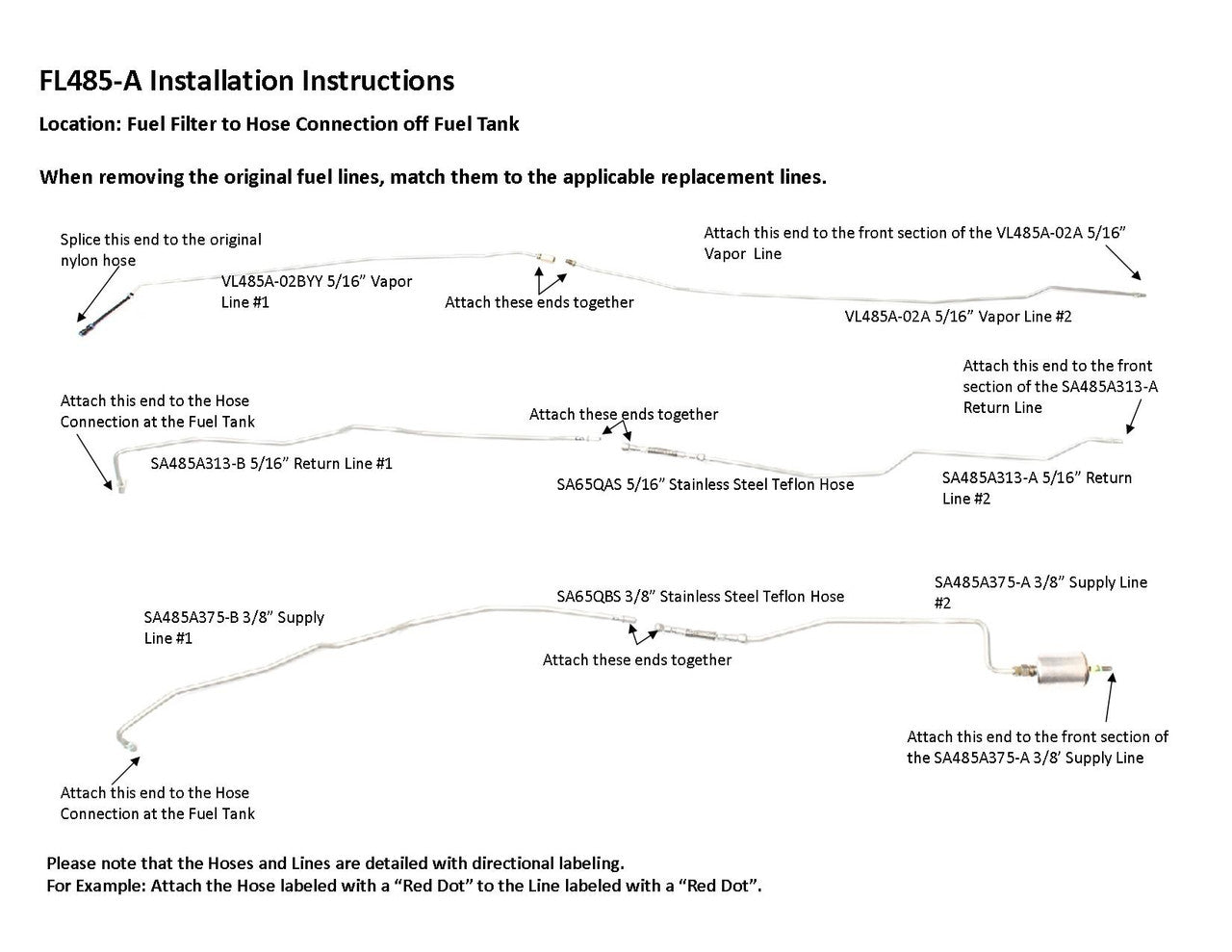

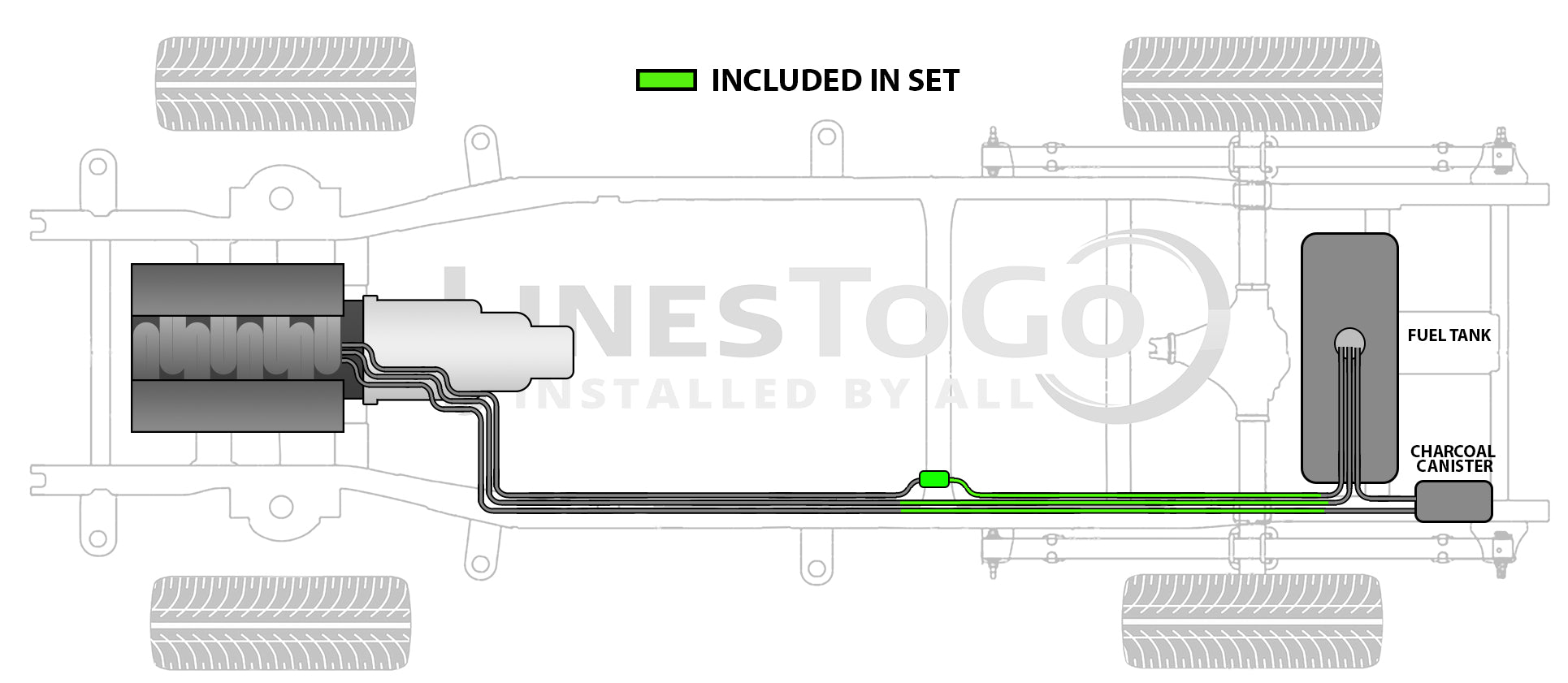

Fuel Filter to Hose Connection off Fuel Tank

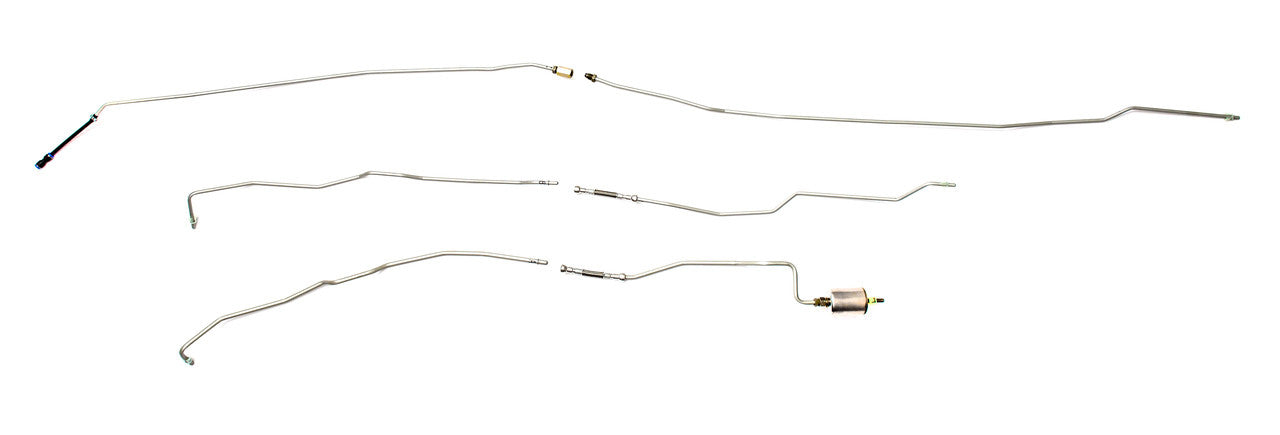

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections) excl. section from fuel tank to evap canister, hoses to join to rear sections, 1 fuel filter

15004586

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
