GMC Jimmy S Series Brake Line Set 1999 4WD 4.3L BLC-198-SS2B Stainless Steel
w/4 Wheel Disc Brakes
GMC Jimmy S Series Brake Line Set 1999 4WD 4.3L BLC-198-SS2B Stainless Steel
w/4 Wheel Disc Brakes
Delivery Time & Rates

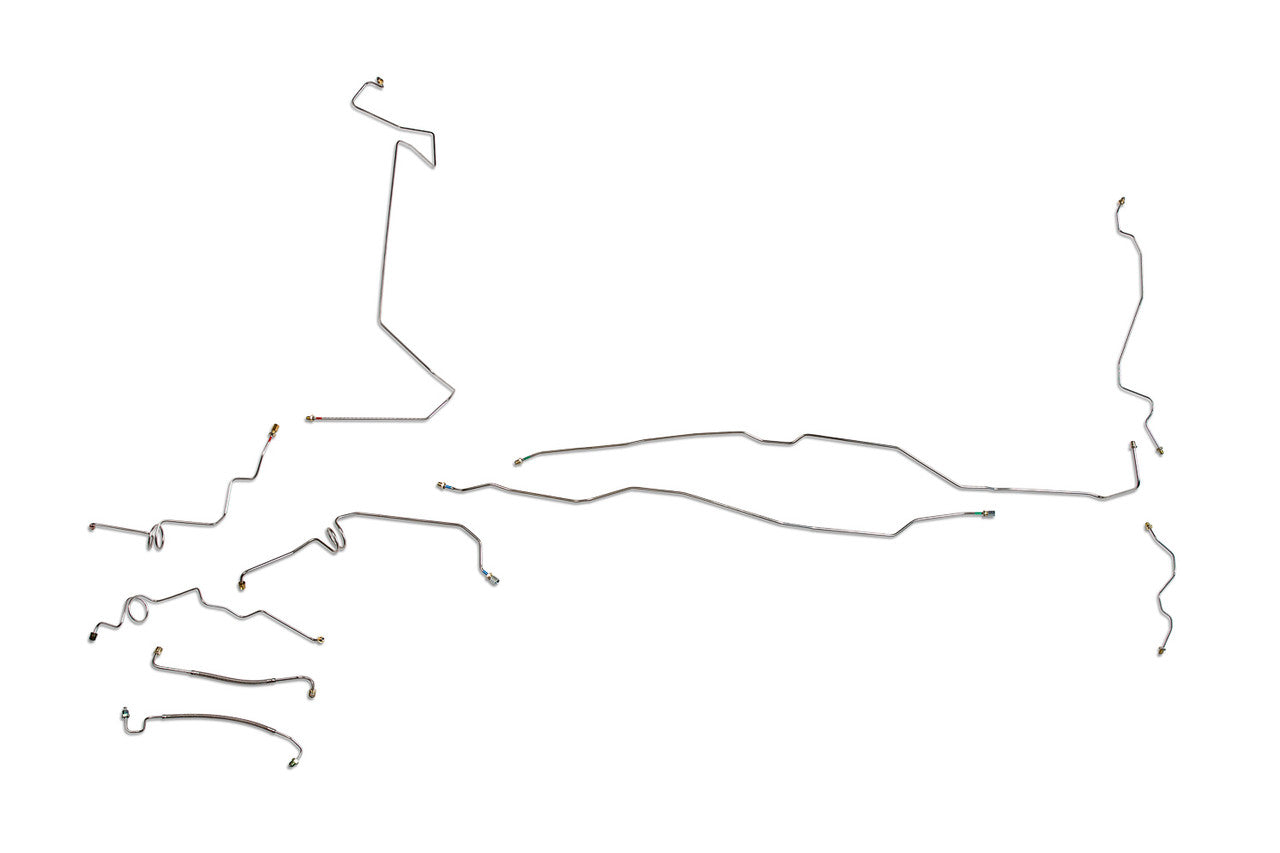

Install this pre bent 1999 Jimmy S Series brake line set in no time!
Brake Line Set Stainless Steel GMC Jimmy S Series 4WD 4 Dr w/4 Wheel Disc Brakes for 4.3L engines
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC198-04B-SS. See the video below on how to remove the shipping twist

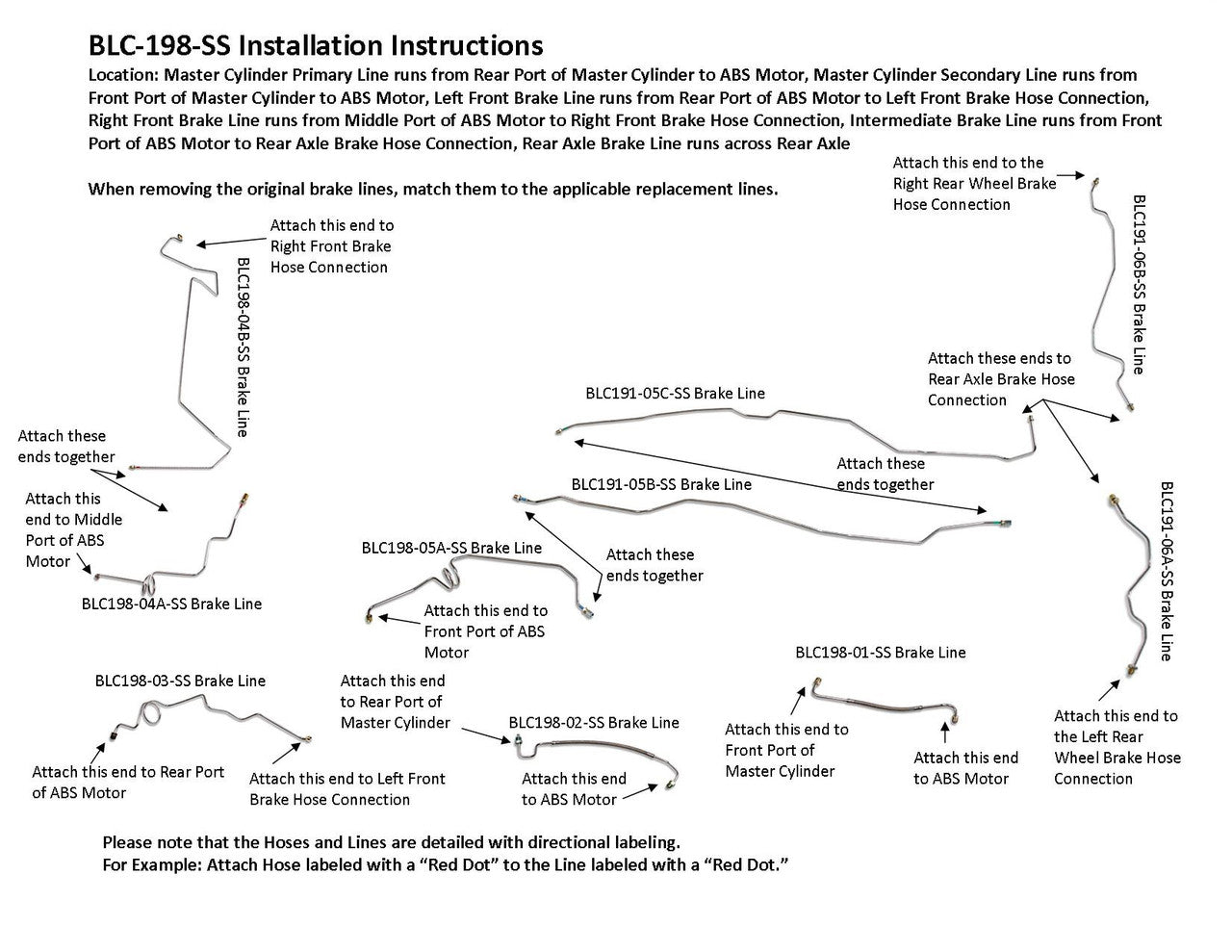

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from Rear Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Front Port of ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Brake Line runs across Rear Axle
1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 3 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses

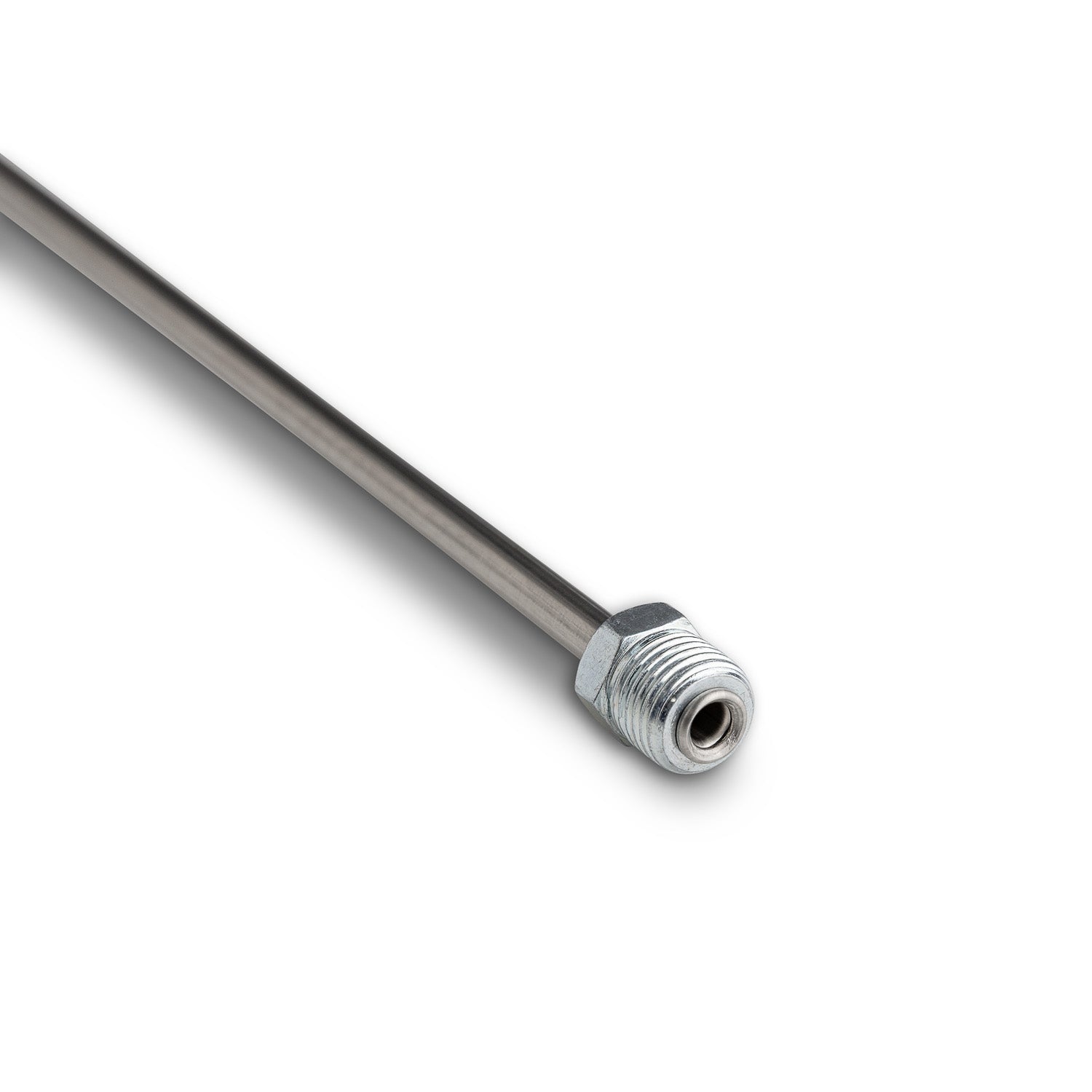

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
