GMC Sierra Brake Line Set 2004 Reg Cab & Chassis 161.5" WB 6.0L, 6.6L, 8.1L BLC-188-SS2B Stainless Steel
w/DRW
GMC Sierra Brake Line Set 2004 Reg Cab & Chassis 161.5" WB 6.0L, 6.6L, 8.1L BLC-188-SS2B Stainless Steel
w/DRW
Delivery Time & Rates
Install this pre bent 2004 Sierra brake line set in no time!
Brake Line Set Stainless Steel 2004 GMC Sierra 3500 Reg Cab & Chassis 161.5" WB w/Dual Rear Wheel (DRW) for 6.0L, 6.6L, and 8.1L engines

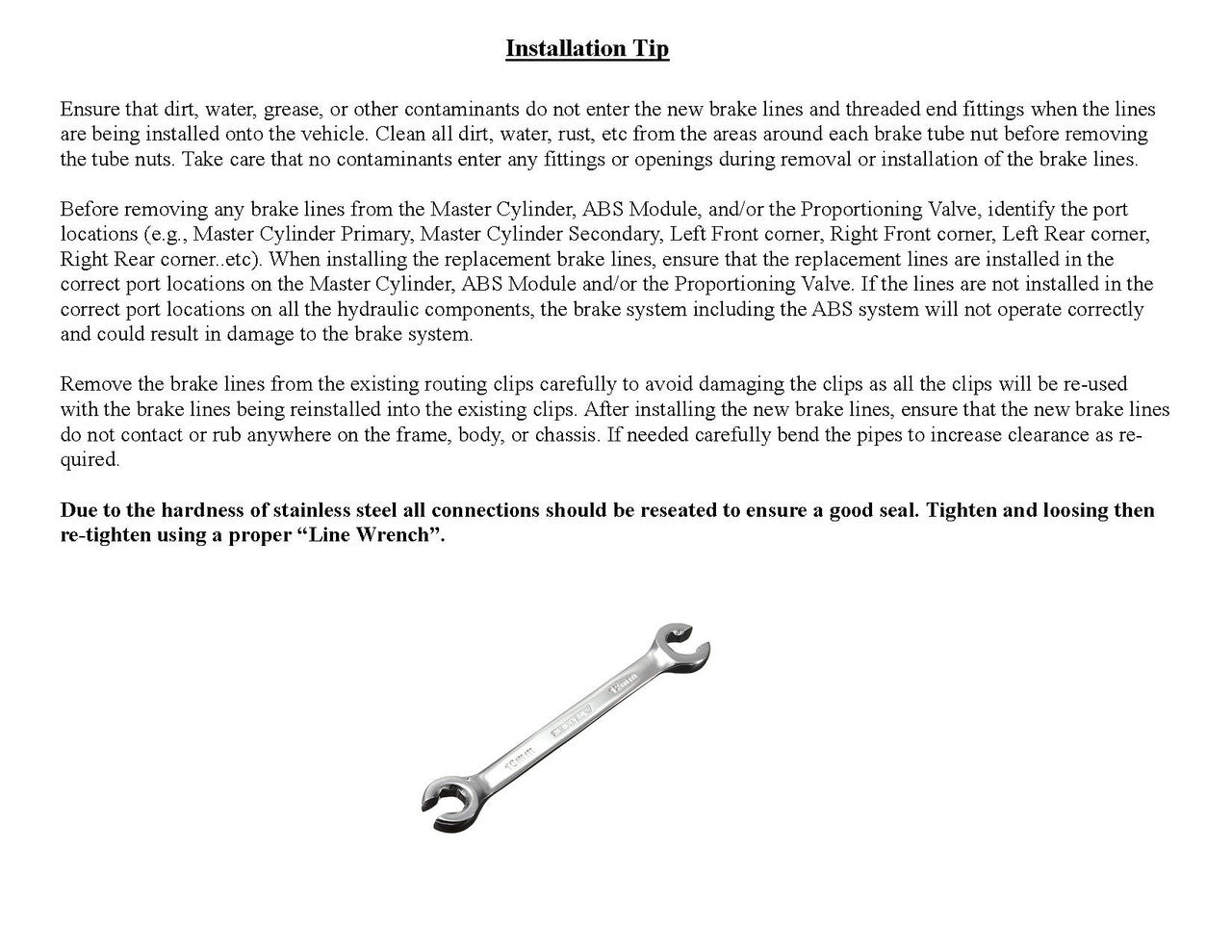

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC133-01-SS, BLC133-02-SS, BLC132-03-SS, BLC132-04A-SS and BLC156-05B-SS. See the video below on how to remove the shipping bend

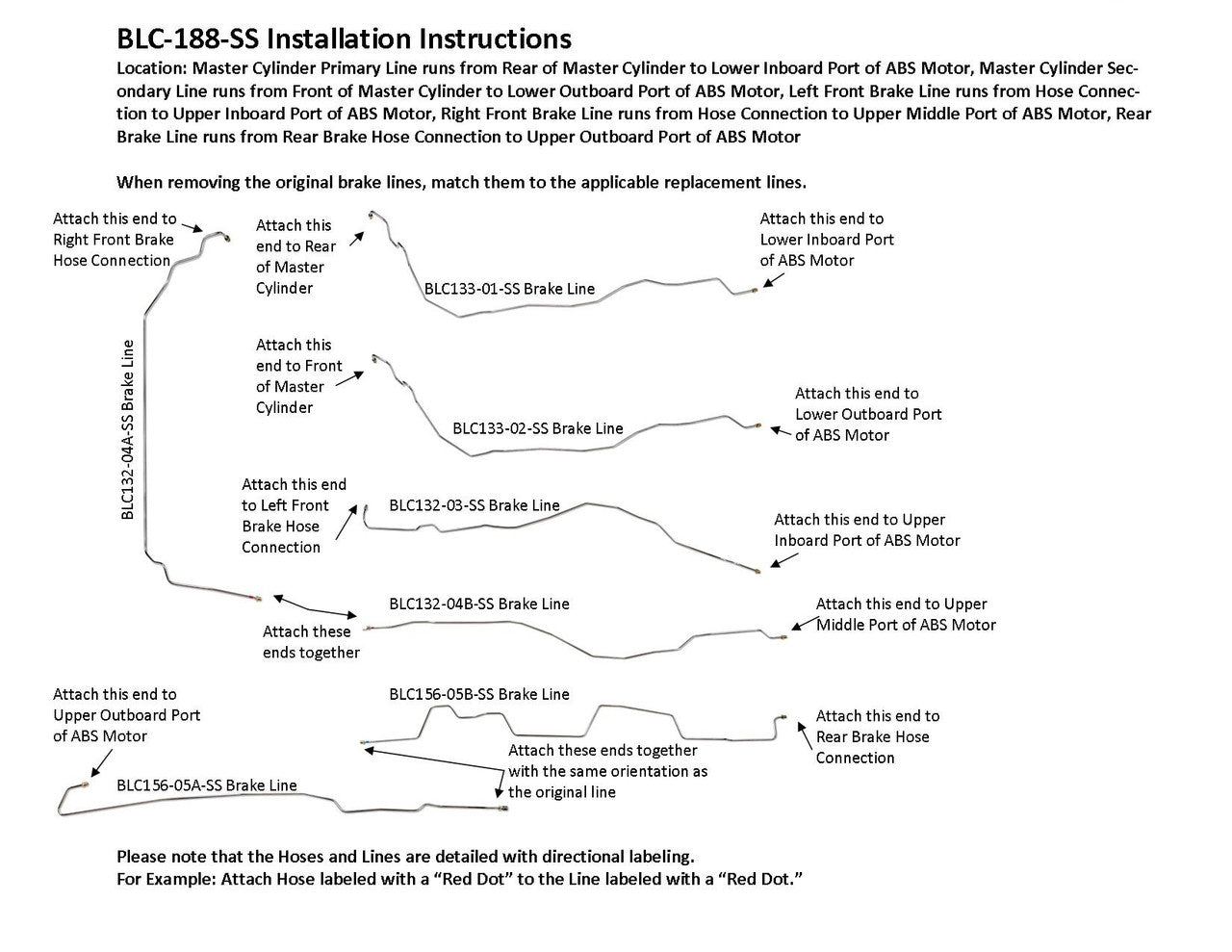

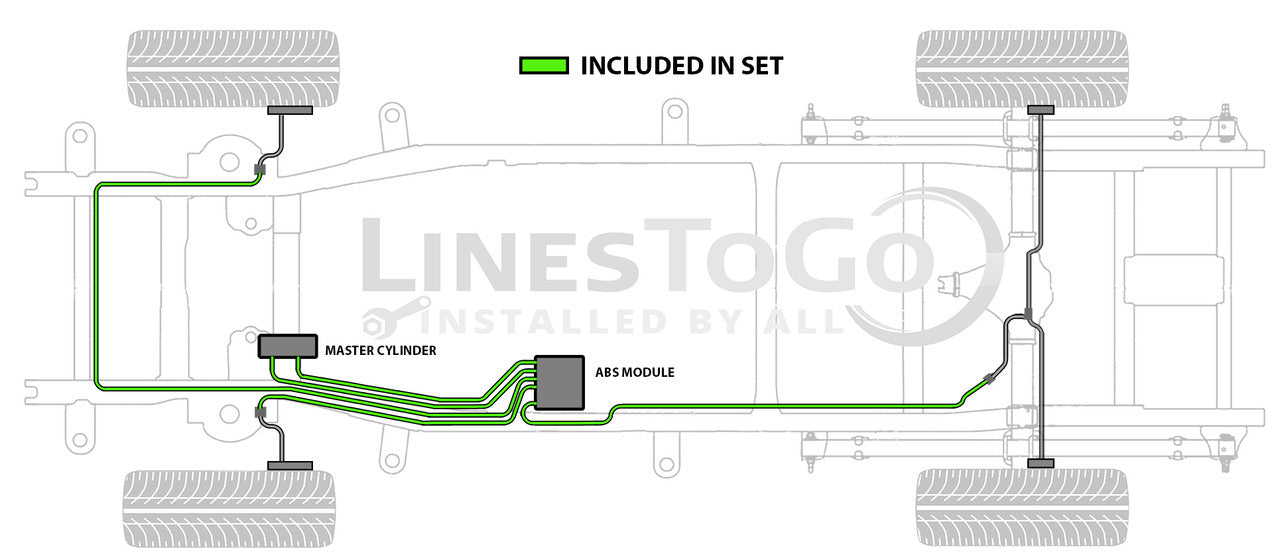

Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Brake Hose Connection to Upper Inboard Port of ABS Motor, Right Front Brake Line runs from Brake Hose Connection to Upper Middle Port of ABS Motor, Rear Brake Line runs from Rear Brake Hose Connection to Upper Outboard Port of ABS Motor

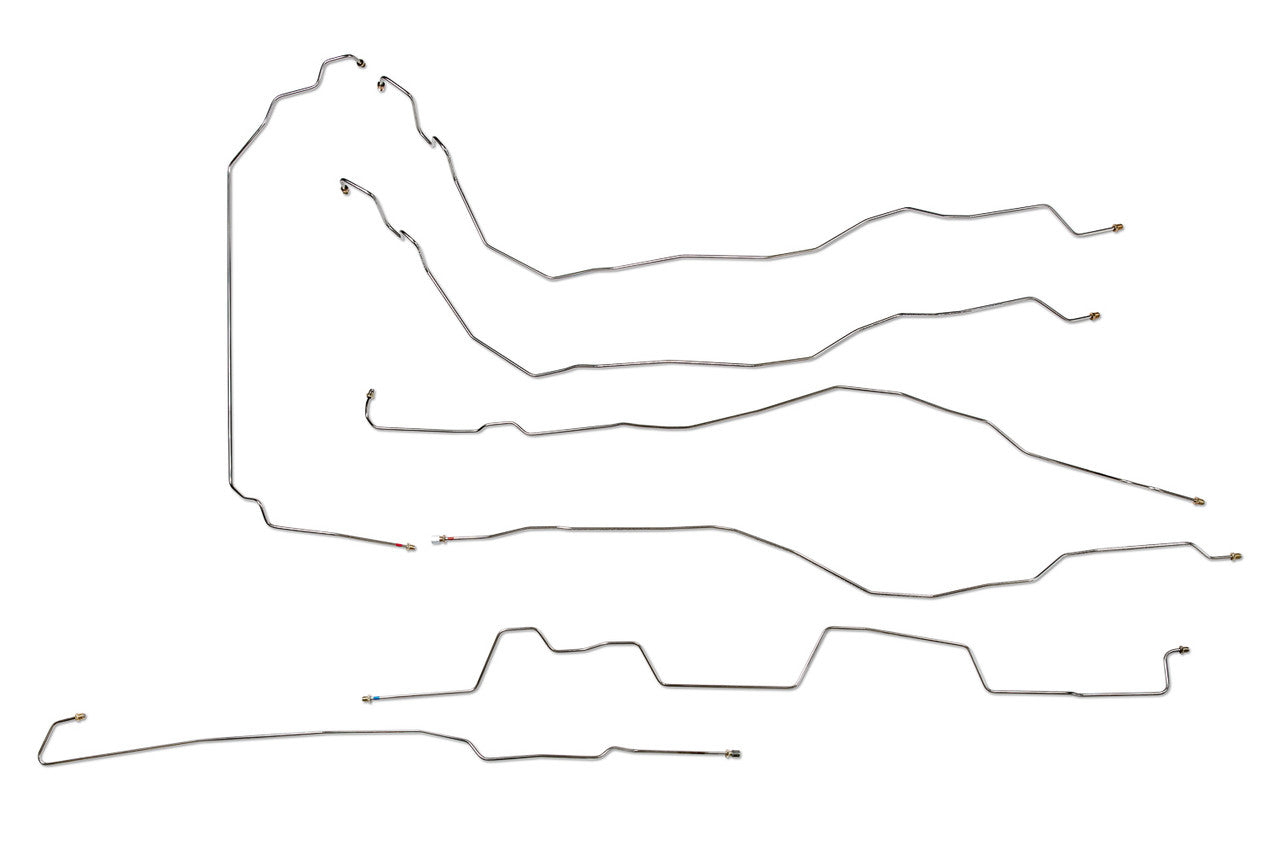

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Rear Brake Line (in 2 easy to install sections), Does NOT include Brake Hoses or Rear Axle Crossover Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
