GMC Sierra Brake Line Set 2012 1500 Reg Cab 8ft Bed 5.3L BLC-207-SS2W Stainless Steel
w/Front Disc/Rear Drum Brakes w/Active Brake Control
GMC Sierra Brake Line Set 2012 1500 Reg Cab 8ft Bed 5.3L BLC-207-SS2W Stainless Steel
w/Front Disc/Rear Drum Brakes w/Active Brake Control
Delivery Time & Rates
Brake Line Set Stainless Steel GMC Sierra 1500 2012 Reg Cab 8ft Bed 5.3L w/Front Disc/Rear Drum, w/Active Brake Control
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC207-01-SS, BLC207-02-SS and BLC207-04A-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC207-04B-SS. See the video below on how to remove the shipping twist
- Weight: 7

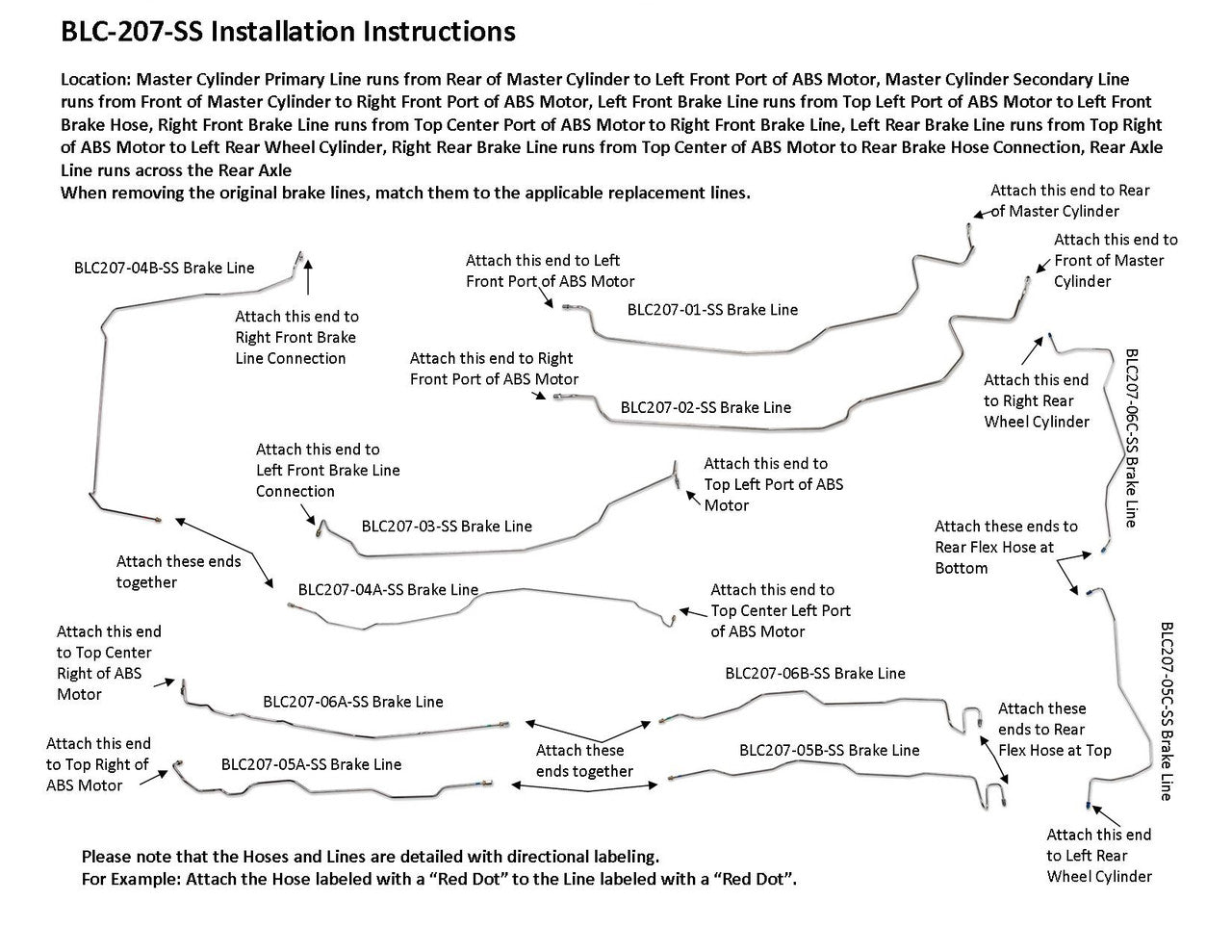

- Installation Instructions

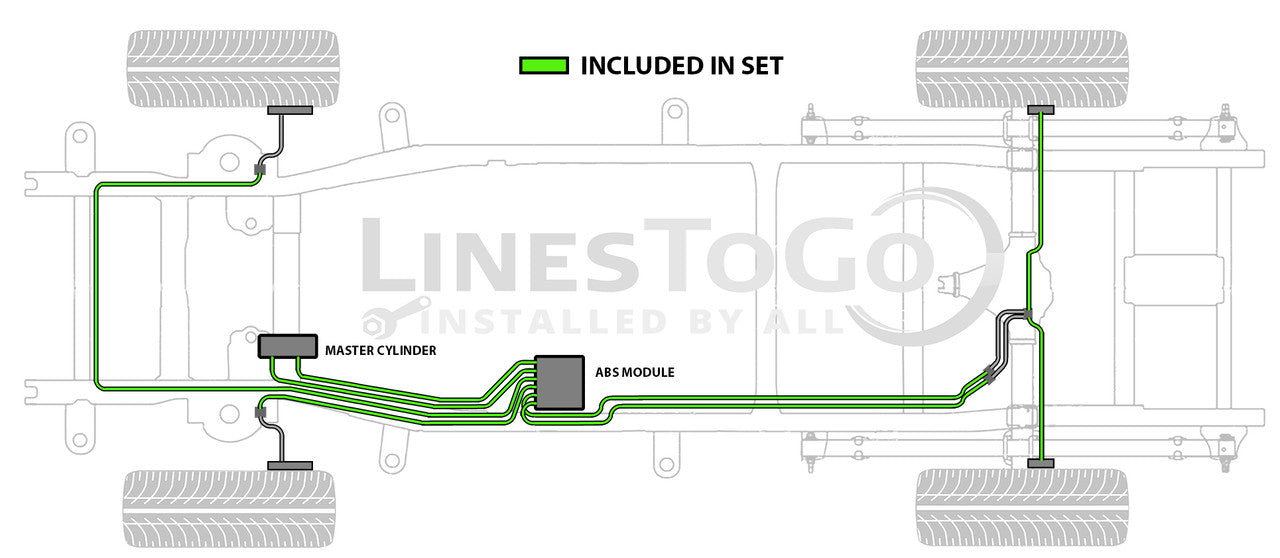

Master Cylinder Primary Line runs from Rear of Master Cylinder to Left Front Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Right Front Port of ABS Motor, Left Front Brake Line runs from Top Left Port of ABS Motor to Left Front Brake Hose, Right Front Brake Line runs from Top Center Port of ABS Motor to Right Front Brake Line, Left Rear Brake Line runs from Top Right of ABS Motor to Left Rear Wheel Cylinder, Right Rear Brake Line runs from Top Center of ABS Motor to Rear Brake Hose Connection, Rear Axle Line runs across the Rear Axle

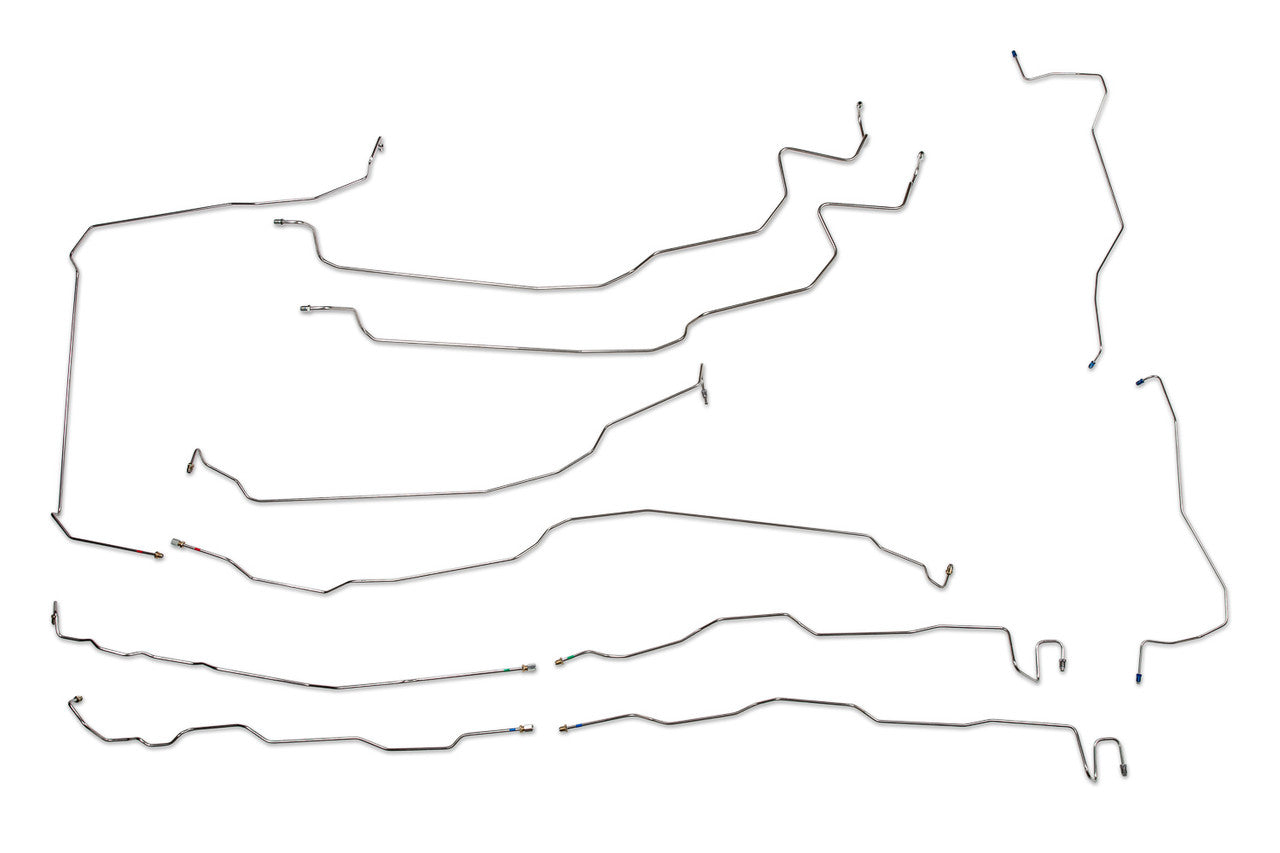

1 Master Cylinder Primary Brake Line 5/16", 1 Master Cylinder Secondary Brake Line 5/16", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Left Rear Brake Line 1/4" (in 2 easy to install sections), 1 Right Rear Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
