GMC TopKick Brake Line Set 2008 C4500/5500 Reg Cab 170" WB 6.6L BLC-210-SS1K Stainless Steel
w/Hydraulic Brakes w/8,000 LBS Front Axle
GMC TopKick Brake Line Set 2008 C4500/5500 Reg Cab 170" WB 6.6L BLC-210-SS1K Stainless Steel
w/Hydraulic Brakes w/8,000 LBS Front Axle
Delivery Time & Rates
Brake Line Set Stainless Steel GMC TopKick C4500/5500 2008 Reg Cab w/170" WB 6.6L Duramax Diesel w/Hydraulic Brakes w/8,000 LBS Front Axle

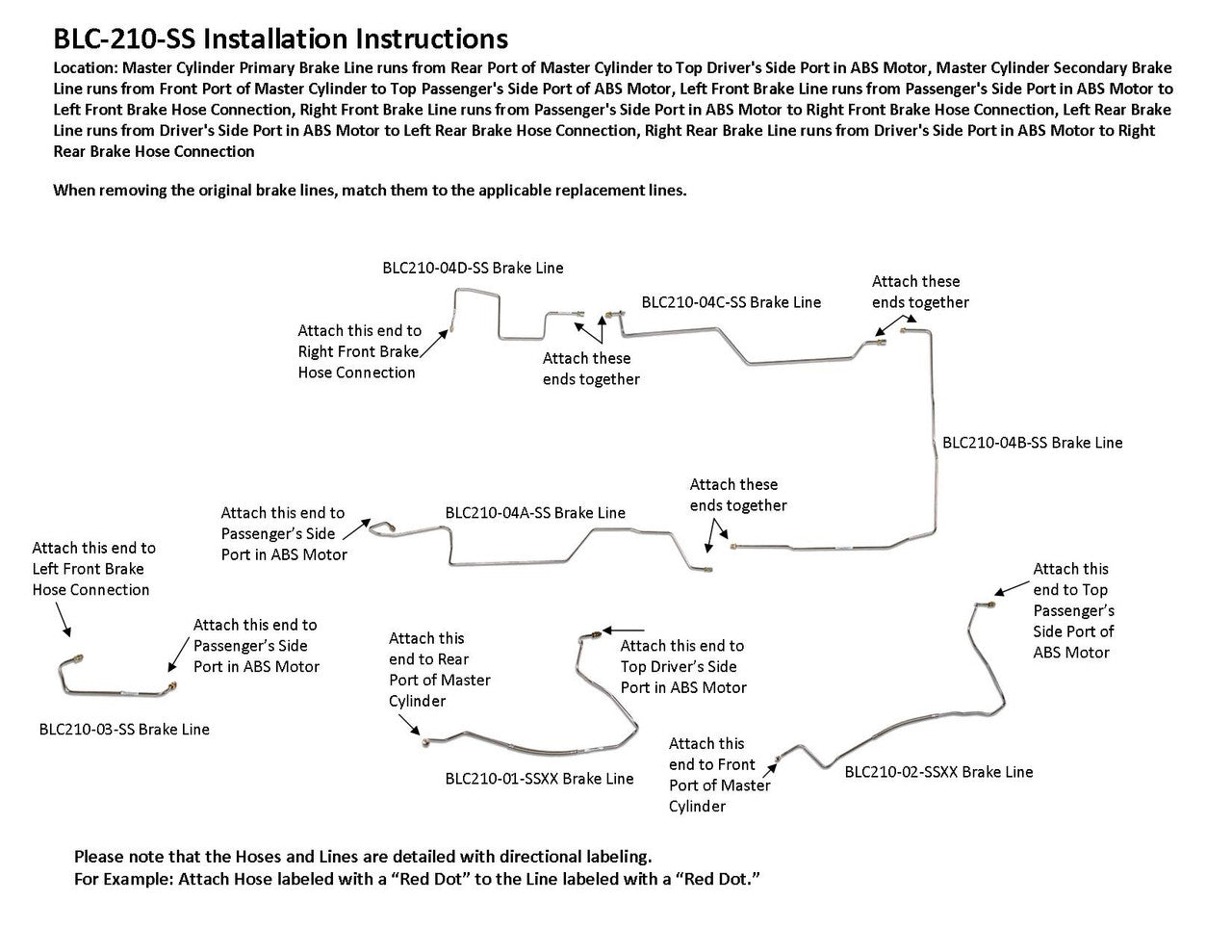

Please Note: Before installing your brake lines, a shipping bend will need to be removed from the lines labeled BLC210-04B-SS. See the video below on how to remove the shipping bend
Master Cylinder Primary Brake Line runs from Rear Port of Master Cylinder to Top Driver's Side Port in ABS Motor, Master Cylinder Secondary Brake Line runs from Front Port of Master Cylinder to Top Passenger's Side Port of ABS Motor, Left Front Brake Line runs from Passenger's Side Port in ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Passenger's Side Port in ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from Driver's Side Port in ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from Driver's Side Port in ABS Motor to Right Rear Brake Hose Connection

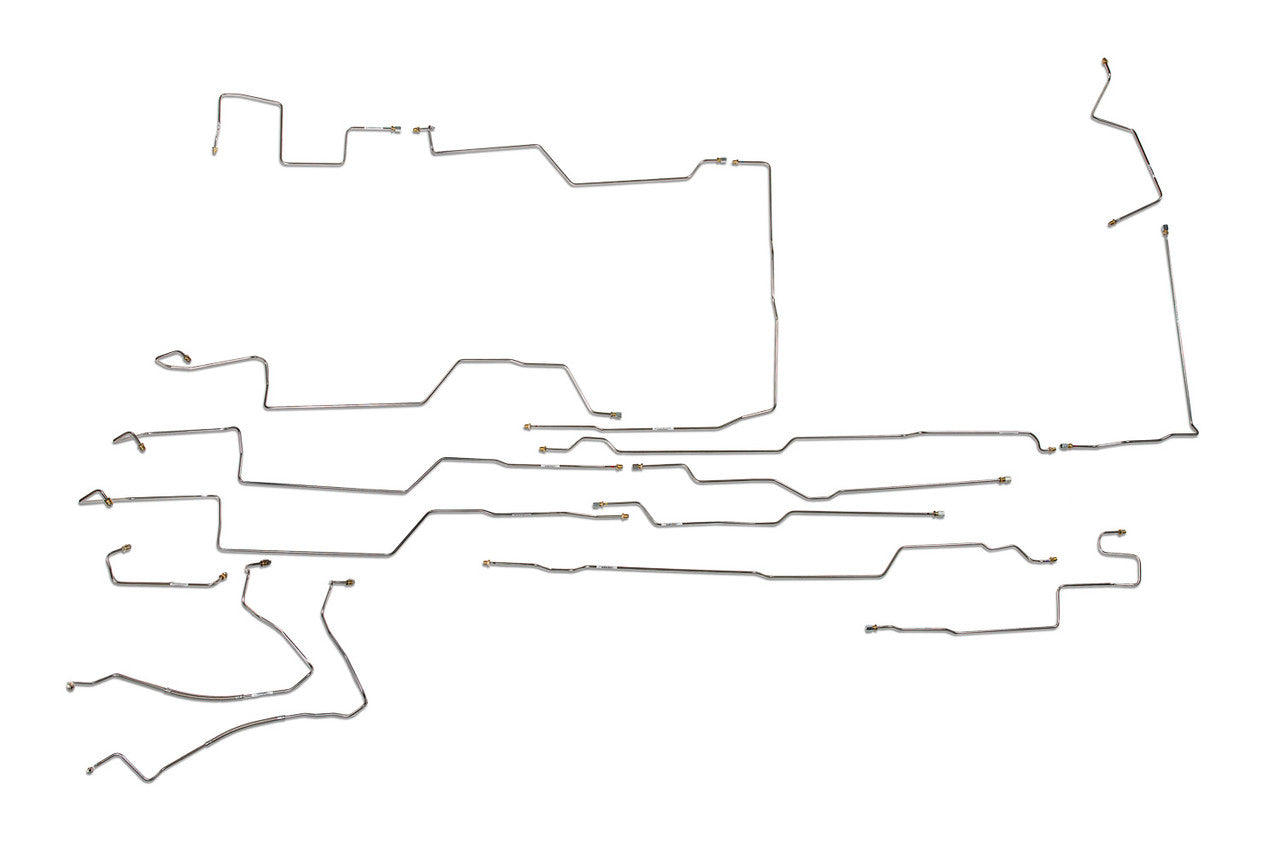

1 Master Cylinder Primary Line 1/4", 1 Master Cylinder Secondary Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Left Rear Brake Line 1/4" (in 4 easy to install sections), 1 Right Rear Brake Line 1/4" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
