Choose from 2004 Yukon/Yukon XL brake lines to fit your GMC without a problem...
Brake Line Set Stainless Steel 2004 GMC Yukon/Yukon XL 1500 130" WB. w/Active Brake Control for 5.3L engines.

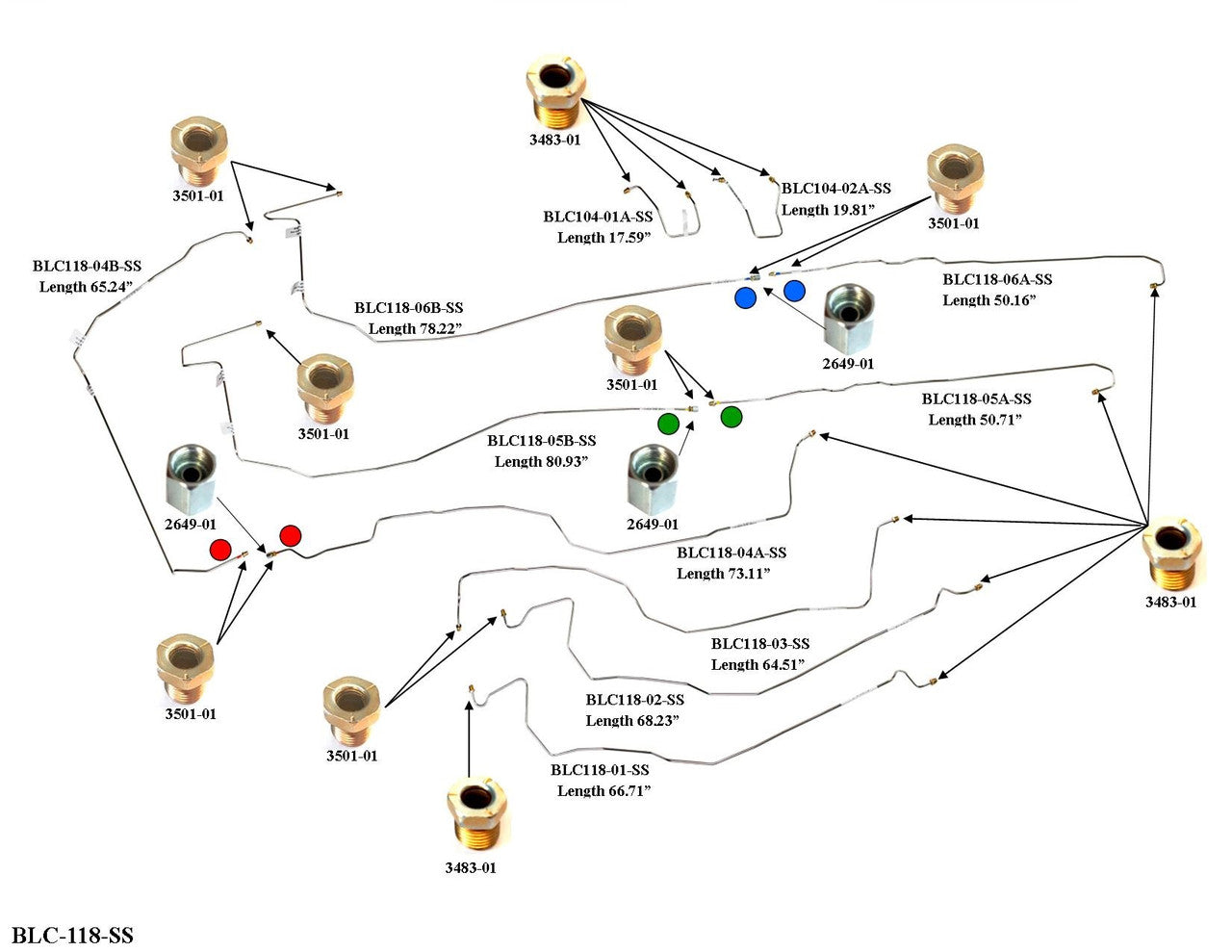

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC118-01-SS, BLC118-02-SS, BLC118-03-SS, BLC118-04A-SS, BLC118-05B-SS and BLC118-06B-SS. See the video below on how to remove the shipping bend.
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC118-04B-SS. See the video below on how to remove the shipping twist.
OEM Part Number: 22932592

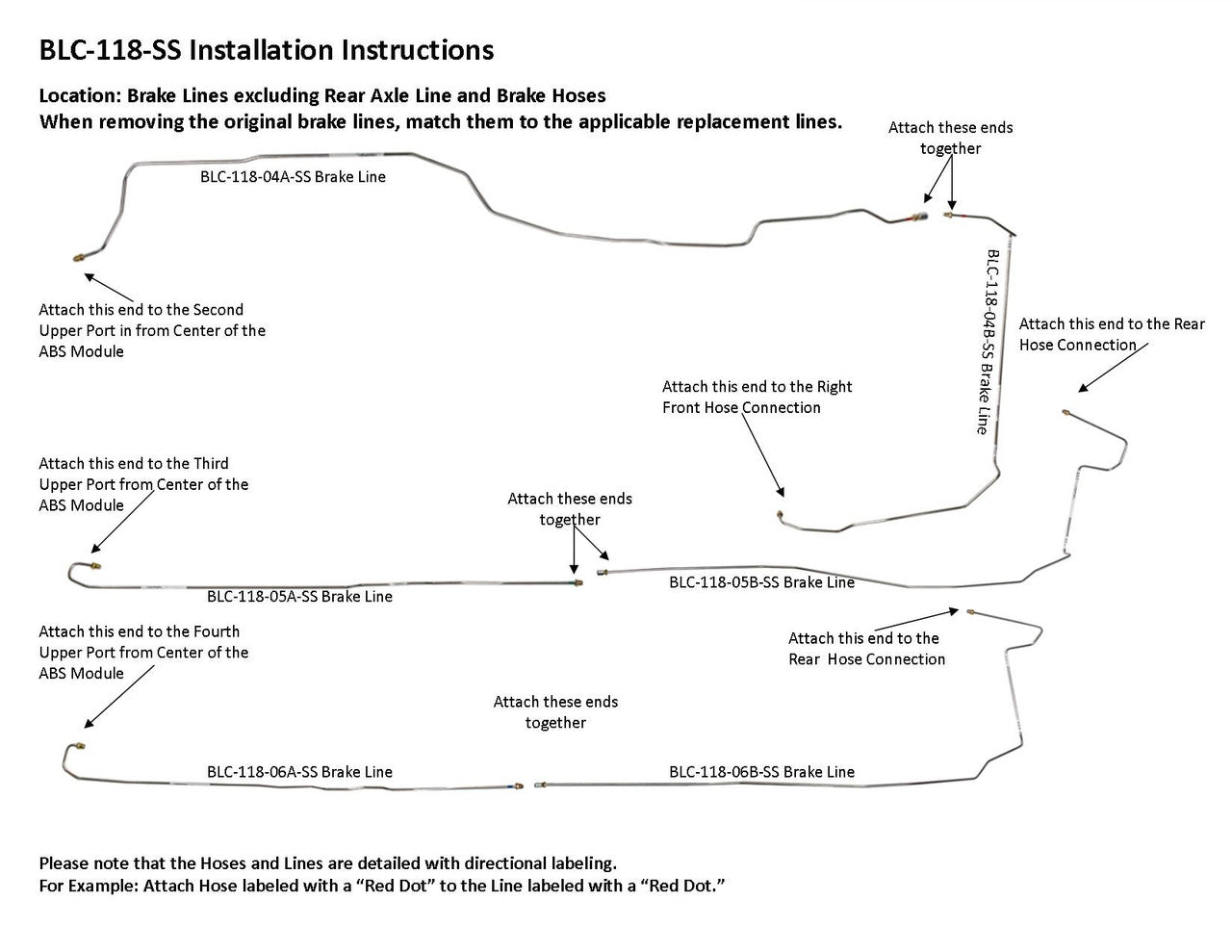

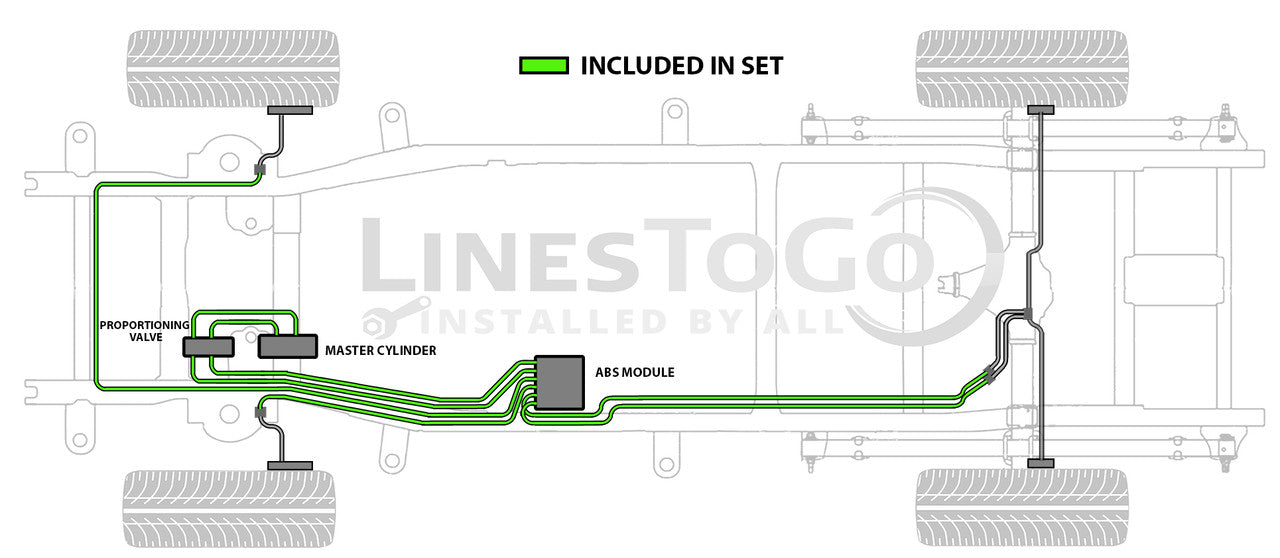

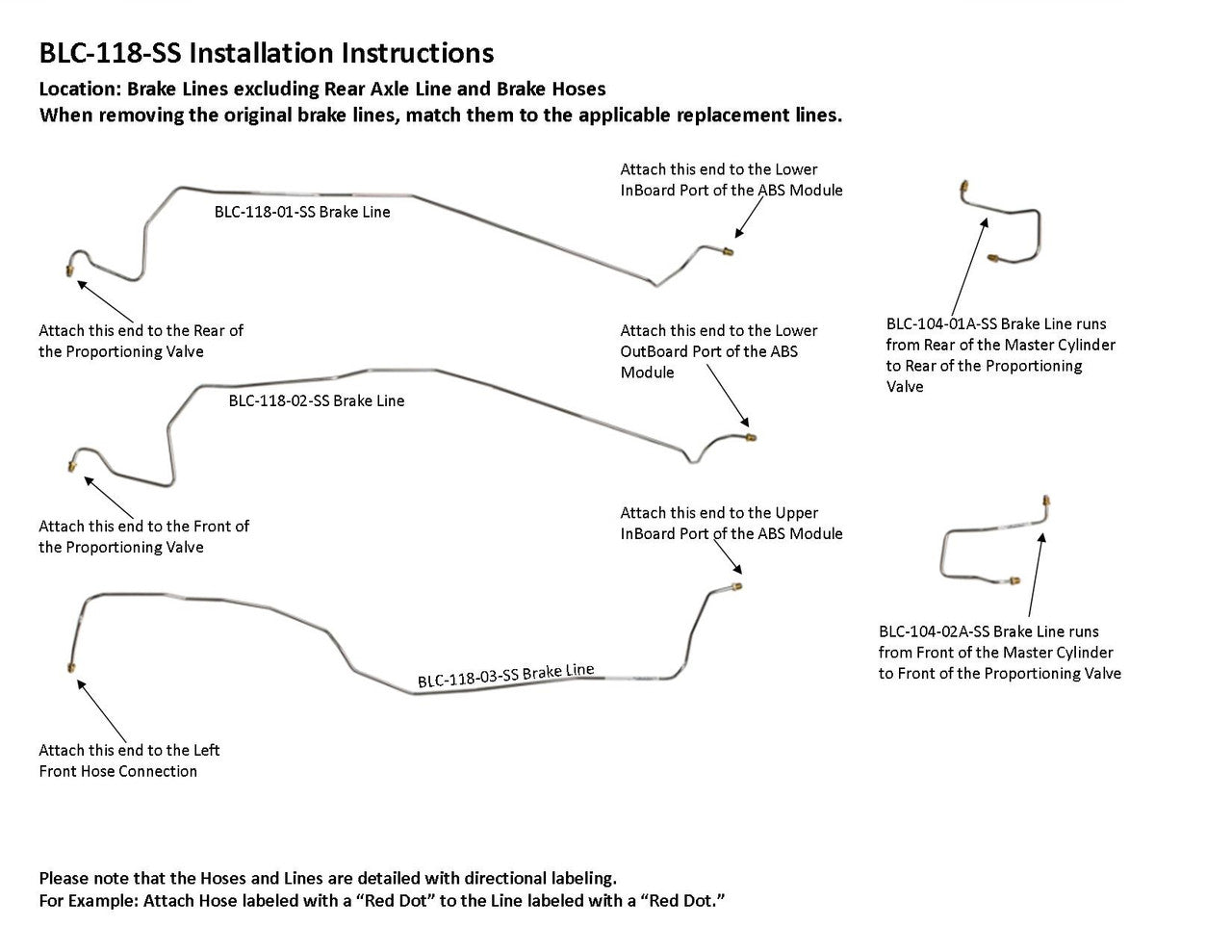

Included in Set: 1 Master Cylinder Primary Line from Rear of Proportioning Vale to Lower InBoard Port of ABS Module, 1 Master Cylinder Primary Line from Rear of the Master Cylinder to Rear of the Portioning Valve, 1 Master Secondary Line from Front of Proportioning Valve to Lower Outboard of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Front of Proportioning Valve, 1 Left Front Line from Left Front Hose Connection to Upper Outboard Port of ABS Module, 1 Right Front Line from Right Front Hose Connection to Second Upper Port in from Center of ABS Module (2 easy to install sections), 1 left Rear Line from Rear Hose Connection to Third Upper Port in from Center of ABS Module (2 easy to install sections), 1 Right Rear Line from Rear Hose Connection to Fourth Upper Port from Center of ABS Module (2 easy to install sections), excludes Rear Axle Crossover Line.

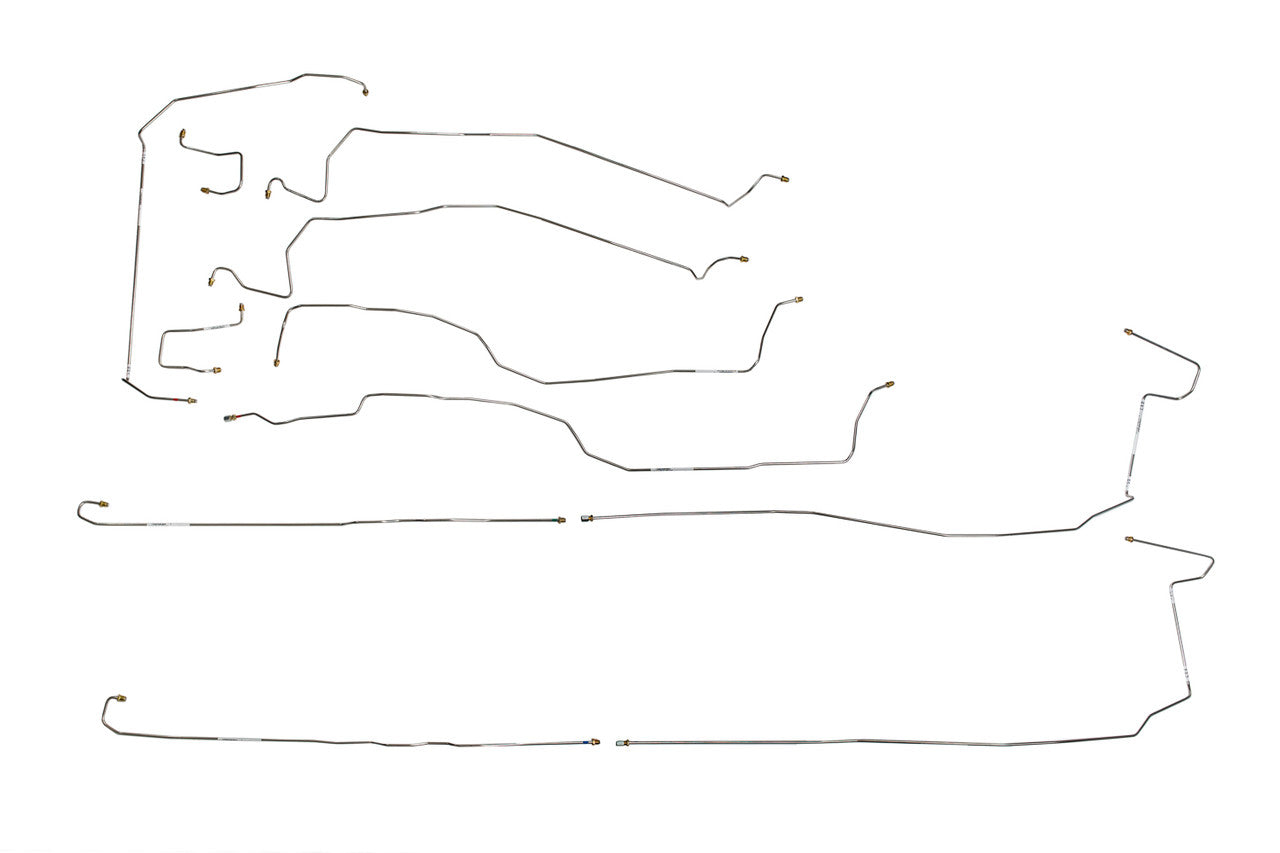

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Warranty: 1 Year
Box Dimensions: 46" x 11" x 7"
