Hyundai Santa Fe Brake Line Set 2005 2.4L BLH-100-SS1F Stainless Steel
w/o ABS
Hyundai Santa Fe Brake Line Set 2005 2.4L BLH-100-SS1F Stainless Steel
w/o ABS
Delivery Time & Rates
Install this pre bent 2005 Hyundai Santa Fe brake line set in no time!
Brake Line Set Stainless Steel Hyundai Santa Fe w/o ABS for 2.4L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLH100-05B-SS, BLH100-06C-SS. See the video below on how to remove the shipping bend

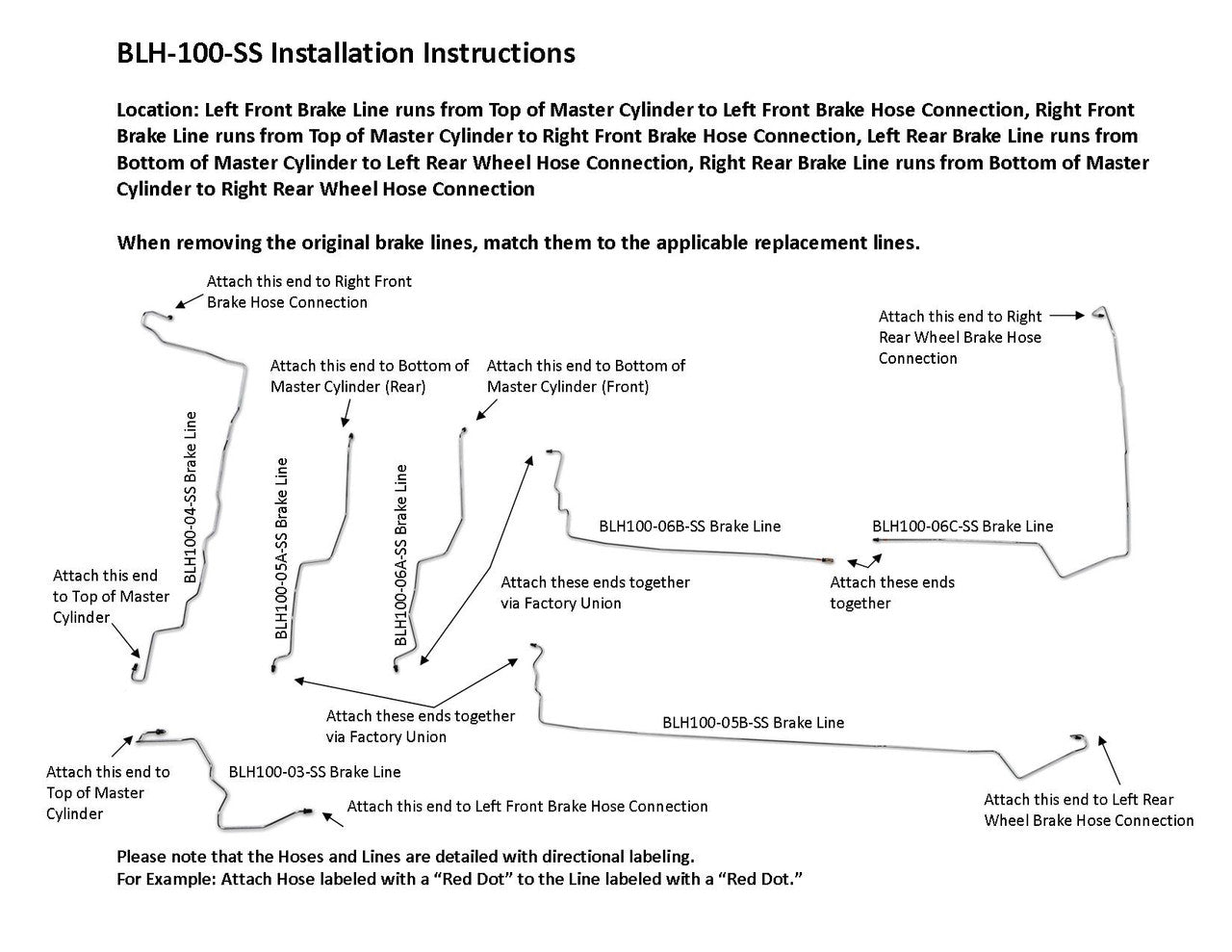

Left Front Brake Line runs from Top of Master Cylinder to Left Front Brake Hose Connection, Right Front Brake Line runs from Top of Master Cylinder to Right Front Brake Hose Connection, Left Rear Brake Line runs from Bottom of Master Cylinder to Left Rear Wheel Hose Connection, Right Rear Brake Line runs from Bottom of Master Cylinder to Right Rear Wheel Hose Connection

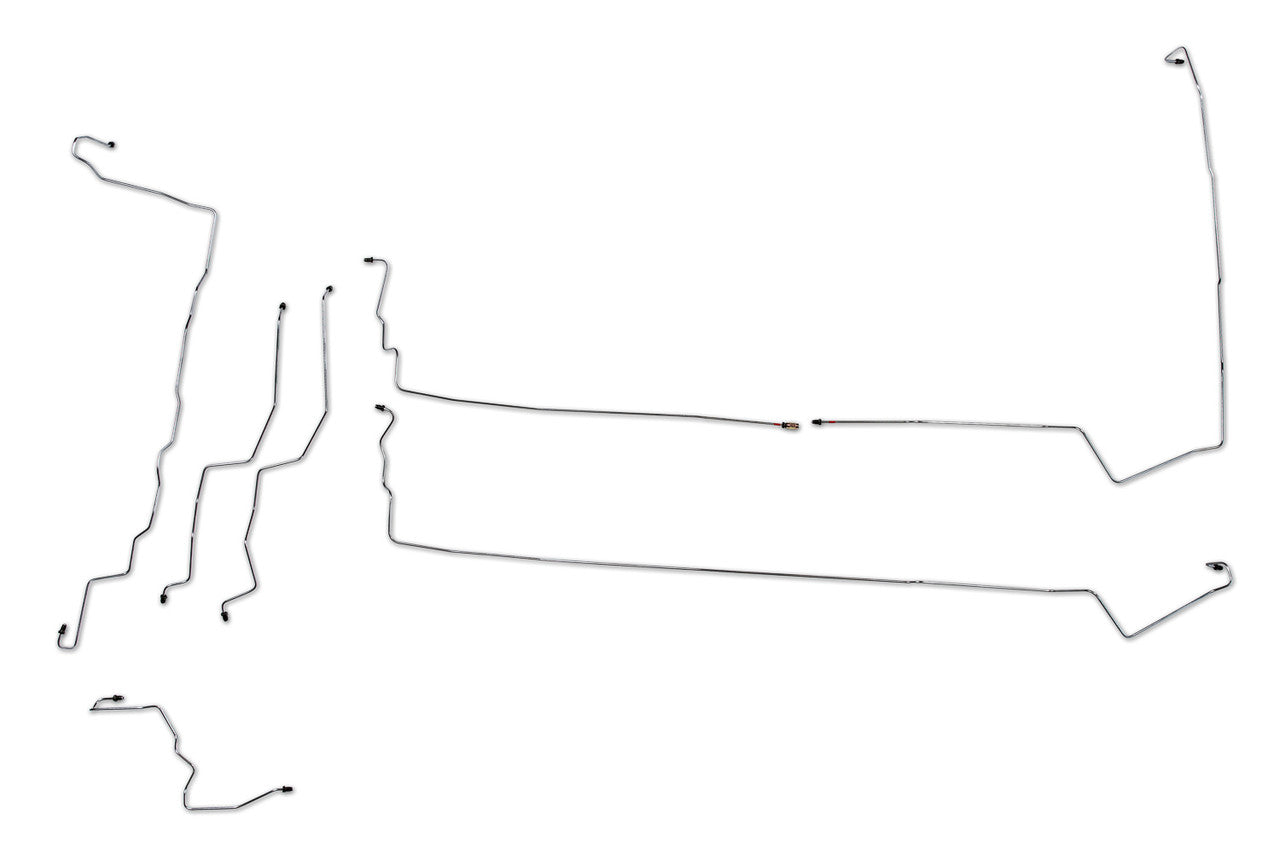

1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Left Rear Brake Line 3/16" (in 2 easy to install sections), 1 Right Rear Brake Line 3/16" (in 3 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
