Hyundai Sonata Fuel Line Set 2003 2.4L FL1301-1B
Hyundai Sonata Fuel Line Set 2003 2.4L FL1301-1B
Delivery Time & Rates
Shop LinesToGo for your 2003 Hyundai Sonata fuel lines. Our FL1301-1B set of fuel lines are ideal for 2003 Hyundai Sonata models with 2.4L engines

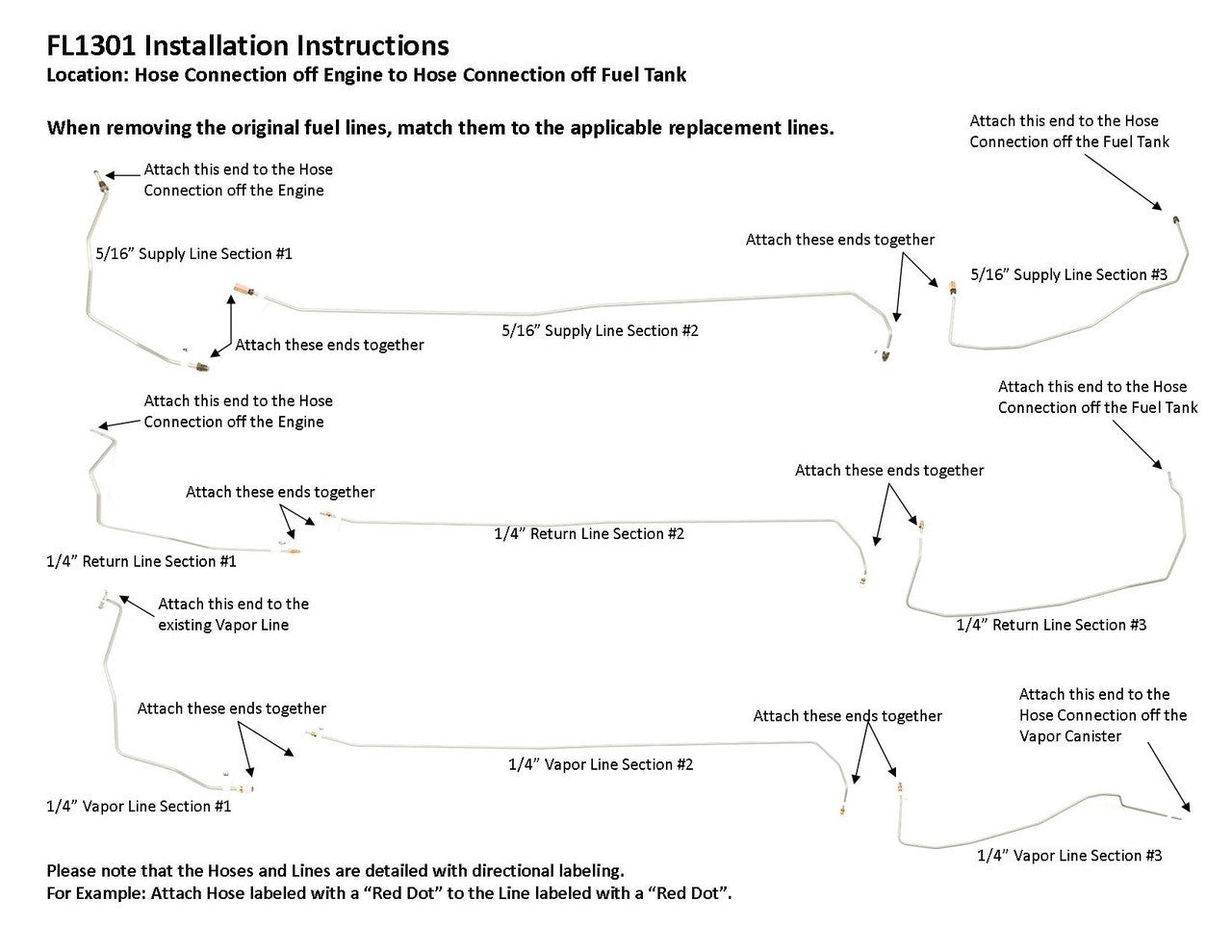

Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled SL1301313B, RL1301250B and VL1301250B. See the video below on how to remove the shipping bend

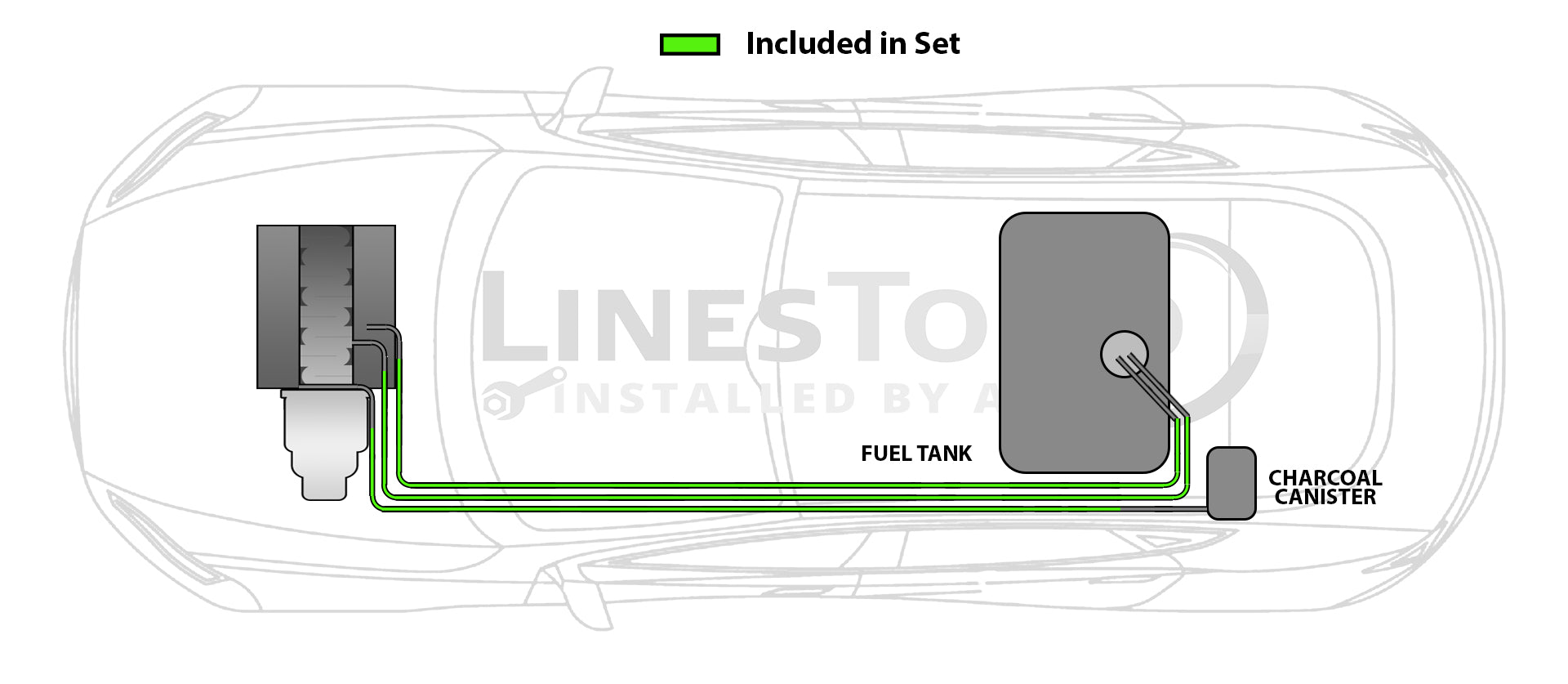

Hose Connection at Engine to Hose Connection off Fuel Tank

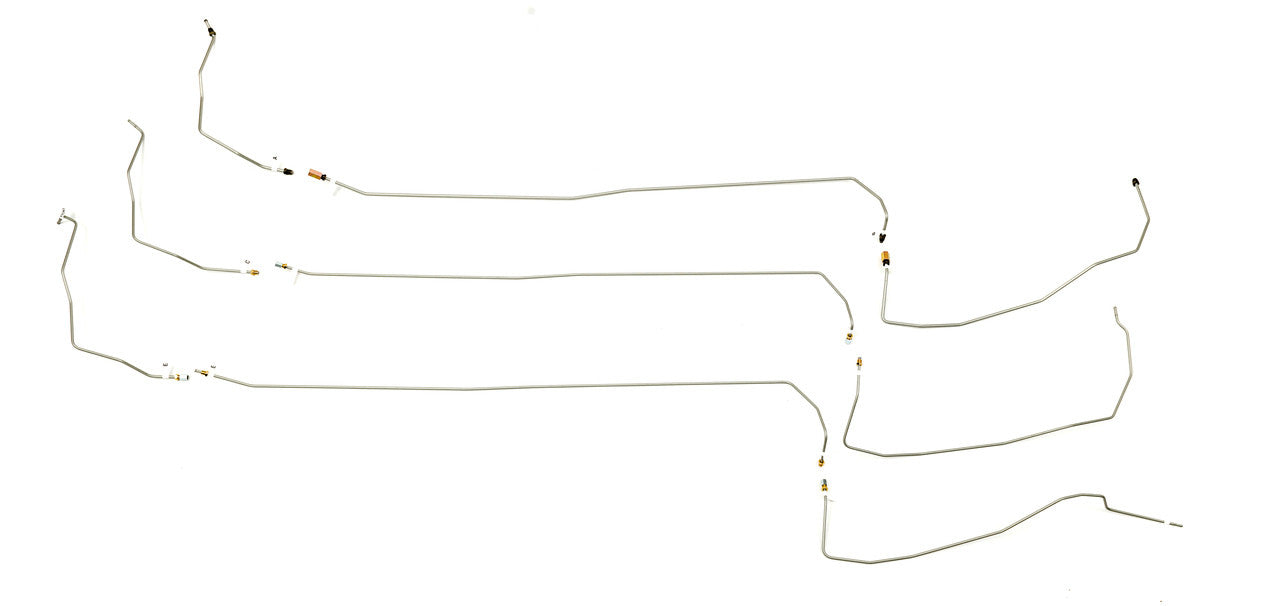

1 supply line 5/16" ( in 3 easy to install sections), 1 return line 1/4" ( in 3 easy to install sections),1 vapor line 1/4" ( in 3 easy to install sections), 6 unions
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
