Install this pre bent 1996 Jeep Grand Cherokee brake line set in no time!
Brake Line Set Stainless Steel Jeep Grand Cherokee 4WD w/ABS, w/4 Wheel Disc Brakes for 4.0L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the line labeled BLJ106-05B-SS. See the video below on how to remove the shipping bend

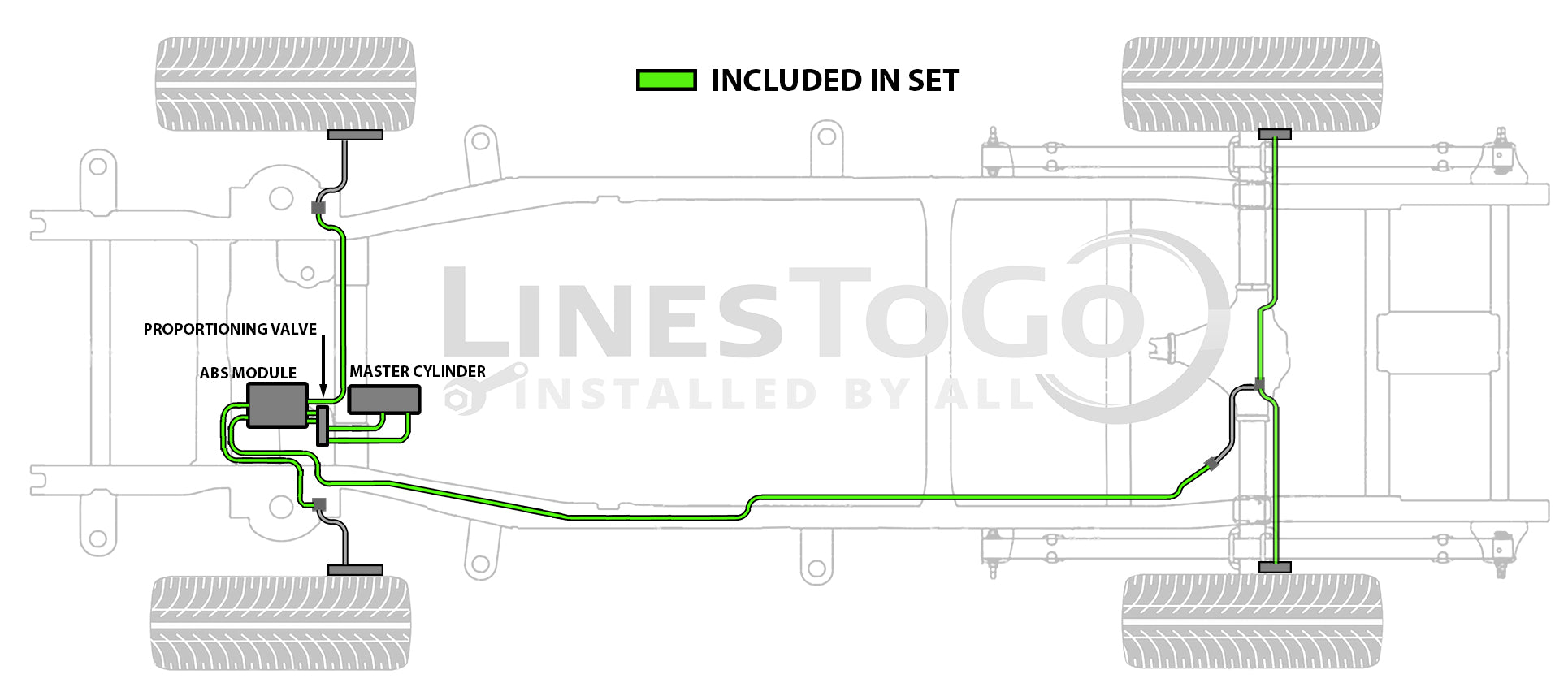

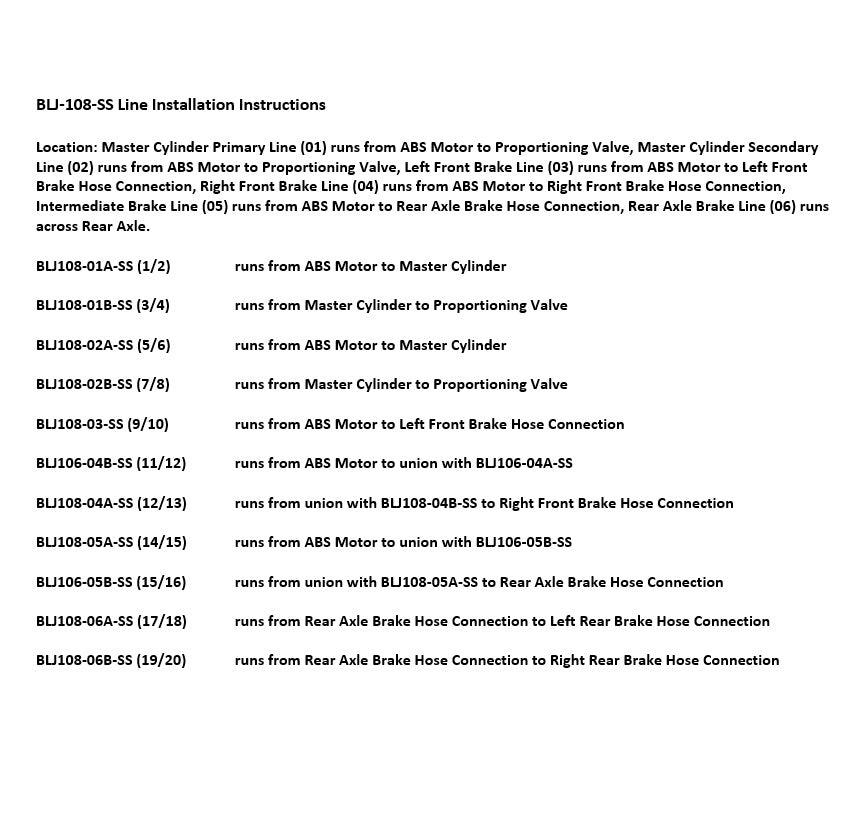

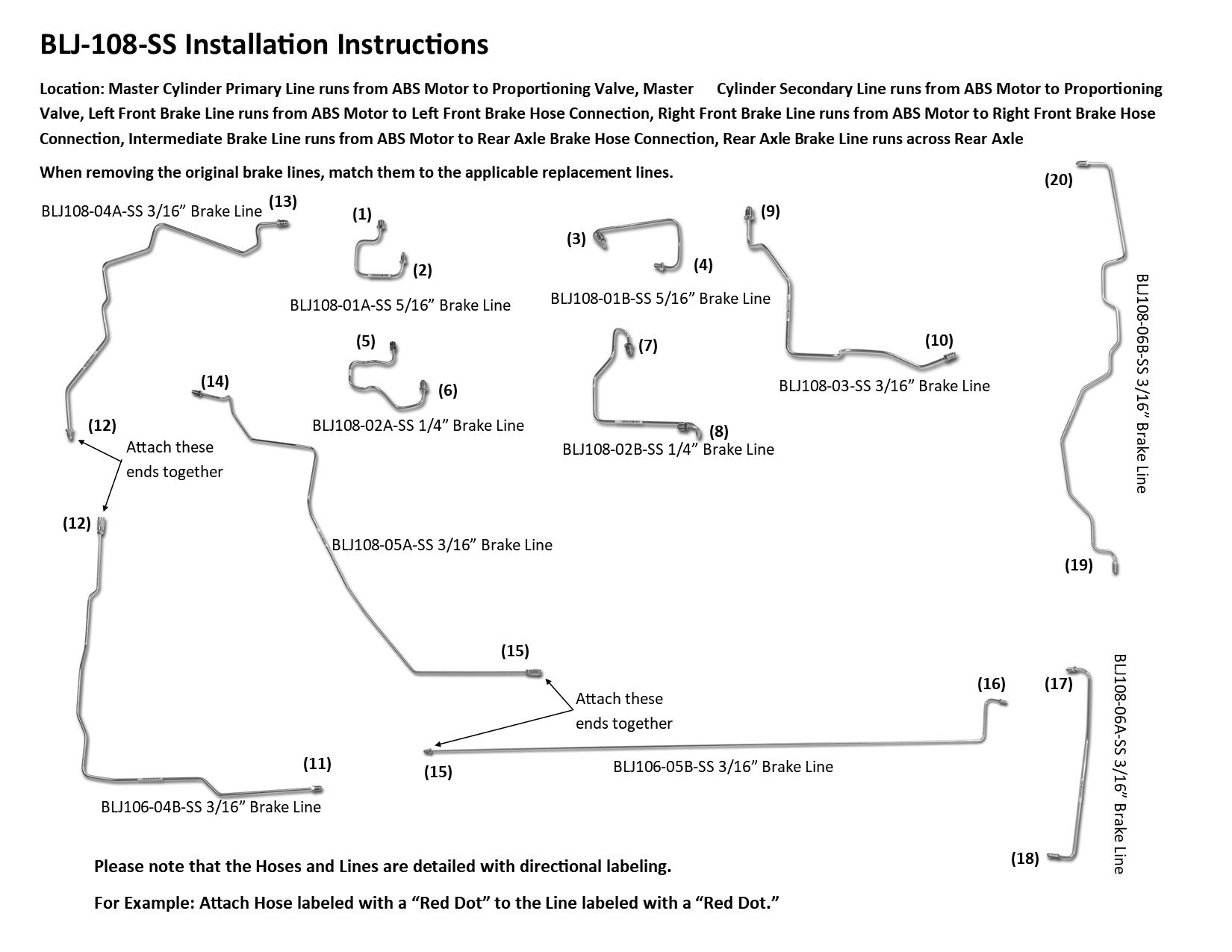

Master Cylinder Primary Line runs from ABS Motor to Proportioning Valve, Master Cylinder Secondary Line runs from ABS Motor to Proportioning Valve, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Brake Line runs across Rear Axle

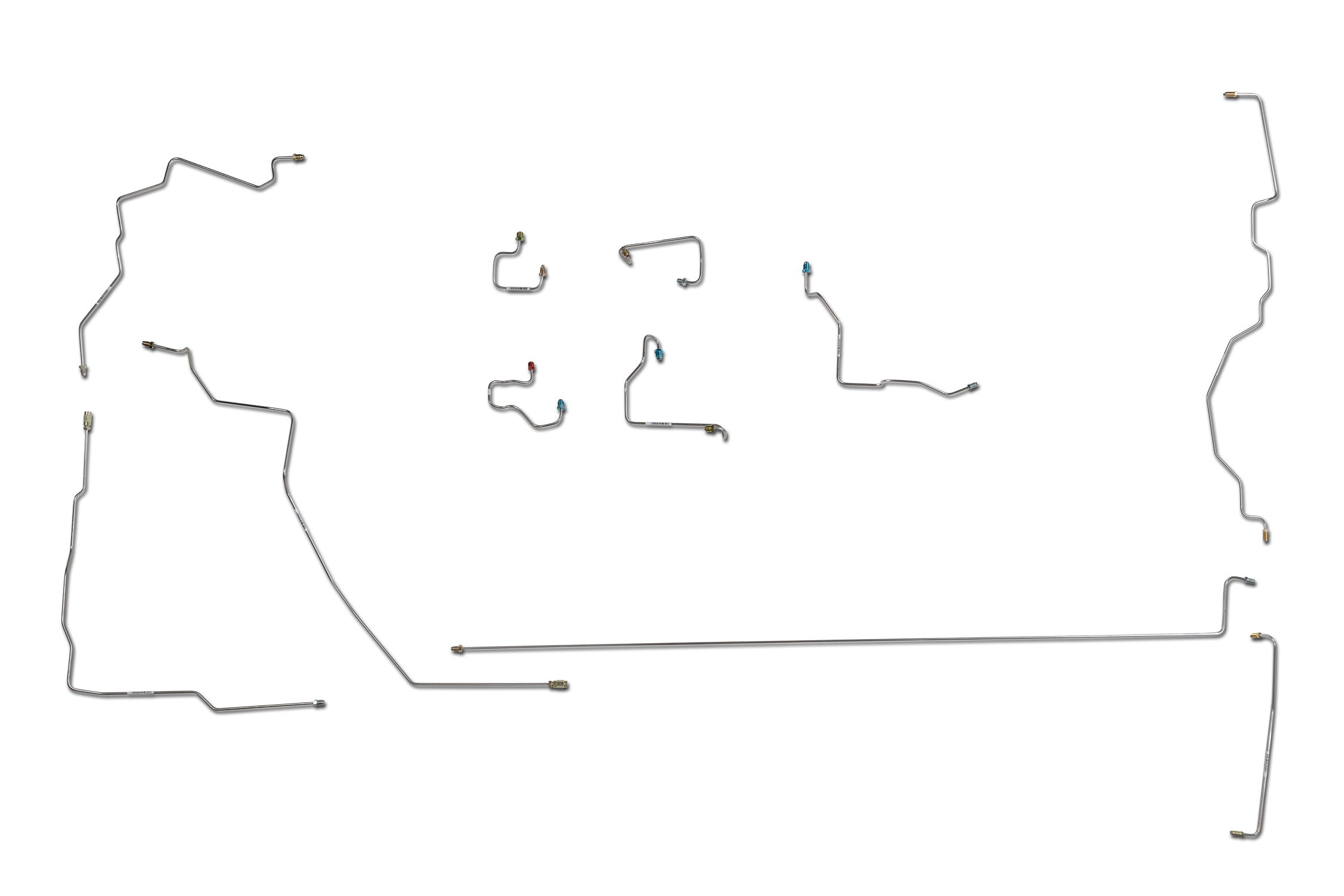

1 Master Cylinder Primary Brake Line 3/16" (2 sections), 1 Master Cylinder Secondary Brake Line 3/16" (2 sections), 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

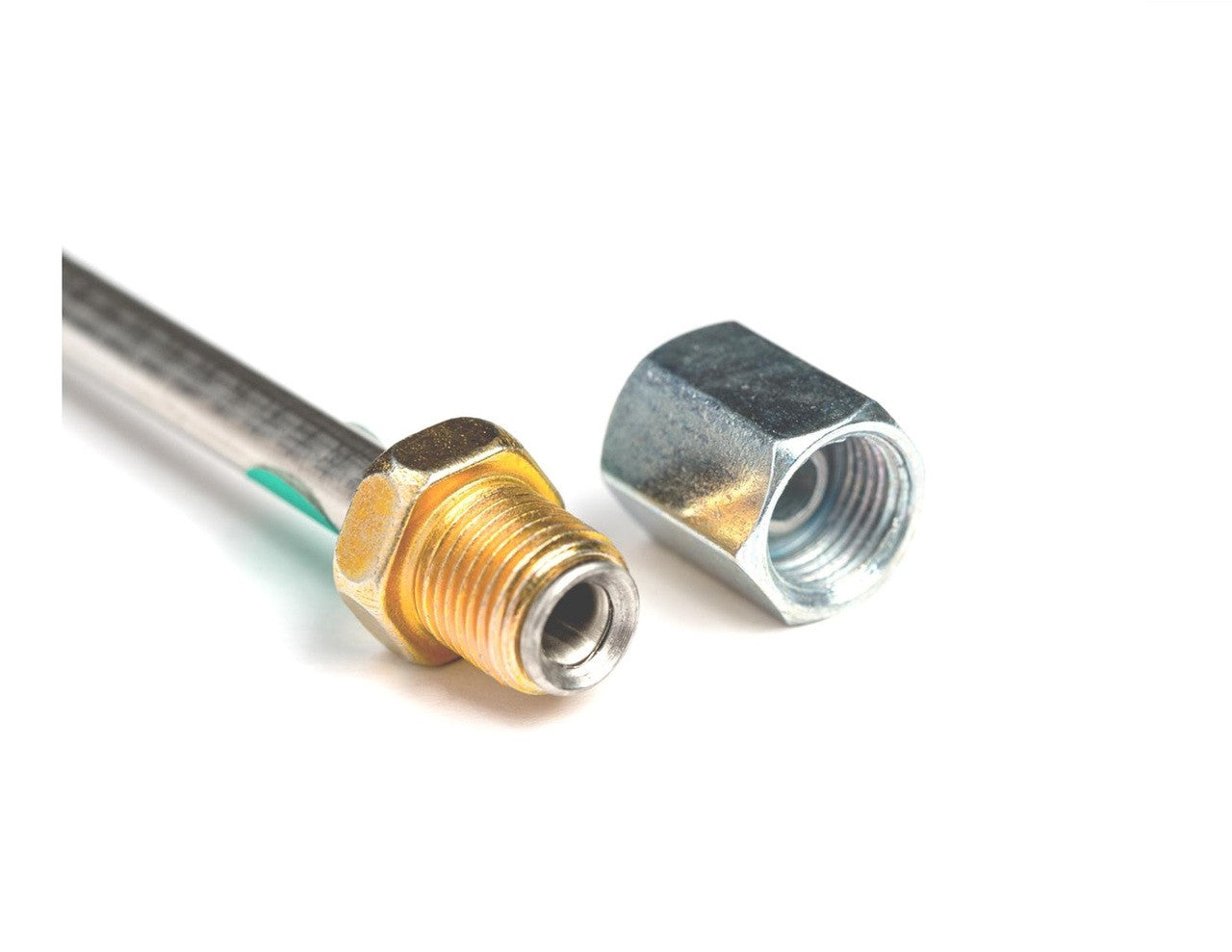

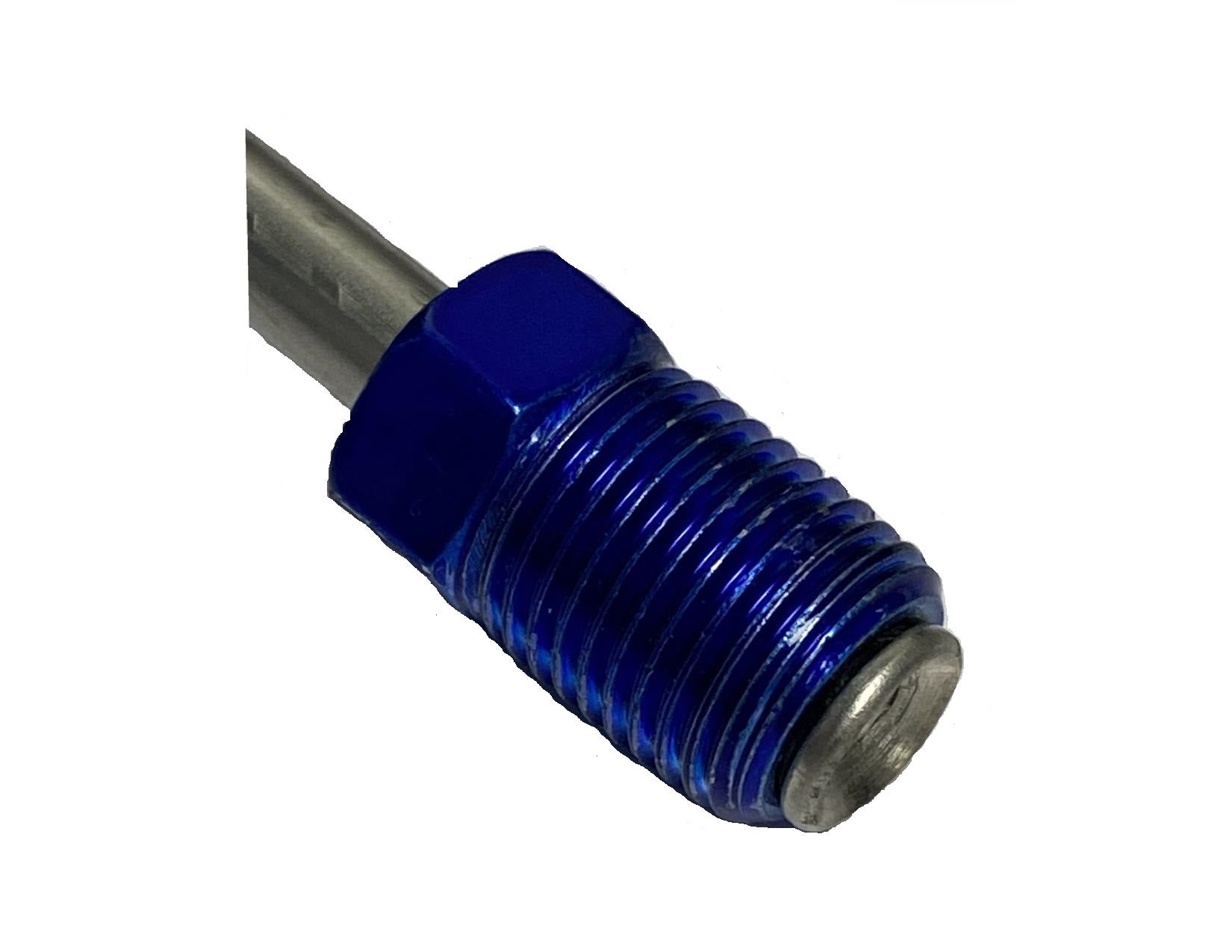

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
