Mitsubishi Endeavor Brake Line Set 2007 3.8L BLMT-101-SS1D Stainless Steel
w/ABS
Mitsubishi Endeavor Brake Line Set 2007 3.8L BLMT-101-SS1D Stainless Steel
w/ABS
Delivery Time & Rates
Install this pre bent 2007 Mitsubishi Endeavor brake line set in no time!
Brake Line Set Stainless Steel Mitsubishi Endeavor w/ABS for 3.8L engines

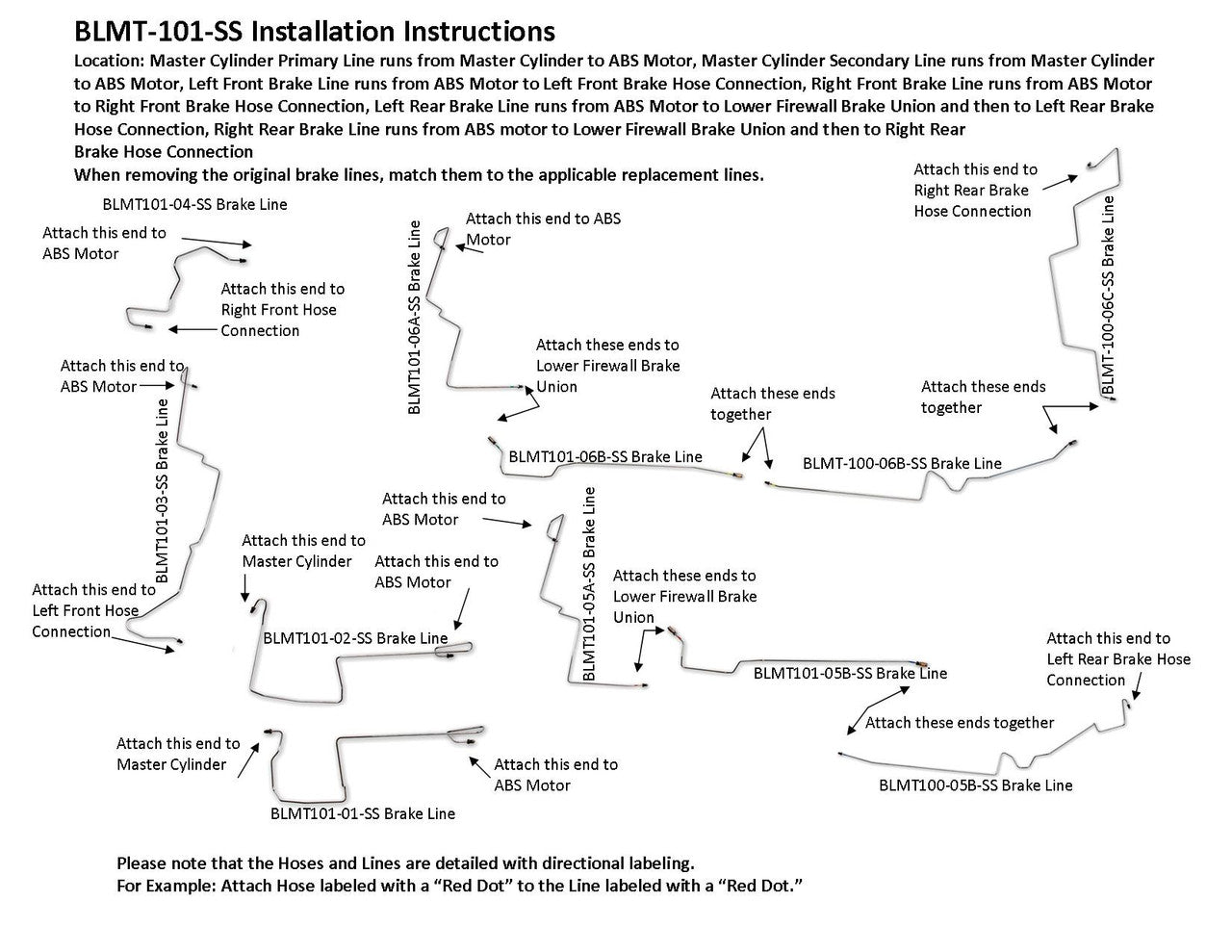

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLMT100-05B-SS and BLMT100-06B-SS. See the video below on how to remove the shipping bend
Master Cylinder Primary Line runs from Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Lower Firewall Brake Union and then to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS motor to Lower Firewall Brake Union and then to Right Rear Brake Hose Connection

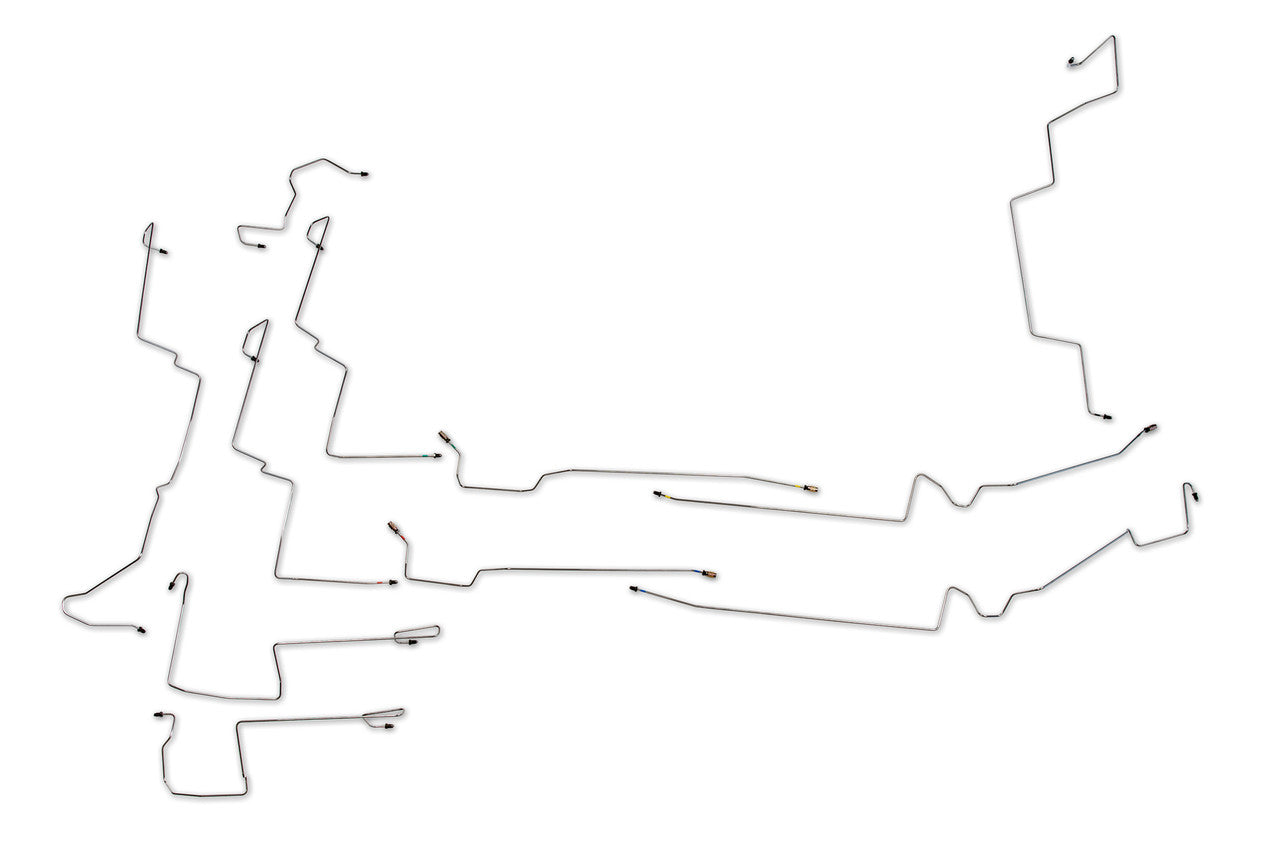

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Left Rear Brake Line 3/16" (in 3 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
