Nissan 240SX Brake Line Set 1992 2.4L BLN-103-SS1D Stainless Steel
2 Dr Coupe / 2 Dr Convertible w/o ABS w/o Anti Skid Control
Nissan 240SX Brake Line Set 1992 2.4L BLN-103-SS1D Stainless Steel
2 Dr Coupe / 2 Dr Convertible w/o ABS w/o Anti Skid Control
Delivery Time & Rates
Install this pre bent 1992 Nissan 240SX brake line set in no time!
Brake Line Set Stainless Steel 1992 Nissan 240SX 2 Dr Coupe / 2 Dr Convertible w/o ABS w/o Anti Skid Control for 2.4L engines
Please Note: Before installing your brake line, shipping bend will need to be removed from the lines labeled BLN103-04-SS and BLN103-05B-SS. See the video below on how to remove the shipping bend
- Weight: 4

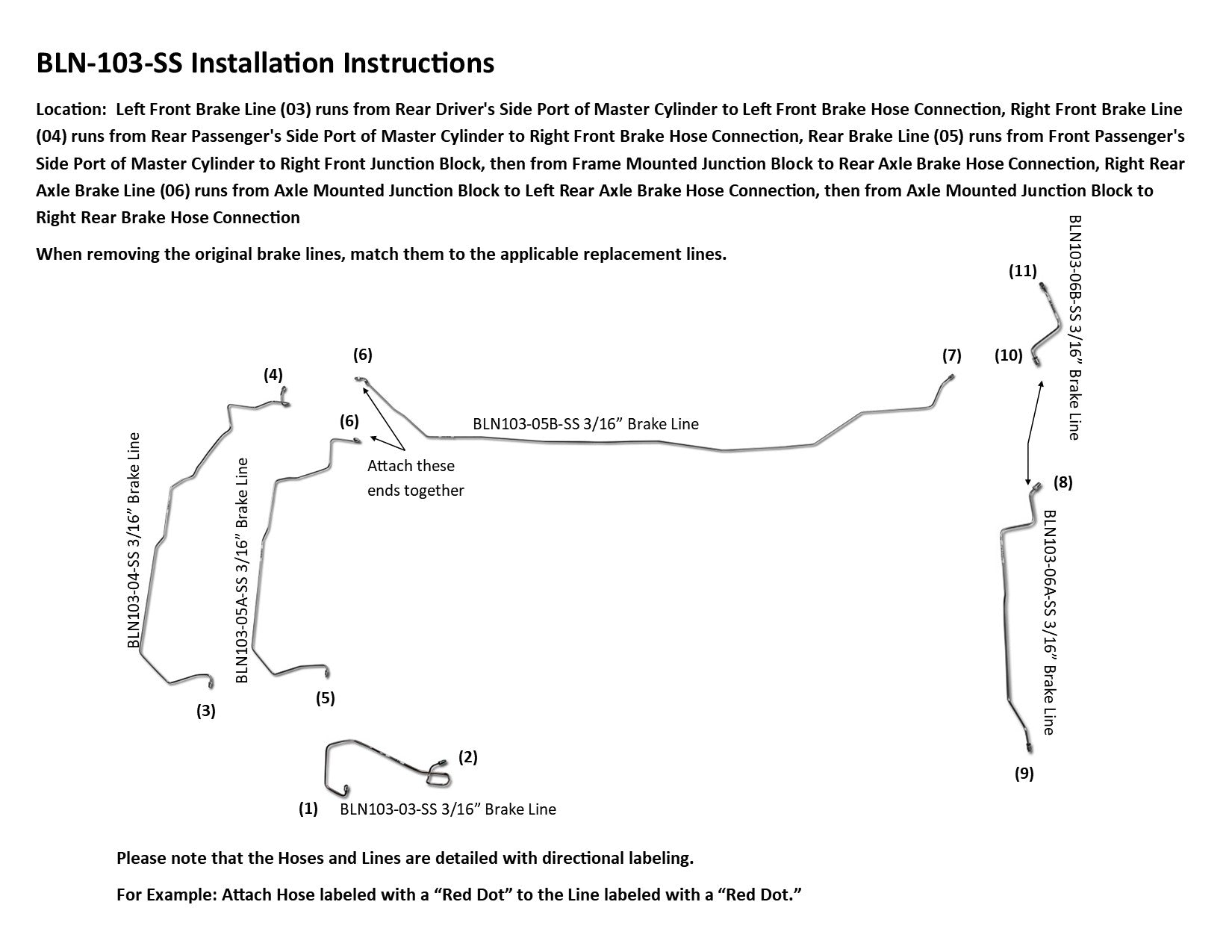

- Installation Instructions

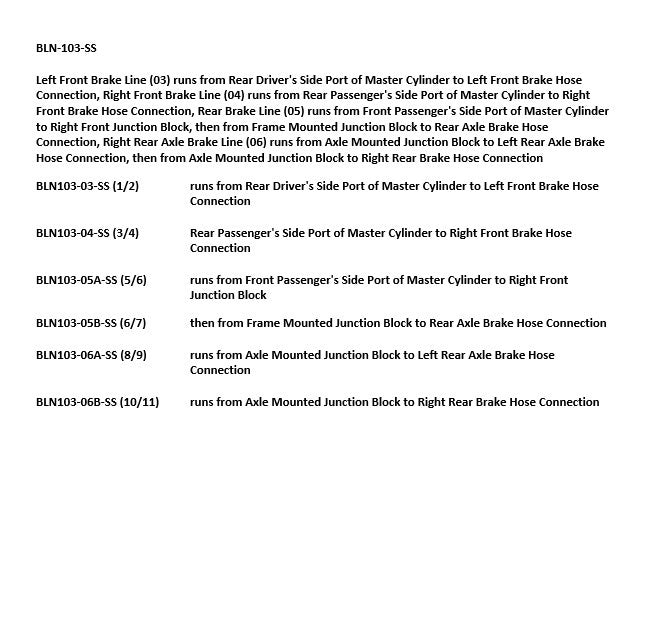

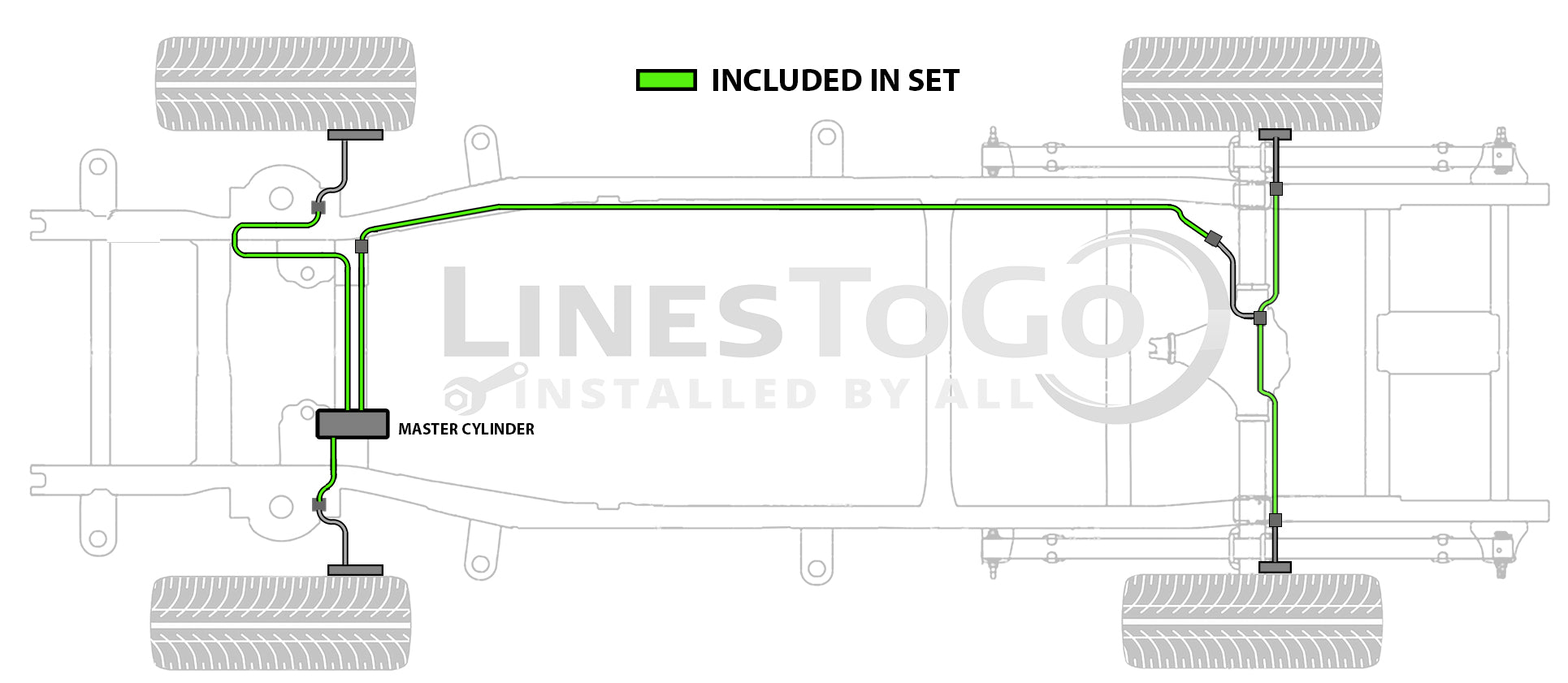

Left Front Brake Line runs from Rear Driver's Side Port of Master Cylinder to Left Front Brake Hose Connection, Right Front Brake Line runs from Rear Passenger's Side Port of Master Cylinder to Right Front Brake Hose Connection, Rear Brake Line runs from Front Passenger's Side Port of Master Cylinder to Right Front Junction Block, then from Frame Mounted Junction Block to Rear Axle Brake Hose Connection, Right Rear Axle Brake Line runs from Axle Mounted Junction Block to Left Rear Axle Brake Hose Connection, then from Axle Mounted Junction Block to Right Rear Brake Hose Connection

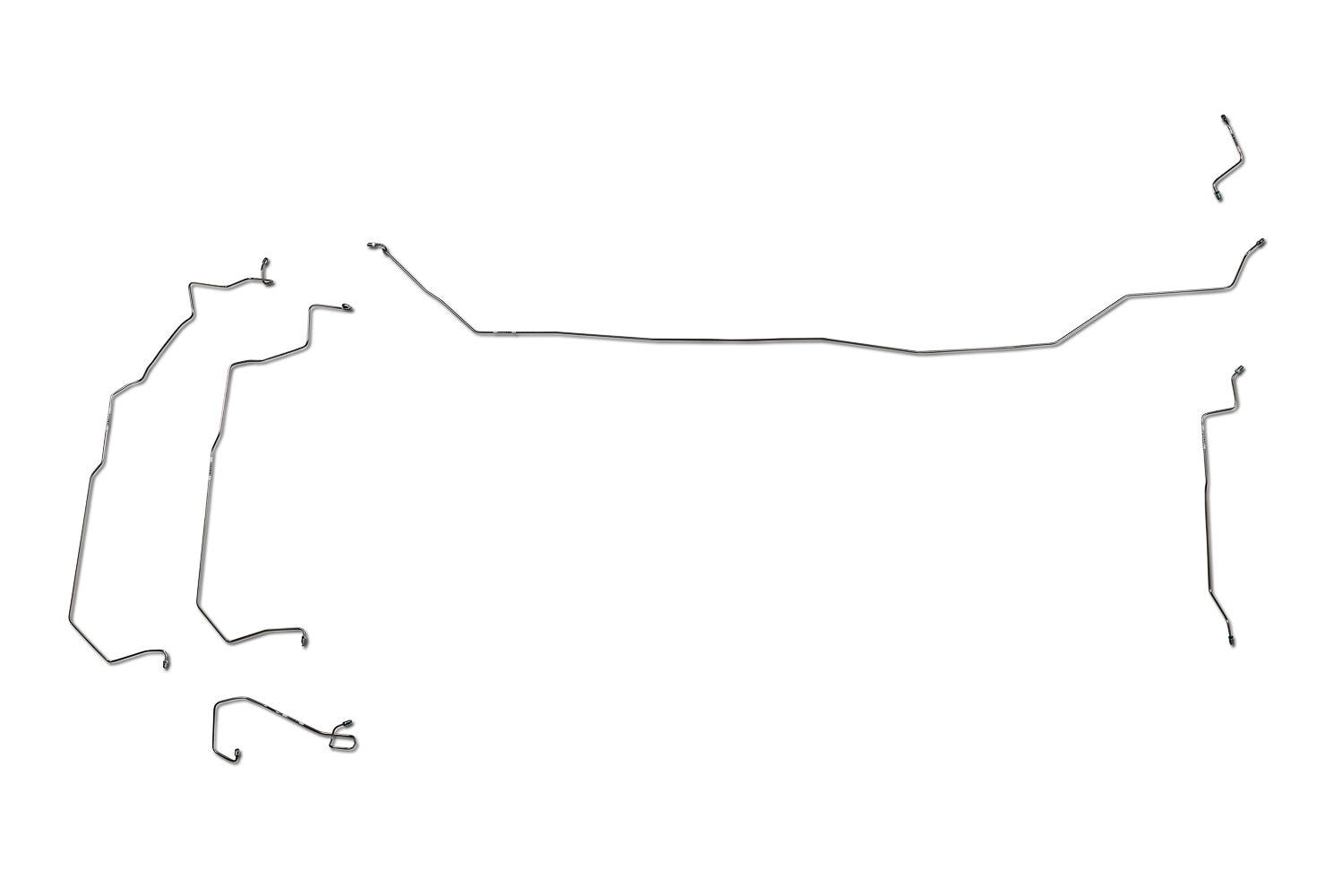

1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Rear Brake Line 3/16" (2 sections), 1 Right Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
