Nissan 300ZX Brake Line Set 1984 3.0L BLN-102-SS1A Stainless Steel
Nissan 300ZX Brake Line Set 1984 3.0L BLN-102-SS1A Stainless Steel
Delivery Time & Rates

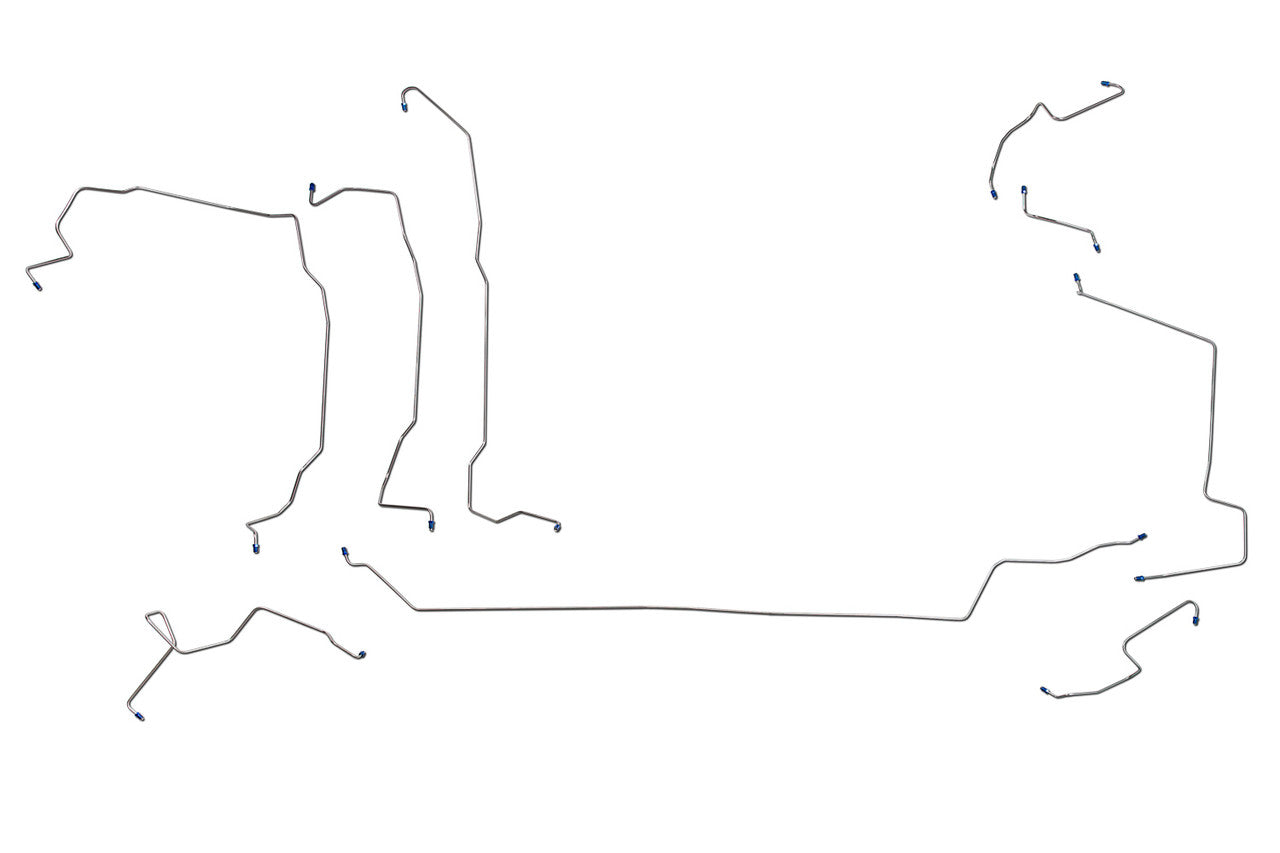

Install this pre bent 1984 Nissan 300ZX brake line set in no time!
Brake Line Set Stainless Steel Nissan 300ZX for 3.0L engines
Please Note: Before installing your brake line, shipping bend will need to be removed from the line labeled BLN102-05B-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLN102-04-SS. See the video below on how to remove the shipping twist
Left Front Brake Line runs from Master Cylinder to Left Front Brake Hose Connection, Right Front Brake Line runs from Master Cylinder to Right Front Brake Hose Connection, Left Rear Brake Line runs from Master Cylinder to Factory Union, then from Factory Union to Rear Brake Tee, then from Rear Brake Tee to Left Rear Brake Hose Connection, then from Left Rear Brake Hose Connection to the Caliper, Right Rear Brake Line runs from Rear Brake Tee to Right Rear Brake Hose Connection, then from Right Rear Brake Hose Connection to the Caliper, Hydraulic Clutch Line runs from Clutch Cylinder to Slave Cylinder(for manual transmissions only)

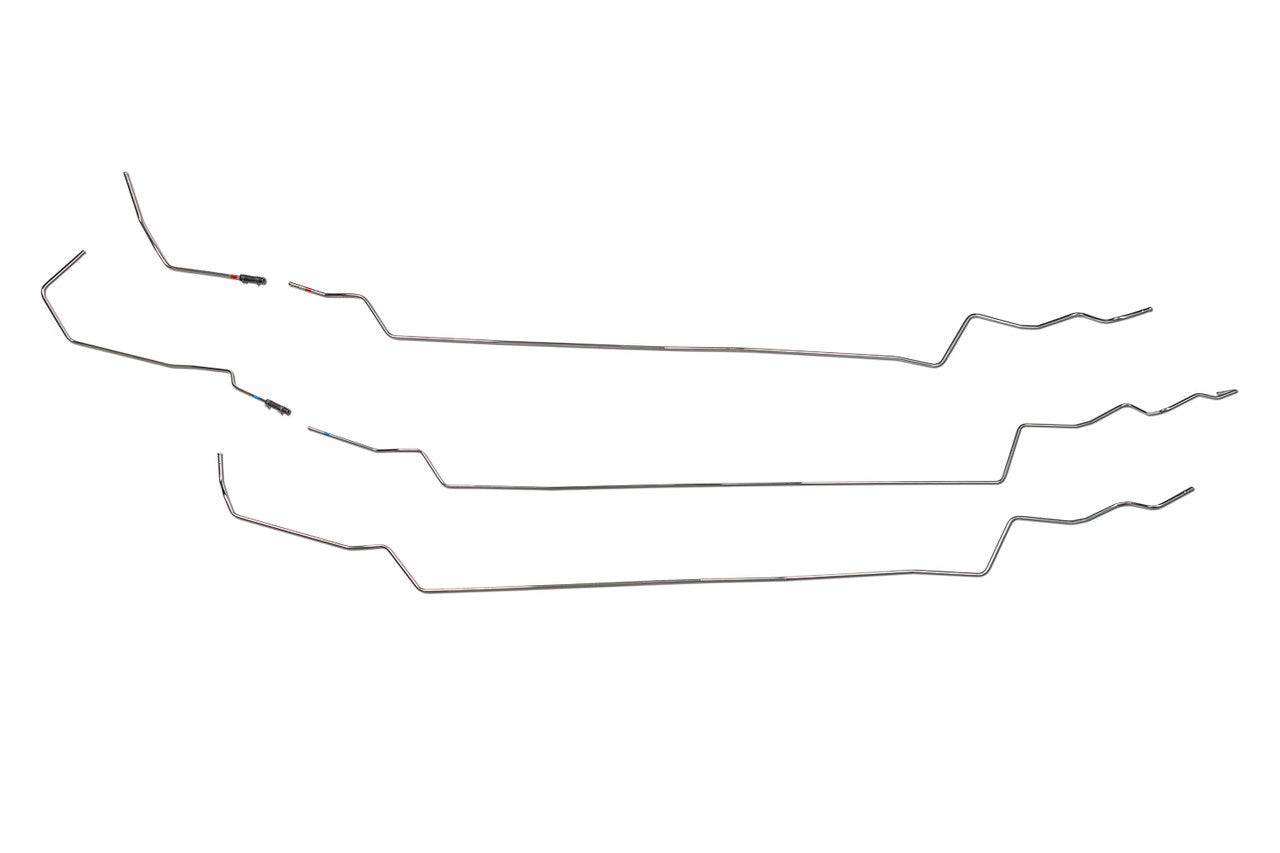

1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Left Rear Brake Line 3/16" (4 sections), 1 Right Rear Brake Line 3/16" (2 Sections), 1 Hydraulic Clutch Line 3/16" (for manual transmissions only), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
