Oldsmobile Bravada Brake Line Set 1999 4WD 4.3L BLC-198-SS3B Stainless Steel
w/4 Wheel Disc Brakes
Oldsmobile Bravada Brake Line Set 1999 4WD 4.3L BLC-198-SS3B Stainless Steel
w/4 Wheel Disc Brakes
Delivery Time & Rates
Install this pre bent 1999 Oldsmobile Bravada brake line set in no time!

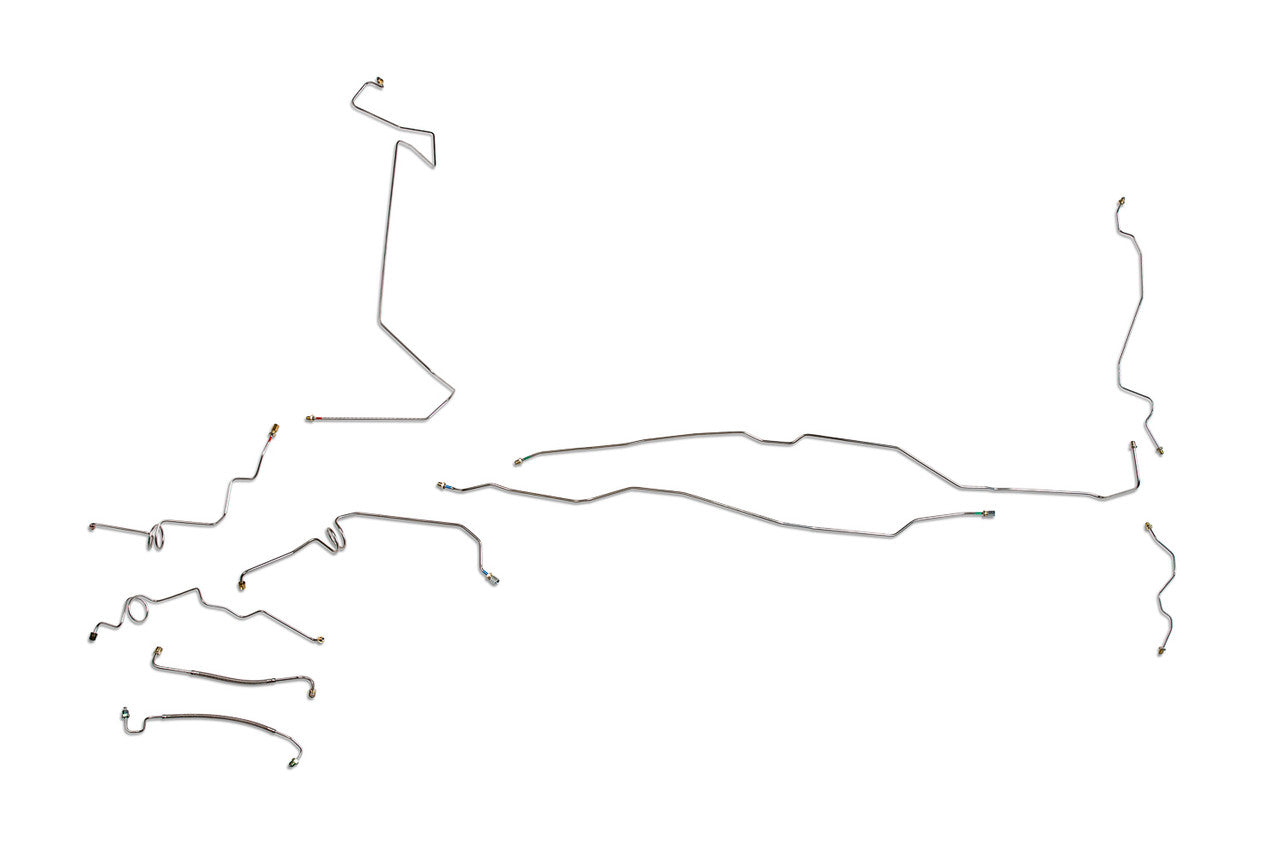

Brake Line Set Stainless Steel Oldsmobile Bravada 4WD 4 Dr w/4 Wheel Disc Brakes for 4.3L engines.
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC191-05B-SS and BLC191-05C-SS. See the video below on how to remove the shipping bend.
- Weight: 5
- Installation Instructions

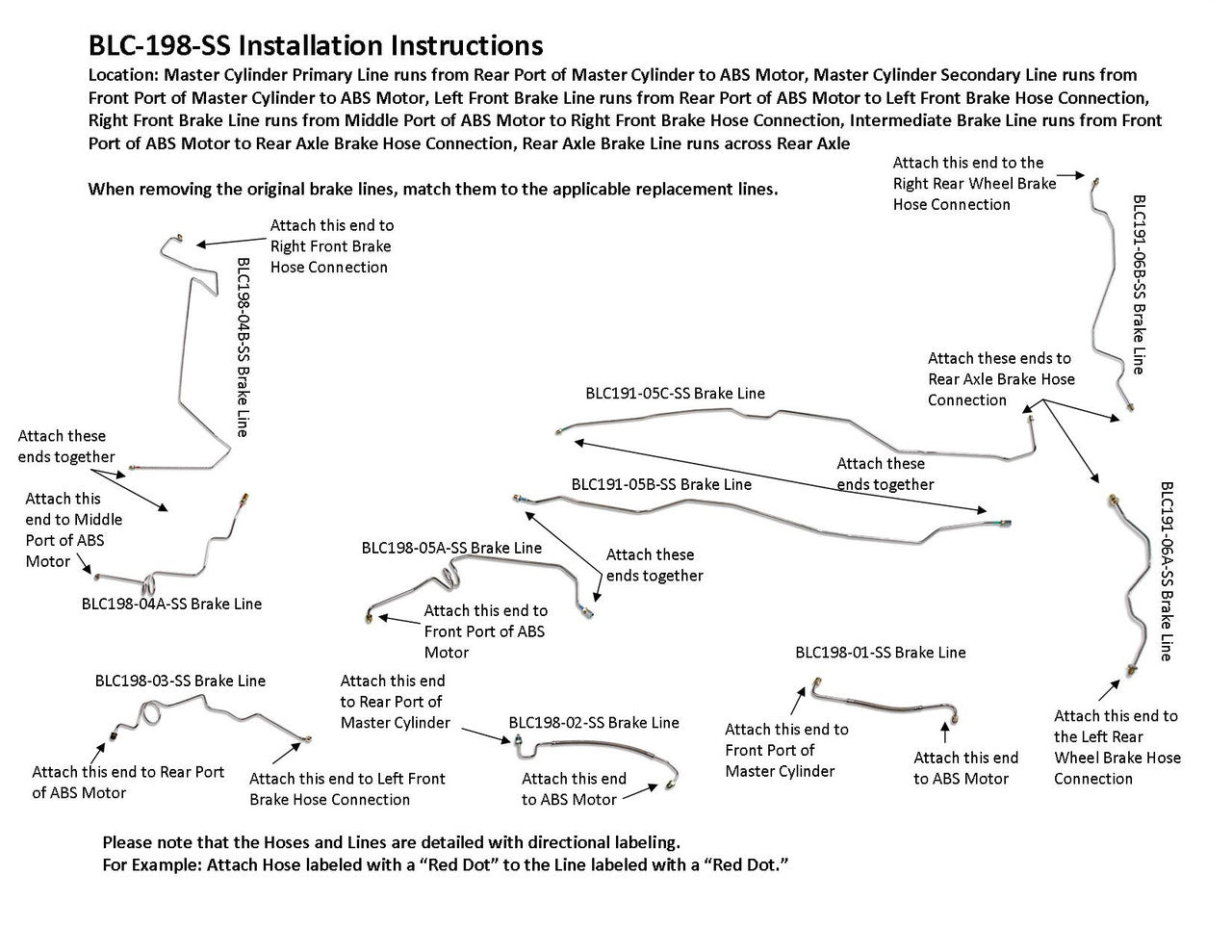

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from Rear Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Front Port of ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Brake Line runs across Rear Axle
1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 3 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses

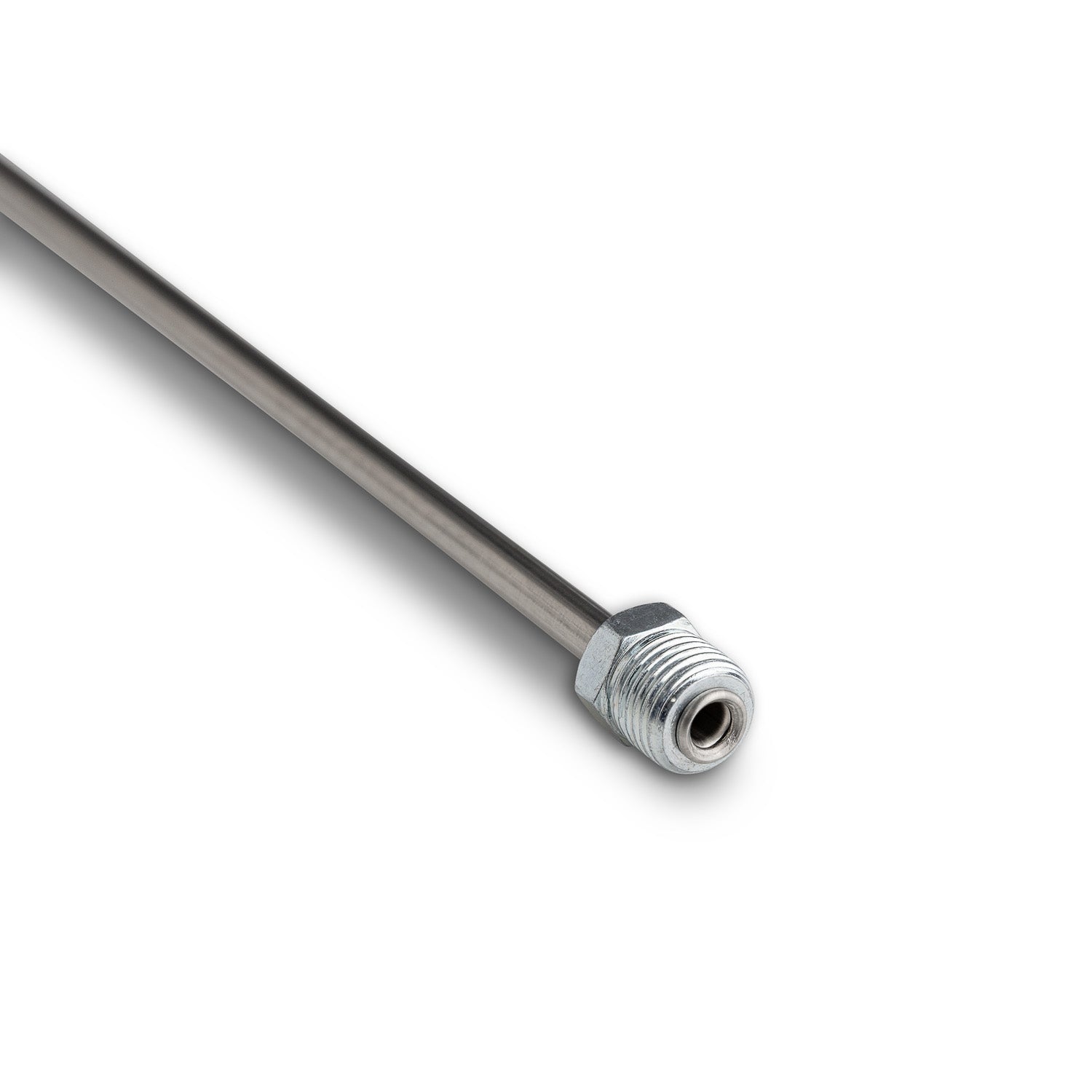

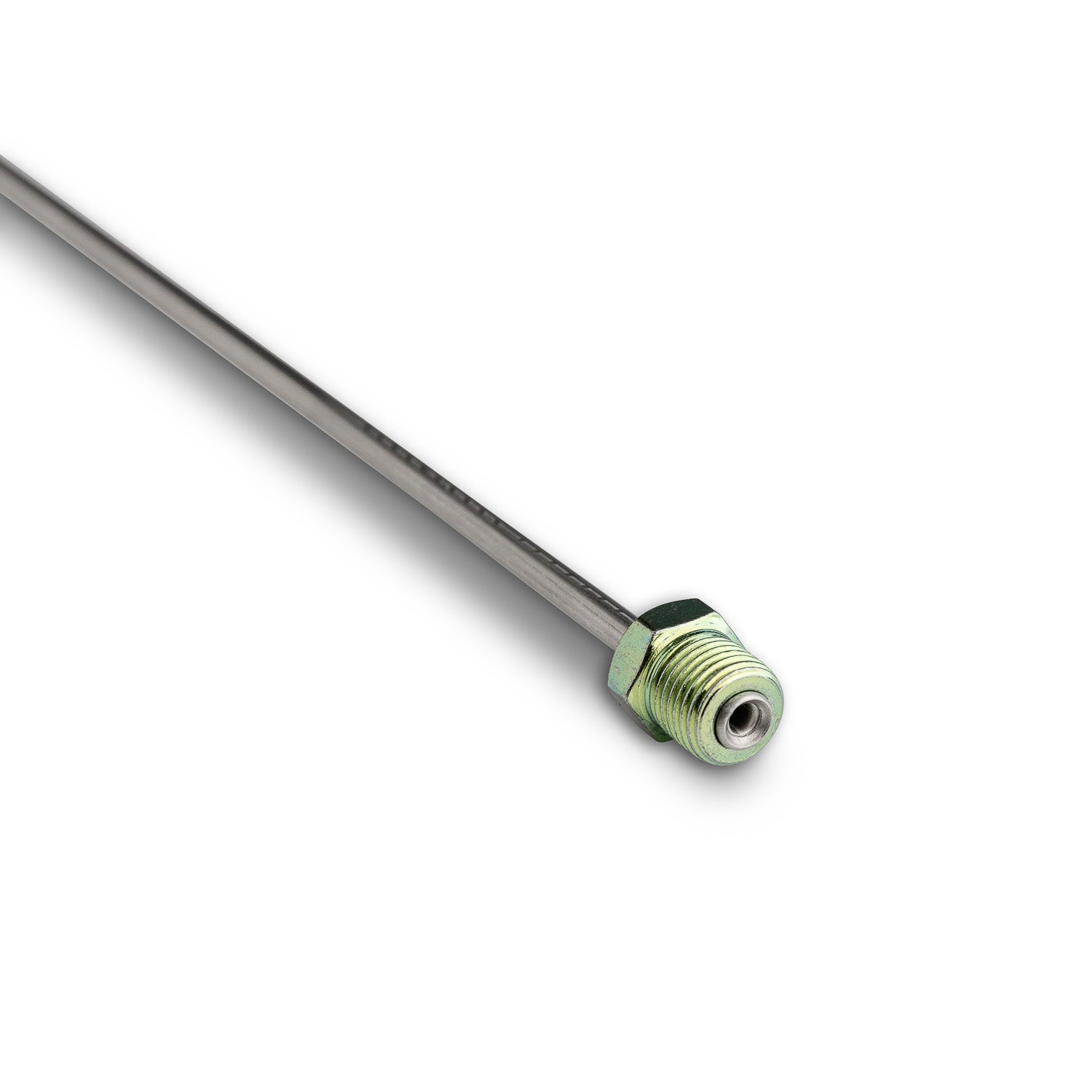

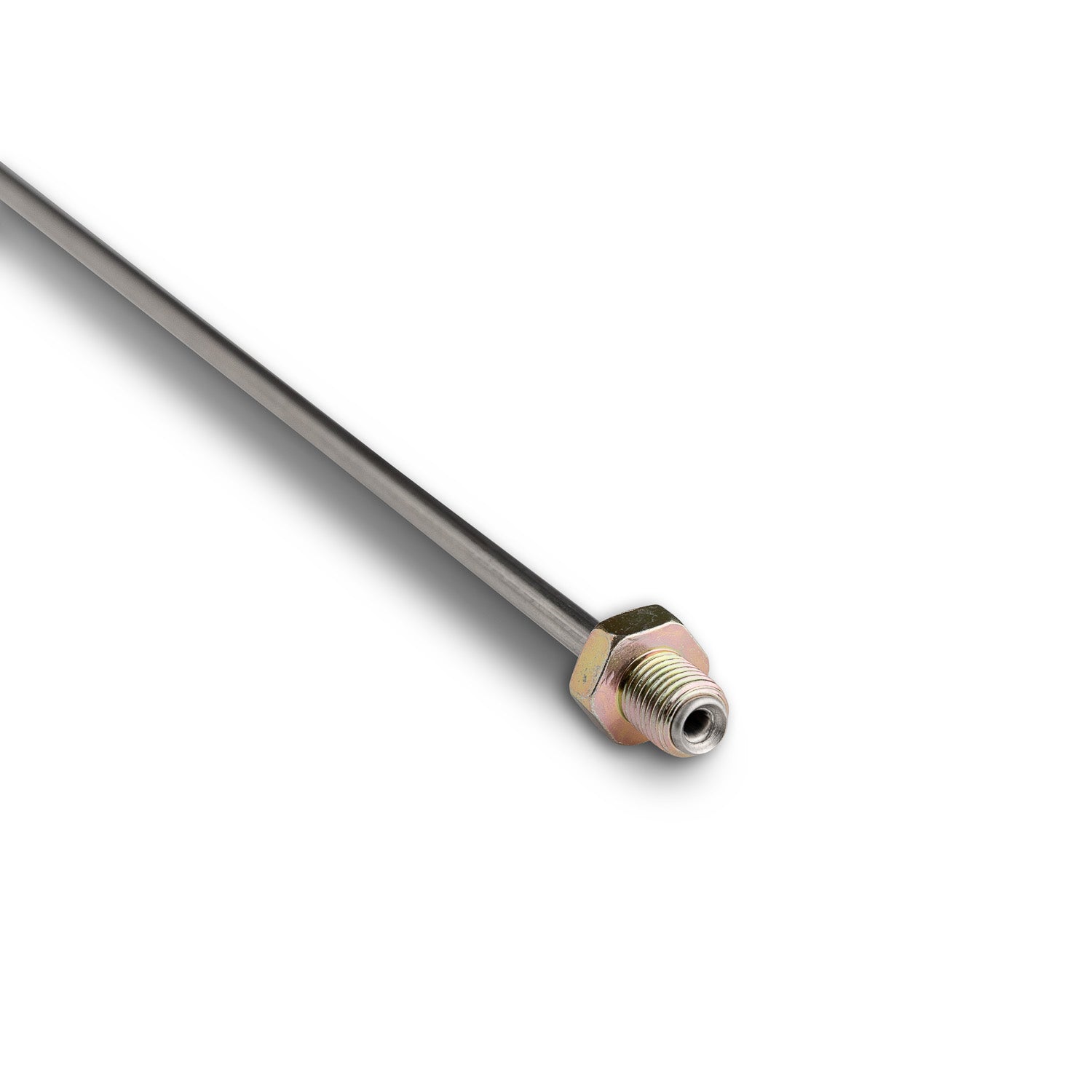

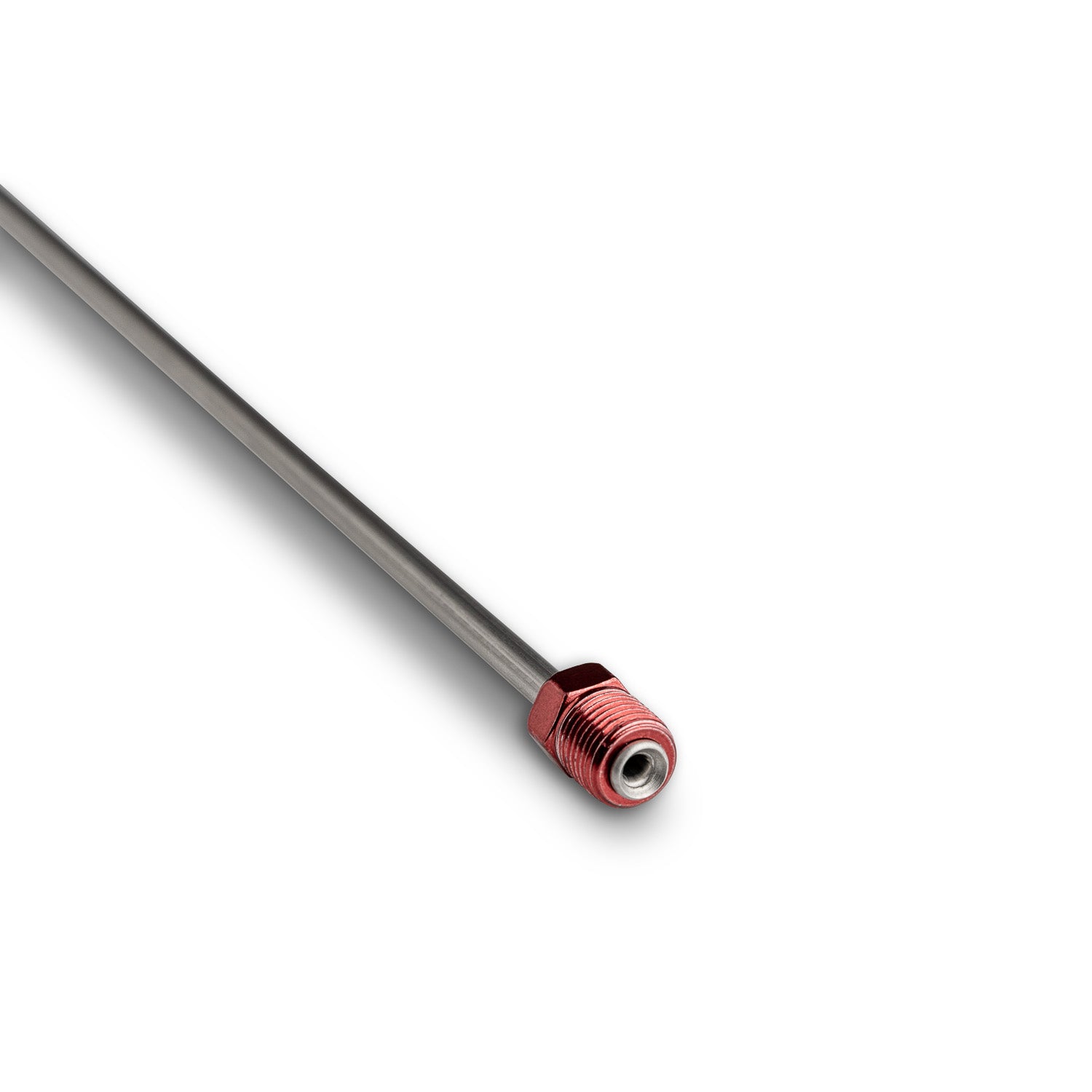

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
