Install this pre bent 2005 Pontiac Grand Prix GXP brake line set without a problem!

Brake Line Set Stainless Steel 2005 Pontiac Grand Prix GXP 4 Dr w/o ABS for 3.8L engines

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLB103-05B-SS and BLB103-06B-SS . See the video below on how to remove the shipping bend

SKU: BLB-103-SS7A
Box Dimensions 46" x 12" x 7"
Product Warranty 1 Year

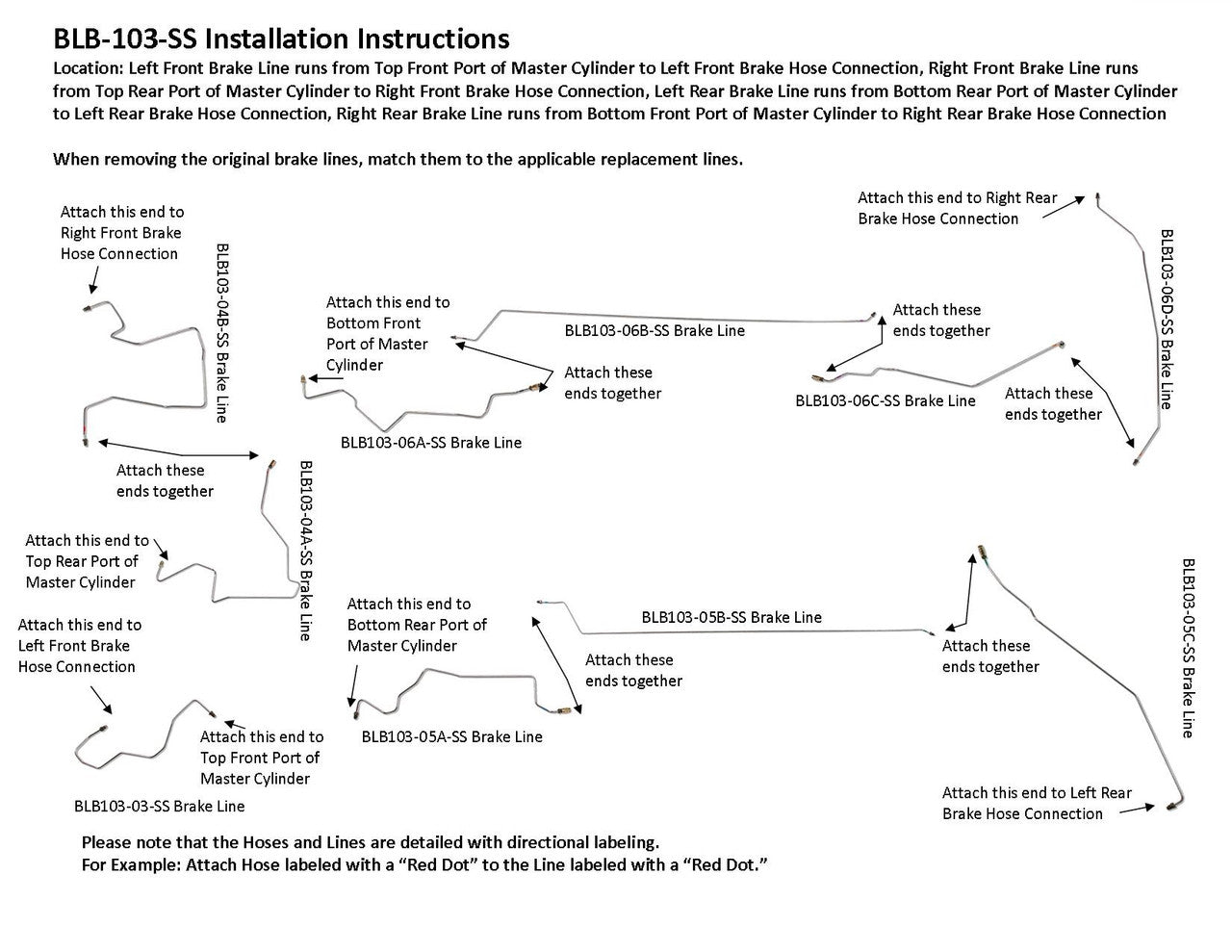

Left Front Brake Line runs from Top Front Port of Master Cylinder to Left Front Brake Hose Connection, Right Front Brake Line runs from Top Rear Port of Master Cylinder to Right Front Brake Hose Connection, Left Rear Brake Line runs from Bottom Rear Port of Master Cylinder to Left Rear Brake Hose Connection, Right Rear Brake Line runs from Bottom Front Port of Master Cylinder to Right Rear Brake Hose Connection

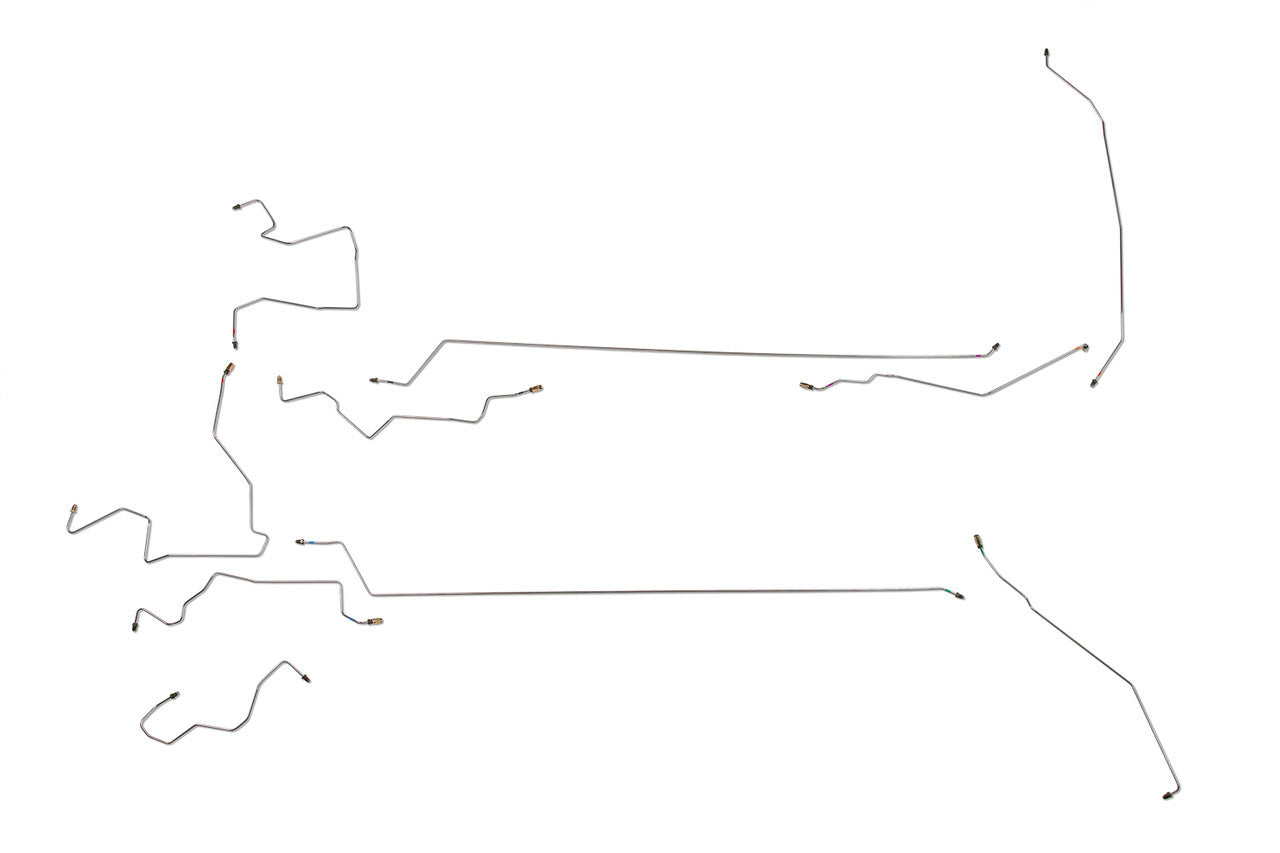

1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 3 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), 6 unions, Does NOT include Brake Hoses

15783578, 15783620, 15856326

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
