Name: Saturn Ion Fuel Line Set 2004 2.0L FL253-A1B
Brand: Lines - To - Go
SKU: FL253-A1B
Price: 197.85 USD
Availability: InStock

Year Make & Model

Saturn Ion Fuel Line Set 2004 2.0L FL253-A1B

Price

SALE:

Save $49.46

Delivery Time & Rates

Fuel Lines For 2004 Saturn Ion. The FL253-A1B fuel line for Saturn Ion with 2.0L engines.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

SKU: FL253-A1B

Weight: 6

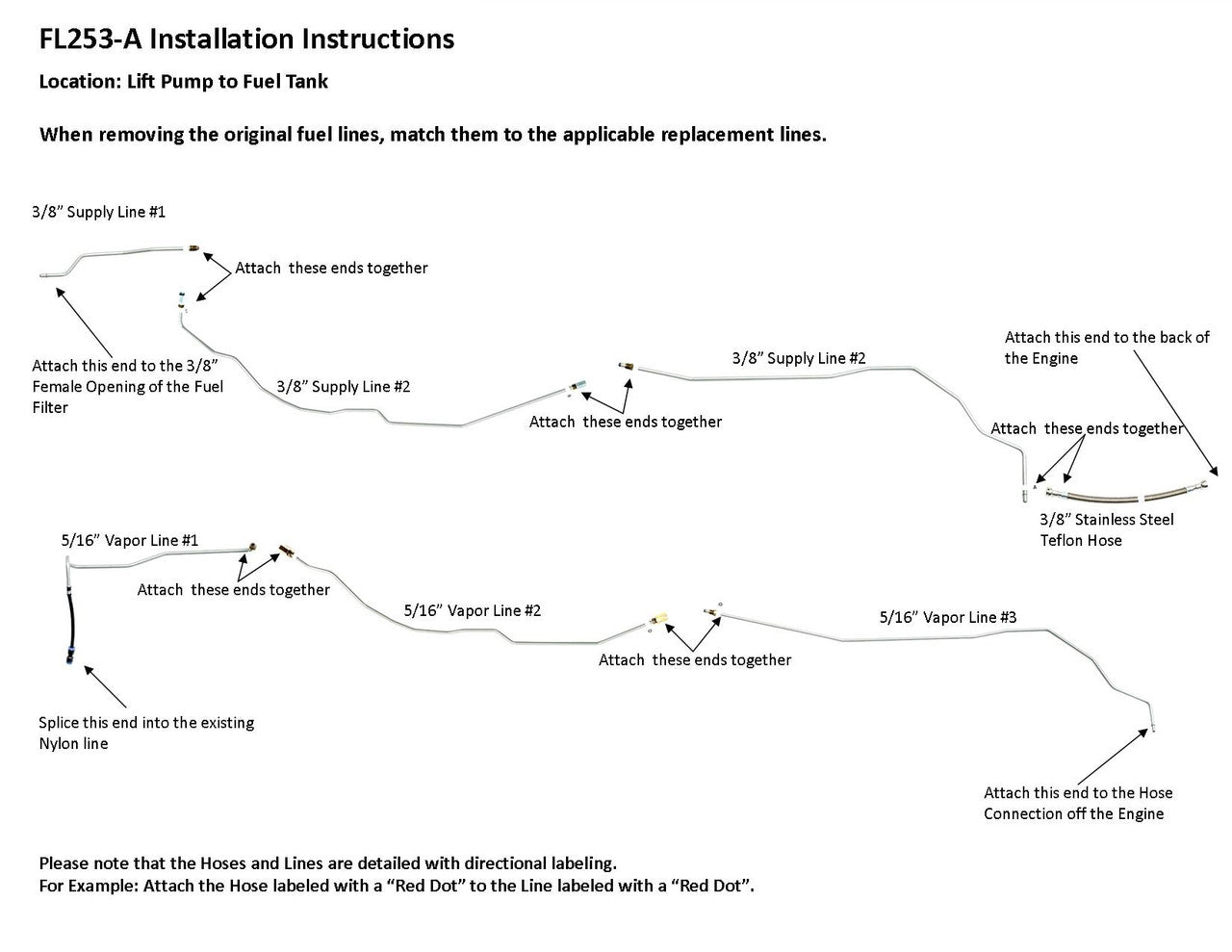

Installation Instructions

Box Dimensions 57" x 11" x 7"

Product Warranty 1 Year

Nylon Splicing

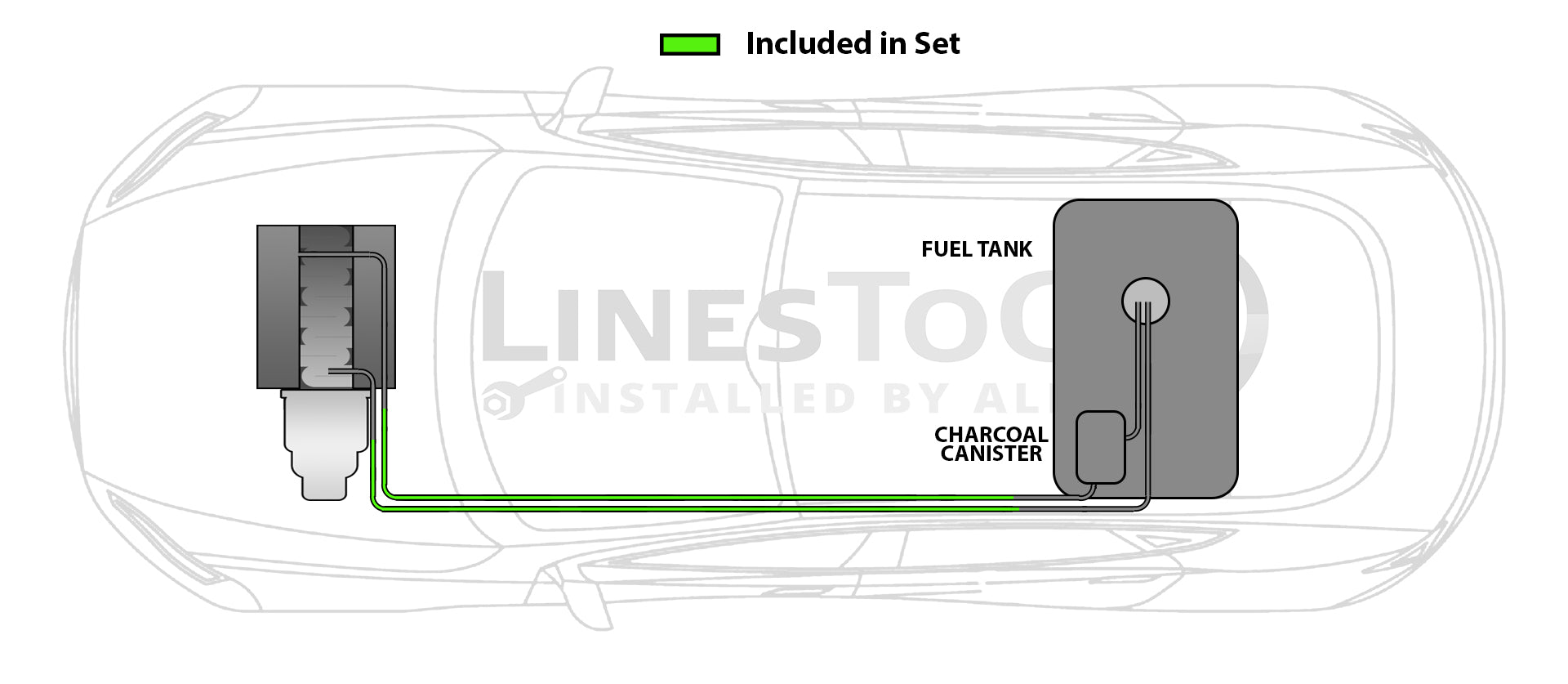

Engine to Hose Connection off Fuel Tank

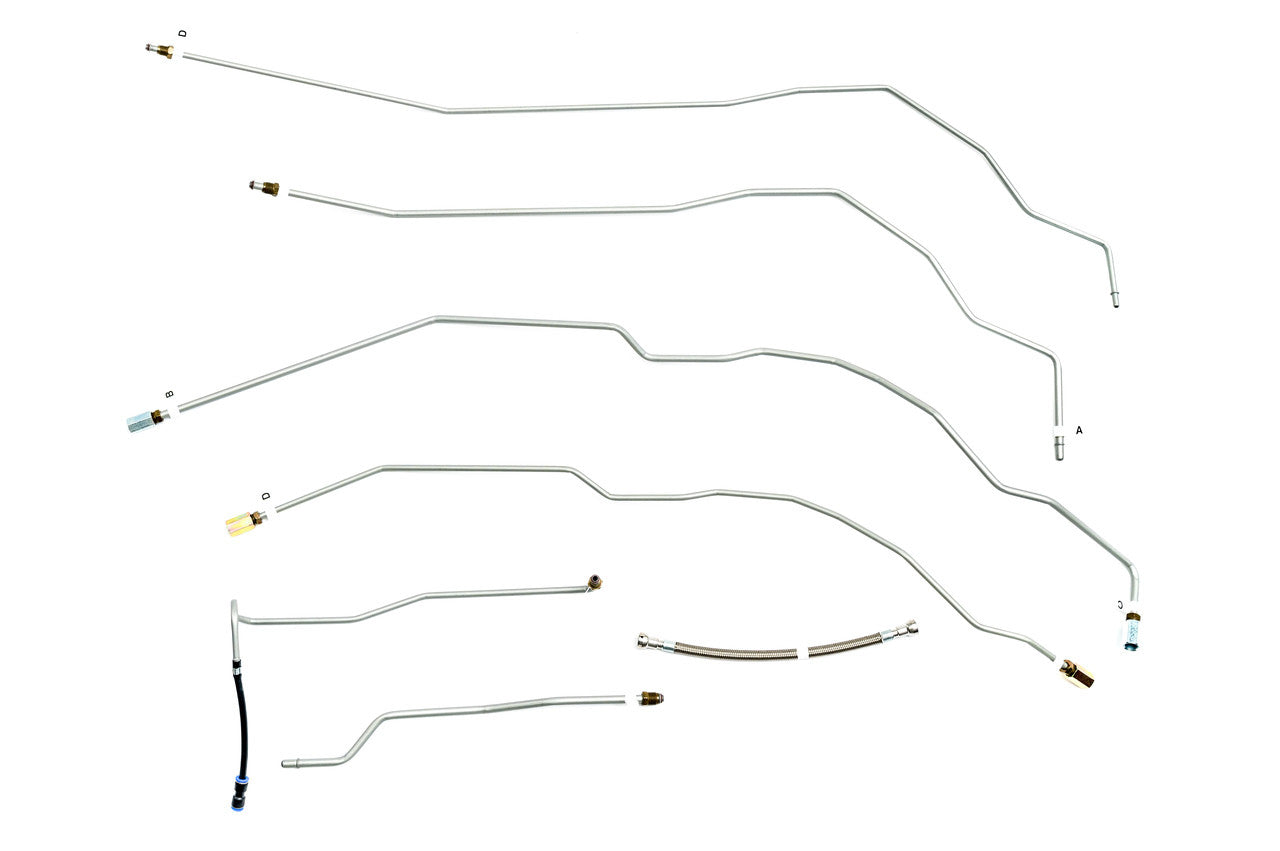

1 supply lines 3/8" ( in 3 easy to install sections), 1 vapor line 5/16" ( in 3 easy to install sections), hose to engine connection, nylon line with union, 4 unions

22703796, 22706257

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
