Toyota Tacoma Brake Line Set 2002 Base Double Cab 5ft Bed 2.7L BLT-109-SS2B Stainless Steel
w/o ABS
Toyota Tacoma Brake Line Set 2002 Base Double Cab 5ft Bed 2.7L BLT-109-SS2B Stainless Steel
w/o ABS
Delivery Time & Rates
Choose from 2002 Tacoma brake lines stainless steel to fit your Toyota without a problem...

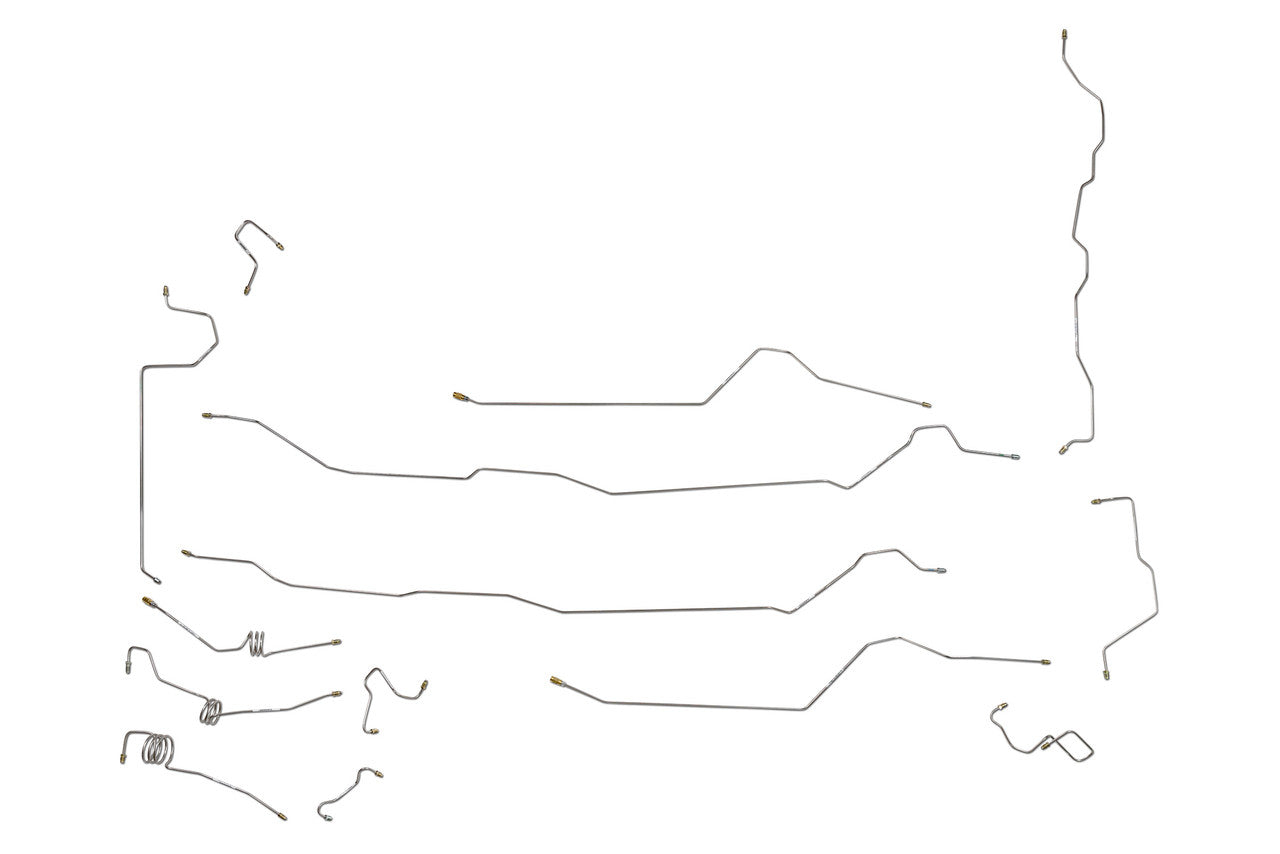

Brake Line Set Stainless Steel 2002 Toyota Tacoma Base Model Double Cab 5ft Bed w/o ABS for 2.7L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLD109-05A-SS, BLD109-06A-SS. See the video below on how to remove the shipping bend
- Weight: 5

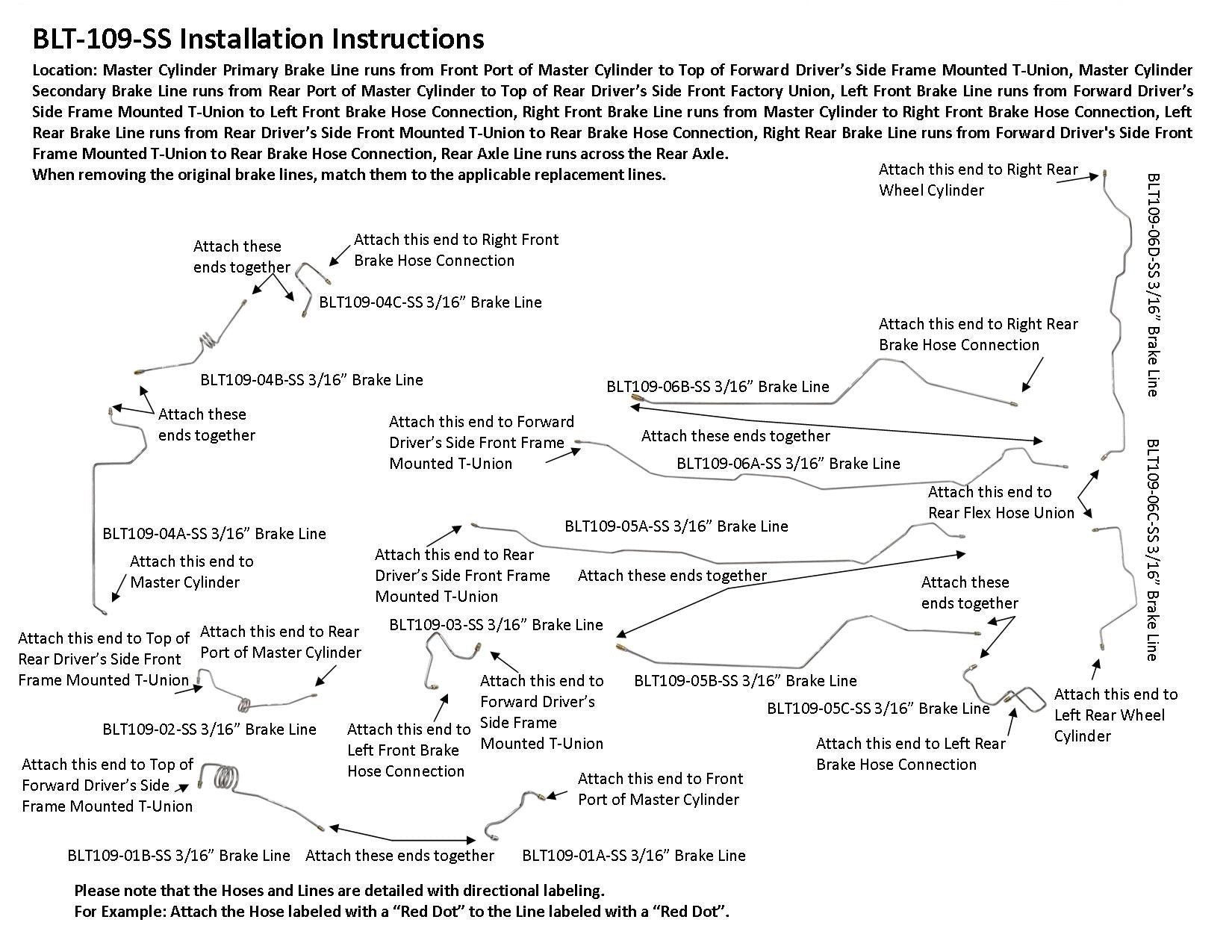

- Installation Instructions
Master Cylinder Primary Brake Line runs from Front Port of Master Cylinder to Top of Forward Driver’s Side Frame Mounted T-Union, Master Cylinder Secondary Brake Line runs from Rear Port of Master Cylinder to Top of Rear Driver’s Side Front Factory Union, Left Front Brake Line runs from Forward Driver’s Side Frame Mounted T-Union to Left Front Brake Hose Connection, Right Front Brake Line runs from Master Cylinder to Right Front Brake Hose Connection, Left Rear Brake Line runs from Rear Driver’s Side Front Mounted T-Union to Rear Brake Hose Connection, Right Rear Brake Line runs from Forward Driver's Side Front Frame Mounted T-Union to Rear Brake Hose Connection, Rear Axle Line runs across the Rear Axle
2 Master Cylinder Primary Lines 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 3 Easy to Install Sections), 1 Left Rear Brake Line 3/16" (in 2 Easy to Install Sections), 1 Left Rear Brake Line 3/16", 1 Right Rear Brake Line 3/16" (in 2 Easy to Install Sections), 1 Rear Axle Line 3/16" (2 Sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
