Choose from 2003 Tacoma brake lines stainless steel to fit your Toyota without a problem...
Stainless Steel Brake Line Set 2003 Toyota Tacoma Base Model 2WD Regular Cab 6ft Bed for 2.4L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLT117-03A-SS and BLT117-06A-SS. See the video below on how to remove the shipping bend
- Weight: 5

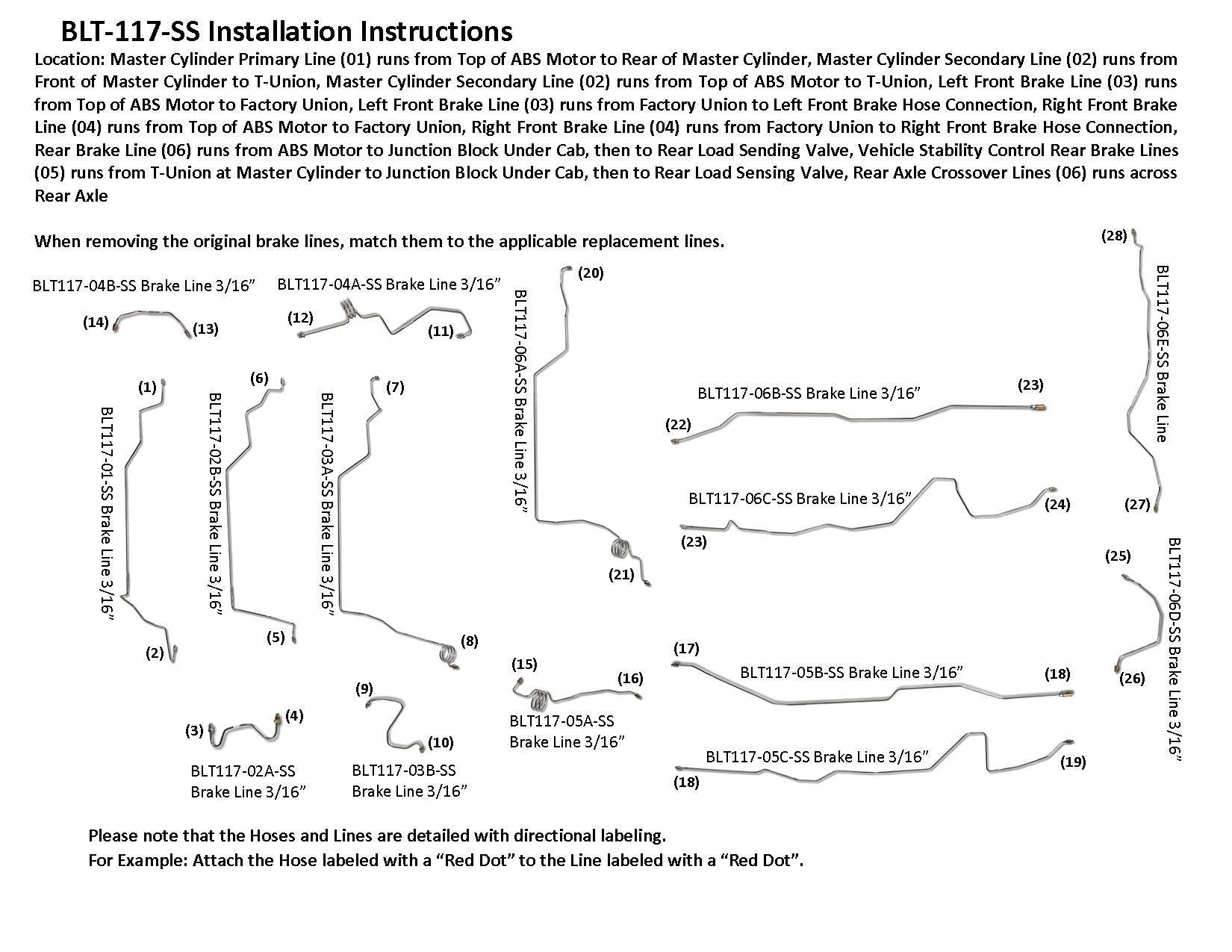

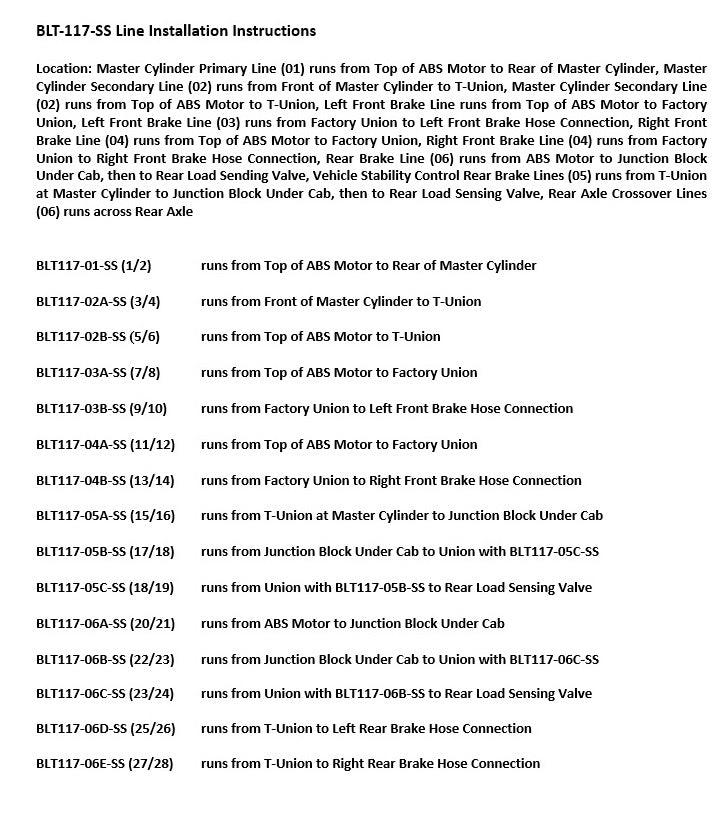

- Installation Instructions

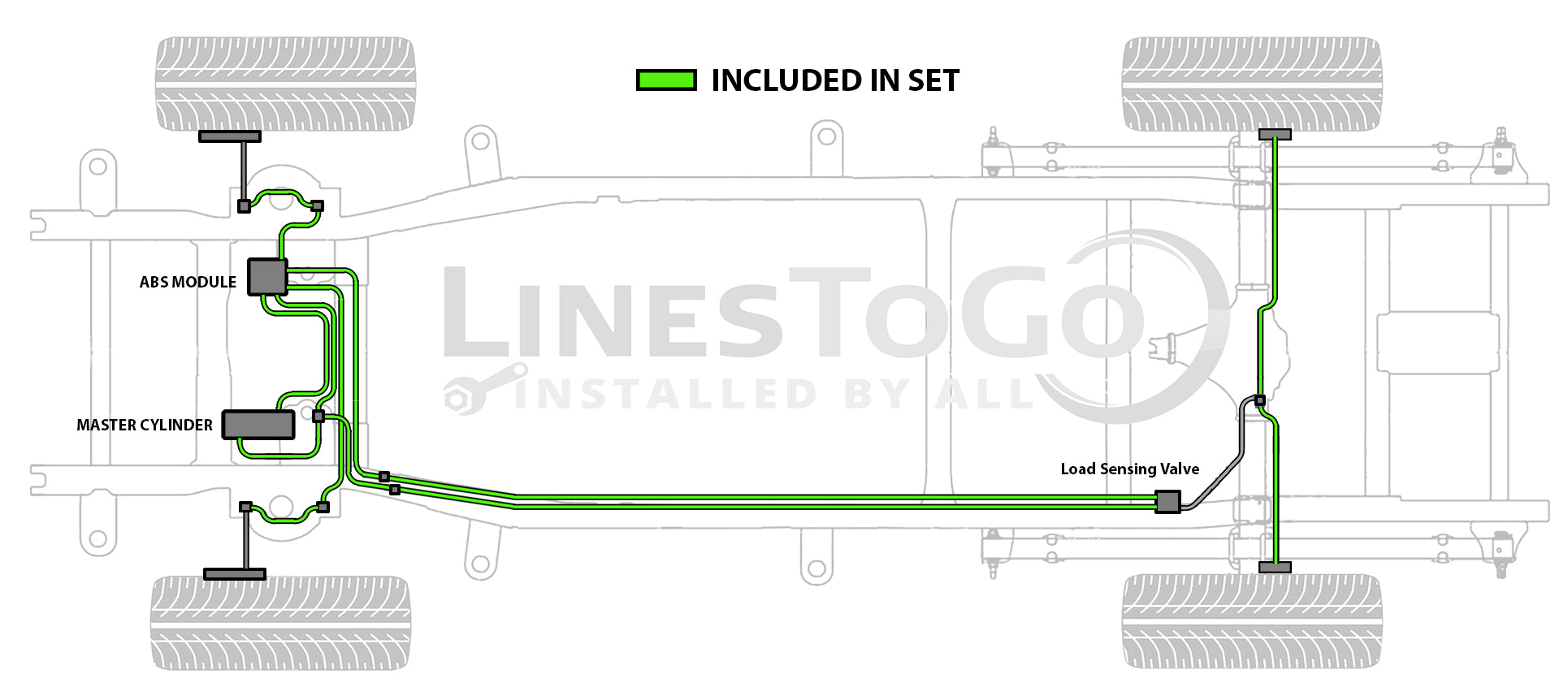

Master Cylinder Primary Line runs from Top of ABS Motor to Rear of Master Cylinder, Master Cylinder Secondary Line runs from Front of Master Cylinder to T-Union, Master Cylinder Secondary Line runs from Top of ABS Motor to T-Union, Left Front Brake Line runs from Top of ABS Motor to Factory Union, Left Front Brake Line runs from Factory Union to Left Front Brake Hose Connection, Right Front Brake Line runs from Top of ABS Motor to Factory Union, Right Front Brake Line runs from Factory Union to Right Front Brake Hose Connection, Rear Brake Line runs from ABS Motor to Junction Block Under Cab, then to Rear Load Sending Valve, Vehicle Stability Control Rear Brake Lines runs from T-Union at Master Cylinder to Junction Block Under Cab, then to Rear Load Sensing Valve, Rear Axle Crossover Lines runs across Rear Axle

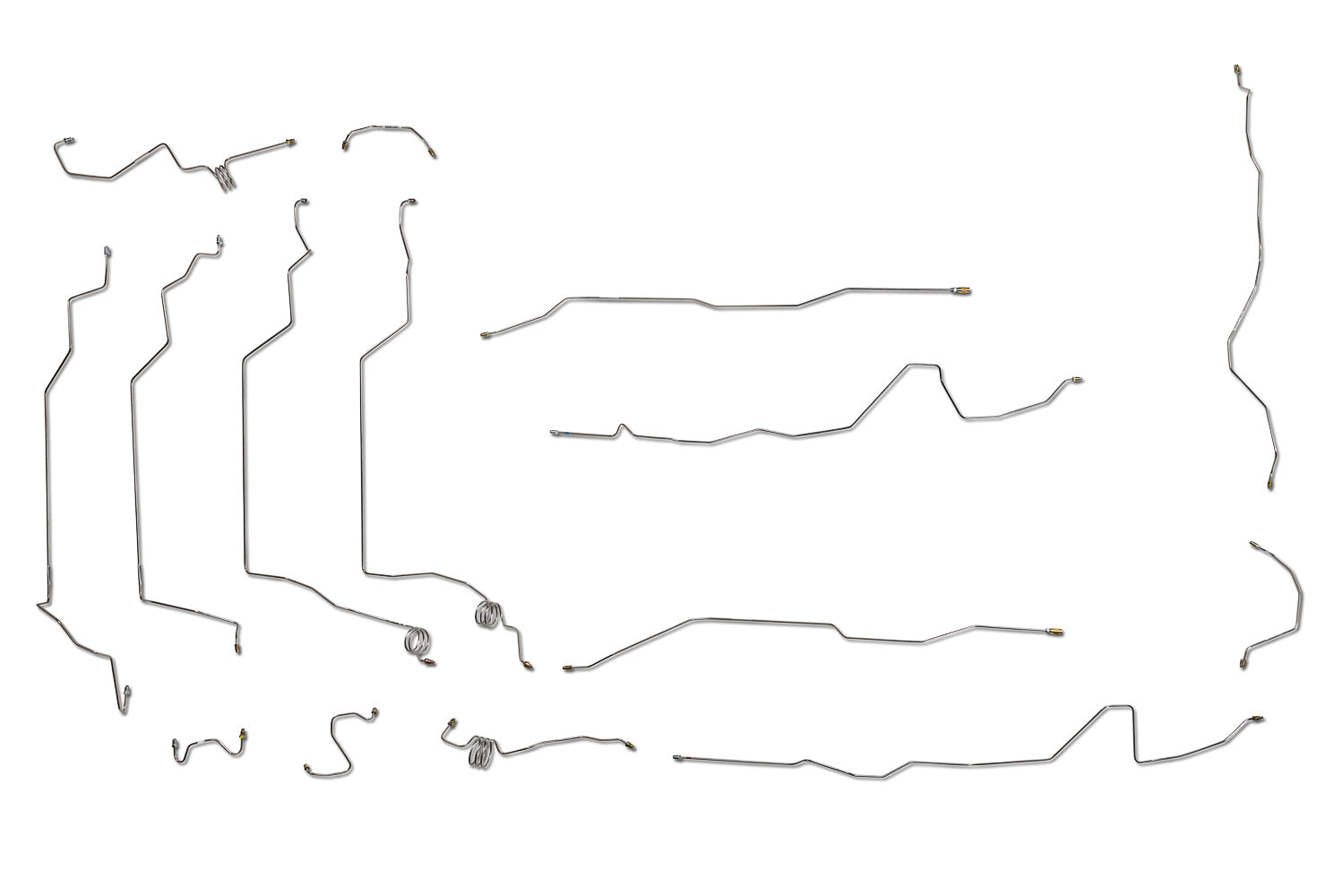

1 Master Cylinder Primary Brake Line 3/16", 2 Master Cylinder Secondary Brake Lines 3/16", 3 Left Front Brake Lines 3/16", 2 Right Front Brake Lines 3/16", 2 Rear Brake Lines 3/16" (in 3 easy to install sections), 2 Vehicle Stability Control Lines 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT Include Brake Hoses

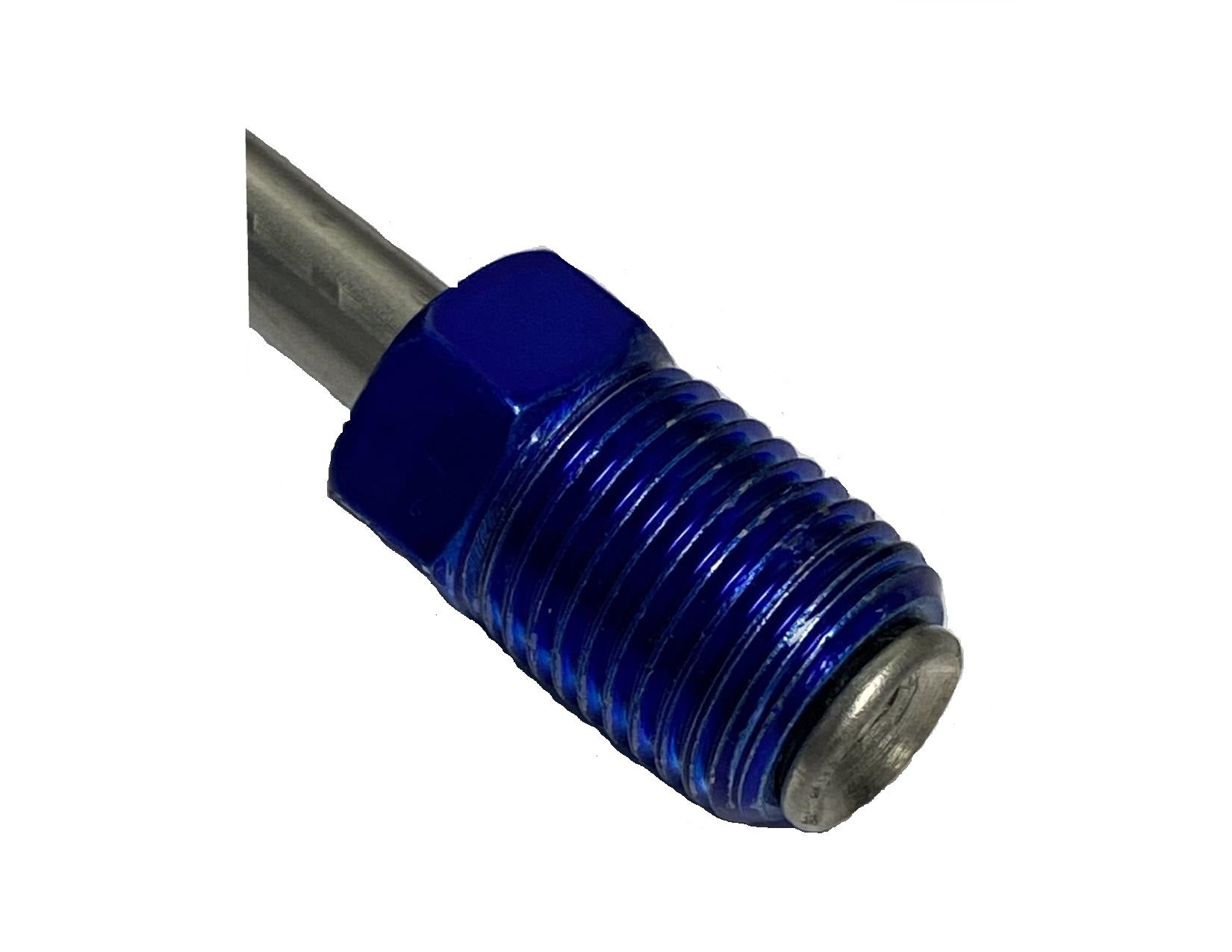

Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
