Toyota Tacoma Brake Line Set 2009 X-Runner 2WD Access Cab 6ft Bed 4.0L BLT-122-SS8A Stainless Steel
w/ABS w/Manual Transmission
Toyota Tacoma Brake Line Set 2009 X-Runner 2WD Access Cab 6ft Bed 4.0L BLT-122-SS8A Stainless Steel
w/ABS w/Manual Transmission
Delivery Time & Rates
Choose from 2009 Tacoma brake lines stainless steel to fit your Toyota without a problem...
Brake Line Set Stainless Steel 2009 Toyota Tacoma X-Runner 2WD Access Cab 6ft Bed w/ABS, w/Manual Transmission for 4.0L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLT112-05B-SS and BLT112-06B-SS. See the video below on how to remove the shipping bend
- Weight: 6
- Installation Instructions
Master Cylinder Primary Line runs from Back Port of Master Cylinder to Back Port on Side of ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Front Port on Side of ABS Motor, Left Front Brake Line runs from Rearmost Port on Top of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Second Port from Back on Top of ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from Second Port from Front on Top of ABS Motor to Factory Union under Cab, Left Rear Brake Line runs from Union to Left Rear Brake Hose Connection, Right Rear Brake Line runs from Frontmost Port of Top of ABS Motor to Factory Union under Cab, Right Rear Brake Line runs from Union to Right Rear Brake Hose Connection

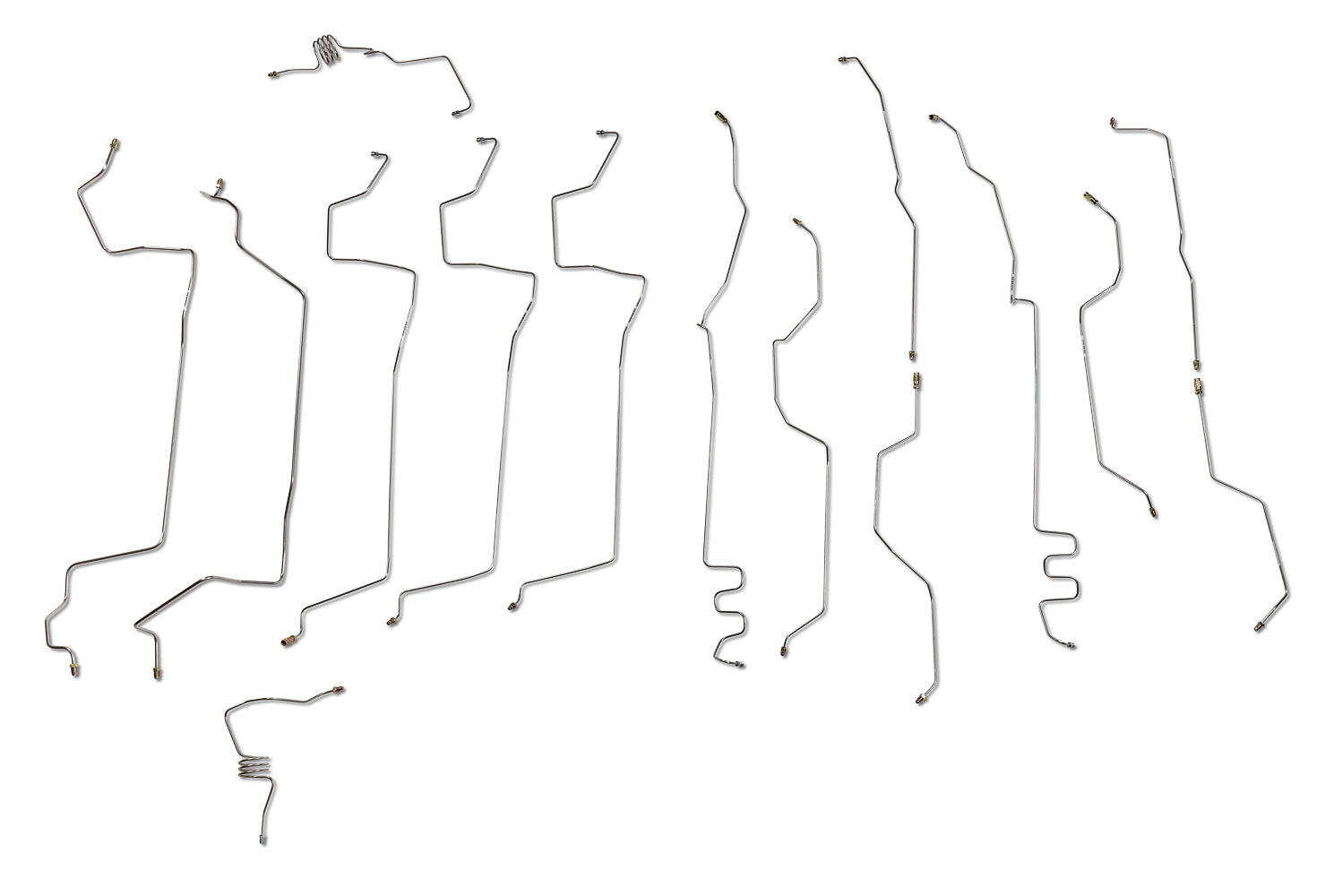

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Front Left Brake Line 3/16", 1 Front Right Brake Line 3/16", 2 Left Rear Brake Lines 3/16" (in 5 easy to install sections), 2 Right Rear Brake Lines 3/16" (in 5 easy to install sections), Does NOT Include Brake Hoses
Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
