Toyota Tundra Brake Line Set 2002 Reg Cab 8ft Bed 3.4L BLT-140-SS2E Stainless Steel
w/231mm Caliper w/Casting #13WL
Toyota Tundra Brake Line Set 2002 Reg Cab 8ft Bed 3.4L BLT-140-SS2E Stainless Steel
w/231mm Caliper w/Casting #13WL
Delivery Time & Rates
Choose from 2002 Tundra brake lines to fit your Toyota without a problem...
Stainless Steel Brake Line Set 2002 Toyota Tundra Reg Cab 8ft Bed for 3.4L engines.
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLT138-05B-SS, BLT138-06B-SS and BLT138-06D-SS. See the video below on how to remove the shipping bend.
- Weight: 6

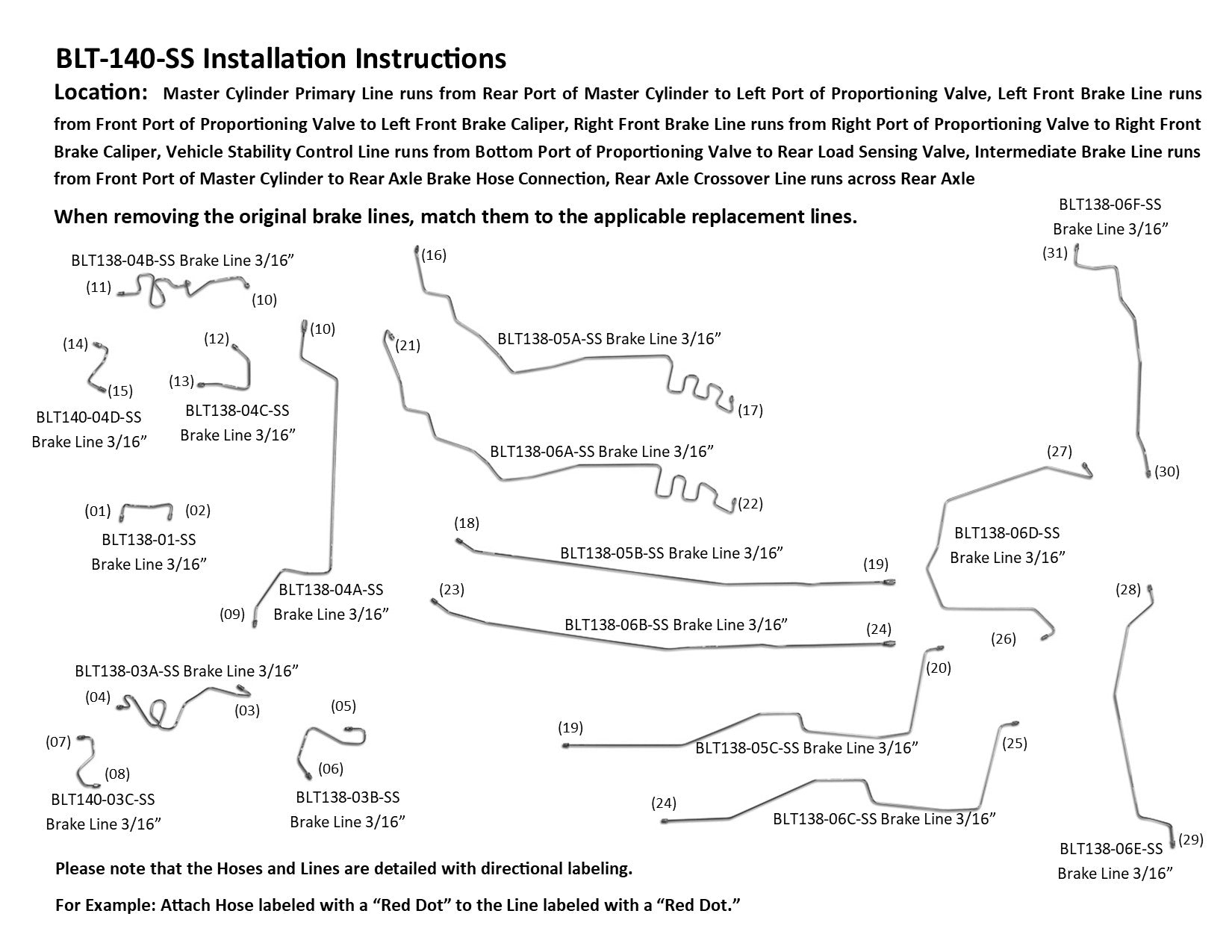

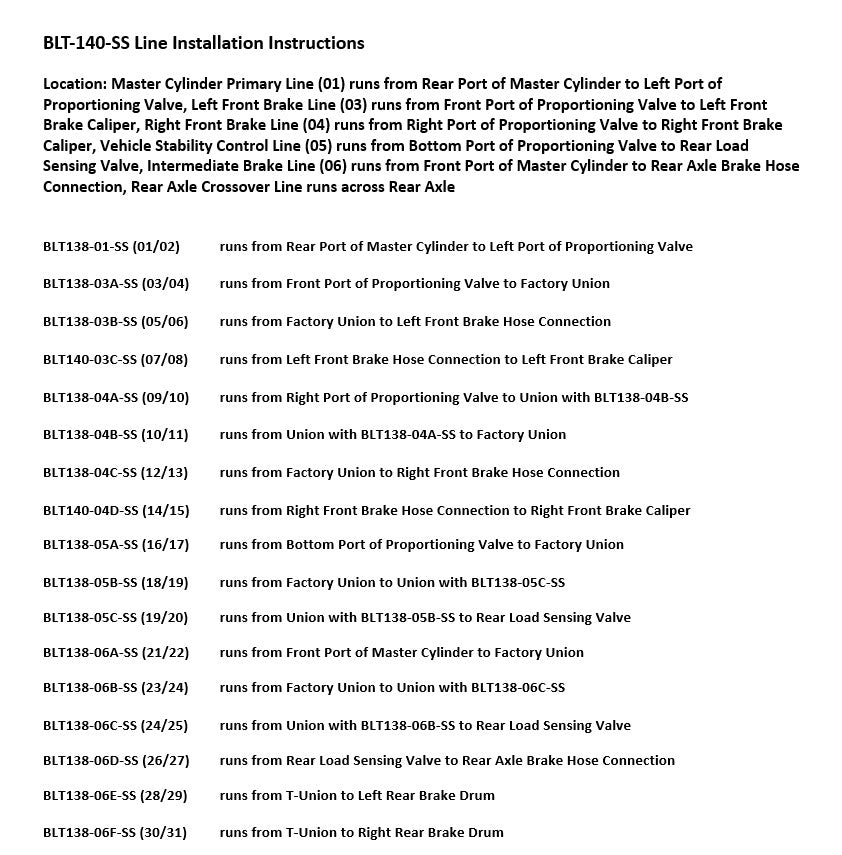

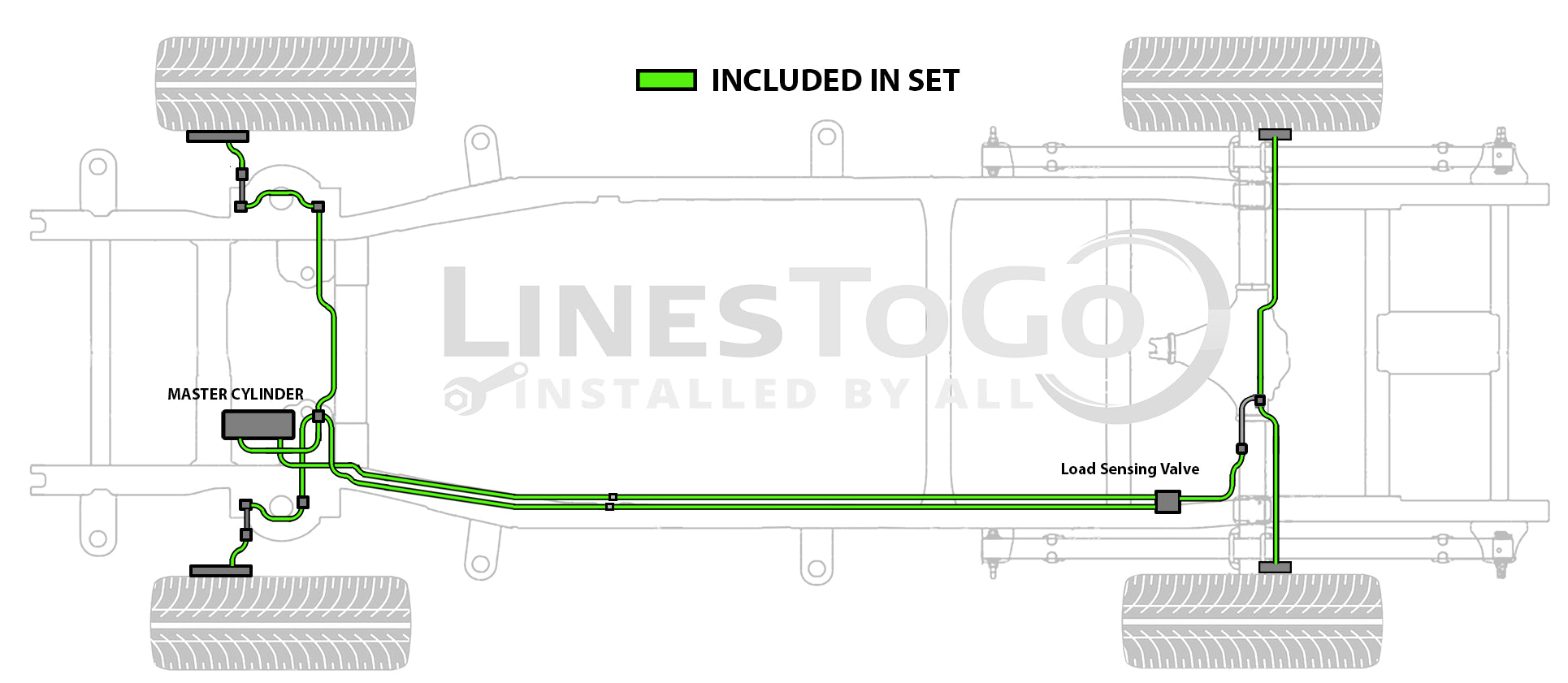

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Left Port of Proportioning Valve, Left Front Brake Line runs from Front Port of Proportioning Valve to Left Front Brake Caliper, Right Front Brake Line runs from Right Port of Proportioning Valve to Right Front Brake Caliper, Vehicle Stability Control Line runs from Bottom Port of Proportioning Valve to Rear Load Sensing Valve, Intermediate Brake Line runs from Front Port of Master Cylinder to Rear Axle Brake Hose Connection, Rear Axle Crossover Line runs across Rear Axle

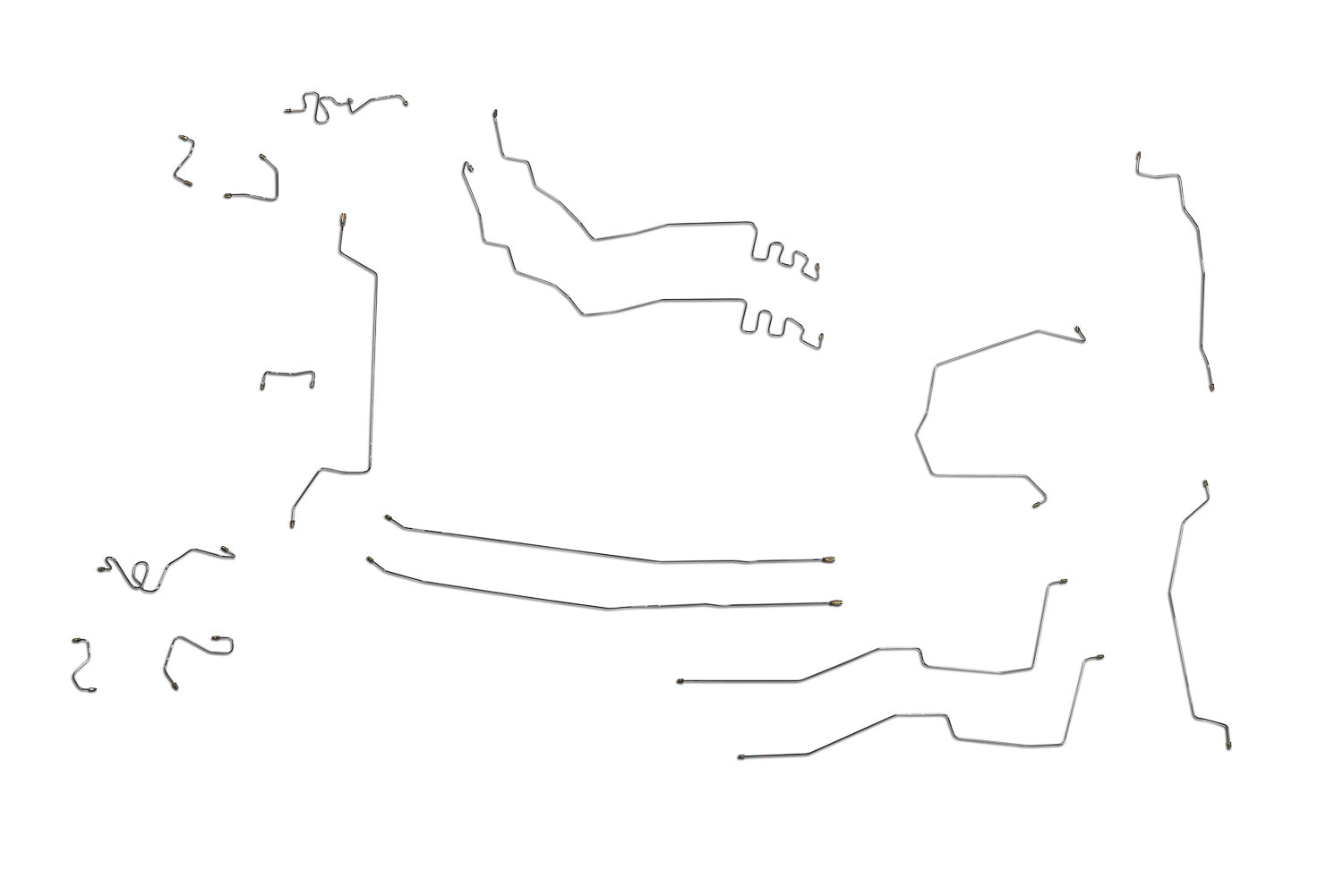

1 Master Cylinder Primary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Right Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Vehicle Stability Control Line 3/16", 1 Vehicle Stability Control Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16", 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses

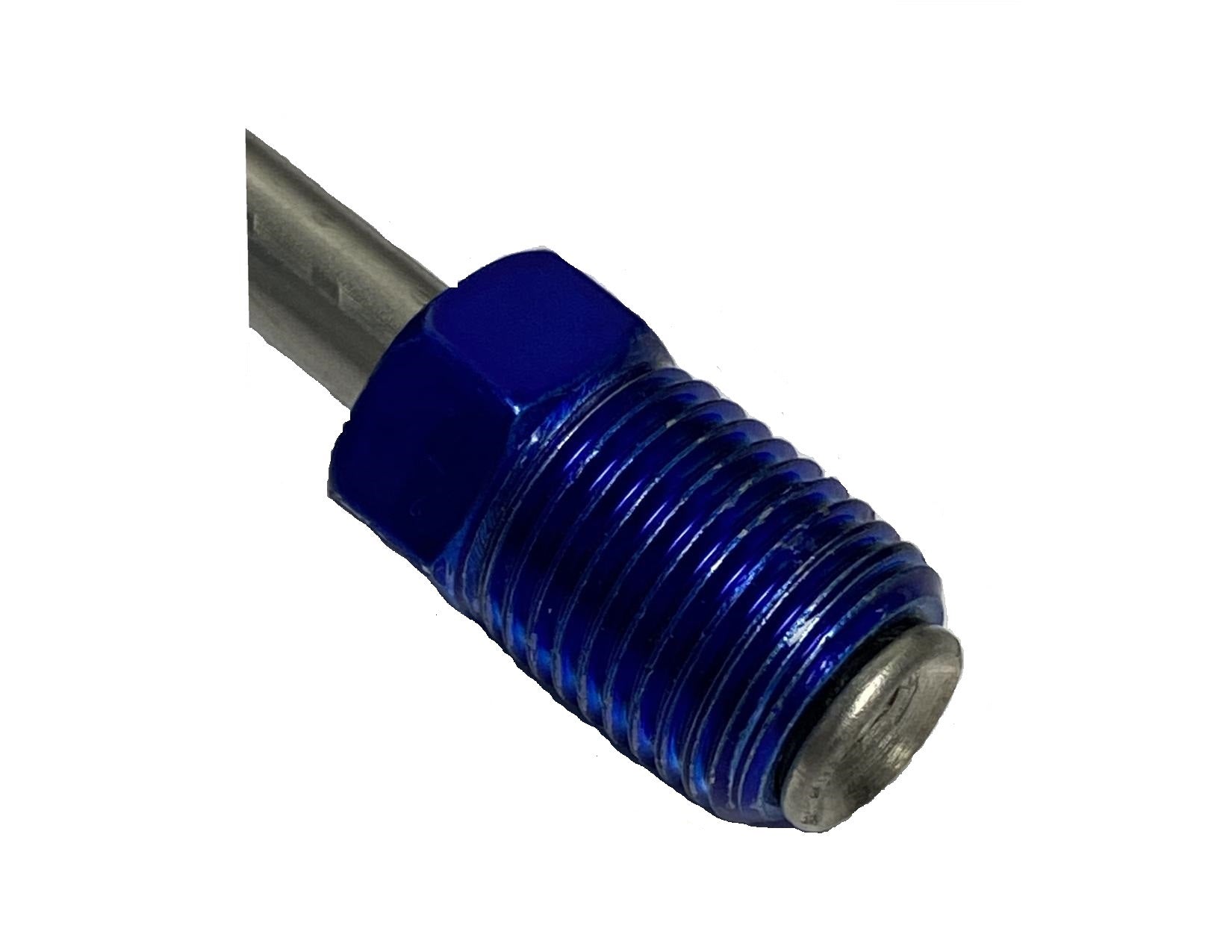

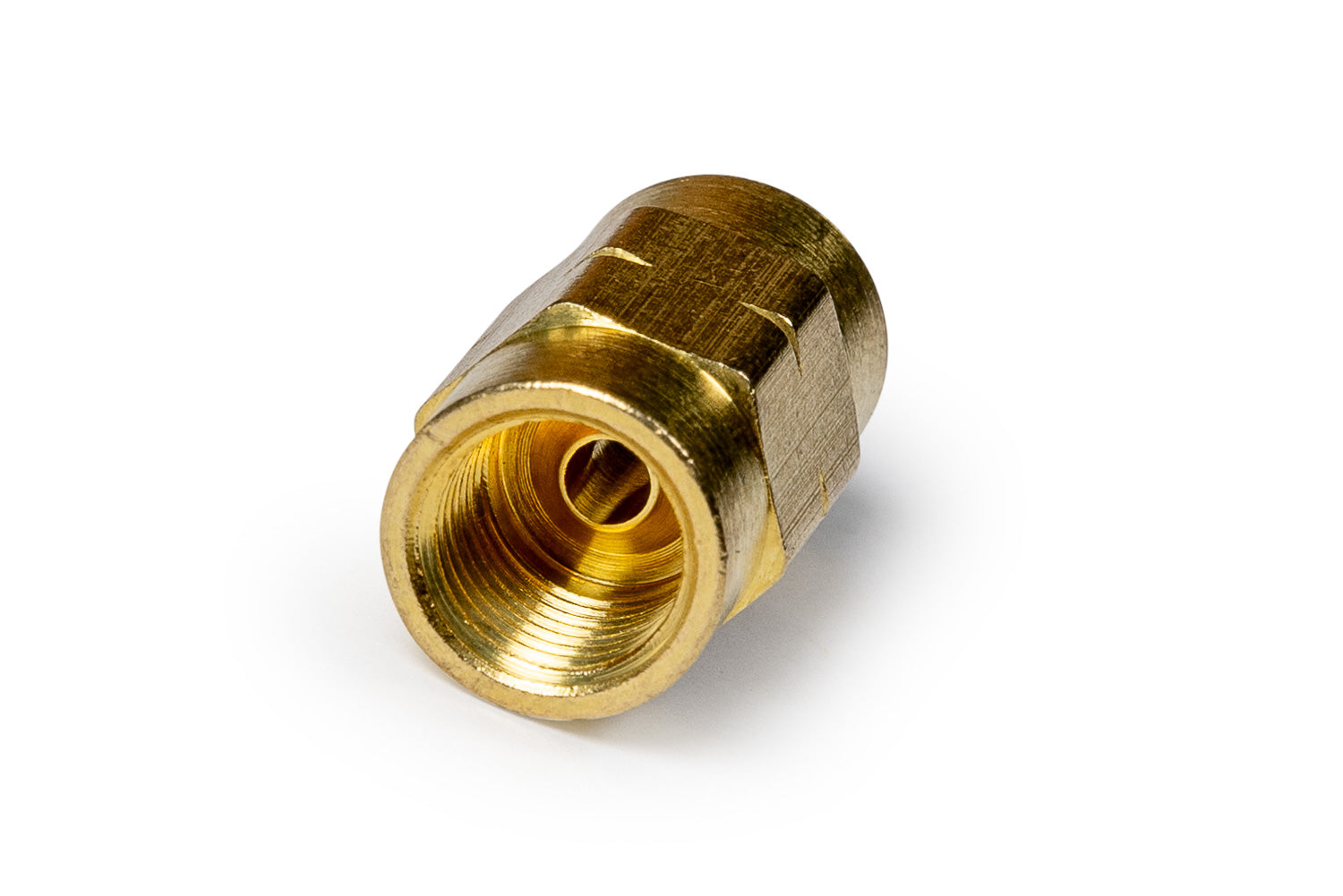

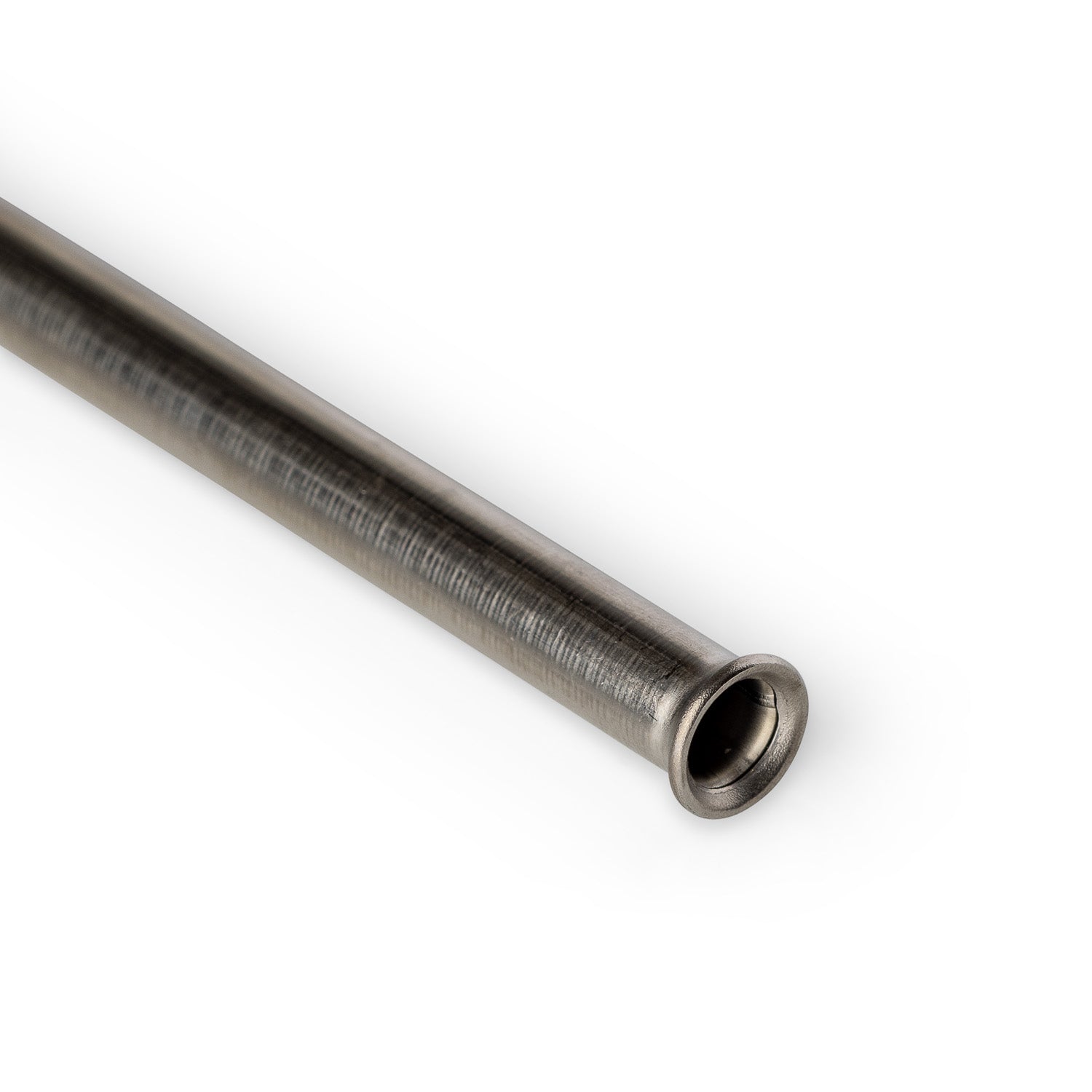

Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
